1. ആമുഖം
This manual provides essential information for the proper installation, maintenance, and troubleshooting of your Oregon 1/2" x 95" V-Belt. This V-belt is specifically designed for use in the transmission drive systems of Murray 36", 38", and 42" lawn mowers. Adhering to these instructions will help ensure optimal performance and longevity of the belt.
2 സുരക്ഷാ വിവരങ്ങൾ
- Always disconnect the spark plug wire or remove the battery before performing any maintenance or installation on your lawn mower to prevent accidental starting.
- Wear appropriate personal protective equipment, including gloves and eye protection, when working with machinery.
- Ensure the engine is cool before handling any components to avoid burns.
- Refer to your lawn mower's original owner's manual for specific safety precautions and disassembly/assembly procedures.
3. ഇൻസ്റ്റലേഷൻ
Proper installation is crucial for the V-belt's performance and lifespan. The following steps provide a general guide. Always consult your specific Murray lawn mower's service manual for detailed instructions.
- പുതപ്പ് തയ്യാറാക്കുക: Park the lawn mower on a flat, level surface. Engage the parking brake. Disconnect the spark plug wire or remove the battery to prevent accidental starting. Allow the engine to cool.
- ഡ്രൈവ് സിസ്റ്റം ആക്സസ് ചെയ്യുക: Depending on your Murray model, you may need to remove the mower deck, protective covers, or other components to gain access to the transmission drive belt.
- പഴയ ബെൽറ്റ് നീക്കം ചെയ്യുക: Carefully note the routing of the old belt around all pulleys. Use a diagram or take a photo if necessary. Release any tensioners or idler pulleys to slacken the old belt, then remove it.
- പുള്ളികൾ പരിശോധിക്കുക: Before installing the new belt, inspect all pulleys for wear, damage, or misalignment. Replace any damaged pulleys to ensure smooth belt operation.
- പുതിയ ബെൽറ്റ് ഇൻസ്റ്റാൾ ചെയ്യുക: Route the new Oregon 1/2" x 95" V-Belt around the pulleys exactly as the old belt was routed. Ensure the belt sits correctly in the grooves of all pulleys.
- ബെൽറ്റ് ടെൻഷൻ ചെയ്യുക: Re-engage any tensioners or idler pulleys. The belt should be taut but not overly tight. Refer to your mower's manual for specific tensioning requirements.
- വീണ്ടും കൂട്ടിച്ചേർക്കുക: Reinstall any covers or components that were removed. Reconnect the spark plug wire or battery.
- ടെസ്റ്റ് ഓപ്പറേഷൻ: Start the mower and engage the transmission drive at a low speed in a safe, open area to ensure the belt operates smoothly without slipping or unusual noise.

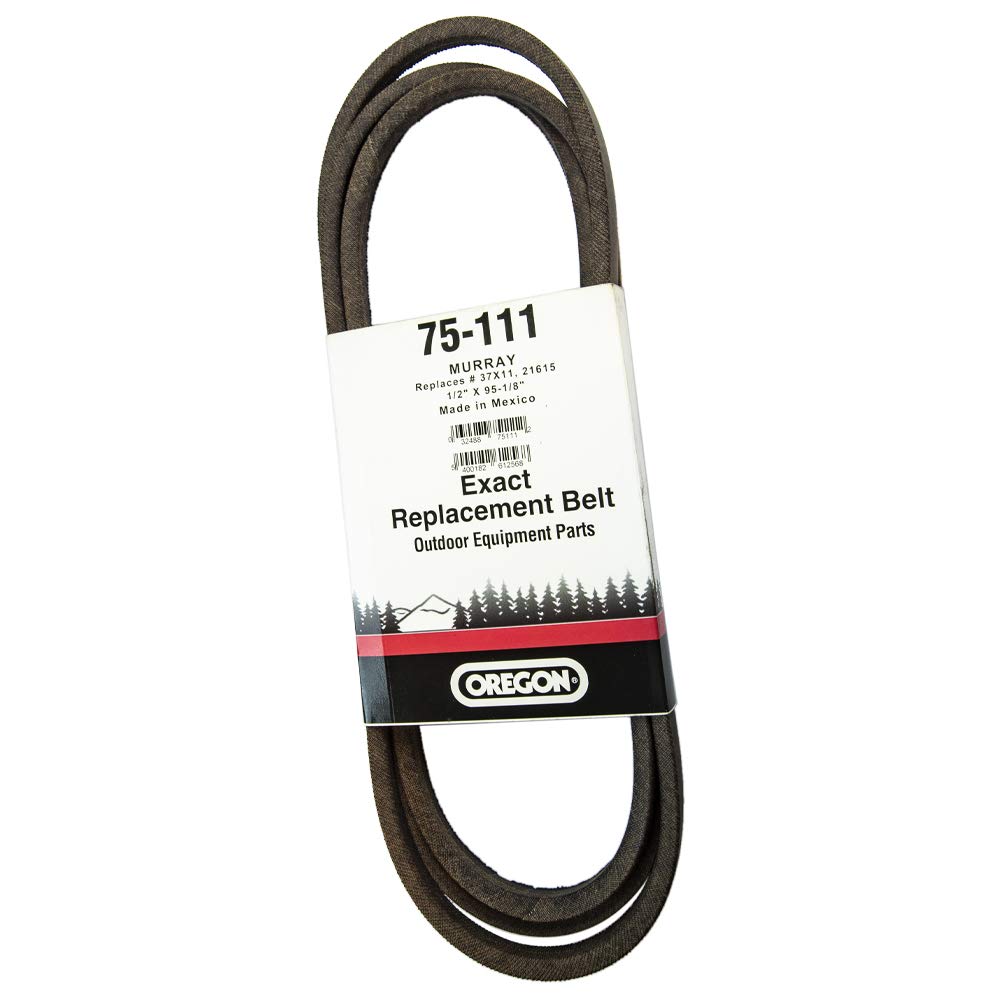

Image 1: The Oregon 1/2" x 95" V-Belt, shown coiled. This belt is designed for transmission drive systems in Murray lawn mowers.
4. പ്രവർത്തന മാർഗ്ഗനിർദ്ദേശങ്ങൾ
Once installed, the V-belt operates as an integral part of your lawn mower's transmission drive. Ensure that the belt is properly tensioned and free from obstructions before operating the mower. Avoid sudden starts or stops that could put excessive strain on the belt. If you notice any unusual noises or a decrease in drive performance, refer to the troubleshooting section.
5. പരിപാലനം
Regular inspection and maintenance will extend the life of your V-belt and ensure reliable operation.
- വിഷ്വൽ പരിശോധന: Periodically inspect the belt for signs of wear, such as cracks, fraying, glazing, or missing sections. Check for any foreign objects lodged in the belt or pulleys.
- ടെൻഷൻ പരിശോധന: Ensure the belt maintains proper tension. A belt that is too loose can slip, causing loss of power and premature wear. A belt that is too tight can strain bearings and reduce belt life.
- ശുചിത്വം: Keep the belt and pulleys free from dirt, grass clippings, oil, and other debris that can cause slippage or damage.
- മാറ്റിസ്ഥാപിക്കൽ: Replace the V-belt if it shows significant signs of wear, damage, or if it consistently slips despite proper tensioning.
6. പ്രശ്നപരിഹാരം
If you encounter issues with your transmission drive, consider the following common problems and solutions related to the V-belt:
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| ബെൽറ്റ് സ്ലിപ്പിംഗ് | Incorrect tension, worn belt, oil/grease on belt/pulleys | Adjust tension, replace belt, clean belt and pulleys |
| അസാധാരണമായ ശബ്ദം (അലർച്ച, ഞരക്കം) | Worn belt, misaligned pulleys, worn pulley bearings | Inspect and replace belt, check pulley alignment, replace worn bearings |
| Premature belt wear | Incorrect tension (too tight or too loose), misaligned pulleys, worn pulleys, foreign objects | Adjust tension, check pulley alignment, replace worn pulleys, remove obstructions |
| ബെൽറ്റ് പുള്ളികളിൽ നിന്ന് ഊരി പോകുന്നു | Incorrect tension, misaligned pulleys, damaged belt guides | Adjust tension, check pulley alignment, repair/replace belt guides |
7 സ്പെസിഫിക്കേഷനുകൾ
- ബ്രാൻഡ്: ഒറിഗോൺ
- ഉൽപ്പന്ന അളവുകൾ: 95"ലിറ്റർ x 0.5"വാട്ട്
- ബെൽറ്റ് ശൈലി: വി ബെൽറ്റ്
- ഇനത്തിൻ്റെ ഭാരം: 0.61 പൗണ്ട്
- UPC: 032488751112
- ASIN: B000AP6PXQ
- അനുയോജ്യത: Murray 36", 38", and 42" Transmission Drive Systems
8. വാറൻ്റി വിവരങ്ങൾ
Oregon products are manufactured to high-quality standards. For specific warranty details regarding your Oregon V-belt, please refer to the official Oregon webസൈറ്റിൽ ബന്ധപ്പെടുക അല്ലെങ്കിൽ അവരുടെ ഉപഭോക്തൃ പിന്തുണയുമായി ബന്ധപ്പെടുക. വാങ്ങിയതിന്റെ തെളിവായി നിങ്ങളുടെ വാങ്ങൽ രസീത് സൂക്ഷിക്കുക.
9. ഉപഭോക്തൃ പിന്തുണ
If you require further assistance with installation, maintenance, or have questions about your Oregon V-belt, please visit the official Oregon website or contact their customer service department. When contacting support, please have your product model (Oregon 1/2" x 95" V-Belt) and any relevant purchase information available.
കൂടുതൽ വിവരങ്ങളും ബന്ധപ്പെടാനുള്ള വിശദാംശങ്ങളും നിങ്ങൾക്ക് ഇവിടെ കണ്ടെത്താനാകും Oregon Store on Amazon.
