Plumb Pak/Keeney Mfg 405310 Faucet Cartridge Replacement Stem User Manual

ആമുഖം

This manual provides comprehensive instructions for the installation, operation, maintenance, and troubleshooting of the Plumb Pak/Keeney Mfg 405310 Faucet Cartridge Replacement Stem. This cartridge is designed for use with hot or cold Delex type or Peerless type two-handle faucets. Please read this manual thoroughly before beginning any installation or maintenance procedures to ensure proper function and safety.

ഉൽപ്പന്നം കഴിഞ്ഞുview

The Plumb Pak/Keeney Mfg 405310 is a replacement stem designed to restore proper water flow and temperature control in compatible two-handle faucets. It is a critical component for repairing leaky or malfunctioning faucets without replacing the entire fixture.

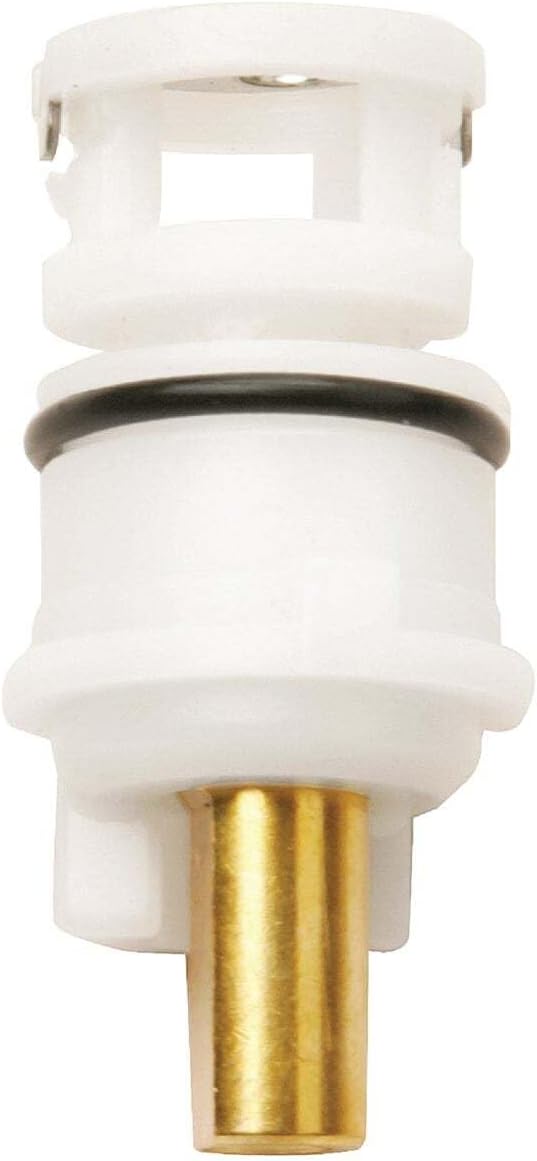

ചിത്രം 1: The Plumb Pak/Keeney Mfg 405310 Faucet Cartridge Replacement Stem. This image shows the white plastic body of the cartridge with a black O-ring and a brass stem extending from the bottom, indicating its internal components.

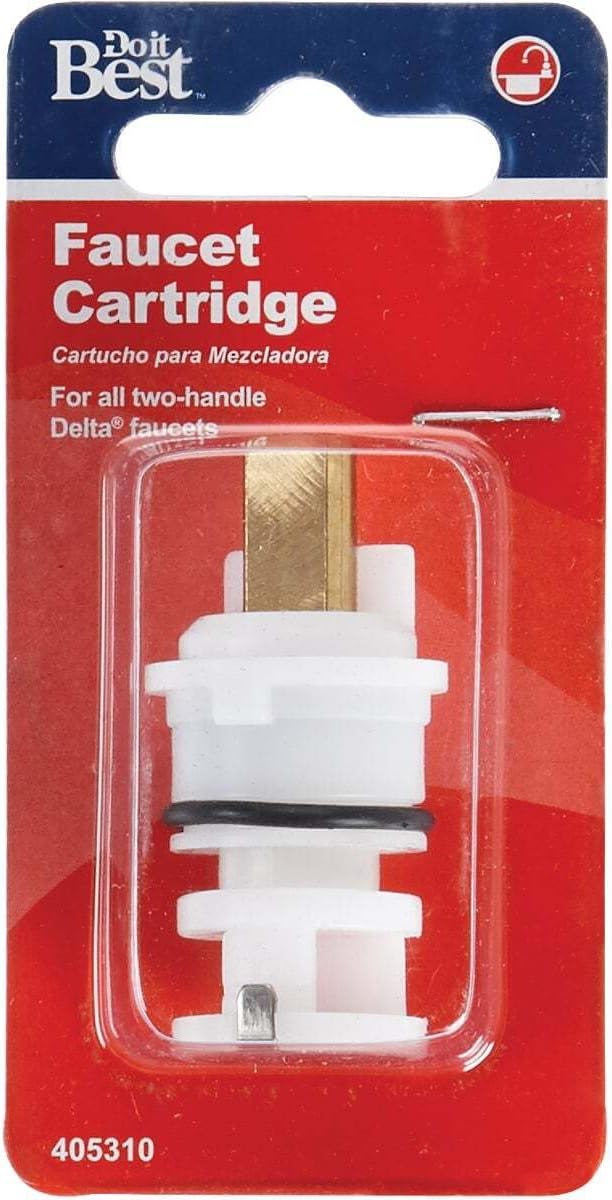

ചിത്രം 2: Packaging for the Plumb Pak/Keeney Mfg 405310 Faucet Cartridge. The red and blue carded packaging features the "Do it Best" logo and states "Faucet Cartridge" with a note "For all two-handle Delta® faucets". The model number 405310 is visible at the bottom left.

സുരക്ഷാ വിവരങ്ങൾ

Always prioritize safety when performing plumbing work. Failure to follow these guidelines may result in property damage or personal injury.

• ജലവിതരണം ഓഫാക്കുക: Before starting any work, locate and turn off the main water supply to the faucet or the entire house.
• Depressurize lines: After turning off the water, open the faucet handles to release any remaining water pressure.
• സംരക്ഷണ ഗിയർ ധരിക്കുക: സുരക്ഷാ ഗ്ലാസുകൾ, കയ്യുറകൾ എന്നിവ പോലുള്ള ഉചിതമായ വ്യക്തിഗത സംരക്ഷണ ഉപകരണങ്ങൾ ഉപയോഗിക്കുക.
• ശരിയായ ഉപകരണങ്ങൾ ഉപയോഗിക്കുക: Ensure you have the right tools for the job to prevent damage to the faucet or cartridge.
• ഒരു പ്രൊഫഷണലിനെ സമീപിക്കുക: If you are unsure about any step or encounter difficulties, consult a qualified plumber.

സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

Follow these steps carefully to replace your faucet cartridge.

ആവശ്യമായ ഉപകരണങ്ങൾ:

• ക്രമീകരിക്കാവുന്ന റെഞ്ച് അല്ലെങ്കിൽ പ്ലയർ
• Screwdriver (Phillips or flathead, depending on faucet handle screws)
• Rag or towel
• Penetrating oil (optional, for stubborn parts)

ഇൻസ്റ്റലേഷൻ ഘട്ടങ്ങൾ:

1. ജലവിതരണം ഓഫാക്കുക: Locate the shut-off valves for your faucet, typically under the sink, and turn them clockwise until fully closed. If no individual valves are present, turn off the main water supply to your home.
2. Depressurize Faucet: Open both hot and cold faucet handles to drain any remaining water and relieve pressure in the lines.
3. Remove Faucet Handles:
   • Carefully pry off any decorative caps or covers on the faucet handles to expose the retaining screws.
   • Use a screwdriver to loosen and remove the screws.
   • Lift the faucet handles off the stem.
4. Remove Trim and Escutcheon (if applicable): Depending on your faucet model, you may need to remove a decorative trim ring or escutcheon plate to access the cartridge. These are often threaded or held by small screws.
5. പഴയ കാട്രിഡ്ജ് നീക്കം ചെയ്യുക:
   • Identify the retaining nut or clip holding the cartridge in place. Use an adjustable wrench or pliers to carefully unscrew the retaining nut. If it's a clip, use a screwdriver to pry it out.
   • Gently pull the old cartridge straight out of the faucet body. If it's stuck, try wiggling it or applying penetrating oil. Note the orientation of the old cartridge for correct installation of the new one.
6. പുതിയ കാട്രിഡ്ജ് ഇൻസ്റ്റാൾ ചെയ്യുക:
   • Ensure the faucet body is clean and free of debris.
   • Insert the new Plumb Pak/Keeney Mfg 405310 cartridge into the faucet body, ensuring it is correctly oriented. The notches or flat sides on the cartridge should align with those in the faucet body.
   • Secure the cartridge with the retaining nut or clip, tightening it firmly but without over-tightening.
7. ഫ്യൂസറ്റ് വീണ്ടും കൂട്ടിച്ചേർക്കുക: Reattach the trim, escutcheon, and faucet handles in reverse order of removal. Ensure screws are snug.
8. ജലവിതരണവും പരിശോധനയും പുനഃസ്ഥാപിക്കുക: Slowly turn the water supply valves back on. Check for leaks around the faucet base and handles. Operate the faucet handles to ensure proper water flow and temperature control.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

Once installed, the Plumb Pak/Keeney Mfg 405310 Faucet Cartridge Replacement Stem functions as the core mechanism for controlling water flow and temperature in your two-handle faucet. Each handle operates a separate cartridge (hot or cold).

• ജലപ്രവാഹം: Turning the handle (typically counter-clockwise for on, clockwise for off) will open or close the cartridge, allowing water to flow or stop.
• താപനില നിയന്ത്രണം: The hot and cold cartridges work independently. Adjusting both handles allows you to mix hot and cold water to achieve your desired temperature.

Proper operation relies on the smooth movement of the faucet handles, which is directly controlled by the cartridge's internal components.

മെയിൻ്റനൻസ്

Regular maintenance is not typically required for faucet cartridges themselves, as they are sealed units. However, proper care of your faucet can extend the life of the cartridge and prevent future issues.

• ചോർച്ച പരിശോധിക്കുക: Periodically inspect the faucet for any signs of leaks around the handles or spout. Address minor drips promptly to prevent further damage.
• Clean Faucet Exterior: Clean the exterior of your faucet regularly with a mild cleaner and soft cloth to prevent mineral buildup that could affect handle operation.
• കഠിനമായ രാസവസ്തുക്കൾ ഒഴിവാക്കുക: Do not use abrasive cleaners or harsh chemicals on your faucet, as these can damage finishes and potentially affect internal components.
• ജലത്തിൻ്റെ ഗുണനിലവാരം: In areas with hard water, mineral deposits can accumulate over time. While the cartridge is designed to be durable, extreme mineral buildup can affect its performance. Consider water softening solutions if this is a persistent issue.

ട്രബിൾഷൂട്ടിംഗ്

If you encounter issues after installing the replacement cartridge, refer to the following troubleshooting guide:

If these troubleshooting steps do not resolve the issue, it is recommended to contact a qualified plumber or the manufacturer for further assistance.

സ്പെസിഫിക്കേഷനുകൾ

വാറൻ്റിയും പിന്തുണയും

Warranty information for the Plumb Pak/Keeney Mfg 405310 Faucet Cartridge Replacement Stem is typically provided by the manufacturer or the retailer at the time of purchase. Please refer to your purchase documentation or the manufacturer's official webനിർദ്ദിഷ്ട വാറന്റി നിബന്ധനകൾക്കും വ്യവസ്ഥകൾക്കും സൈറ്റ്.

For technical support or further assistance, please contact Plumb Pak/Keeney Mfg directly through their official customer service channels. Contact information can usually be found on their webസൈറ്റ് അല്ലെങ്കിൽ ഉൽപ്പന്ന പാക്കേജിംഗ്.
