Uriah Products UL555000 Magnetic Towing Light Kit User Manual

ആമുഖം

The Uriah Products UL555000 Magnetic Towing Light Kit provides essential lighting for safe towing. This kit includes two DOT approved lights designed for high visibility, ensuring compliance with road safety regulations. The lights are equipped with strong magnetic bases for easy attachment to various vehicle surfaces and connect via a 4-way flat adapter with 20 feet of wire, accommodating a wide range of towing setups. These lights function as stop, tail, and turn signals, and also support emergency flashers.

സുരക്ഷാ വിവരങ്ങൾ

Always ensure lights are securely attached to the vehicle or trailer before driving. Loose lights can detach and cause hazards.
Verify all light functions (stop, tail, turn, emergency flashers) are operational before each use.
പരമാവധി വോള്യം കവിയരുത്tag12 വോൾട്ടുകളുടെ ഇ റേറ്റിംഗ്.
Keep wiring away from hot surfaces, sharp edges, and moving parts to prevent damage.
Ensure the magnetic bases are clean and free of debris for optimal adhesion.
This product is intended for temporary towing applications. For permanent installations, consult local regulations.

പാക്കേജ് ഉള്ളടക്കം

എല്ലാ ഇനങ്ങളും ഉണ്ടെന്നും കേടുപാടുകൾ സംഭവിച്ചിട്ടില്ലെന്നും ഉറപ്പാക്കാൻ പാക്കേജ് ഉള്ളടക്കങ്ങൾ പരിശോധിക്കുക.

Two (2) Magnetic Towing Lights
One (1) Wiring Harness with 4-Way Flat Adapter (20 feet long)

സജ്ജീകരണ നിർദ്ദേശങ്ങൾ

മൗണ്ടിംഗ് ഉപരിതലം തയ്യാറാക്കുക: Ensure the metal surface where the lights will be attached is clean, dry, and free of rust or paint chips. This ensures maximum magnetic adhesion.
ലൈറ്റുകൾ അറ്റാച്ചുചെയ്യുക: Place each magnetic towing light securely on the rear of the towed vehicle or trailer. Position them to provide clear visibility to other drivers, typically at the widest points of the vehicle. The lights are designed with a 5-foot span between them to fit various vehicle widths.
റൂട്ട് വയറിംഗ്: Carefully route the 20-foot wiring harness from the lights to the towing vehicle's hitch area. Ensure the wire is not pinched, stretched, or exposed to excessive heat or moving parts. Use zip ties or clips (not included) to secure the wiring if necessary.
Connect to Towing Vehicle: Plug the 4-way flat adapter into the corresponding receptacle on your towing vehicle. Ensure a snug and secure connection.
ടെസ്റ്റ് ലൈറ്റുകൾ: Before driving, perform a full test of all light functions.
- Turn on your towing vehicle's headlights to check tail lights.
- Press the brake pedal to check stop lights.
- Activate left and right turn signals to check corresponding lights.
- Activate emergency flashers to check both lights flashing simultaneously.

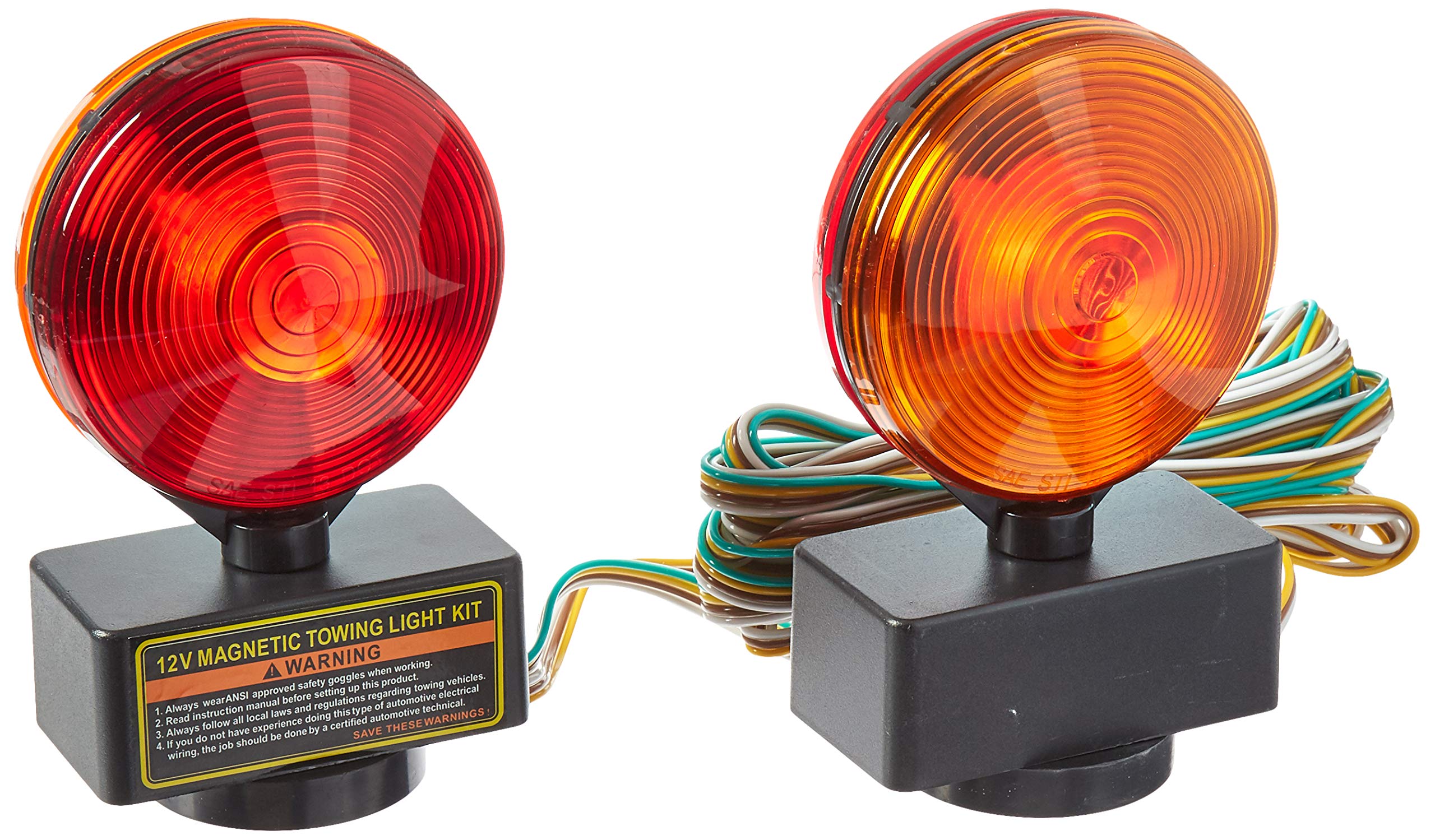

Uriah Products UL555000 Magnetic Towing Light Kit showing dimensions

ചിത്രം 1: The Uriah Products UL555000 Magnetic Towing Light, illustrating its compact size and magnetic base. The image shows the light's dimensions, approximately 7.1 inches (18 cm) in height, indicating its suitability for various mounting locations.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

Once properly installed and tested, the Uriah Products UL555000 Magnetic Towing Lights operate in conjunction with your towing vehicle's electrical system. They will automatically activate based on your vehicle's signals.

ടെയിൽ ലൈറ്റുകൾ: Illuminate when your towing vehicle's headlights or parking lights are on.
സ്റ്റോപ്പ് ലൈറ്റുകൾ: Illuminate brightly when your towing vehicle's brake pedal is pressed.
ടേൺ സിഗ്നലുകൾ: Flash when your towing vehicle's left or right turn signal is activated.
Emergency Flashers: Both lights will flash simultaneously when your towing vehicle's hazard lights are engaged.

Always monitor the functionality of the lights during your journey, especially after long periods of towing or rough terrain.

മെയിൻ്റനൻസ്

വൃത്തിയാക്കൽ: Periodically clean the light lenses with a soft cloth and mild soap to ensure maximum light output and visibility. Avoid abrasive cleaners.
Magnetic Bases: Keep the magnetic bases clean and free of metal shavings or debris to maintain strong adhesion.
വയറിംഗ് പരിശോധന: Regularly inspect the wiring harness for any signs of wear, cuts, or fraying. Check connections for corrosion or looseness. Replace damaged components immediately.
സംഭരണം: When not in use, store the light kit in a dry, protected area to prevent damage from elements.

ട്രബിൾഷൂട്ടിംഗ്

പ്രശ്നം	സാധ്യമായ കാരണം	പരിഹാരം
വിളക്കുകൾ പ്രകാശിക്കുന്നില്ല.	No power from towing vehicle. അയഞ്ഞതോ കേടായതോ ആയ കണക്ഷൻ. കേടായ വയറിംഗ്.	Check towing vehicle's fuse for trailer lights. Ensure 4-way flat adapter is fully seated and clean. Inspect wiring harness for damage and repair or replace if necessary.
Only one light functions.	Faulty bulb (if replaceable) or LED. Break in wiring to the non-functioning light.	Check the specific light's connection. Inspect the wiring leading to the affected light. If LED, the unit may need replacement.
Lights flicker or are intermittent.	Loose connection at the 4-way adapter or within the harness. Corrosion on electrical contacts.	Ensure all connections are tight and clean. Clean contacts with electrical contact cleaner.
Lights detach during travel.	Unclean magnetic surface. Excessive vibration or impact.	Clean the mounting surface and magnetic base thoroughly. Ensure lights are placed on a flat, stable metal surface. Consider additional securing methods for very rough terrain.

സ്പെസിഫിക്കേഷനുകൾ

മോഡൽ: UL555000
ബ്രാൻഡ്: യൂറിയ ഉൽപ്പന്നങ്ങൾ
നിർമ്മാതാവ്: യൂറിയ ഉൽപ്പന്നങ്ങൾ
വാല്യംtage: 12 വോൾട്ട്
ഇനത്തിൻ്റെ ഭാരം: ഏകദേശം 2.4 പൗണ്ട്
ഉൽപ്പന്ന അളവുകൾ: Approximately 13 x 2.5 x 10.5 inches (overall kit packaging)
പ്രകാശ സ്ഥാനം: പിൻഭാഗം
വയർ നീളം: 20 അടി
അഡാപ്റ്റര് തരം: 4-Way Flat
Light Span: 5 feet between lights
അംഗീകാരങ്ങൾ: DOT approved

വാറൻ്റിയും പിന്തുണയും

Uriah Products stands behind the quality of its products. For specific warranty information, please refer to the documentation included with your purchase or visit the official Uriah Products website. If you encounter any issues or require technical assistance, please contact Uriah Products customer support directly.

നിർമ്മാതാവ്: യൂറിയ ഉൽപ്പന്നങ്ങൾ

Webസൈറ്റ്: Uriah Products Store on Amazon (പൊതു ബ്രാൻഡ് വിവരങ്ങൾക്ക്)
