Powerbuilt Spider Oil Filter Wrench (Model 648659) Instruction Manual

1. ആമുഖം

This manual provides essential instructions for the safe and effective use of your Powerbuilt Spider Oil Filter Wrench, Model 648659. This tool is designed for the removal of automotive oil filters within a specified diameter range. Please read this manual thoroughly before operation and retain it for future reference.

2 സുരക്ഷാ വിവരങ്ങൾ

Always observe the following safety precautions to prevent injury or damage to the tool and vehicle:

• Wear appropriate personal protective equipment, including safety glasses and gloves, during operation.
• Ensure the vehicle is stable and properly supported before working underneath it.
• Do not use the wrench on hot engine components. Allow the engine and oil filter to cool down.
• Verify the oil filter wrench is correctly seated and gripping the filter before applying torque.
• Do not use excessive force. If the filter is seized, consider alternative removal methods or professional assistance.
• Keep hands and clothing clear of moving parts and rotating tools.
• The vinyl tip guards are for protection during storage and handling. For maximum grip during filter removal, these tips should be removed.

3. ഉൽപ്പന്നം കഴിഞ്ഞുview ഘടകങ്ങളും

The Powerbuilt Spider Oil Filter Wrench features an auto-adjusting 3-jaw design for versatile application. Key components include:

• Auto-Adjusting Jaws: Three spiral-clamping jaws that automatically adapt to filter sizes.
• 3/8-Inch Square Drive: Integrated drive for attachment to a ratchet, extension, or breaker bar.
• ഹെവി-ഡ്യൂട്ടി സ്റ്റീൽ നിർമ്മാണം: Durable metal body and jaws for reliable performance.
• Protective Sleeves (Removable): Red vinyl tips on the jaws, intended for product protection.

Image 1: The Powerbuilt Spider Oil Filter Wrench, showcasing its three-jaw design and 3/8-inch drive.

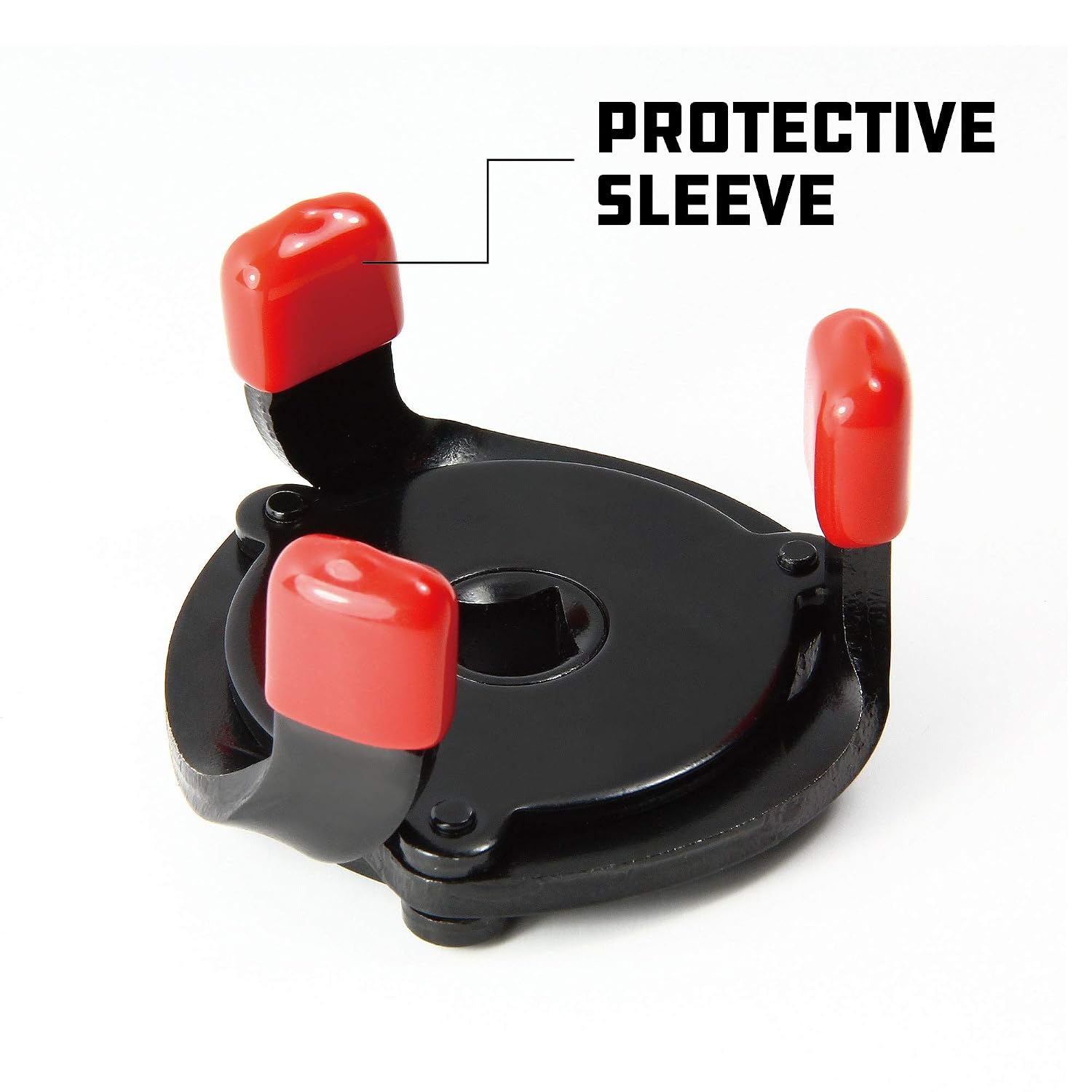

ചിത്രം 2: ക്ലോസ്-അപ്പ് view of the wrench jaws, highlighting the red protective sleeves on each jaw tip.

4. സജ്ജീകരണം

Before using the oil filter wrench, ensure proper setup:

1. ഉപകരണം പരിശോധിക്കുക: Check the wrench for any signs of damage or wear. Do not use if damaged.
2. Remove Protective Sleeves: For optimal grip, remove the red vinyl protective sleeves from the jaws before use. These are designed for product protection during shipping and storage, not for operation.
3. Attach Drive Tool: Insert a 3/8-inch square drive ratchet, extension bar, or breaker bar into the square drive opening on the top of the wrench.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

Follow these steps to remove an oil filter using the Powerbuilt Spider Oil Filter Wrench:

1. റെഞ്ച് സ്ഥാപിക്കുക: Place the wrench over the end of the oil filter. The three jaws will automatically adjust and grip the filter as torque is applied.
2. Ensure Secure Grip: Confirm that the jaws are firmly seated around the filter. The design allows the jaws to tighten their grip as the drive tool is turned counter-clockwise.
3. ടോർക്ക് പ്രയോഗിക്കുക: Using the attached ratchet or extension, turn the wrench counter-clockwise to loosen the oil filter.
4. ഫിൽറ്റർ നീക്കം ചെയ്യുക: Once loosened, the filter can typically be unscrewed by hand. Be prepared for oil spillage.

Image 3: Illustration showing the auto-adjusting mechanism of the wrench and its compatibility with oil filters ranging from 2-1/2 inches to 3-7/8 inches (63.5mm - 98.4mm) in diameter.

Image 4: The Powerbuilt Spider Oil Filter Wrench attached to a ratchet, actively gripping and loosening an oil filter.

6. പരിപാലനം

Proper maintenance ensures the longevity and performance of your tool:

• വൃത്തിയാക്കൽ: After each use, wipe the wrench clean of oil and debris.
• ലൂബ്രിക്കേഷൻ: Periodically apply a light coat of oil to the pivot points of the jaws to ensure smooth operation.
• സംഭരണം: Store the wrench in a dry place to prevent rust. Re-attach the protective vinyl sleeves for storage if desired.
• പരിശോധന: Regularly inspect the jaws and drive mechanism for wear, cracks, or damage. Replace the tool if any significant damage is observed.

7. പ്രശ്‌നപരിഹാരം

പ്രവർത്തന സമയത്ത് നിങ്ങൾക്ക് പ്രശ്നങ്ങൾ നേരിടുകയാണെങ്കിൽ, ഇനിപ്പറയുന്നവ പരിഗണിക്കുക:

• Wrench Slips on Filter:
  • Ensure the red vinyl protective sleeves have been removed from the jaws. These sleeves reduce grip.
  • Verify the filter diameter is within the tool's specified range (2-1/2" to 3-7/8").
  • Ensure the wrench is fully seated on the filter before applying torque.
• Filter Will Not Loosen:
  • The filter may be overtightened or seized. Apply steady, increasing pressure. Avoid sudden jerking motions.
  • Consider using a longer breaker bar for increased leverage, if safe to do so.
  • If the filter remains stuck, professional assistance may be required to avoid damaging the engine.

8 സ്പെസിഫിക്കേഷനുകൾ

9. വാറൻ്റിയും പിന്തുണയും

For warranty information or technical support regarding your Powerbuilt Spider Oil Filter Wrench, please refer to the official Powerbuilt webസൈറ്റിൽ ബന്ധപ്പെടുകയോ അവരുടെ ഉപഭോക്തൃ സേവന വിഭാഗവുമായി ബന്ധപ്പെടുകയോ ചെയ്യുക. വാറന്റി ക്ലെയിമുകൾക്കായി നിങ്ങളുടെ വാങ്ങൽ രസീത് സൂക്ഷിക്കുക.

നിർമ്മാതാവ്: All Trade Tools

ആദ്യം ലഭ്യമായ തീയതി: 22 ജനുവരി 2011
