Bear Archery Brave 3 Right Hand Bow Set - User Manual

ആമുഖം

The Bear Archery Brave 3 Bow Set is designed to provide a quality introduction to the sport of archery for young enthusiasts. This set includes essential components to help develop fundamental archery skills. Built with durable composite limbs and riser, this right-hand only bow offers a reliable and consistent shooting experience for its intended users.

This manual provides detailed instructions for the proper setup, safe operation, maintenance, and troubleshooting of your Brave 3 Bow Set. Please read all instructions carefully before use to ensure safety and optimal performance.

പ്രധാനപ്പെട്ട സുരക്ഷാ വിവരങ്ങൾ

WARNING: This bow set is not a toy. Children under 16 years of age require adult supervision during assembly and use. Ages may vary for this bow in accordance with the child's size and shooting ability. Always wear appropriate protective gear, including an armguard and eye protection, when using the bow. Ensure your shooting area is clear of people and obstacles. Never dry-fire the bow (drawing and releasing the string without an arrow), as this can cause damage to the bow and injury to the user.

പ്രൊപ്പോസിഷൻ 65 മുന്നറിയിപ്പ്: ഈ ഉൽപ്പന്നത്തിൽ കാലിഫോർണിയ സംസ്ഥാനത്തിന് ക്യാൻസറിനും ജനന വൈകല്യങ്ങൾക്കും അല്ലെങ്കിൽ മറ്റ് പ്രത്യുൽപാദന വൈകല്യങ്ങൾക്കും കാരണമാകുന്ന രാസവസ്തുക്കൾ അടങ്ങിയിരിക്കാം.

പാക്കേജ് ഉള്ളടക്കം

Your Bear Archery Brave 3 Bow Set includes the following items:

• 1 x Brave 3 Compound Bow (Right Hand)
• 2 x Safetyglass™ Arrows
• 1 x Armguard
• 1 x Two-piece Arrow Quiver
• 1 x Whisker Biscuit Arrow Rest®
• 1 x 1-Pin Composite Sight
• 1 x Temporary Tattoo

ചിത്രം 1: വിശദമായി view of the included accessories as listed on the product packaging.

Figure 2: The Bear Archery Brave 3 Bow Set as packaged.

സജ്ജീകരണ നിർദ്ദേശങ്ങൾ

1. Attaching the Whisker Biscuit Arrow Rest®

1. Locate the threaded hole on the riser of the bow, typically above the grip.
2. Align the Whisker Biscuit Arrow Rest® with this hole.
3. Carefully screw the arrow rest into the riser until it is snug. Do not overtighten. Ensure the bristles of the Whisker Biscuit are facing towards the bowstring.

2. Installing the 1-Pin Composite Sight

1. Find the sight mounting holes on the side of the bow's riser.
2. Attach the 1-Pin Composite Sight using the provided screws.
3. Adjust the sight vertically to align with your initial shooting distance. Fine-tuning will be done during practice.

3. Assembling the Two-Piece Arrow Quiver

1. The quiver typically attaches to the bow's riser using two mounting points.
2. Secure the top and bottom sections of the quiver to the designated holes on the bow.
3. Ensure the quiver is securely fastened and does not interfere with the bowstring or arrow flight.

4. Wearing the Armguard

The armguard should be worn on the forearm of your bow hand (the arm holding the bow). This protects your forearm from being struck by the bowstring upon release. Adjust the straps for a comfortable, secure fit without restricting circulation.

Figure 3: This bow is designed for right-handed users.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

1. Understanding Draw Length and Draw Weight

The Brave 3 bow features an adjustable draw length of 15 to 20 inches and a draw weight of 15 to 20 pounds. These settings are designed for young archers and can be adjusted to match the user's physical capabilities. Consult a qualified archery technician for assistance with draw length and weight adjustments to ensure proper fit and safe operation.

2. Proper Shooting Form

• നിലപാട്: Stand with your feet shoulder-width apart, perpendicular to the target.
• പിടി: Hold the bow lightly with your bow hand, allowing the bow to pivot slightly in your hand upon release.
• Nocking the Arrow: Place the arrow on the arrow rest and snap the nock onto the bowstring, ensuring the odd-colored fletching points away from the bow.
• ഡ്രോയിംഗ്: Use your back muscles to smoothly draw the bowstring back to your anchor point (a consistent spot on your face).
• ലക്ഷ്യം: Use the 1-pin sight to align with your target.
• റിലീസ്: Relax your fingers to smoothly release the bowstring. Follow through with your shot.

Consistent practice with proper form is key to accuracy and safety. Seek guidance from an experienced archer or certified instructor.

മെയിൻ്റനൻസ്

Regular maintenance will extend the life and performance of your Brave 3 Bow Set.

• Bowstring Care: Periodically inspect the bowstring for fraying or wear. Apply bowstring wax regularly to protect the string and prolong its life.
• Limb and Riser Inspection: Check the composite limbs and riser for any cracks, dents, or damage before each use.
• അമ്പടയാള പരിശോധന: Before shooting, inspect each Safetyglass™ arrow for cracks, splinters, or bent shafts. Discard any damaged arrows immediately.
• സംഭരണം: Store the bow in a cool, dry place, away from extreme temperatures and direct sunlight. It is recommended to store the bow unstrung if it will not be used for an extended period, though this model is designed to be stored strung.
• വൃത്തിയാക്കൽ: Wipe down the bow with a soft, damp cloth after use to remove dirt and debris. Avoid harsh chemicals.

ട്രബിൾഷൂട്ടിംഗ്

• Inconsistent Arrow Flight: Ensure arrows are properly nocked, the arrow rest is secure, and your shooting form is consistent. Check arrows for damage.
• Bowstring Fraying: Apply bowstring wax. If fraying is severe, the bowstring may need to be replaced by a qualified technician.
• Loose String at Rest (Sloppy String): Some users have reported the string appearing loose at lower draw weights. This can sometimes be a characteristic of certain compound bow designs. If it significantly impacts performance or safety, consult an archery professional. Ensure draw weight adjustments are made correctly.
• Difficulty Drawing the Bow: Ensure the draw weight is set appropriately for the user's strength. If it feels too heavy, it may need to be adjusted to a lower setting.

സ്പെസിഫിക്കേഷനുകൾ

The following are the key specifications for the Bear Archery Brave 3 Right Hand Bow Set:

Figure 4: Key specifications and features as printed on the product packaging.

വാറൻ്റിയും പിന്തുണയും

For specific warranty information and customer support, please refer to the documentation included with your product or visit the official Bear Archery website. Contact their customer service for any technical assistance or inquiries regarding parts and service.

അധിക വിവരം

Figure 5: The temporary tattoo included in the set.

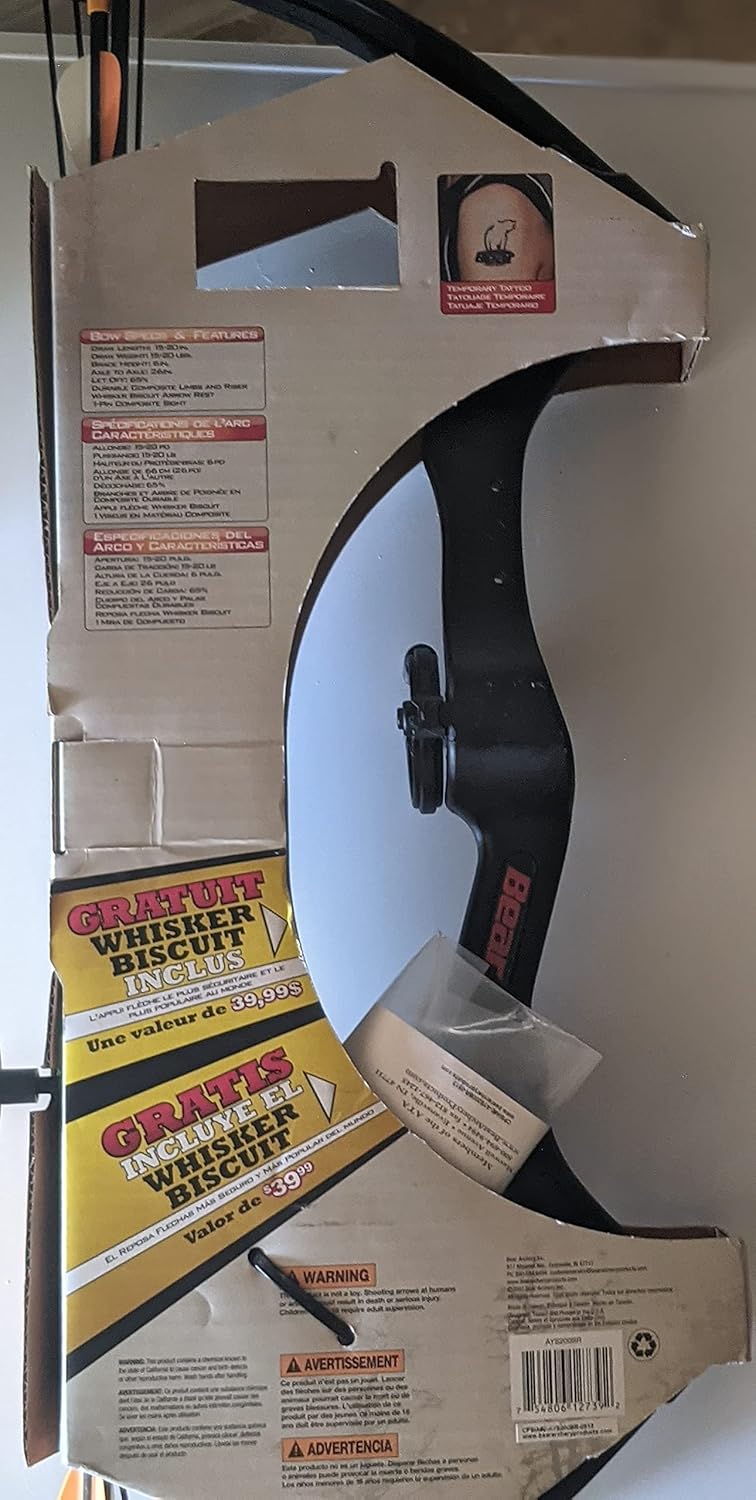

ചിത്രം 6: പിൻഭാഗം view ഉൽപ്പന്ന പാക്കേജിംഗിന്റെ.
