Mueller Spiral-Ultra 4-Blade Spiralizer Instruction Manual

ആമുഖം

The Mueller Spiral-Ultra is a versatile kitchen tool designed to transform vegetables and fruits into various shapes, including spirals, ribbons, noodles, and chips. This manual provides detailed instructions for the safe and effective use, assembly, maintenance, and troubleshooting of your spiralizer.

Image: The Mueller Spiral-Ultra 4-Blade Spiralizer with its components and fresh produce.

പാക്കേജ് ഉള്ളടക്കം

നിങ്ങളുടെ പാക്കേജിൽ എല്ലാ ഇനങ്ങളും ഉണ്ടെന്ന് ഉറപ്പാക്കുക:

• Mueller Spiral-Ultra main unit
• 4 stainless steel blades (slicer, fine julienne, coarse julienne, grater/shredder)
• 4-cup container
• Protective mandoline vegetable holder
• സിട്രസ് ജ്യൂസർ അറ്റാച്ച്മെന്റ്
• Printed color manual

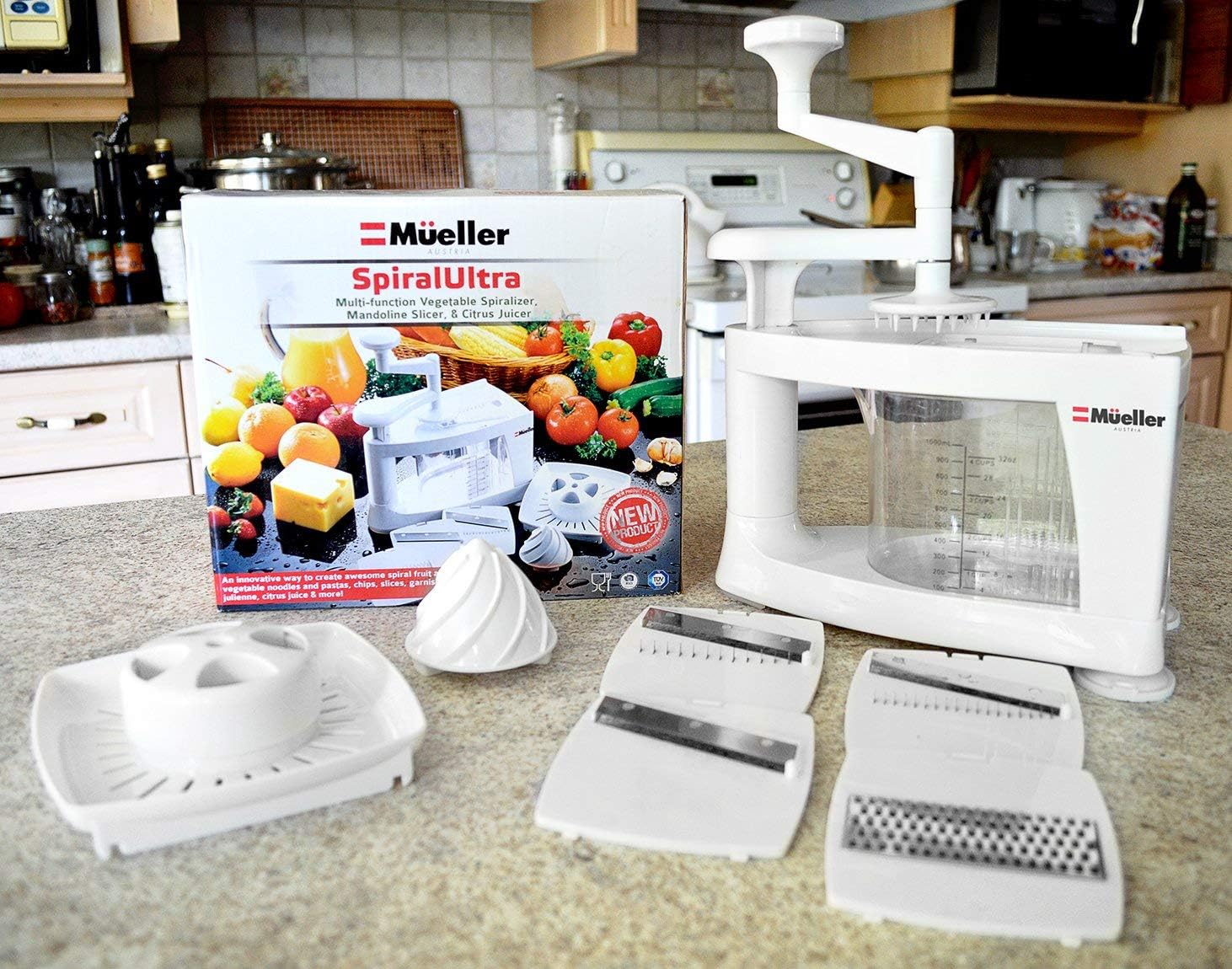

Image: All components of the Mueller Spiral-Ultra Spiralizer, including the main unit, blades, container, and attachments.

സജ്ജമാക്കുക

1. ഘടകങ്ങൾ അൺപാക്ക് ചെയ്യുക: Carefully remove all parts from the packaging. Handle blades with caution as they are sharp.
2. ആദ്യ ഉപയോഗത്തിന് മുമ്പ് വൃത്തിയാക്കുക: Wash all components with warm, soapy water or place them on the top rack of a dishwasher. Rinse thoroughly and dry.
3. അടിസ്ഥാനം കൂട്ടിച്ചേർക്കുക: Place the main unit on a clean, flat, and stable surface. Ensure the suction cup feet are clean and dry for optimal grip. Press down firmly on the unit to secure it to the countertop.
4. Insert Desired Blade: Select the appropriate blade for your task. Align the blade with the slot on the main unit and slide it into place until it clicks securely.
5. കണ്ടെയ്നറിന്റെ സ്ഥാനം: Place the 4-cup container directly beneath the blade assembly to collect processed food.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

General Spiralizing

1. Prepare Produce: Wash the fruit or vegetable. For best results, trim both ends to create flat surfaces. For longer vegetables, cut them into manageable segments.
2. Secure Produce: Center the prepared produce onto the spikes of the turning handle. Ensure it is firmly seated.
3. Engage Blade: Position the produce against the selected blade. Apply gentle downward pressure on the turning handle.
4. Begin Spiralizing: Turn the handle clockwise while maintaining steady downward pressure. The spiralized food will fall into the collection container below.
5. Clear Container: If processing large quantities, periodically remove the container and empty its contents to prevent overflow.

Using Different Blades

The Spiral-Ultra includes four interchangeable blades for various cutting styles:

• Slicer Blade: For wide, flat cuts suitable for chips or garnishes.
• Fine Julienne Blade: Produces thin, spaghetti-like strands for vegetable noodles.
• Coarse Julienne Blade: Creates thicker strands, ideal for heartier vegetable pasta.
• Grater/Shredder Blade: For grating cheese, vegetables, or creating fine shreds.

ചിത്രം: വിഷ്വൽ എക്സ്amples of the various cuts achievable with the different blades.

Mandoline Slicing

To use the mandoline function, insert the desired slicing blade. Use the protective mandoline vegetable holder to safely guide produce across the blade, ensuring even slices and protecting your hands.

സിട്രസ് ജ്യൂസർ അറ്റാച്ച്മെന്റ്

Attach the citrus juicer component to the main unit. Cut citrus fruits in half, place one half onto the reamer, and press down while twisting to extract juice into the collection container.

പ്രബോധന വീഡിയോ

പരിപാലനവും ശുചീകരണവും

Proper cleaning ensures the longevity and hygiene of your spiralizer:

• ഡിഷ്വാഷർ സുരക്ഷിതം: All components are dishwasher safe. Place them on the top rack for cleaning.
• കെെ കഴുകൽ: For hand washing, rinse components under running water immediately after use. Use a brush to safely clean blade areas and remove any food residue.
• ഉണക്കൽ: സൂക്ഷിക്കുന്നതിനുമുമ്പ് എല്ലാ ഭാഗങ്ങളും വായുവിൽ പൂർണ്ണമായും ഉണങ്ങാൻ അനുവദിക്കുക.
• സംഭരണം: The unit is designed for compact storage, with all attachments fitting within the main unit and 4-cup container.

ട്രബിൾഷൂട്ടിംഗ്

• Vegetables not spiralizing evenly: Ensure both ends of the vegetable are trimmed flat. For long or irregularly shaped vegetables, cut them into shorter, more uniform segments. Apply consistent downward pressure while turning the handle.
• Unit not stable on countertop: Verify that the suction cup feet and the countertop surface are clean and dry. Press down firmly on the unit to engage the suction cups.
• Staining on plastic components: Certain highly pigmented vegetables (e.g., carrots, sweet potatoes) may cause minor staining on white plastic parts. This is normal and does not affect performance. Prompt cleaning after use can help minimize staining.
• Difficulty with hard vegetables: For very hard vegetables like sweet potatoes, ensure they are properly centered and apply firm, steady pressure. If still difficult, consider pre-softening slightly (e.g., by blanching) or selecting a different blade.

സ്പെസിഫിക്കേഷനുകൾ

വാറൻ്റിയും പിന്തുണയും

The Mueller Spiral-Ultra is backed by a lifetime warranty. For any questions, assistance, or warranty claims, please contact customer support. Live telephone customer support is available.
