ആമുഖം
This manual provides comprehensive instructions for the assembly, operation, and maintenance of your Sauder Select Multipurpose Storage Cabinet, Model 420055. This versatile cabinet, finished in Cinnamon Cherry, is designed to offer organized storage with a garment rod, fixed shelf, adjustable shelf, and two drawers, making it suitable for various rooms such as bedrooms, utility rooms, or home offices.
സുരക്ഷാ വിവരങ്ങൾ
മുന്നറിയിപ്പ്: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Always refer to this instruction manual for proper assembly and usage to ensure safety. Ensure all hardware is securely fastened before use. Do not overload shelves or drawers. For stability, it is recommended to secure the cabinet to a wall using appropriate anti-tip hardware (not always included, but highly recommended for safety, especially in homes with children).
പാക്കേജ് ഉള്ളടക്കം
അസംബ്ലി ആരംഭിക്കുന്നതിന് മുമ്പ്, എല്ലാ ഘടകങ്ങളും നിലവിലുണ്ടെന്നും കേടുപാടുകൾ സംഭവിച്ചിട്ടില്ലെന്നും ഉറപ്പാക്കുക. പാക്കേജിൽ ഇവ ഉൾപ്പെടണം:
- All necessary engineered wood panels for the cabinet structure, doors, and drawers.
- Hardware kit (screws, dowels, cam locks, drawer slides, handles, garment rod supports).
- Garment rod.
- Adjustable shelves and fixed shelves.
- വിശദമായ അസംബ്ലി നിർദ്ദേശങ്ങൾ.
If any parts are missing or damaged, contact Sauder customer support for assistance.
സജ്ജീകരണവും അസംബ്ലി നിർദ്ദേശങ്ങളും
Assembly is required for this product. Follow the included step-by-step instructions carefully. It is recommended to have a second person for assistance during assembly.
- അൺപാക്ക് ചെയ്ത് ഓർഗനൈസ് ചെയ്യുക: Open the box in the area where the cabinet will be assembled. Carefully remove all parts and lay them out. Verify all parts against the included parts list.
- ആവശ്യമായ ഉപകരണങ്ങൾ: A Phillips head screwdriver is essential. A low-torque electric drill can expedite the process but use caution to avoid stripping screws or damaging wood.
- പാനൽ അസംബ്ലി: Begin by assembling the main frame of the cabinet. Ensure all cam locks and dowels are properly seated and tightened.
- ഡ്രോയർ അസംബ്ലി: Assemble the two drawers, ensuring the drawer slides are correctly oriented. If handles are difficult to install, pre-tapping the holes may be necessary.
- വാതിൽ ഇൻസ്റ്റാളേഷൻ: Attach the doors using the provided hinges. Ensure the garment rod brackets are installed on the proper sides before attaching the doors.
- ഷെൽഫ് പ്ലേസ്മെൻ്റ്: Install the fixed shelf and adjustable shelves as desired.
- Final Positioning and Stability: Once assembled, carefully move the cabinet to its final location. If the floor is uneven, use shims to level the cabinet and prevent doors or drawers from becoming misaligned. Secure the cabinet to a wall stud using an anti-tip strap or screws for enhanced stability.
Video: This video demonstrates the proper technique for installing cam and dowel fasteners during assembly, a common step in Sauder furniture construction.
Image: Detail of a self-closing adjustable hinge, allowing for precise door alignment.
Image: Detail of the decorative silver handle on one of the cabinet drawers.
Image: Decorative hardware and panel detailing on the cabinet, showcasing the Cinnamon Cherry finish.
പ്രവർത്തന നിർദ്ദേശങ്ങൾ (ഉപയോഗം)
The Sauder Select Multipurpose Storage Cabinet is designed for versatile organization. Utilize its features as follows:
- Garment Rod: The full-length door section includes a garment rod for hanging clothes such as jackets, shirts, and dresses.
- ക്രമീകരിക്കാവുന്ന ഷെൽഫുകൾ: Customize the interior space by adjusting the height of the shelves to accommodate items of various sizes, from folded linens to books or decorative items.
- ഡ്രോയറുകൾ: The two deep drawers provide concealed storage for smaller items, accessories, or personal belongings.
Image: The Sauder Select Multipurpose Storage Cabinet in Cinnamon Cherry, closed, in a bedroom setting.
ചിത്രം: വിശദമായത് views highlighting key features: self-closing adjustable hinges, adjustable shelf, garment rod, and spacious drawers.
ചിത്രം: ഉദാamples of the cabinet's versatile use in various rooms, including a bathroom, general storage area, laundry room, and office.
മെയിൻ്റനൻസ്
To maintain the appearance and longevity of your storage cabinet:
- വൃത്തിയാക്കൽ: പരസ്യം ഉപയോഗിച്ച് ഉപരിതലങ്ങൾ തുടയ്ക്കുകamp തുണി. ഫിനിഷിന് കേടുവരുത്തുന്ന കഠിനമായ രാസവസ്തുക്കളോ അബ്രാസീവ് ക്ലീനറുകളോ ഒഴിവാക്കുക.
- ചോർച്ച: എഞ്ചിനീയറിംഗ് ചെയ്ത തടിയിൽ കറയോ കേടുപാടുകളോ ഉണ്ടാകാതിരിക്കാൻ ചോർച്ചകൾ ഉടനടി വൃത്തിയാക്കുക.
- ഹാർഡ്വെയർ: Periodically check all screws and fasteners to ensure they remain tight. Tighten as needed to maintain structural integrity.
ട്രബിൾഷൂട്ടിംഗ്
| ഇഷ്യൂ | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| Doors or drawers are crooked/misaligned. | Uneven floor; loose hinges/drawer slides; incorrect assembly. | Level the cabinet with shims if the floor is uneven. Adjust door hinges using the adjustment screws. Tighten screws on drawer rails. Review assembly instructions for correct placement of parts. |
| Drawers make noise or stick. | Loose drawer slide screws; incorrect rail alignment. | Tighten all screws on the drawer slides. Ensure the drawer rails are installed in the correct holes as per the manual. |
| കാബിനറ്റ് അസ്ഥിരമായോ ഇളകുന്നതോ ആയി തോന്നുന്നു. | Loose fasteners; not secured to wall. | Ensure all assembly fasteners are tightened. Secure the cabinet to a wall stud using an anti-tip kit (if not included, purchase separately for safety). |
| Handles are loose or difficult to attach. | Screws not fully engaged; holes not properly aligned. | Ensure screws are fully tightened. If holes are tight, gently pre-tap them with a smaller screw or drill bit before inserting the handle screws. |
സ്പെസിഫിക്കേഷനുകൾ
- മോഡൽ നമ്പർ: 420055
- ബ്രാൻഡ്: Sauder
- നിറം: Cinnamon Cherry
- മെറ്റീരിയൽ: എഞ്ചിനീയറിംഗ് വുഡ്
- ഉൽപ്പന്ന അളവുകൾ (D x W x H): 19.45" x 40" x 71.1" (49.4 സെ.മീ x 101.6 സെ.മീ x 180.6 സെ.മീ)
- ഇനത്തിൻ്റെ ഭാരം: 136.2 പൗണ്ട് (61.78 കി.ഗ്രാം)
- വാതിലുകളുടെ എണ്ണം: 2
- ഡ്രോയറുകളുടെ എണ്ണം: 2
- ഷെൽഫുകളുടെ എണ്ണം: 3 (including 1 fixed, 2 adjustable)
- അധിക സവിശേഷതകൾ: Adjustable Shelf, Garment Rod
- അസംബ്ലി ആവശ്യമാണ്: അതെ

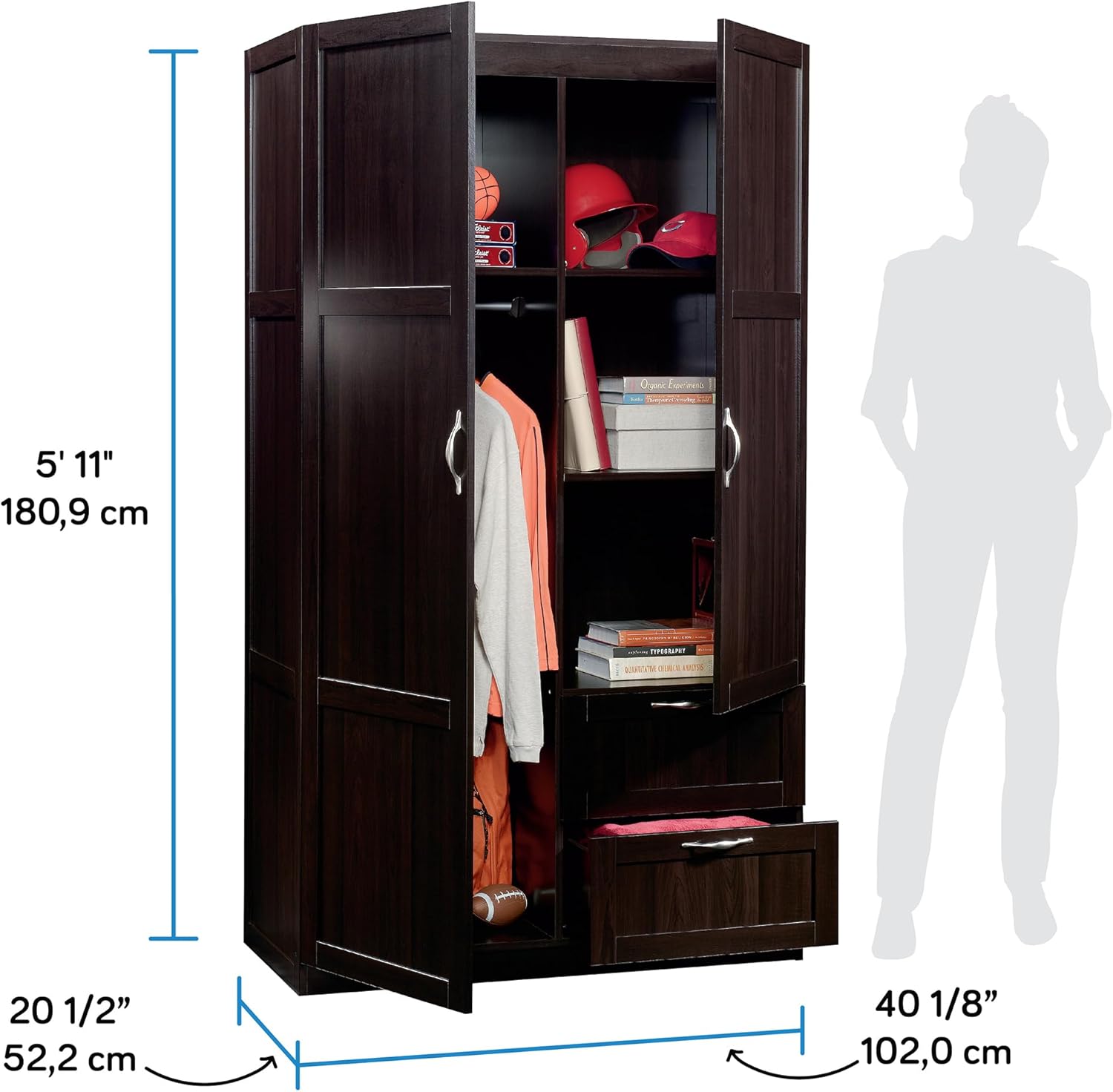

Image: External dimensions of the Sauder Select Multipurpose Storage Cabinet.
Image: Internal dimensions and layout of the cabinet, including shelf and drawer measurements.
വാറൻ്റിയും പിന്തുണയും
This Sauder product is protected by a 5-year limited warranty. For warranty claims, missing parts, assembly assistance, or any other support needs, please contact Sauder customer service.
- ഓൺലൈൻ പിന്തുണ: സന്ദർശിക്കുക sauder.com/service for live chat, assembly tip videos, and replacement parts.
- ഫോൺ പിന്തുണ: Contact the domestic call center at 800-523-3987.
Image: Sauder's domestic call center is available to assist with product inquiries and support.
