ERP Spark Module Instruction Manual

1. ആമുഖം

This manual provides essential information for the installation, operation, and maintenance of the ERP Spark Module, Model 12001596. This module is a replacement part designed to restore ignition functionality to compatible cooktop burners. Please read these instructions carefully before proceeding with installation or use.

2. ഉൽപ്പന്നം കഴിഞ്ഞുview

The ERP Spark Module 12001596 is an electrical component responsible for generating the spark required to ignite gas burners on cooktops. This specific module is a 4+0 type, meaning it is designed for top burners only, providing ignition for up to four burners. It replaces original equipment manufacturer (OEM) parts in various Maytag and Magic Chef appliances.

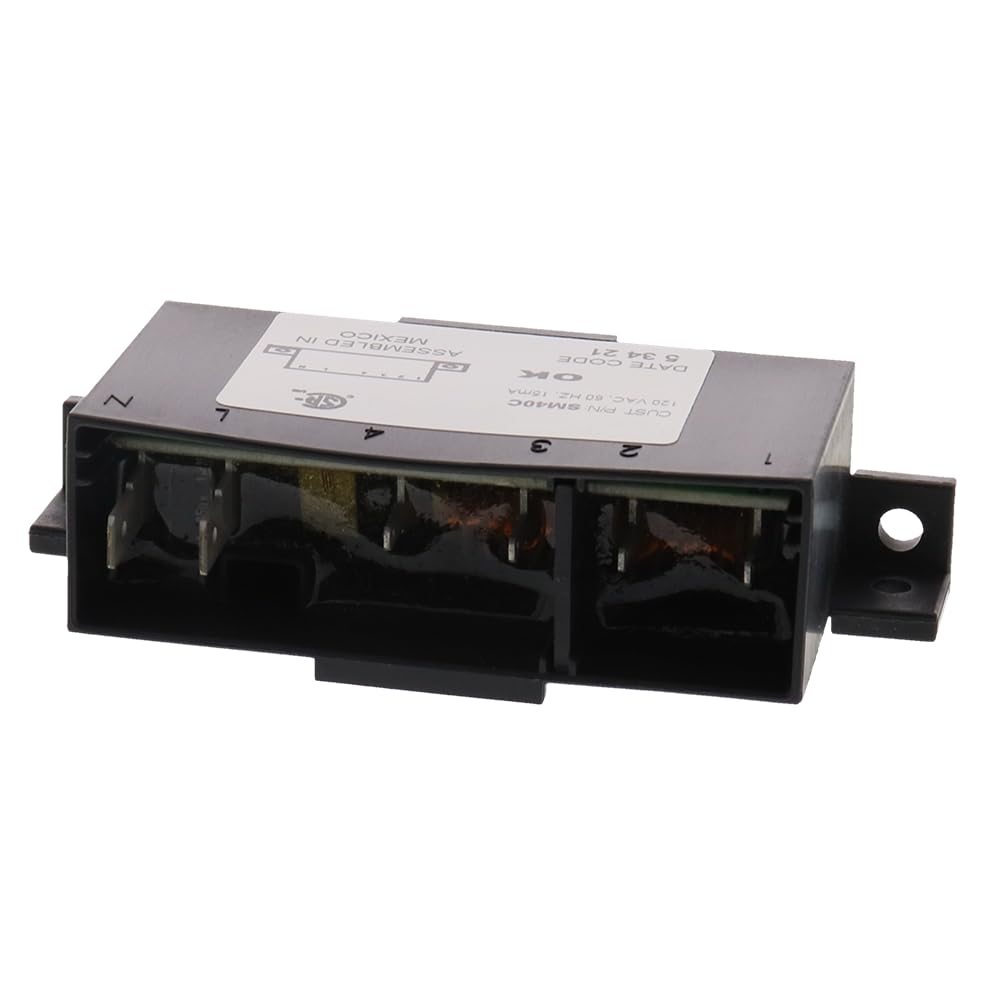

ചിത്രം: മുകളിൽ നിന്ന് താഴേക്ക് view of the ERP Spark Module, Model 12001596. This image shows the overall shape and the label indicating 'CUST. P/N: SM40C', '120 VAC, 60 HZ, 15mA', and 'ASSEMBLED IN MEXICO'.

3 അനുയോജ്യത

This ERP Spark Module (Model 12001596) is a non-OEM replacement part compatible with various Maytag and Magic Chef cooktop models. It replaces the following part numbers:

• AP4010034
• 400570
• 4381542
• 4381588
• 4381828
• 74003288
• 7431P017-60
• 7431P020-60
• 7431P021-60
• 7431P023-60
• 7431P024-60
• 7431P027-60
• 8189589
• AH2003170
• EA2003170
• PS2003170

Always verify the part number on your existing module or consult your appliance's service manual to ensure compatibility before purchasing and installing this replacement part.

4 സുരക്ഷാ വിവരങ്ങൾ

WARNING: Risk of Electric Shock and Gas Leakage.

• Always disconnect power to the appliance at the circuit breaker or by unplugging it before attempting any installation or repair.
• Turn off the gas supply to the appliance before beginning work.
• കയ്യുറകൾ, കണ്ണ് സംരക്ഷണം തുടങ്ങിയ ഉചിതമായ വ്യക്തിഗത സംരക്ഷണ ഉപകരണങ്ങൾ ധരിക്കുക.
• If you are not comfortable performing electrical or gas appliance repairs, seek assistance from a qualified technician.
• ഇൻസ്റ്റാളേഷന് ശേഷം എല്ലാ കണക്ഷനുകളും സുരക്ഷിതമാണെന്നും ശരിയായി ഇൻസുലേറ്റ് ചെയ്തിട്ടുണ്ടെന്നും ഉറപ്പാക്കുക.
• Check for gas leaks after reconnecting the gas supply using a soapy water solution.

5. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

Replacing a spark module requires careful attention to detail. The general steps are outlined below, but specific appliance models may vary. Refer to your appliance's service manual for precise instructions.

1. തയ്യാറാക്കൽ: Ensure the appliance is disconnected from power and the gas supply is turned off. Clear the work area.
2. Access the Module: The spark module is typically located behind the control panel or under the cooktop surface. For some Magic Chef models (e.g., 34JA), it may be found under the right-hand side panel. You may need to remove screws or panels to gain access.
3. വയറിംഗ് വിച്ഛേദിക്കുക: Carefully note or photograph the existing wiring connections to the old spark module. Disconnect all wires.
4. പഴയ മൊഡ്യൂൾ നീക്കം ചെയ്യുക: Unmount the old spark module. It may be held in place by screws or clips.
5. പുതിയ മൊഡ്യൂൾ ഇൻസ്റ്റാൾ ചെയ്യുക: Position the new ERP Spark Module in the same location. While this module is designed as a replacement, some appliances may require minor modifications to the mounting bracket for a secure fit. For example, some users have successfully adapted it to GE XL-44 ranges by drilling new holes in the original mounting bracket.
6. വയറിംഗ് ബന്ധിപ്പിക്കുക: Reconnect the wires to the new module, ensuring each connection matches your previous notes or photographs. The module features terminals for each burner (1, 2, 3, 4) and power connections (L, N).

ചിത്രം: വശം view of the ERP Spark Module, showing the mounting tabs on either side.

ചിത്രം: മറ്റൊരു വശം view of the ERP Spark Module, highlighting the electrical spade terminals for connection.

ചിത്രം: മുകളിൽ view of the ERP Spark Module, clearly showing the label with the wiring diagram for terminals 1, 2, 3, 4, L, and N.

7. വീണ്ടും കൂട്ടിച്ചേർക്കുക: Replace any panels or covers removed during access.
8. ടെസ്റ്റ്: Reconnect the gas supply and power. Test each burner for proper ignition. Listen for a strong, consistent spark.

6. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

Once the ERP Spark Module is correctly installed, its operation is integrated with your appliance's controls. To operate, simply turn the burner knob to the 'Light' or 'Ignite' position. The module will generate a spark at the burner electrode, igniting the gas. Continue to hold the knob until the flame is stable, then adjust to the desired heat setting.

A properly functioning spark module will produce a rapid, consistent spark at the burner. If the burner does not ignite, refer to the Troubleshooting section.

7. പരിപാലനം

The ERP Spark Module itself requires minimal maintenance. However, regular inspection of the surrounding components can prolong its life and ensure reliable operation:

• Clean Burner Electrodes: Ensure the ceramic igniter electrodes on your cooktop burners are clean and free of food debris or grease, which can impede sparking.
• വയറിംഗ് പരിശോധിക്കുക: Periodically check the wiring connections to the spark module and burner electrodes for any signs of wear, corrosion, or looseness.
• വെൻ്റിലേഷൻ: Ensure proper ventilation around the appliance to prevent overheating of electrical components.

8. പ്രശ്‌നപരിഹാരം

If your cooktop burners are not igniting after installing the ERP Spark Module, consider the following:

• തീപ്പൊരി ഇല്ല:
  • Verify power supply to the appliance.
  • Check all wiring connections to the spark module and burner electrodes for security and correct placement.
  • ഗ്യാസ് വിതരണം ഓണാണെന്ന് ഉറപ്പാക്കുക.
  • Inspect burner electrodes for cracks, damage, or excessive carbon buildup.
• ദുർബലമായ അല്ലെങ്കിൽ ഇടയ്ക്കിടെയുള്ള തീപ്പൊരി:
  • Clean burner electrodes thoroughly.
  • അയഞ്ഞതോ ദ്രവിച്ചതോ ആയ വയറിംഗ് കണക്ഷനുകൾ പരിശോധിക്കുക.
  • Ensure the module is receiving the correct voltagഇ (120 VAC).
• Only Some Burners Spark:
  • This often indicates an issue with the wiring or electrode specific to the non-sparking burner, or a faulty connection at the module for that particular output.

If troubleshooting steps do not resolve the issue, it is recommended to consult a qualified appliance repair technician.

9 സ്പെസിഫിക്കേഷനുകൾ

10. വാറൻ്റിയും പിന്തുണയും

As a non-OEM replacement part, warranty coverage for the ERP Spark Module 12001596 is typically provided by the seller or distributor from whom it was purchased. Please refer to your purchase documentation for specific warranty terms and conditions.

For technical support or further assistance, contact the retailer or the manufacturer, Seneca River Trading, directly. Ensure you have your product model number and purchase details available when seeking support.
