FoodSaver V2240 Vacuum Sealer Instruction Manual

1. ഉൽപ്പന്നം കഴിഞ്ഞുview

The FoodSaver V2240 Vacuum Sealer is designed to extend the freshness of your food by removing air and sealing it in specialized bags or containers. This process helps prevent oxidation, freezer burn, mold, and bacterial growth, keeping your food fresh up to 5 times longer than traditional storage methods. Its compact design allows for efficient organization and space-saving in your refrigerator.

പ്രധാന സവിശേഷതകൾ:

• വിപുലീകൃത പുതുമ: Vacuum preservation extends freshness up to 5 times!
• നൂതന സാങ്കേതികവിദ്യ: Unique vacuum technology powerfully extracts oxygen. The 7-layer film bag effectively blocks air intrusion, preventing oxidation, freezer burn, mold, and bacteria.
• മൾട്ടി-ഫങ്ഷണൽ: One unit for preservation, preparation, and cooking.
• ഈർപ്പം നിയന്ത്രണം: Equipped with a convenient moisture control function that adjusts suction and sealing based on food moisture content.
• കോംപാക്റ്റ് ഡിസൈൻ: Space-saving for organized refrigerator storage.
• ഉപയോഗിക്കാൻ എളുപ്പമാണ്: Simply place food and press a button.
• പുനരുപയോഗിക്കാവുന്നത്: Bags and containers are reusable, making it eco-friendly and economical.
• Microwave/Hot Water Bath Safe: Bags can be warmed in the microwave or hot water bath.

ഉൾപ്പെടുത്തിയ ഘടകങ്ങൾ:

• പ്രധാന യൂണിറ്റ് x1
• Pack roll 28cm x1
• Bag S x10
• Canister (medium size)
• കുപ്പി സ്റ്റോപ്പർ
• ആക്സസറി ഹോസ്

Image: FoodSaver V2240 Vacuum Sealer with all included accessories, including the main unit, pack roll, bags, canister, bottle stopper, and accessory hose.

2. സജ്ജീകരണം

1. യൂണിറ്റ് അൺപാക്ക് ചെയ്യുക: Carefully remove the FoodSaver V2240 from its packaging. Ensure all included components are present.
2. ഒരു പരന്ന പ്രതലത്തിൽ സ്ഥാപിക്കുക: Position the vacuum sealer on a clean, dry, and flat countertop or table.
3. പവർ ബന്ധിപ്പിക്കുക: Plug the power cord into a grounded electrical outlet. The unit is now ready for use.
4. പ്രാരംഭ ക്ലീനിംഗ്: Before first use, wipe down the exterior of the unit and the drip tray with a damp cloth. Ensure all parts are dry before operation.

3. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

3.1 Creating a Bag from a Roll

1. വാക്വം സീലറിന്റെ മൂടി തുറക്കുക.
2. Place the pack roll into the designated roll storage area.
3. Pull out the desired length of the roll.
4. Slide the built-in cutter to cut the roll to your preferred length.
5. Place one end of the cut roll onto the sealing strip.
6. ലിഡ് അതിന്റെ സ്ഥാനത്ത് ക്ലിക്കു ചെയ്യുന്നത് വരെ ദൃഡമായി അടയ്ക്കുക.
7. Press the 'Seal Only' button to create a sealed bottom for your bag. The light will turn off when sealing is complete.
8. Open the lid and remove your custom-sized bag.

3.2 Vacuum Sealing with Bags

1. Place the food items into the prepared vacuum bag, leaving at least 3-5 cm of space from the top opening.
2. വാക്വം സീലറിന്റെ മൂടി തുറക്കുക.
3. Place the open end of the bag into the vacuum channel, ensuring it lies flat and smooth between the sealing strips. Make sure the black nozzle on the right is not obstructed by the bag.
4. ഇരുവശങ്ങളും ശരിയായ സ്ഥാനത്ത് വരുന്നതുവരെ മൂടി ദൃഡമായി അടയ്ക്കുക.
5. Select the appropriate mode: 'Dry Vac Seal' for dry foods or 'Moist Vac Seal' for moist foods.
6. Press the 'Vacuum & Seal' button. The machine will automatically remove air and then seal the bag. The indicator light will turn off when the process is complete.
7. Press the release buttons on both sides to open the lid and remove the sealed bag.

Image: The FoodSaver V2240 Vacuum Sealer actively removing air from a bag containing food items, demonstrating the vacuum sealing process.

3.3 Using the Canister and Bottle Stopper

1. Place food items into the FoodSaver canister or insert the bottle stopper into a bottle.
2. Connect one end of the accessory hose to the vacuum port on the sealer and the other end to the canister lid or bottle stopper.
3. വാക്വം സീലറിന്റെ മൂടി അടയ്ക്കുക.
4. Press the 'External Vac' button. The machine will remove air from the canister or bottle. The process stops automatically when the desired vacuum level is reached.
5. Disconnect the accessory hose.

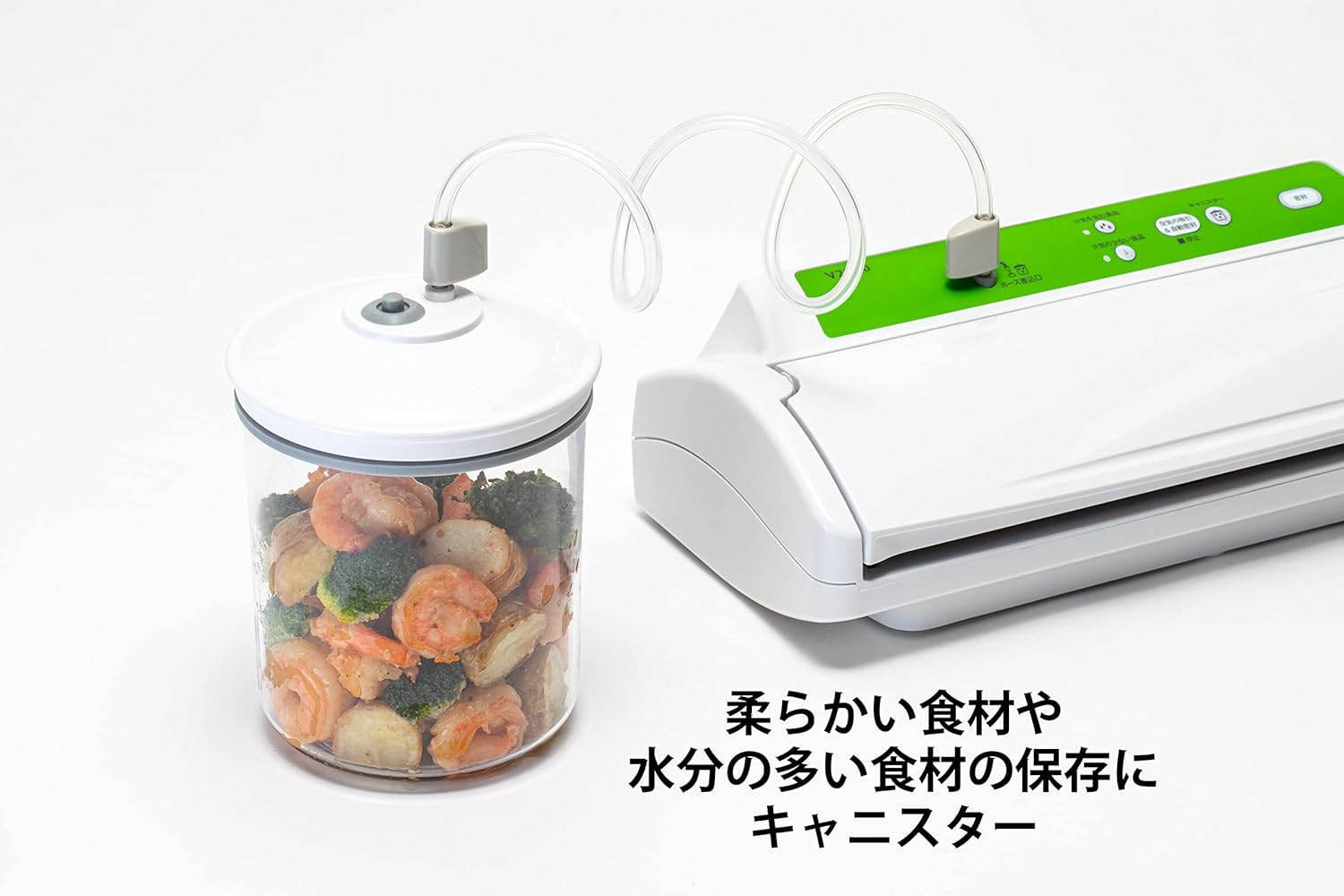

Image: The FoodSaver V2240 connected to a canister, demonstrating its use for vacuum sealing soft or liquid-rich foods to prevent damage from direct bag vacuuming.

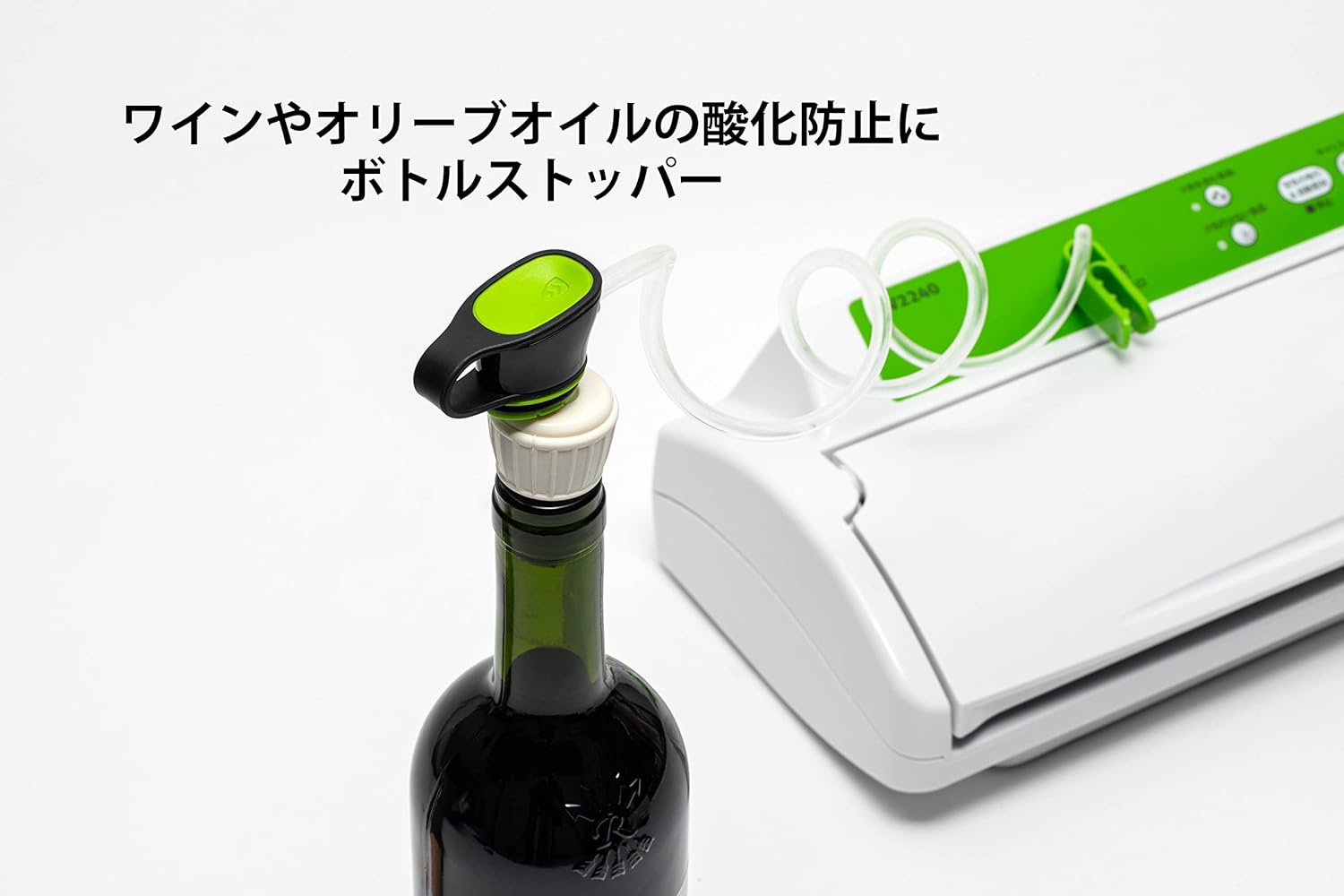

Image: The FoodSaver V2240 connected to a bottle stopper on a wine bottle, illustrating its capability to remove air from bottles to preserve liquids like wine or juice.

3.4 Moisture Control Function

The FoodSaver V2240 features a moisture control function to optimize vacuuming and sealing for different types of food. Use the 'Dry Vac Seal' setting for dry items and 'Moist Vac Seal' for foods with higher moisture content. This prevents liquids from being drawn into the machine and ensures a proper seal.

Image: A close-up of the FoodSaver V2240 control panel, highlighting the 'Dry Vac Seal' and 'Moist Vac Seal' buttons for adjusting vacuum and seal settings based on food moisture.

4. പരിപാലനം

4.1 ഡ്രിപ്പ് ട്രേ വൃത്തിയാക്കൽ

The removable drip tray collects any excess liquids during the vacuum sealing process, making cleanup easy. After each use, especially when sealing moist foods, remove the drip tray and wash it with warm, soapy water. Rinse thoroughly and dry completely before reinserting it into the unit.

4.2 പൊതുവായ ശുചീകരണം

Wipe the exterior of the vacuum sealer with a damp cloth. Do not immerse the unit in water or any other liquid. Avoid using abrasive cleaners or scouring pads, as they may damage the surface.

5. പ്രശ്‌നപരിഹാരം

• Machine not vacuuming: Ensure the lid is firmly closed and both sides click into place. Check that the bag is properly positioned within the vacuum channel and not obstructing the black nozzle.
• Bag not sealing: Verify that the sealing strip is clean and free from food debris or moisture. Ensure the bag material is compatible with the sealer. Allow the sealing strip to cool down if multiple seals have been made in quick succession.
• Partial vacuum or air leakage: Check the bag for any wrinkles, punctures, or tears. Ensure the open end of the bag is completely flat and smooth within the vacuum channel.
• വൈദ്യുതി പ്രശ്നം: Confirm the power cord is securely plugged into both the unit and the electrical outlet.

6 സ്പെസിഫിക്കേഷനുകൾ

7. വാറൻ്റിയും പിന്തുണയും

This FoodSaver V2240 Vacuum Sealer comes with a 1 വർഷത്തെ നിർമ്മാതാവിന്റെ വാറന്റി. For any questions, technical assistance, or warranty claims, please refer to the contact information provided in your product packaging or visit the official FoodSaver webസൈറ്റ്.
