ഉൽപ്പന്നം കഴിഞ്ഞുview
This manual provides instructions for the safe and efficient use of the ABB A16-40-00 Power Contactor. This device is designed for controlling electrical circuits in various applications, including coffee machines, dishwashers, band machines, and vacuum packing machines.
The contactor features screw connections and operates at 230V AC. It includes 4 main contacts (4 Normally Open - 4NO) and is rated for 30 A AC1 power.

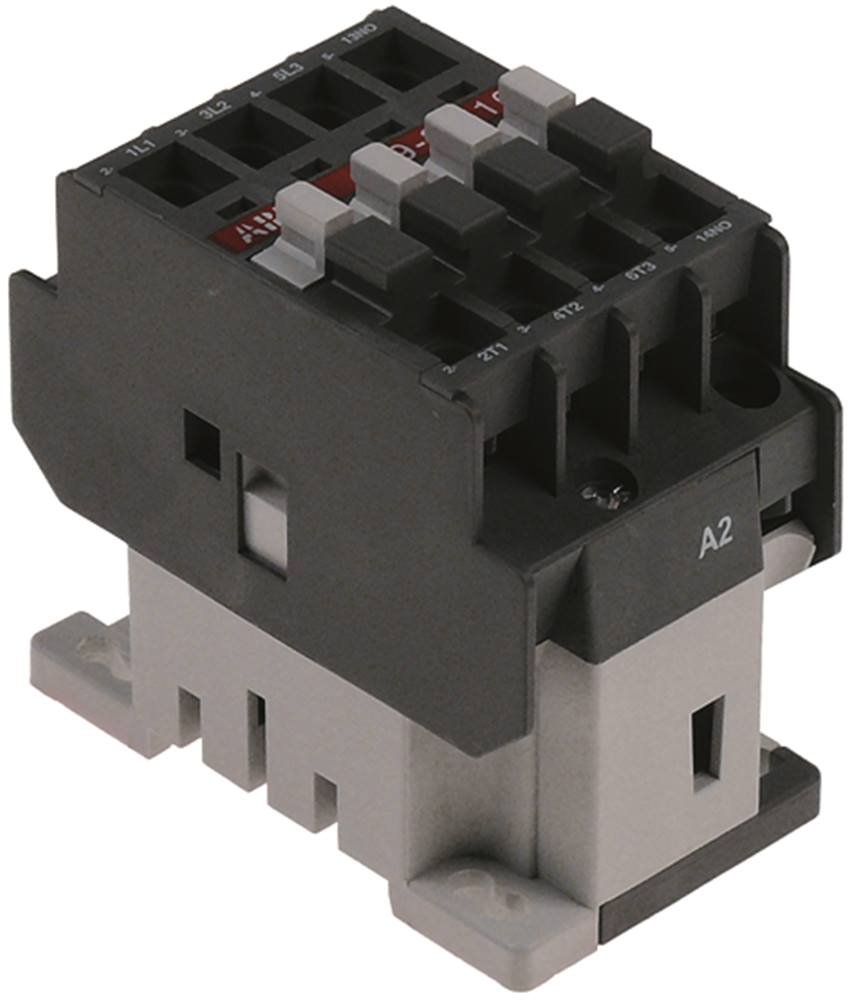

ചിത്രം: മുൻഭാഗം view of the ABB A16-40-00 Power Contactor, showing its compact design and terminal block for connections.
സുരക്ഷാ വിവരങ്ങൾ
മുന്നറിയിപ്പ്: Installation and maintenance must be performed by qualified personnel only. Disconnect power before installation or servicing to prevent electric shock.
- എപ്പോഴും പ്രാദേശിക വൈദ്യുത കോഡുകളും നിയന്ത്രണങ്ങളും പാലിക്കുക.
- കോൺടാക്റ്ററിന്റെ വോള്യവുമായി പവർ സപ്ലൈ പൊരുത്തപ്പെടുന്നുണ്ടെന്ന് ഉറപ്പാക്കുക.tage rating (230V AC).
- കോൺടാക്റ്റർ കേടായെങ്കിൽ അത് പ്രവർത്തിപ്പിക്കരുത്.
- ഈർപ്പത്തിൽ നിന്നും തീവ്രമായ താപനിലയിൽ നിന്നും ഉപകരണം സംരക്ഷിക്കുക.
ഇൻസ്റ്റലേഷൻ
The ABB A16-40-00 Power Contactor is designed for DIN rail mounting or screw mounting.
മൗണ്ടിംഗ്
- പ്രധാന വൈദ്യുതി വിതരണം വിച്ഛേദിക്കപ്പെട്ടുവെന്ന് ഉറപ്പാക്കുക.
- Select a suitable mounting location, ensuring adequate ventilation and clearance.
- Mount the contactor securely using either the integrated DIN rail clip or mounting screws.
വയറിംഗ്
The contactor uses screw connections for wiring.
- Identify the main power terminals (L1, L2, L3) and load terminals (T1, T2, T3).
- Connect the incoming power supply to the main power terminals.
- Connect the load (e.g., motor, heating element) to the load terminals.
- Connect the control circuit wiring to the coil terminals (A1, A2). Ensure the control voltage matches the coil rating.
- Tighten all screw connections firmly to prevent loose contacts and overheating.
Refer to the wiring diagram provided with the product packaging for specific connection details.
ഓപ്പറേഷൻ
The ABB A16-40-00 Power Contactor is an electrically operated switch. When the control coil (A1-A2) is energized with the correct voltage (230V AC), the main contacts close, allowing power to flow to the connected load. When the coil is de-energized, the contacts open, disconnecting the load.
പ്രാരംഭ പവർ-അപ്പ്
- After installation and wiring are complete, double-check all connections.
- Restore power to the control circuit.
- Activate the control signal to energize the contactor coil. Observe that the contactor pulls in and the load receives power.
- Deactivate the control signal. Observe that the contactor releases and the load is disconnected.
This contactor is suitable for applications requiring frequent switching, such as those found in commercial kitchen equipment.
മെയിൻ്റനൻസ്
Regular inspection and maintenance ensure the longevity and reliable operation of the contactor.
- ആനുകാലിക പരിശോധന: Visually inspect the contactor for any signs of damage, discoloration, or loose connections. Check for dust or debris accumulation.
- ടെർമിനൽ ടൈറ്റ്നെസ്: Periodically re-tighten all screw terminals, especially after initial installation and during routine maintenance checks. Loose connections can cause overheating and arcing.
- വൃത്തിയാക്കൽ: Disconnect power and use a dry, soft brush or compressed air to remove dust and dirt from the contactor. Do not use liquids or solvents.
- കോൺടാക്റ്റ് വെയർ: While internal contacts are generally maintenance-free, excessive arcing or frequent overloads can cause wear. If the contactor shows signs of inconsistent operation or excessive heat, it may require replacement.
കുറിപ്പ്: Do not attempt to repair internal components. Replace the entire unit if significant damage or malfunction occurs.
ട്രബിൾഷൂട്ടിംഗ്
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| Contactor does not energize (coil not pulling in) | നിയന്ത്രണ വോള്യം ഇല്ലtage; തെറ്റായ നിയന്ത്രണ വോളിയംtage; Open circuit in control wiring; Damaged coil. | Check control circuit power supply; Verify control voltage matches coil rating; Inspect control wiring for breaks; Replace contactor if coil is damaged. |
| Load does not receive power when contactor is energized | Loose main power connections; Open circuit in main power wiring; Damaged main contacts; Overload protection tripped. | Tighten main power connections; Inspect main power wiring; Replace contactor if contacts are damaged; Check and reset overload protection. |
| Contactor hums loudly or overheats | തെറ്റായ കോയിൽ വോള്യംtage; Loose mounting; Contaminated pole faces; Excessive switching frequency. | കോയിൽ വോളിയം പരിശോധിക്കുകtage; Ensure secure mounting; Clean pole faces (if accessible and safe); Reduce switching frequency or use a higher-rated contactor. |
If troubleshooting steps do not resolve the issue, contact a qualified electrician or technical support.
സ്പെസിഫിക്കേഷനുകൾ
- മോഡൽ: ABB A16-40-00
- കണക്ഷൻ തരം: സ്ക്രൂ കണക്ഷൻ
- Main Contacts: 4 സാധാരണയായി തുറക്കുക (4NO)
- Rated Operational Current (AC1): 30 എ
- കോയിൽ വോളിയംtage: 230V എസി
- നിർമ്മാതാവ്: ABB (Distributed by Gastroteileshop)
- ഭാഗം നമ്പർ: 4251391240223
- ASIN: B073Z8MRTT
വാറൻ്റിയും പിന്തുണയും
For warranty information and technical support, please refer to the documentation provided with your purchase or contact your supplier. Keep your purchase receipt as proof of purchase.
വിതരണക്കാരൻ: Gastroteileshop
ASIN: B073Z8MRTT
