Flysky FS-X6B 2.4G PPM i-Bus 6CH Receiver User Manual

1. ആമുഖം

The Flysky FS-X6B is a compact and versatile 6-channel two-way receiver specifically designed for multi-rotor aircraft. It utilizes the advanced AFHDS 2A (Automatic Frequency Hopping Digital System) protocol, ensuring reliable and stable communication. With its dual omnidirectional antennas and superior noise reduction techniques, the FS-X6B provides excellent signal reception. This manual provides essential information for setting up, operating, and maintaining your FS-X6B receiver.

2. ഉൽപ്പന്നം കഴിഞ്ഞുview

The FS-X6B receiver is engineered for ease of installation and boasts a rich, user-friendly interface. It supports multiple output types, making it highly adaptable for various multi-rotor configurations.

ചിത്രം 2.1: മുകളിൽ view of the Flysky FS-X6B receiver, showing the main board, dual antennas, and binding/update buttons.

ചിത്രം 2.2: ക്ലോസ് അപ്പ് view of the FS-X6B receiver, highlighting the antenna connections and compact design.

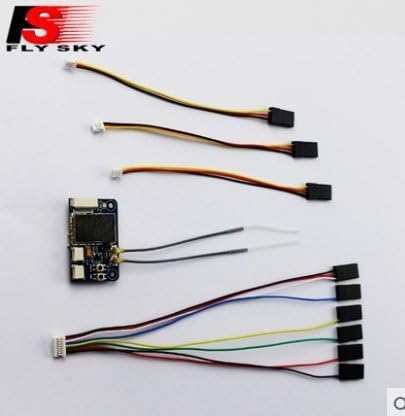

ചിത്രം 2.3: The FS-X6B receiver shown with various connection cables, including PWM and i-BUS cables.

3. സവിശേഷതകൾ

• 6-Channel Two-Way Receiver: Designed specifically for multi-rotor aircraft.
• AFHDS 2A Protocol: Utilizes Automatic Frequency Hopping Digital System for robust and reliable communication.
• Dual Omnidirectional Antenna: Enhances signal reception and reduces interference.
• Superior Noise Reduction: Advanced techniques for cleaner signal transmission.
• ഒതുക്കമുള്ളതും ഇൻസ്റ്റാൾ ചെയ്യാൻ എളുപ്പവുമാണ്: Small form factor for convenient integration into various setups.
• റിച്ച് ഇന്റർഫേസ്: Supports 6-channel PWM output, standard PPM output, and i-BUS support for up to 18 channels.
• Reliable Voltage Sensor Interface: Allows for monitoring of battery voltage.
• On-line Update: Supports wireless firmware updates.

4 സ്പെസിഫിക്കേഷനുകൾ

5. സജ്ജീകരണം

5.1. റിസീവർ ബന്ധിപ്പിക്കുന്നു

Refer to the diagram below for proper connection of the FS-X6B receiver to your flight controller and other components. Ensure correct polarity when connecting power.

ചിത്രം 5.1: Wiring diagram for the FS-X6B receiver, showing PWM, PPM, i-BUS, GND, VCC, and voltage detection ports.

• PWM ഔട്ട്പുട്ട്: Connect individual servo leads to CH1-CH6 for traditional PWM control.
• PPM Output: Connect the PPM port to your flight controller for a single-wire PPM signal.
• i-BUS Output: Connect the i-BUS port to your flight controller for a single-wire digital i-BUS signal, supporting up to 18 channels.
• വാല്യംtagഇ കണ്ടെത്തൽ: വോളിയം ഉപയോഗിക്കുകtage detection port to monitor the flight battery voltage (if supported by your flight controller/transmitter).

5.2. റിസീവർ ബൈൻഡിംഗ്

To establish communication between your FS-X6B receiver and a compatible Flysky AFHDS 2A transmitter, you must perform a binding procedure.

1. Ensure your transmitter is powered off.
2. Connect a bind plug (or short the BIND pins) to the BIND port on the FS-X6B receiver.
3. Apply power to the FS-X6B receiver (e.g., via a flight controller or external BEC). The receiver's LED should start flashing rapidly, indicating it is in binding mode.
4. While holding the BIND button on your transmitter (if applicable, or follow your transmitter's specific binding instructions), power on the transmitter.
5. The receiver's LED should stop flashing and become solid, indicating a successful bind.
6. Release the BIND button on the transmitter and power off both the receiver and transmitter.
7. റിസീവറിൽ നിന്ന് ബൈൻഡ് പ്ലഗ് നീക്കംചെയ്യുക.
8. Power on the transmitter first, then the receiver. The receiver's LED should be solid, confirming the connection.

കുറിപ്പ്: The exact binding procedure may vary slightly depending on your specific Flysky transmitter model. Always refer to your transmitter's manual for detailed instructions.

6. പ്രവർത്തിക്കുന്നു

Once successfully bound, the FS-X6B receiver will communicate with your transmitter.

• പവർ ഓൺ സീക്വൻസ്: Always power on your transmitter first, then your multi-rotor aircraft (which powers the receiver). When powering off, disconnect the aircraft battery first, then power off the transmitter.
• സിഗ്നൽ നഷ്ടം: In case of signal loss, the receiver will enter failsafe mode. Ensure your flight controller is configured to handle failsafe appropriately (e.g., land, return to home).
• ഫേംവെയർ അപ്‌ഡേറ്റ്: The FS-X6B supports wireless firmware updates. Refer to the Flysky official website or support resources for instructions on how to perform updates, which can improve performance or add new features.

7. പരിപാലനം

Proper maintenance ensures the longevity and reliable operation of your FS-X6B receiver.

• വൃത്തിയായി സൂക്ഷിക്കു: Regularly inspect the receiver for dirt, dust, or debris. Use a soft, dry brush or compressed air to clean. Avoid using liquids.
• ആന്റിന കെയർ: Ensure antennas are not bent, cut, or damaged. Position them at a 90-degree angle to each other for optimal signal reception. Do not shorten or extend the antennas.
• പരിസ്ഥിതി സംരക്ഷണം: Protect the receiver from moisture, extreme temperatures, and direct sunlight. Consider using conformal coating or a protective enclosure if operating in harsh environments.
• കണക്ഷൻ സമഗ്രത: Periodically check all wire connections to ensure they are secure and free from corrosion or fraying.

8. പ്രശ്‌നപരിഹാരം

9. വാറൻ്റിയും പിന്തുണയും

For warranty information, technical support, or further assistance, please refer to the official Flysky webസൈറ്റിൽ ബന്ധപ്പെടുക അല്ലെങ്കിൽ അവരുടെ ഉപഭോക്തൃ സേവനവുമായി നേരിട്ട് ബന്ധപ്പെടുക. വാങ്ങിയതിന്റെ തെളിവായി നിങ്ങളുടെ വാങ്ങൽ രസീത് സൂക്ഷിക്കുക.
