GROHE 39426000 Semicolonna Ceramic Pedestal Installation Manual

ആമുഖം

This manual provides essential information for the safe and correct installation, operation, and maintenance of your GROHE 39426000 Semicolonna ceramic pedestal. Please read these instructions carefully before beginning installation and retain them for future reference. The GROHE Semicolonna is designed to complement compatible GROHE Bau Ceramic washbasins, providing aesthetic support and concealing plumbing connections.

സുരക്ഷാ വിവരങ്ങൾ

Always observe general safety precautions during installation and maintenance. Incorrect installation can lead to water damage or injury. If you are unsure about any part of the installation process, consult a qualified plumber. Ensure all water supplies are turned off before commencing work. Wear appropriate personal protective equipment (PPE) such as safety glasses and gloves.

പാക്കേജ് ഉള്ളടക്കം

Before starting, verify that all components are present and undamaged:

• GROHE 39426000 Semicolonna Ceramic Pedestal (1 unit)
• Fixing set for installation (1 set)

Note: The washbasin and faucet are sold separately.

സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

The GROHE 39426000 Semicolonna is designed to be wall-mounted beneath a compatible wall-hung washbasin. It provides support and conceals the plumbing connections for a clean aesthetic. This semi-pedestal is suitable for all GROHE Bau Ceramic washbasins, with the exception of model 39 424 000.

Required Tools (Not Supplied):

• ഡ്രിൽ
• Drill bits suitable for wall material
• അളക്കുന്ന ടേപ്പ്
• ലെവൽ
• പെൻസിൽ
• സ്പാനർ / റെഞ്ച്
• Sealant (silicone)

ഇൻസ്റ്റലേഷൻ ഘട്ടങ്ങൾ:

1. മതിൽ തയ്യാറാക്കുക: Ensure the wall where the washbasin and semi-pedestal will be mounted is structurally sound and clean.
2. Mount the Washbasin: Install your compatible GROHE Bau Ceramic washbasin according to its specific instructions. Ensure it is securely fixed to the wall and level. The semi-pedestal will be positioned directly beneath it.
3. അളക്കുകയും അടയാളപ്പെടുത്തുകയും ചെയ്യുക: Position the semi-pedestal temporarily under the installed washbasin. Use a level to ensure it is plumb. Mark the drilling points on the wall for the semi-pedestal's fixing set. Refer to the technical diagram for recommended dimensions and clearances.
4. തുളകൾ: Drill holes at the marked positions using an appropriate drill bit for your wall type. Insert wall plugs if required by your fixing set.
5. Secure the Semi-Pedestal: Attach the semi-pedestal to the wall using the provided fixing set. Tighten the fixings securely, but do not overtighten, as this can damage the ceramic.
6. പ്ലംബിംഗ് ബന്ധിപ്പിക്കുക: Complete the plumbing connections for the washbasin, ensuring all pipes are correctly routed and sealed within the semi-pedestal's cavity.
7. സീൽ അരികുകൾ: Apply a bead of silicone sealant along the top edge where the semi-pedestal meets the washbasin, and along the back edge where it meets the wall, to prevent water ingress and provide a neat finish.

ചിത്രം 1: Technical diagram illustrating the dimensions and recommended installation measurements for the GROHE 39426000 Semicolonna. Key measurements include 560mm from the floor to the basin underside, 80mm width for the pedestal base, and 260mm depth from the wall.

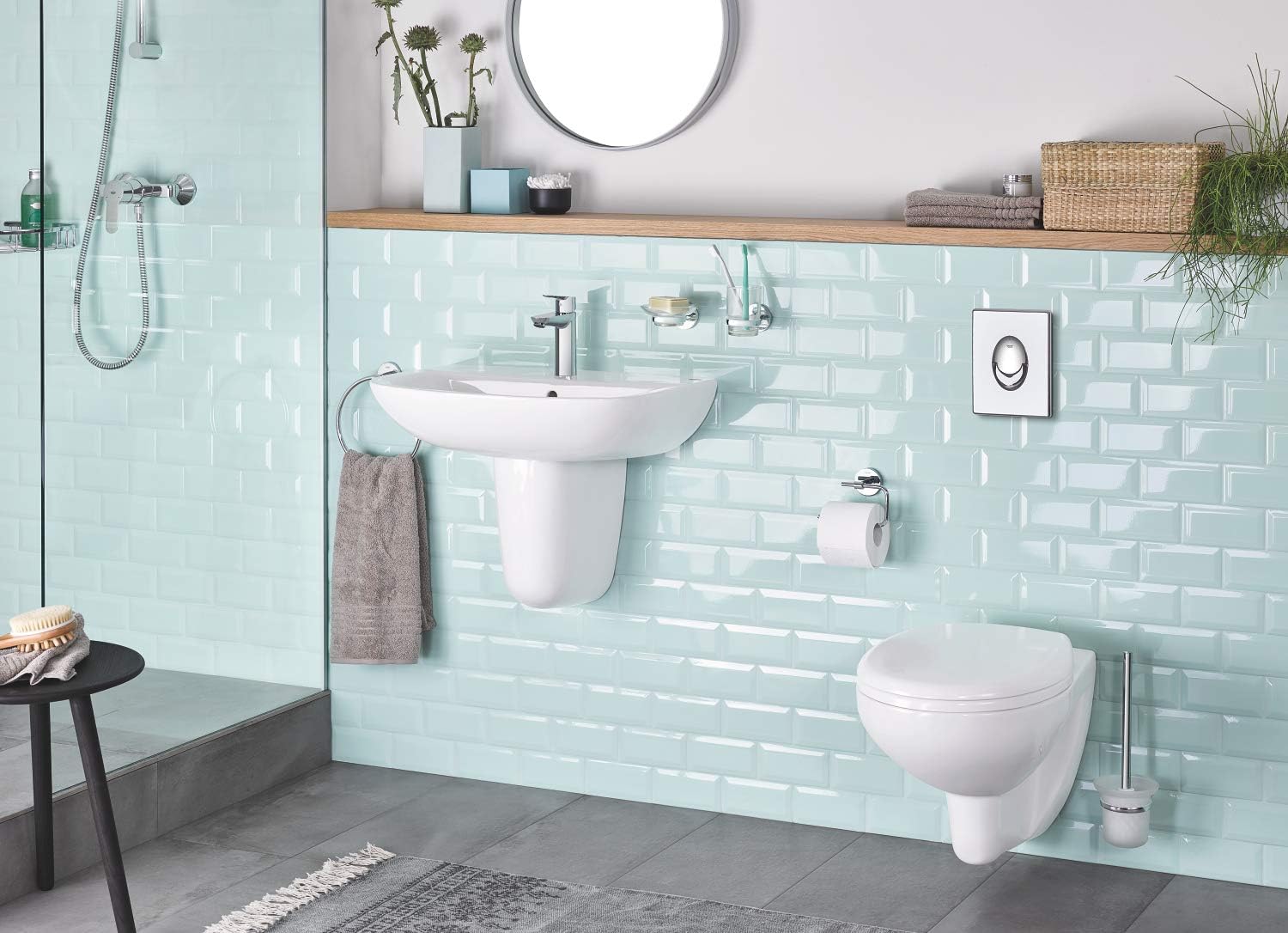

ചിത്രം 2: ഒരു മുൻample of the GROHE 39426000 Semicolonna ceramic pedestal installed in a contemporary bathroom setting, supporting a wall-hung washbasin and concealing the plumbing.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

The GROHE 39426000 Semicolonna is a static fixture designed to support a washbasin and conceal its plumbing. No specific operational steps are required for the semi-pedestal itself. Ensure that the washbasin is used as intended, avoiding excessive weight or impact on the ceramic components.

പരിപാലനവും ശുചീകരണവും

To maintain the appearance and longevity of your GROHE Semicolonna, follow these cleaning guidelines:

• പതിവ് വൃത്തിയാക്കൽ: Clean the ceramic surface regularly with a soft cloth and a mild, non-abrasive bathroom cleaner.
• കഠിനമായ രാസവസ്തുക്കൾ ഒഴിവാക്കുക: Do not use abrasive cleaners, scouring pads, strong acids, or alkaline solutions, as these can damage the ceramic glaze.
• നന്നായി കഴുകുക: വൃത്തിയാക്കിയ ശേഷം, ശുദ്ധജലം ഉപയോഗിച്ച് ഉപരിതലം നന്നായി കഴുകുക, വെള്ളം കെട്ടിനിൽക്കുന്നത് തടയാൻ മൃദുവായ തുണി ഉപയോഗിച്ച് ഉണക്കുക.
• Check Sealant: Periodically inspect the silicone sealant around the pedestal and basin for any signs of wear or degradation. Reapply if necessary to prevent water leaks.

ട്രബിൾഷൂട്ടിംഗ്

This section addresses common issues you might encounter with your semi-pedestal.

സ്പെസിഫിക്കേഷനുകൾ

വാറൻ്റിയും പിന്തുണയും

For information regarding the product warranty, please refer to the documentation provided with your purchase or visit the official GROHE website. For technical support, spare parts, or any other inquiries, please contact GROHE customer service directly. Contact details can typically be found on the GROHE webസൈറ്റിലോ നിങ്ങളുടെ ഉൽപ്പന്ന പാക്കേജിംഗിലോ.
