Powerbuilt XT90 1/2-inch Drive 90-Tooth Professional Ratchet Instruction Manual

1. ആമുഖം

Thank you for choosing the Powerbuilt XT90 1/2-inch Drive 90-Tooth Professional Ratchet. This tool is engineered for durability and precision, featuring a sealed head design and a 90-tooth mechanism for efficient operation in confined spaces. This manual provides essential information for the proper setup, operation, maintenance, and troubleshooting of your ratchet to ensure long-lasting performance and user safety.

2 സുരക്ഷാ വിവരങ്ങൾ

Always observe basic safety precautions when using hand tools. Failure to do so may result in injury or damage to the tool or workpiece.

• സുരക്ഷാ ഗ്ലാസുകൾ പോലുള്ള ഉചിതമായ വ്യക്തിഗത സംരക്ഷണ ഉപകരണങ്ങൾ ധരിക്കുക.
• Ensure the correct size socket is used for the fastener to prevent stripping.
• റാറ്റ്ചെറ്റ് കേടായാലോ അല്ലെങ്കിൽ തകരാറുണ്ടെന്ന് തോന്നിയാലോ അത് ഉപയോഗിക്കരുത്.
• Avoid using extension handles or "cheater bars" that could over-torque the ratchet and cause damage or injury.
• കൈകളും വിരലുകളും ചലിക്കുന്ന ഭാഗങ്ങളിൽ നിന്ന് അകറ്റി നിർത്തുക.

3. ഉൽപ്പന്ന സവിശേഷതകൾ

The Powerbuilt XT90 Ratchet is designed with several key features for professional performance:

• 90-Tooth Mechanism: Allows for a minimal 4-degree swing arc, enabling work in tight spaces.
• Sealed Head: The solid forged, fully-sealed head prevents dust, dirt, and debris from entering the internal mechanism, extending tool life and reducing maintenance.
• എർഗണോമിക് ഹാൻഡിൽ: A full-length, weighted handle with molded finger grooves provides comfort, control, and balance, while being offset for improved knuckle clearance.
• നീണ്ടുനിൽക്കുന്ന നിർമ്മാണം: Made from premium Chrome Vanadium (CR-V) steel with a mirror-polished chrome-plated finish, meeting or exceeding ANSI standards.

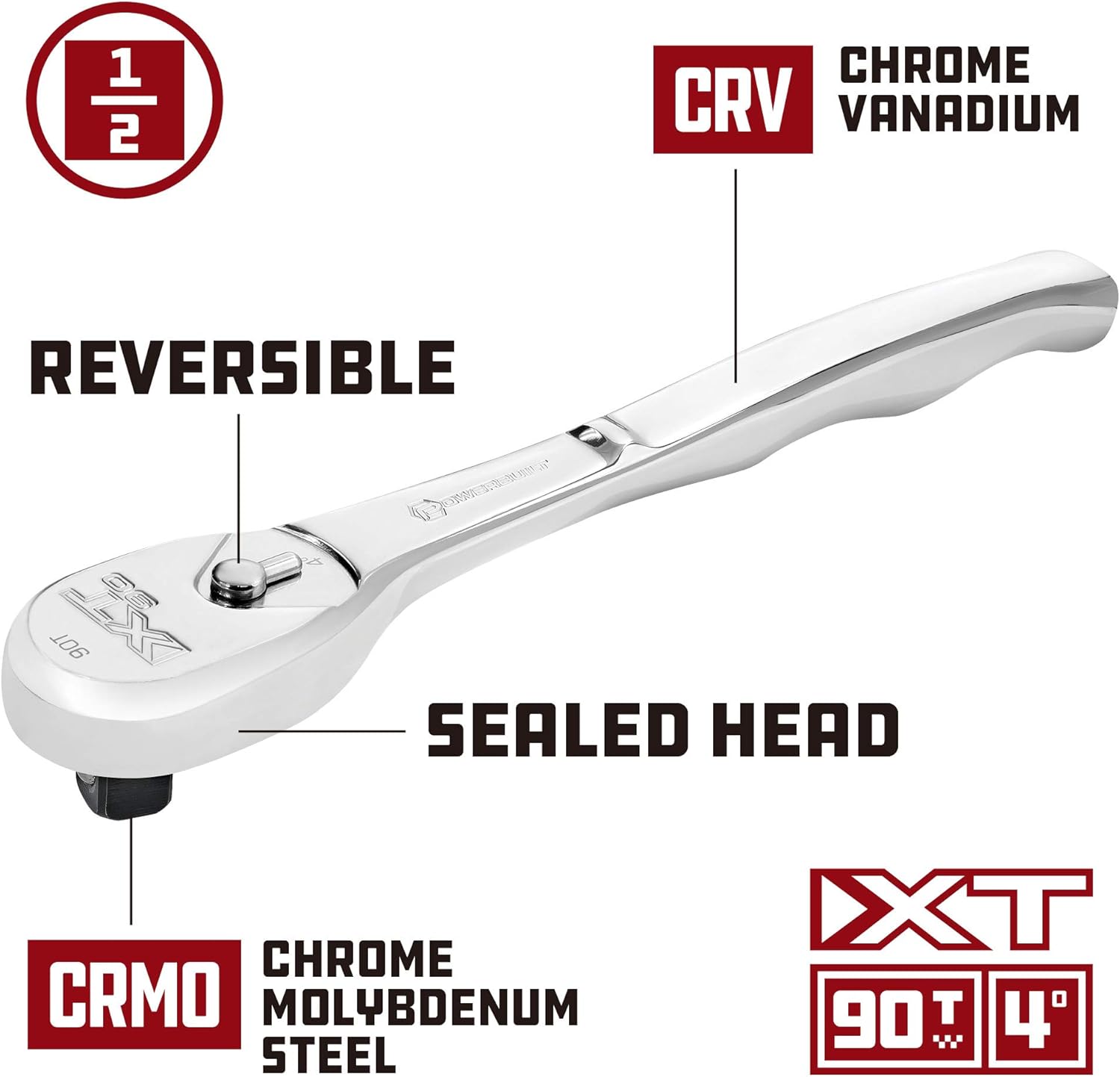

Image 3.1: Key features of the Powerbuilt XT90 Ratchet, highlighting the sealed head and material composition.

4. സജ്ജീകരണം

Your Powerbuilt XT90 Ratchet comes ready for use with 1/2-inch drive sockets.

4.1 അൺപാക്കിംഗും പരിശോധനയും

1. Carefully remove the ratchet from its packaging.
2. Inspect the tool for any signs of damage that may have occurred during shipping. If damage is found, do not use the tool and contact customer support.

4.2 സോക്കറ്റുകൾ ഘടിപ്പിക്കൽ

1. നിങ്ങളുടെ ഫാസ്റ്റനറിന് അനുയോജ്യമായ 1/2-ഇഞ്ച് ഡ്രൈവ് സോക്കറ്റ് തിരഞ്ഞെടുക്കുക.
2. Align the square drive opening of the socket with the square drive on the ratchet head.
3. Push the socket firmly onto the ratchet drive until it clicks securely into place. Ensure the socket is fully seated to prevent it from detaching during use.

Image 4.1: The Powerbuilt XT90 1/2-inch Drive Ratchet, ready for socket attachment.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

ശരിയായ പ്രവർത്തനം കാര്യക്ഷമതയും സുരക്ഷയും ഉറപ്പാക്കുന്നു.

5.1 ദിശ മാറ്റൽ

1. Locate the directional switch on the ratchet head.
2. To tighten fasteners, push the switch to the position that causes the ratchet to turn clockwise when viewമുകളിൽ നിന്ന് ed.
3. To loosen fasteners, push the switch to the position that causes the ratchet to turn counter-clockwise when viewമുകളിൽ നിന്ന് ed.

Image 5.1: The ratchet head, illustrating the directional switch and the minimal 4-degree swing required for engagement.

5.2 Using the 90-Tooth Mechanism

The 90-tooth design allows the ratchet to engage with only a 4-degree swing. This is particularly useful in tight or confined spaces where a larger swing arc is not possible.

1. Place the attached socket onto the fastener.
2. Apply steady pressure and rotate the handle in the desired direction. The fine-tooth mechanism will engage quickly.
3. When space is limited, only a small movement of the handle is needed to engage the next tooth, allowing for continuous turning of the fastener.

5.3 Proper Grip and Leverage

Hold the ergonomic handle firmly. For initial loosening or final tightening, apply force smoothly and steadily. Avoid sudden jerking motions.

Image 5.2: The ergonomic handle design for comfortable and secure grip.

5.4 ഉൽപ്പന്ന പ്രദർശന വീഡിയോ

Video 5.1: A demonstration of the Powerbuilt XT90 Ratchet's features and operation, including the sealed head and ergonomic handle.

6. പരിപാലനം

Regular maintenance will prolong the life and performance of your ratchet.

6.1 വൃത്തിയാക്കൽ

1. After each use, wipe down the ratchet with a clean, dry cloth to remove dirt, grease, and debris.
2. For stubborn grime, a mild degreaser or solvent can be used, followed by a thorough drying.
3. The chrome finish can be maintained with a chrome polish if desired.

6.2 ലൂബ്രിക്കേഷൻ

The XT90 ratchet features a sealed head, which significantly reduces the need for internal lubrication. However, a light application of general-purpose lubricant to the directional switch mechanism can help maintain smooth operation.

6.3 സംഭരണം

Store the ratchet in a clean, dry environment, away from excessive moisture or corrosive materials. A tool chest or drawer is ideal to protect it from impacts and environmental damage.

7. പ്രശ്‌നപരിഹാരം

If you encounter issues with your Powerbuilt XT90 Ratchet, consider the following common solutions:

• Ratchet not engaging or slipping:
  • Ensure the directional switch is fully engaged in either the tightening or loosening position.
  • Check for any visible debris obstructing the mechanism. Clean as per maintenance instructions.
  • If the issue persists, the internal mechanism may be worn or damaged. Contact customer support for assistance.
• Socket not attaching or detaching easily:
  • Verify that you are using a 1/2-inch drive socket.
  • Check for dirt or corrosion on the ratchet drive or inside the socket. Clean thoroughly.
  • Ensure the socket is pushed on or pulled off straight, without angling.

8 സ്പെസിഫിക്കേഷനുകൾ

Image 8.1: The 1/2-inch drive ratchet (top) measures 10 inches in length.

9. വാറൻ്റി

The Powerbuilt XT90 1/2-inch Drive 90-Tooth Professional Ratchet is backed by a ആജീവനാന്ത വാറൻ്റി. This warranty covers defects in material and workmanship under normal use. For warranty claims or further details, please refer to the official Powerbuilt webസൈറ്റ് അല്ലെങ്കിൽ അവരുടെ ഉപഭോക്തൃ പിന്തുണയുമായി ബന്ധപ്പെടുക.

10. പിന്തുണ

For additional assistance, product information, or to inquire about replacement parts, please visit the official Powerbuilt website or contact their customer service department. When contacting support, please have your model number (649939) available.

Visit Powerbuilt Official Webസൈറ്റ്
