Professional Racing Low Profile Aluminum Floor Jack 1.5 Ton (3,000 lbs)

1. ഉൽപ്പന്നം കഴിഞ്ഞുview

The Daytona Professional Racing Low Profile Aluminum Floor Jack is engineered for quick and efficient vehicle lifting. Featuring a dual parallel pump system, it allows for rapid lifting with fewer pumps. Constructed primarily from high-strength aluminum billet, this jack is remarkably lightweight at approximately 32 lbs, making it ideal for professional mechanics and automotive enthusiasts alike. Its low-profile design enables access under a wide range of vehicles, and the universal joint release mechanism ensures controlled and precise lowering from any handle position. A quick 1/2 turn release facilitates fast pit stops.

• പരമാവധി ലിഫ്റ്റ് ഉയരം: 14-1/4 ഇഞ്ച്
• കുറഞ്ഞ ഉയരം: 3-1/2 ഇഞ്ച്
• ഭാരം: ഏകദേശം 32 പൗണ്ട്
• കൈകാര്യം ചെയ്യുക: Two-piece knurled aluminum handle (37-1/2 inches long) with foam bumper to protect vehicle finish.
• സാഡിൽ: Rubber saddle pad to prevent marring.
• പൂർത്തിയാക്കുക: Lightweight aircraft aluminum with a sapphire anodized finish.
• സർട്ടിഫിക്കേഷൻ: Meets ASME-PASE standards.

Image: The Daytona 1.5 Ton Aluminum Floor Jack in its green and black finish, ready for use.

2 സുരക്ഷാ വിവരങ്ങൾ

Always read and understand all instructions and warnings before using this product. Failure to follow these instructions may result in property damage, personal injury, or death.

• DO NOT EXCEED RATED CAPACITY: This jack has a maximum load capacity of 1.5 tons (3,000 lbs). Do not attempt to lift loads heavier than this rating.
• USE ON HARD, LEVEL SURFACE: Always operate the jack on a hard, level surface capable of supporting the load. Avoid soft ground, gravel, or uneven surfaces.
• USE JACK STANDS: This floor jack is a lifting device only. Immediately after lifting the vehicle, support the vehicle with appropriate jack stands. Never work under a vehicle supported only by a floor jack.
• CENTER THE LOAD: Ensure the load is centered on the jack saddle. Off-center loads can cause instability and lead to the load slipping.
• CHOCK WHEELS: Before lifting, always chock the wheels that remain on the ground to prevent the vehicle from moving.
• സുരക്ഷാ ഗ്ലാസുകൾ ധരിക്കുക: Always wear ANSI-approved safety glasses during setup and operation.
• KEEP CLEAR: Keep hands, feet, and other body parts clear of moving parts and pinch points.
• ഉപയോഗിക്കുന്നതിന് മുമ്പ് പരിശോധിക്കുക: Before each use, inspect the jack for any damage, leaks, or loose components. Do not use if damaged.
• LOWER SLOWLY: ലോഡ് സാവധാനത്തിലും നിയന്ത്രിതമായ രീതിയിലും കുറയ്ക്കുക.

3. പാക്കേജ് ഉള്ളടക്കം

Carefully unpack all components and inspect for damage during shipping. If any parts are missing or damaged, contact customer service immediately.

• 1x Daytona 1.5 Ton Aluminum Floor Jack
• 1x Two-piece Handle

Image: The Daytona Floor Jack and its two-piece handle as packaged in the box.

ചിത്രം: അടുത്ത് view of the Daytona 1.5 Ton Aluminum Floor Jack within its protective packaging.

4. സജ്ജീകരണം

1. അസംബ്ലി കൈകാര്യം ചെയ്യുക: Insert the upper handle section into the lower handle section, ensuring the spring-loaded pin engages the hole. Then, insert the assembled handle into the handle receiver on the jack. Tighten the set screw on the handle receiver to secure the handle.
2. പ്രാഥമിക പരിശോധന: Before first use, inspect the jack for any visible damage, loose fasteners, or hydraulic fluid leaks. Ensure all wheels roll freely.
3. Bleeding the Hydraulic System (if necessary): If the jack does not lift smoothly or fully, it may be necessary to bleed air from the hydraulic system.
   • റിലീസ് വാൽവ് തുറക്കാൻ ഹാൻഡിൽ എതിർ ഘടികാരദിശയിൽ തിരിക്കുക.
   • Pump the handle fully up and down 10-15 times to purge air.
   • റിലീസ് വാൽവ് അടയ്ക്കുന്നതിന് ഹാൻഡിൽ ഘടികാരദിശയിൽ തിരിക്കുക.
   • Test the jack's operation. Repeat if necessary.

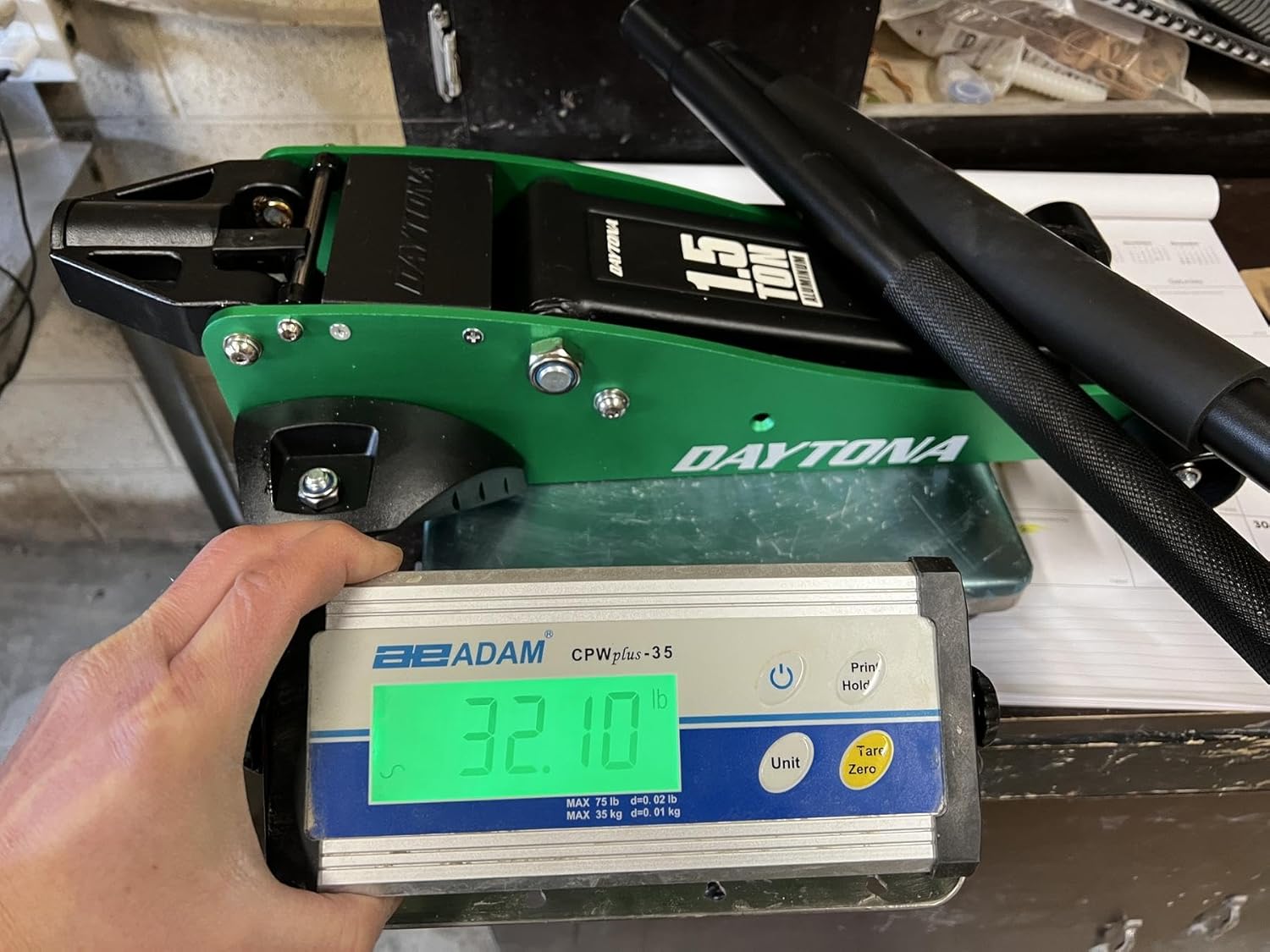

Image: The Daytona Floor Jack being weighed, confirming its lightweight design at 32.10 lbs.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

1. വാഹനം തയ്യാറാക്കുക: വാഹനം കട്ടിയുള്ളതും നിരപ്പായതുമായ ഒരു പ്രതലത്തിൽ പാർക്ക് ചെയ്യുക. പാർക്കിംഗ് ബ്രേക്ക് അമർത്തി നിലത്ത് അവശേഷിക്കുന്ന ചക്രങ്ങൾ ഞെരുക്കുക.
2. ജാക്ക് സ്ഥാപിക്കുക: Locate the vehicle's manufacturer-recommended lifting points. Slide the jack under the vehicle, ensuring the saddle is directly under the lifting point.
3. വാഹനം ഉയർത്തുക: Turn the handle clockwise until the release valve is fully closed. Pump the handle up and down to raise the vehicle to the desired height. Ensure the jack lifts smoothly.
4. ജാക്ക് സ്റ്റാൻഡുകൾ ഉപയോഗിച്ച് സുരക്ഷിതമാക്കുക: Once the vehicle is lifted, immediately place appropriately rated jack stands under the vehicle's designated support points. Slowly lower the vehicle onto the jack stands by turning the handle counter-clockwise to open the release valve. Once the vehicle is securely resting on the jack stands, remove the floor jack.
5. വാഹനം താഴ്ത്തുക: To lower the vehicle, ensure the area is clear. If the jack was removed, reposition it under the lifting point and raise the vehicle slightly to remove the jack stands. Once jack stands are removed, slowly turn the handle counter-clockwise to open the universal joint release valve, allowing for a controlled descent. The 1/2 turn release allows for rapid lowering when needed.

Image: The Daytona Floor Jack correctly positioned under the front of a vehicle, ready for lifting.

6. പരിപാലനം

• വൃത്തിയാക്കൽ: Keep the jack clean and free of dirt, grease, and debris. Wipe down with a clean cloth after each use.
• ലൂബ്രിക്കേഷൻ: Periodically lubricate all moving parts, including pivot points and wheels, with a light machine oil.
• ഹൈഡ്രോളിക് ദ്രാവകം: Check the hydraulic fluid level periodically. If low, add high-quality hydraulic jack oil. Do not use brake fluid or motor oil.
• സംഭരണം: തുരുമ്പ് തടയുന്നതിനും സീൽ ആയുസ്സ് വർദ്ധിപ്പിക്കുന്നതിനുമായി റാമിനെ പൂർണ്ണമായും പിൻവലിച്ച് വൃത്തിയുള്ളതും വരണ്ടതുമായ സ്ഥലത്ത് ജാക്ക് സൂക്ഷിക്കുക.
• പരിശോധന: Regularly inspect for signs of wear, damage, or leaks. Any damaged parts should be replaced by qualified personnel.

7. പ്രശ്‌നപരിഹാരം

8 സ്പെസിഫിക്കേഷനുകൾ

9. വാറൻ്റിയും പിന്തുണയും

Specific warranty information for this product is typically provided at the point of purchase or within separate documentation included with the product. Please retain your proof of purchase for warranty claims.

For technical support, parts, or service inquiries, please contact the manufacturer, HFT Daytona, or your authorized dealer. Refer to their official website or contact information provided with your product for the most up-to-date support channels.
