vidaXL Retractable Awning with Manual Crank Handle

ആമുഖം

This manual provides detailed instructions for the safe installation, operation, and maintenance of your vidaXL Retractable Awning, Model 43223. Please read all instructions carefully before assembly and use to ensure proper function and longevity of your product. Keep this manual for future reference.

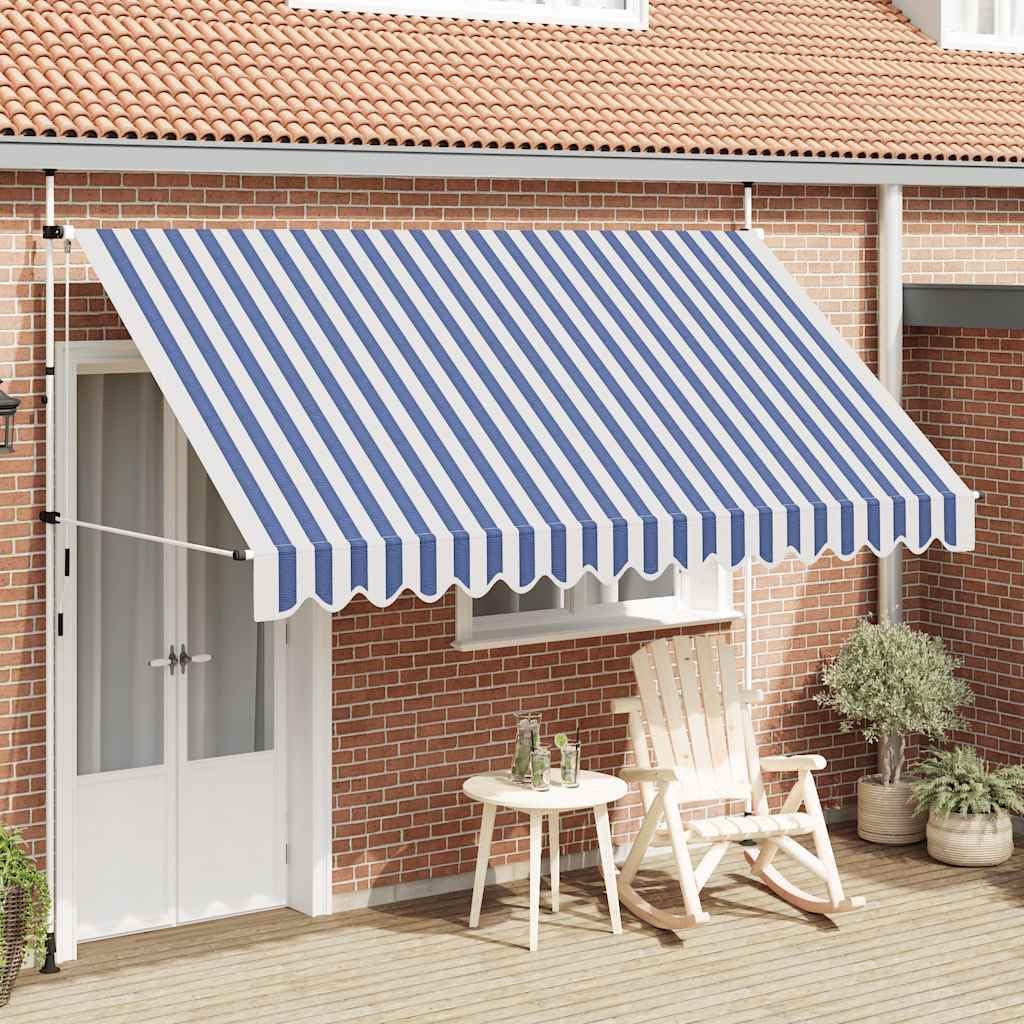

Image: The vidaXL Retractable Awning, Model 43223, shown fully extended over a patio area, providing shade. The awning features blue and white stripes and is mounted above a door and window, with support poles extending to the ground.

സുരക്ഷാ വിവരങ്ങൾ

Always prioritize safety during installation and use. Failure to follow these instructions may result in injury or damage to the product.

• Ensure the mounting surface is structurally sound and capable of supporting the awning's weight and wind loads. Consult a professional if unsure.
• Do not install the awning during strong winds, heavy rain, or other adverse weather conditions.
• Retract the awning during strong winds, heavy rain, snow, or when not in use for extended periods to prevent damage.
• പ്രവർത്തന സമയത്ത് കുട്ടികളെയും വളർത്തുമൃഗങ്ങളെയും ഓണിംഗിൽ നിന്ന് അകറ്റി നിർത്തുക.
• Regularly inspect all fasteners and connections for tightness and wear.
• ഓണിംഗ് ഫ്രെയിമിൽ നിന്നോ തുണിയിൽ നിന്നോ വസ്തുക്കൾ തൂക്കിയിടരുത്.
• ഇൻസ്റ്റാളേഷൻ സമയത്ത് ഉചിതമായ ഉപകരണങ്ങൾ ഉപയോഗിക്കുക, സുരക്ഷാ ഗിയർ ധരിക്കുക.

പാക്കേജ് ഉള്ളടക്കം

Before beginning assembly, verify that all components are present and undamaged. If any parts are missing or damaged, contact vidaXL customer support.

• Awning fabric with roller tube
• Main support frame (alloy steel)
• ഫ്രണ്ട് ബാർ
• പിന്തുണ ആയുധങ്ങൾ
• മാനുവൽ ക്രാങ്ക് ഹാൻഡിൽ
• മൗണ്ടിംഗ് ബ്രാക്കറ്റുകളും ഹാർഡ്‌വെയറും
• Adjustable vertical support poles
• നിർദ്ദേശ മാനുവൽ (ഈ പ്രമാണം)

സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

Installation requires at least two people. Ensure you have all necessary tools, including a drill, level, measuring tape, and appropriate fasteners for your mounting surface.

1. Choose Installation Location

Select a sturdy wall or overhang capable of supporting the awning. Consider the desired shade area and ensure sufficient clearance for extension and retraction. The awning has a projection distance of 47.2 inches (120 cm) and a minimum clearance of 47.2 inches (120 cm).

Image: A technical diagram illustrating the dimensions of the awning. Key measurements include a total width of 350 cm (137.7 inches), a projection of 115 cm (45.3 inches) for the main canopy, and adjustable support pole heights from 210-300 cm (82.7-118.1 inches).

2. Mount the Main Frame

Attach the main support frame to the chosen surface using the provided mounting brackets and hardware. Use a level to ensure the frame is perfectly horizontal. Mark drill points accurately before drilling pilot holes.

3. Assemble and Attach Support Arms

Connect the support arms to the main frame and the front bar. Ensure all connections are secure. The arms provide the tension for the awning fabric.

Image: A collage of four close-up images showing different parts of the awning. These include the fabric attachment point to the frame, a clamp for the support poles, the adjustable foot of a support pole, and a detailed view of the blue and white striped fabric.

4. Install the Awning Fabric and Roller Tube

Carefully slide the awning fabric, which is pre-attached to the roller tube, into the designated channels on the main frame and front bar. Ensure the fabric is evenly distributed and not twisted.

5. Attach Vertical Support Poles

Attach the adjustable vertical support poles to the front bar. Adjust their height to provide adequate support and the desired angle for the awning. Secure the base of the poles to the ground or patio surface if possible for added stability.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

The vidaXL Retractable Awning operates manually using the provided crank handle.

ഓണിംഗ് നീട്ടാൻ:

1. Insert the manual crank handle into the designated loop or hook on the awning mechanism.
2. Turn the crank handle clockwise to extend the awning fabric.
3. Continue cranking until the awning reaches the desired extension. Do not over-extend.
4. Ensure the vertical support poles are properly positioned and secured once the awning is extended.

Image: A visual representation demonstrating the awning in its retracted state (top) and extended state (bottom), with a curved arrow indicating the motion of extension.

ഓണിംഗ് പിൻവലിക്കാൻ:

1. Ensure the area around the awning is clear.
2. Insert the manual crank handle into the designated loop or hook.
3. Turn the crank handle counter-clockwise to retract the awning fabric.
4. Continue cranking until the awning is fully retracted against the wall.
5. Remove the crank handle and store it safely.

മെയിൻ്റനൻസ്

പതിവ് അറ്റകുറ്റപ്പണികൾ നിങ്ങളുടെ ഓണിംഗിന്റെ ആയുസ്സും രൂപവും വർദ്ധിപ്പിക്കും.

• തുണി വൃത്തിയാക്കൽ: The polyester canopy is water- and dirt-repellent. Clean with a soft brush and mild soap solution. Rinse thoroughly with clean water and allow to air dry completely before retracting. Do not use harsh chemicals or abrasive cleaners.
• ഫ്രെയിം പരിശോധന: Periodically check the alloy steel frame for any signs of rust, damage, or loose connections. Tighten any loose bolts or screws.
• മെക്കാനിസം പരിശോധന: Ensure the crank mechanism operates smoothly. If it becomes stiff, apply a silicone-based lubricant to moving parts, avoiding the fabric.
• ശൈത്യകാല സംഭരണം: In areas with heavy snow or ice, it is recommended to fully retract the awning and, if possible, remove the fabric for storage indoors during winter months.

ട്രബിൾഷൂട്ടിംഗ്

സ്പെസിഫിക്കേഷനുകൾ

വാറൻ്റിയും പിന്തുണയും

For warranty information or technical support, please refer to the documentation included with your purchase or visit the official vidaXL webസൈറ്റ്. ഏതെങ്കിലും വാറന്റി ക്ലെയിമുകൾക്ക് നിങ്ങളുടെ വാങ്ങലിന്റെ തെളിവ് സൂക്ഷിക്കുക.

ബന്ധപ്പെടാനുള്ള വിവരങ്ങൾ: ദയവായി സന്ദർശിക്കുക vidaXL Store on Amazon കൂടുതൽ സഹായത്തിനോ മറ്റ് ഉൽപ്പന്നങ്ങൾ പര്യവേക്ഷണം ചെയ്യുന്നതിനോ.
