TYT TH-47 Handheld Microphone Speaker Instruction Manual

1. ഉൽപ്പന്നം കഴിഞ്ഞുview

The TYT TH-47 Handheld Microphone Speaker is designed to enhance communication for compatible two-way radios. It features a built-in speaker and microphone, allowing for convenient hands-free operation when connected to your radio. The unit includes a Push-To-Talk (PTT) button for transmitting and a 3.5mm audio jack for connecting an external earpiece.

ചിത്രം 1.1: കഴിഞ്ഞുview of the TYT TH-47 Handheld Microphone Speaker, highlighting key features such as the main PTT button, microphone grille, side PTT button, and the 360-degree rotating clip on the back.

പ്രധാന സവിശേഷതകൾ:

• Push-To-Talk (PTT) Microphone: Integrated PTT button for easy transmission.
• ബിൽറ്റ്-ഇൻ സ്പീക്കർ: Provides clear audio reception.
• 3.5 എംഎം ഹെഡ്‌ഫോൺ ജാക്ക്: Allows connection of an external earpiece for private listening.
• 360° Rotating Clip: Metal clip for secure attachment to clothing or gear.
• നീണ്ടുനിൽക്കുന്ന നിർമ്മാണം: Made with metal clips and hardware, and a flexible PU material coiled cable.

2 അനുയോജ്യത

The TYT TH-47 Handheld Microphone Speaker is compatible with various two-way radios featuring a K1 plug connection. Below is a list of known compatible models:

Compatible Handheld Radios:

• TYT Models: MD-UV380, MD-UV390, TH-F8+, TC-3000, TH-UV8000D, TH-UV8000E
• Kenwood Models: TK-240, TK-250, TK-255, TK-260, TK-260G, TK-270, TK-270G, TK-272G, TK-278, TK-278G, TK-340, TK-349, TK-3350, TK-3350, TK-3350 TK-370, TK-370G, TK-373G, TK-378, TK-378G, TK-430, TK-431, TK-715, TK-2100, TK-2102, TK-2107, TK-2118, TK-2118, TK, TK-2130 TK-3102, TK-3107, TK-3118, TK-3160
• മറ്റ് മോഡലുകൾ: KG-UV9Dplus, KD-UV8D, KG-UV6D, DM-5R, UV-5R, UV6R, UV-82, BF-888S, GT-1, GT-3/3TP/3WP, GT-5/5TP, BF-9700, BF-F8HP, BF-F8+TP, BF-F9+TP

3. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

Follow these steps to connect your TYT TH-47 Handheld Microphone Speaker to your compatible two-way radio.

1. Identify the K1 Plug: The microphone speaker features a K1 type dual-pin connector. Ensure your radio has a compatible K1 accessory port.
2. റേഡിയോയുമായി ബന്ധിപ്പിക്കുക: Carefully insert the K1 plug into the accessory port on your two-way radio. Ensure a firm and secure connection. Do not force the plug.


ചിത്രം 3.1: The TYT TH-47 Handheld Microphone Speaker, showing the K1 dual-pin connector ready for insertion into a compatible radio's accessory port.

3. മൈക്രോഫോൺ സുരക്ഷിതമാക്കുക: Use the 360° rotating metal clip on the back of the microphone speaker to attach it to your collar, pocket, or other convenient location. This allows for hands-free operation and optimal microphone positioning.

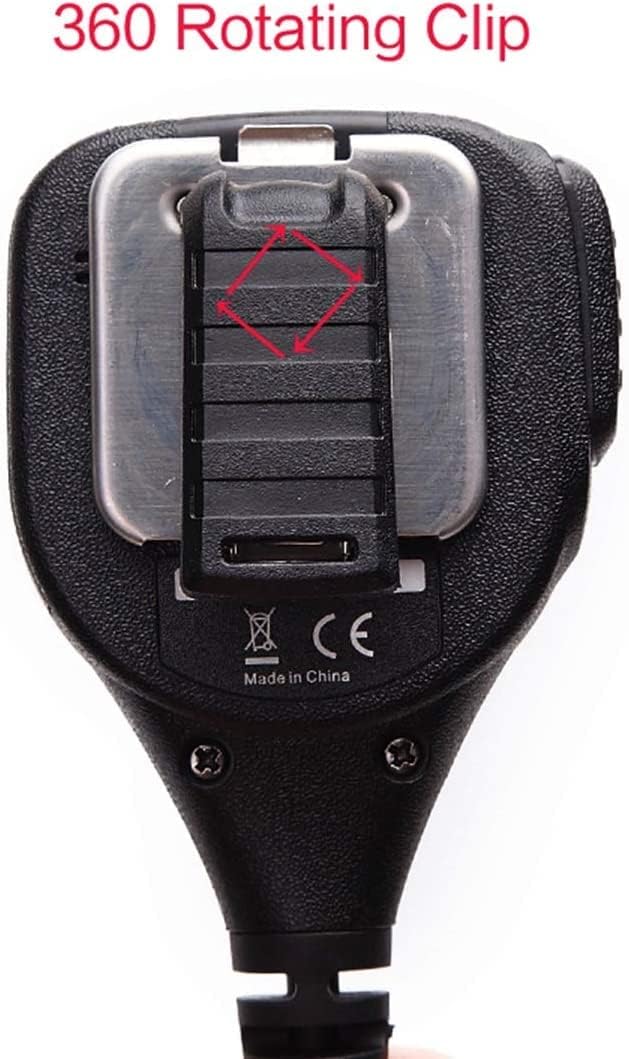

ചിത്രം 3.2: എ വിശദമായി view of the 360-degree rotating clip, demonstrating its design for flexible attachment to clothing or gear.

4. Optional Earpiece Connection: If desired, plug a 3.5mm earpiece into the audio jack located on the side of the microphone speaker for private listening.

ചിത്രം 3.3: The 3.5mm audio jack on the side of the microphone speaker, used for connecting an external earpiece.

4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

Once connected, the TYT TH-47 Handheld Microphone Speaker functions as your primary input and output device for your two-way radio.

1. ഓഡിയോ സ്വീകരിക്കുന്നു: Audio from your radio will be routed through the built-in speaker on the microphone. If an earpiece is connected to the 3.5mm jack, audio will be directed to the earpiece instead.
2. Transmitting (Push-To-Talk): To transmit, press and hold the large PTT button located on the front or the side PTT button. Speak clearly into the microphone grille. Release the PTT button to stop transmitting and return to receive mode.
3. മൈക്രോഫോൺ പൊസിഷനിംഗ്: For optimal audio clarity, position the microphone approximately 2-5 inches (5-12 cm) from your mouth when speaking.

5. പരിപാലനവും പരിചരണവും

Proper care will ensure the longevity and optimal performance of your microphone speaker.

• വൃത്തിയാക്കൽ: Wipe the exterior of the microphone speaker with a soft, damp തുണി. കഠിനമായ രാസവസ്തുക്കളോ ഉരച്ചിലുകളുള്ള ക്ലീനറുകളോ ഉപയോഗിക്കരുത്.
• സംഭരണം: നേരിട്ടുള്ള സൂര്യപ്രകാശത്തിൽ നിന്നും കടുത്ത താപനിലയിൽ നിന്നും മാറി തണുത്തതും വരണ്ടതുമായ സ്ഥലത്ത് ഉപകരണം സൂക്ഷിക്കുക.
• കേബിൾ കെയർ: Avoid excessive pulling or bending of the coiled cable to prevent internal wire damage. The cable is made of flexible PU material, designed for durability and extension from approximately 23.62 to 82.67 inches.

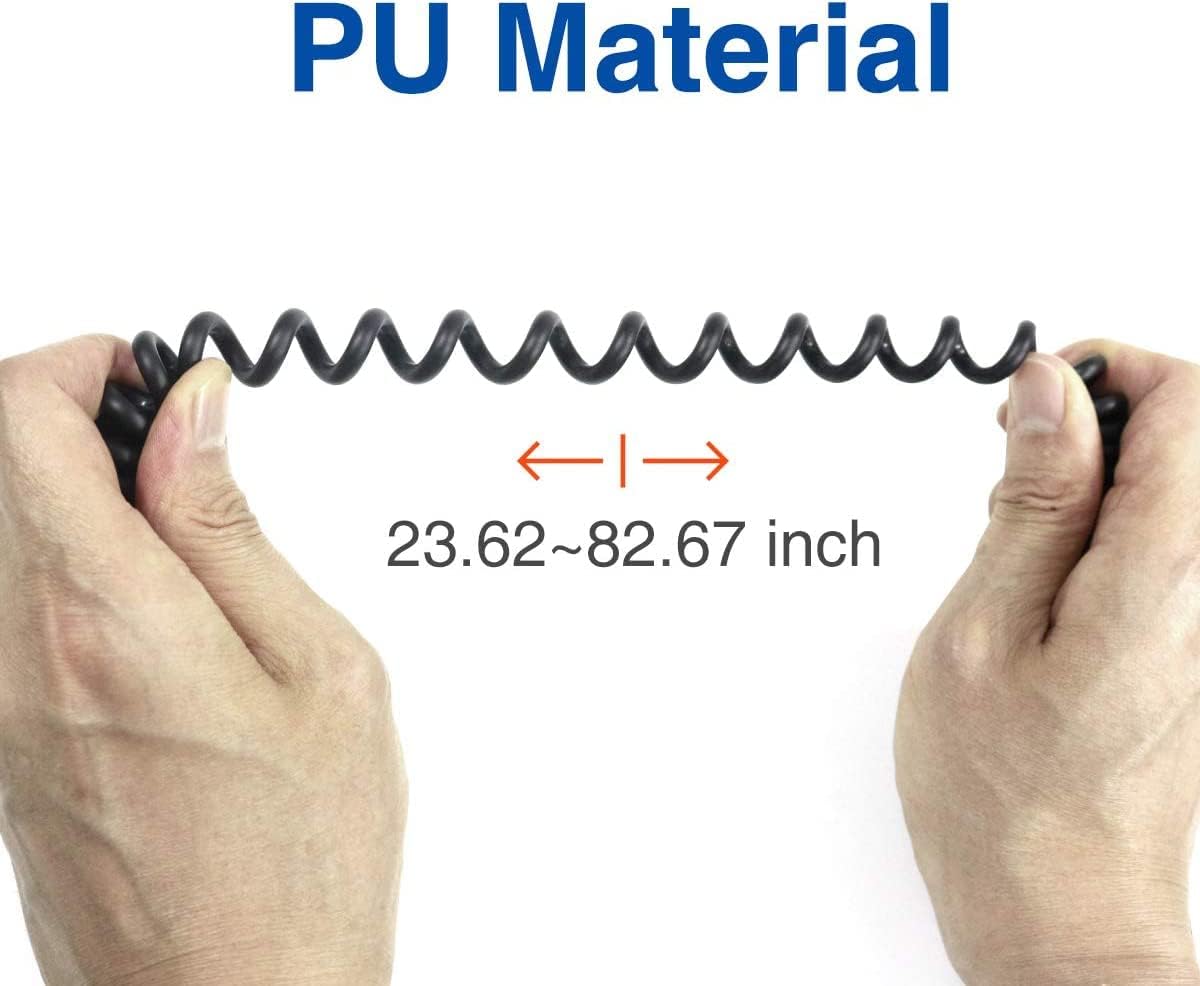

ചിത്രം 5.1: Demonstration of the coiled cable's flexibility and its ability to extend, highlighting the durable PU material.

• ജല പ്രതിരോധം: The device is not fully waterproof. Avoid exposing it to heavy rain or submerging it in water.

6. പ്രശ്‌നപരിഹാരം

If you encounter issues with your TYT TH-47 Handheld Microphone Speaker, refer to the following common solutions:

• സ്പീക്കറിൽ നിന്ന് ഓഡിയോ ഇല്ല:
  • Ensure the K1 plug is fully inserted into the radio's accessory port.
  • റേഡിയോയുടെ വോളിയം ലെവൽ പരിശോധിക്കുക.
  • If an earpiece is connected, ensure it is functioning correctly and fully inserted into the 3.5mm jack.
  • Verify radio settings for external speaker output.
• ട്രാൻസ്മിറ്റ് ചെയ്യാൻ കഴിയില്ല (PTT പ്രവർത്തിക്കുന്നില്ല):
  • Ensure the K1 plug is fully inserted.
  • Check if the radio is powered on and in a transmit-ready state.
  • Confirm the PTT button is being pressed firmly.
  • Test with another compatible radio if available to rule out radio-specific issues.
• Poor Audio Quality (Transmit or Receive):
  • For transmit audio, ensure you are speaking clearly into the microphone grille at an appropriate distance (2-5 inches).
  • Check for obstructions on the microphone grille or speaker.
  • Ensure the radio's antenna is properly connected and that you are within range of the other party.
  • Environmental noise can affect audio clarity; try moving to a quieter location.
• ഇടവിട്ടുള്ള കണക്ഷൻ:
  • Inspect the K1 plug and radio port for any debris or damage.
  • Ensure the cable is not excessively stretched or kinked.

7 സ്പെസിഫിക്കേഷനുകൾ

Detailed technical specifications for the TYT TH-47 Handheld Microphone Speaker.

8. വാറൻ്റിയും പിന്തുണയും

For warranty information and technical support, please refer to the documentation provided with your original purchase or contact TYT directly through their official website or authorized distributors. Keep your purchase receipt as proof of purchase for any warranty claims.

നിർമ്മാതാവ്: TYT

Webസൈറ്റ്: www.tyt888.com
