Kawasaki 2-Cycle Engine Oil User Manual

1. ഉൽപ്പന്നം കഴിഞ്ഞുview

The Kawasaki 2-Cycle Engine Oil (Part# 99969-6085C) is a specially formulated, premium synthetic blend K-TECH oil designed to extend the life of your Kawasaki engine. This oil includes fuel stabilizers and is suitable for use in all engines where API and JASO FD oil is recommended. It meets and exceeds the rigorous requirements of API TC, JASO FD, and ISO EGD classifications for 2-cycle air-cooled small engine applications.

Key features include a low-smoke formula, improved protection against bearing wear and failure, improved protection against ring wear and sticking, reduced lacquer and varnish build-up, and rust and corrosion inhibitors. Its formulation contains dispersants and detergents to prevent harmful deposits that can cause premature wear, pre-ignition, and port plugging. This product is supplied as a case of 24 individual 12.8 oz bottles.

Figure 1: A full case containing 24 bottles of Kawasaki 2-Cycle Engine Oil, each 12.8 fluid ounces.

2 സുരക്ഷാ വിവരങ്ങൾ

അപായം: Contains Petroleum Distillates. Harmful or fatal if swallowed. Can irritate the eyes and skin.

• Do NOT induce vomiting if swallowed. Seek immediate medical attention.
• If in eyes, rinse cautiously with water for several minutes. Remove contact lenses, if present and easy to do. Continue rinsing.
• Avoid fluid contact with open flame or high heat sources.
• Wash thoroughly with soap and water after handling.
• If irritation occurs or you feel unwell, get medical attention.
• കുട്ടികൾക്ക് ലഭ്യമാകാതെ സൂക്ഷിക്കുക.

മുന്നറിയിപ്പ്: This product can expose you to chemicals including petroleum distillates, which are known to the State of California to cause cancer and reproductive harm. For more information, go to www.P65warnings.ca.gov.

ചിത്രം 2: പിൻഭാഗം view of a single bottle, displaying important safety warnings and the fuel-to-oil mixing ratio chart.

3. സജ്ജീകരണവും തയ്യാറെടുപ്പും

Before mixing the Kawasaki 2-Cycle Engine Oil with fuel, ensure you are in a well-ventilated area, away from open flames or ignition sources. Wear appropriate personal protective equipment, including gloves and eye protection.

3.1 Required Materials:

• Kawasaki 2-Cycle Engine Oil
• Fresh, clean gasoline (unleaded, recommended octane for your engine)
• Approved fuel container with appropriate volume markings
• Funnel (optional, for spill prevention)

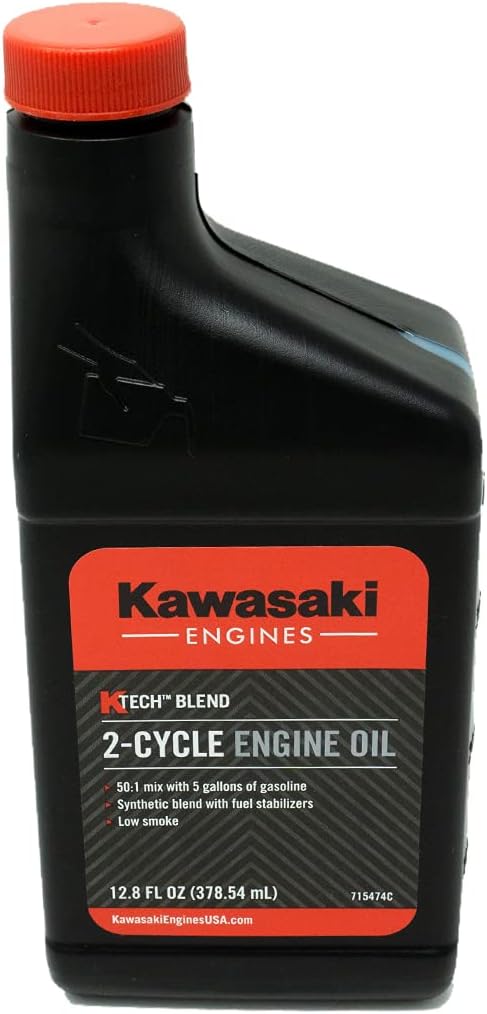

ചിത്രം 3: മുൻഭാഗം view of a single 12.8 oz bottle of Kawasaki 2-Cycle Engine Oil, highlighting the K-TECH Blend and 2-Cycle Engine Oil designation.

4. Operating Instructions: Fuel Mixing

This 2-cycle engine oil is designed to be mixed with gasoline. Always refer to your engine's manufacturer recommendations for the correct fuel-to-oil mixing ratio. The oil is blue in color to indicate its presence in the fuel mix.

4.1 Mixing Ratios:

The following table provides common mixing ratios for 2-cycle engines. The 12.8 fl oz bottle is specifically designed for a 50:1 mix with 5 gallons of gasoline.

4.2 Mixing Procedure:

1. Determine the required amount of gasoline based on your engine's needs and the desired mixing ratio.
2. Pour approximately half of the required gasoline into an approved fuel container.
3. Carefully measure and add the correct amount of Kawasaki 2-Cycle Engine Oil to the gasoline. The bottle has measurement markings on the side for convenience.
4. Add the remaining gasoline to the container.
5. Securely close the fuel container and gently shake it to ensure thorough mixing of the oil and gasoline.
6. The mixture should have a distinct blue tint, indicating the presence of the oil.

ചിത്രം 4: വശം view of the oil bottle, showing the integrated measurement markings for precise mixing.

5. പരിപാലനവും സംഭരണവും

5.1 സംഭരണം:

• Store Kawasaki 2-Cycle Engine Oil in its original, tightly sealed containers.
• Keep containers in a cool, dry, well-ventilated area, away from direct sunlight, heat sources, and open flames.
• Ensure the storage area is inaccessible to children and pets.
• Do not store mixed fuel for extended periods. Fuel stabilizers in the oil help, but fresh fuel is always recommended for optimal engine performance.

5.2 നീക്കംചെയ്യൽ:

Dispose of used oil and oil/fuel mixtures responsibly according to local regulations. Do not pour down drains or dispose of in regular trash. Contact your local waste management facility for proper disposal guidelines.

6. പ്രശ്‌നപരിഹാരം

This section addresses common concerns related to the use of 2-cycle engine oil.

6.1 Engine Smoking Excessively:

• കാരണം: Incorrect fuel-to-oil ratio (too much oil), or engine issues.
• പരിഹാരം: Verify the mixing ratio using the table in Section 4.1. Ensure precise measurement. If smoking persists, consult your engine's service manual or a qualified technician.

6.2 Engine Performance Issues (e.g., rough running, stalling):

• കാരണം: Incorrect fuel-to-oil ratio, stale fuel, or other engine-related problems.
• പരിഹാരം: Ensure the fuel mixture is fresh and correctly proportioned. This oil contains fuel stabilizers, but fuel can still degrade over time. If the issue continues, inspect spark plugs, fuel filters, and other engine components as per your engine's manual.

6.3 Oil Color Not Blue in Mixture:

• കാരണം: Insufficient oil added, or oil not thoroughly mixed.
• പരിഹാരം: Re-check the amount of oil added. Gently shake the fuel container to ensure complete mixing. If the color is still not blue, do not use the mixture; it may be improperly mixed and could damage your engine.

7 സ്പെസിഫിക്കേഷനുകൾ

8. വാറൻ്റിയും പിന്തുണയും

For specific warranty information regarding Kawasaki products, please refer to the documentation provided with your Kawasaki engine or equipment. For product support, technical inquiries, or to locate authorized service centers, please visit the official Kawasaki webസൈറ്റ് അല്ലെങ്കിൽ അവരുടെ ഉപഭോക്തൃ സേവന വിഭാഗവുമായി ബന്ധപ്പെടുക.
