PUTORSEN MAW-1 Gas Spring Monitor Wall Mount Instruction Manual

1. ആമുഖം

This manual provides comprehensive instructions for the safe installation, operation, and maintenance of your PUTORSEN MAW-1 Gas Spring Monitor Wall Mount. This versatile wall mounting solution is designed for PC monitors and small TV screens ranging from 17 to 42 inches, with a weight capacity of up to 12 kg (26.4 lbs). It offers full articulation and integrated cable management to optimize your workspace.

2 സുരക്ഷാ വിവരങ്ങൾ

• Read all instructions carefully before installation. If you do not understand these instructions or have doubts about the safety of the installation, please contact a qualified installer.
• Verify that the mounting surface can safely support the combined weight of the equipment and all attached hardware and components.
• Use only the mounting hardware provided. Do not use the product for any purpose not explicitly specified by the manufacturer.
• Improper installation or use may result in property damage, serious injury, or death.
• Ensure all screws are tightened securely but do not overtighten. Overtightening can damage the screws and mounting surface.
• ഇൻസ്റ്റാളേഷൻ സമയത്ത് കുട്ടികളെയും വളർത്തുമൃഗങ്ങളെയും അകറ്റി നിർത്തുക.

3. പാക്കേജ് ഉള്ളടക്കം

Please check to ensure all components are present and undamaged:

• 1 x PUTORSEN MAW-1 Monitor Wall Mount
• 1 x Mounting Hardware Kit (screws, anchors, L-key)
• 1 x ഉപയോക്തൃ മാനുവൽ

4 സ്പെസിഫിക്കേഷനുകൾ

Figure 1: Compatibility and Dimensional Overview. This image illustrates the supported monitor sizes (17-42 inches), VESA patterns (75x75mm, 100x100mm), maximum weight (12kg), and various dimensions including arm extension and rotation limits.

5. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

Follow these three simple steps for installation:

1. Step 1: Attach the Wall Mount to Your Wall.
   Carefully select a suitable wall location. Ensure the wall material can support the mount and your monitor's weight. Use the provided hardware to securely fasten the wall plate to the chosen spot.
2. Step 2: Connect Your Monitor to the VESA Plate.
   The VESA plate is detachable for easier installation. Attach the VESA plate to the back of your monitor using the appropriate screws from the mounting hardware kit. Once attached, slide the monitor with the VESA plate onto the arm's mounting head until it clicks securely into place.


Figure 2: Detachable VESA Plate Design. This image demonstrates how the VESA plate detaches from the arm for easy monitor attachment, simplifying the installation process.

3. Step 3: Adjust the Gas Spring Tension.
   After mounting the monitor, adjust the gas spring tension to match your monitor's weight. This ensures the monitor floats freely and can be positioned effortlessly. Refer to the 'Operating and Adjustment' section for detailed instructions on tension adjustment.
4. കേബിൾ മാനേജുമെന്റ്:
   Utilize the built-in cable management system to route and conceal your cables along the arm. This helps maintain a clean and organized workspace.

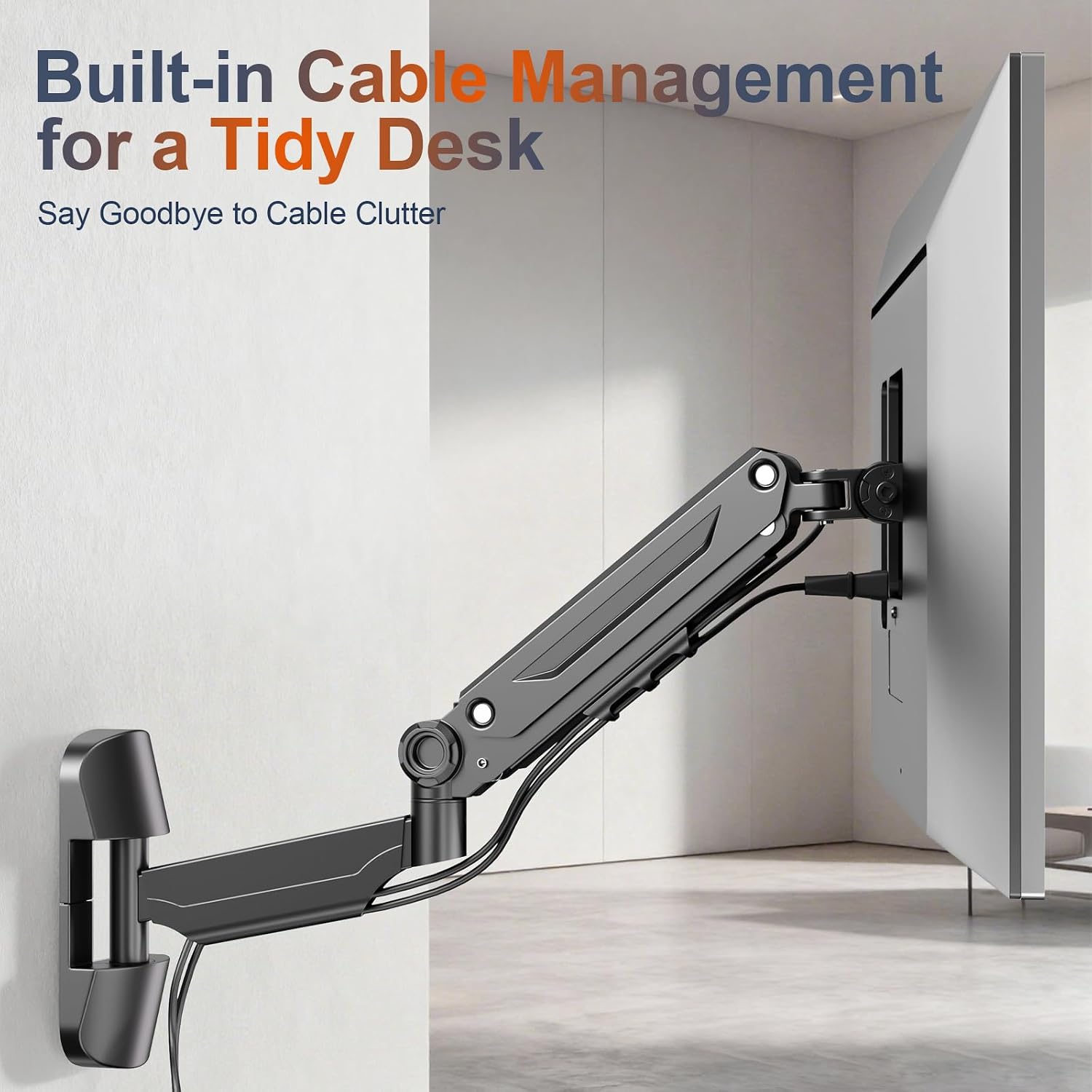

Figure 3: Built-in Cable Management. This image highlights the integrated channels within the monitor arm designed to neatly route and hide cables, contributing to a tidy desk environment.

6. പ്രവർത്തനവും ക്രമീകരണവും

The MAW-1 monitor mount offers extensive flexibility for optimal viewആശ്വാസം.

6.1 ഗ്യാസ് സ്പ്രിംഗ് ടെൻഷൻ ക്രമീകരണം

The gas spring allows your monitor to float and be freely adjustable. Proper tension adjustment is crucial for this functionality. Use the provided L-key to adjust the articulation knob:

• മോണിറ്റർ ആണെങ്കിൽ cannot be lifted or sags, turn the articulation knob in the "+" direction (counter-clockwise) to increase tension for heavier monitors.
• മോണിറ്റർ ആണെങ്കിൽ താഴ്ത്താൻ കഴിയില്ല or rises too easily, turn the articulation knob in the "-" direction (clockwise) to decrease tension for lighter monitors.

Figure 4: Gas Spring Tension Adjustment. This diagram shows the adjustment point on the arm and indicates turning counter-clockwise for heavier monitors ('+') and clockwise for lighter monitors ('-').

6.2 Monitor Positioning

The adjustable arm provides a wide range of motion:

• ടിൽറ്റ്: Adjust the screen vertically from -35° to +35° to reduce glare and find your preferred viewing ആംഗിൾ.
• റൊട്ടേഷൻ: Rotate the screen horizontally from -180° to +180° to share your screen or change orientation.
• സ്വിവൽ: Swivel the monitor 360° for portrait or landscape mode.

These adjustments help achieve ergonomic comfort, reducing strain on your neck, shoulders, and back.

Figure 5: Flexible Positioning. This image illustrates the 360° rotation, ±35° tilt, and ±90° swivel capabilities of the monitor mount, allowing for versatile screen orientation.

7. പരിപാലനം

• എല്ലാ സ്ക്രൂകളും കണക്ഷനുകളും ഇറുകിയതും സുരക്ഷിതവുമാണെന്ന് ഉറപ്പാക്കാൻ പതിവായി പരിശോധിക്കുക.
• മൃദുവായ, ഡി ക്ലീനർ ഉപയോഗിച്ച് മൗണ്ട് വൃത്തിയാക്കുക.amp തുണി. ഫിനിഷിന് കേടുവരുത്തുന്ന ഉരച്ചിലുകളുള്ള ക്ലീനറുകളോ ലായകങ്ങളോ ഒഴിവാക്കുക.
• Inspect the gas spring mechanism periodically for any signs of wear or damage.

8. പ്രശ്‌നപരിഹാരം

• Monitor does not stay in position (sags or rises): Adjust the gas spring tension using the L-key as described in Section 6.1. Ensure the tension is correctly set for your monitor's weight.
• Difficulty moving the arm: Check if any joints are overtightened. Loosen slightly if necessary. Ensure the gas spring tension is not set too high or too low for the monitor's weight.
• ചലിക്കൽ അല്ലെങ്കിൽ അസ്ഥിരത: Verify that the wall mount is securely fastened to the wall and that all monitor attachment screws are tight. Ensure the wall material is appropriate for the mount.

9. വാറൻ്റിയും പിന്തുണയും

The PUTORSEN MAW-1 Monitor Wall Mount is backed by a 10 വർഷത്തെ വാറൻ്റി. This warranty covers manufacturing defects and ensures the product's quality and durability.

For any questions, technical assistance, or warranty claims, please contact our professional pre-sales and after-sales service team. We are available 7 days a week, 24 hours a day, to provide helpful support.

Contact information can typically be found on the product packaging or the official PUTORSEN webസൈറ്റ്.
