uxcell DC Power Connector Adapter User Manual

1. ആമുഖം

This manual provides instructions for the proper use and maintenance of your uxcell DC Power Connector Adapter. This adapter is designed to convert a 5.5mm x 2.5mm male DC power plug to a 5.5mm x 2.1mm female DC power jack, allowing for compatibility between different devices. Its 90-degree angle design offers flexibility in tight spaces.

2. ഉൽപ്പന്നം കഴിഞ്ഞുview

The uxcell DC Power Connector Adapter features a 90-degree angled design for convenient connections. It consists of a male plug on one end and a female jack on the other, facilitating power connection between devices with differing DC barrel jack sizes.

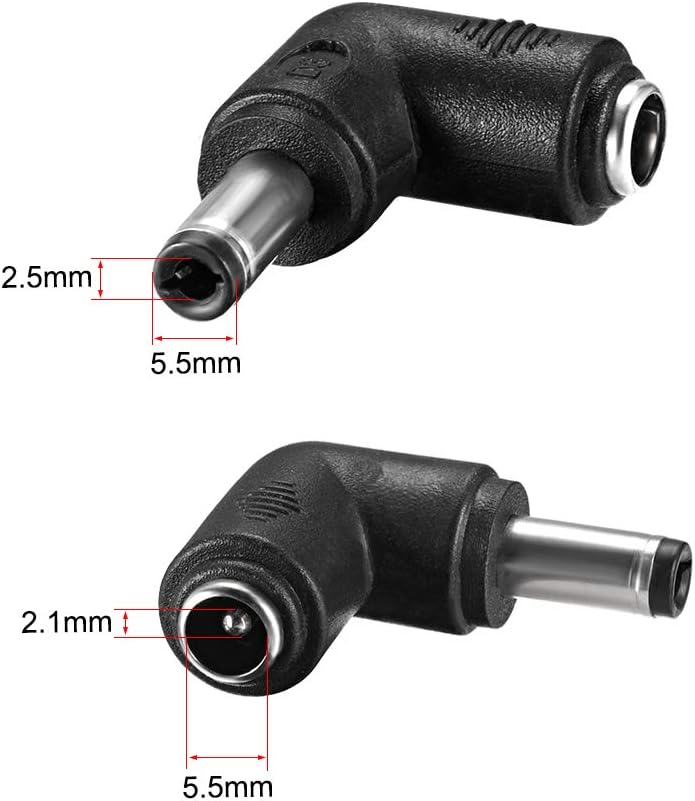

ചിത്രം 2.1: The uxcell DC Power Connector Adapter, showing the 5.5mm x 2.5mm male plug and 5.5mm x 2.1mm female jack with their respective dimensions. The 90-degree angle is visible.

3 സ്പെസിഫിക്കേഷനുകൾ

4. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

This adapter is designed for simple plug-and-play installation. Ensure that the power source and the device you are connecting are compatible with the adapter's specifications (5.5mm x 2.5mm male to 5.5mm x 2.1mm female).

1. Identify the Male Plug: Locate the 5.5mm x 2.5mm male plug end of the adapter. This end will connect to your power source's female jack (e.g., a power supply unit).
2. Identify the Female Jack: Locate the 5.5mm x 2.1mm female jack end of the adapter. This end will receive the male plug from your device (e.g., laptop, CCTV camera).
3. പവർ സ്രോതസ്സ് ബന്ധിപ്പിക്കുക: Insert the 5.5mm x 2.5mm male plug of the adapter into the corresponding female jack of your power supply.
4. ഉപകരണം ബന്ധിപ്പിക്കുക: Insert the 5.5mm x 2.1mm male plug from your device into the female jack of the adapter.
5. കണക്ഷൻ സ്ഥിരീകരിക്കുക: Ensure both connections are secure. The 90-degree angle allows for a flush fit against surfaces, reducing cable strain.

ചിത്രം 4.1: An illustration demonstrating the connection points of the DC power adapter, showing how the male plug connects to a power source and the female jack receives a device's power cable.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

Once properly connected, the adapter facilitates the power transfer between your power source and the intended device. No specific operational steps are required beyond ensuring correct physical connection.

• Use the adapter to connect devices such as laptops, CCTV cameras, LED strip lighting, and other electronics that require a 5.5mm x 2.1mm DC input from a power supply with a 5.5mm x 2.5mm DC output.
• The 90-degree angle is particularly useful for managing cables in confined spaces or for applications where a straight connector would protrude excessively.
• വോളിയം എന്ന് എപ്പോഴും ഉറപ്പാക്കുകtage and current ratings of your power supply are compatible with your device's requirements to prevent damage.

6. പരിപാലനം

The uxcell DC Power Connector Adapter requires minimal maintenance.

• Keep the adapter clean and free from dust and debris. Use a dry, soft cloth for cleaning.
• തീവ്രമായ താപനിലയിലോ ഈർപ്പത്തിലോ അഡാപ്റ്റർ തുറന്നുകാട്ടുന്നത് ഒഴിവാക്കുക.
• Do not apply excessive force when connecting or disconnecting to prevent damage to the connectors.
• ഉപയോഗത്തിലില്ലാത്തപ്പോൾ തണുത്തതും ഉണങ്ങിയതുമായ സ്ഥലത്ത് സൂക്ഷിക്കുക.

7. പ്രശ്‌നപരിഹാരം

If you encounter issues with the adapter, consider the following:

• ഉപകരണത്തിന് വൈദ്യുതിയില്ല:
  • Ensure both ends of the adapter are fully and securely connected.
  • Verify that the power supply is functioning correctly and providing power.
  • Check if the device itself is operational and not faulty.
  • Confirm that the power supply's output (5.5mm x 2.5mm) and the device's input (5.5mm x 2.1mm) are correctly matched to the adapter.
• അയഞ്ഞ കണക്ഷൻ:
  • If the connection feels loose, ensure the barrel sizes are precisely 5.5mm x 2.5mm for the male plug and 5.5mm x 2.1mm for the female jack. Slight variations in manufacturing can sometimes cause a loose fit.
  • Avoid using the adapter if connections are excessively loose, as this can lead to intermittent power or damage.

8. വാറൻ്റിയും പിന്തുണയും

For warranty information or technical support, please refer to the uxcell official webസൈറ്റിൽ ബന്ധപ്പെടുക അല്ലെങ്കിൽ നിങ്ങളുടെ റീട്ടെയിലറെ ബന്ധപ്പെടുക. വാറന്റി ക്ലെയിമുകൾക്കായി നിങ്ങളുടെ വാങ്ങൽ രസീത് സൂക്ഷിക്കുക.

നിങ്ങൾക്ക് കൂടുതൽ വിവരങ്ങളും പിന്തുണയും ഇവിടെ കണ്ടെത്താനാകും uxcell Brand Store.
