NorthStar ATV Sprayer NSQ Series 10-Gallon Instruction Manual

ആമുഖം

This manual provides essential information for the safe and effective use of your NorthStar ATV Sprayer, 10-Gallon, 1.1 GPM, 12V. Please read all instructions carefully before assembly, operation, or maintenance. Proper use and care will ensure optimal performance and longevity of your sprayer.

സുരക്ഷാ വിവരങ്ങൾ

Always observe basic safety precautions when using this product to reduce the risk of injury or damage. This sprayer is designed for outdoor use with appropriate chemicals. Always wear personal protective equipment (PPE) such as gloves, eye protection, and appropriate clothing when handling chemicals.

• Read Chemical Labels: Always follow the instructions and safety warnings provided by the chemical manufacturer.
• വെൻ്റിലേഷൻ: നന്നായി വായുസഞ്ചാരമുള്ള സ്ഥലങ്ങളിൽ ഉപയോഗിക്കുക.
• ഇലക്ട്രിക്കൽ സുരക്ഷ: Ensure all electrical connections are secure and protected from moisture. Do not operate with damaged wiring.
• സുരക്ഷിത മൗണ്ടിംഗ്: Always secure the sprayer firmly to your ATV to prevent shifting during operation.
• കുട്ടികളും വളർത്തുമൃഗങ്ങളും: സ്പ്രേയറിലും സ്പ്രേ ചെയ്ത സ്ഥലങ്ങളിലും നിന്ന് കുട്ടികളെയും വളർത്തുമൃഗങ്ങളെയും അകറ്റി നിർത്തുക.
• സംഭരണം: Store chemicals and the sprayer in a secure, cool, dry place, out of reach of children.

പാക്കേജ് ഉള്ളടക്കം

അസംബ്ലി ആരംഭിക്കുന്നതിന് മുമ്പ് എല്ലാ ഘടകങ്ങളും ഉണ്ടെന്ന് ഉറപ്പാക്കുക:

• 10-ഗാലൻ ടാങ്ക്
• 12V, 1.1 GPM NorthStar NSQ Series Quick-Connect On-Demand Pump
• പ്രഷർ റെഗുലേറ്റർ
• പ്രഷർ ഗേജ്
• Deluxe Trigger Spray Gun with Adjustable Stream-to-Cone Brass Nozzle
• 15 Feet of Hose
• Mounting Straps/Hardware (may vary)

സജ്ജമാക്കുക

1. അസംബ്ലി

Connect the spray gun to the 15-foot hose. Ensure all connections are tight to prevent leaks. Attach the hose to the pump outlet. The pump is pre-installed on the tank.

Image: The NorthStar ATV Sprayer showing the tank, pump, and connected hoses with battery clips.

2. Mounting to ATV

Place the sprayer securely on the rear rack of your ATV. Use the provided straps or other suitable tie-downs to firmly secure the tank, preventing any movement during transport or operation. Ensure the sprayer is level.

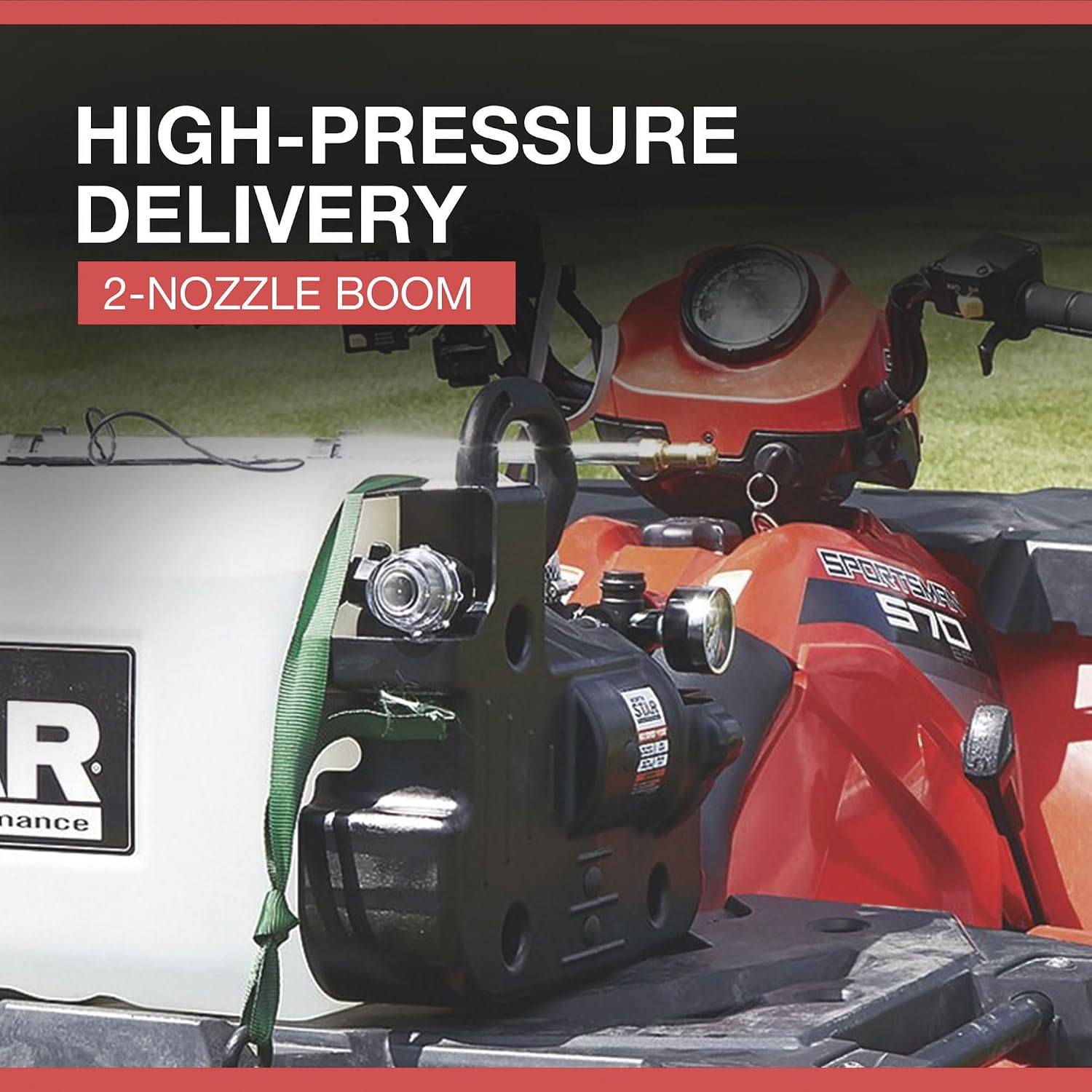

Image: The NorthStar ATV Sprayer securely mounted on the back of an ATV, ready for use.

3. വൈദ്യുതി ബന്ധം

Connect the 12V power lead from the sprayer pump to your ATV's 12V battery. Ensure the red clip connects to the positive (+) terminal and the black clip to the negative (-) terminal. Verify a secure connection to prevent power interruptions.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

1. ടാങ്ക് നിറയ്ക്കൽ

Open the tank lid and carefully pour the desired liquid (water, herbicide, pesticide, etc.) into the 10-gallon tank. Do not overfill. Close the lid securely after filling.

2. പവർ ചെയ്യുന്നു

Once the tank is filled and electrical connections are secure, turn on the pump using the switch located on the sprayer unit. The pump will begin to prime and build pressure.

3. സമ്മർദ്ദം ക്രമീകരിക്കൽ

The sprayer features a pressure regulator and gauge. Turn the regulator knob to adjust the spray pressure to your desired level, up to 100 PSI. Monitor the pressure gauge for accurate readings.

ചിത്രം: ഒരു ക്ലോസ്-അപ്പ് view of the pressure gauge and red adjustment knob, indicating the sprayer's pressure control.

4. സ്പ്രേ ചെയ്യുന്നത്

Hold the deluxe trigger spray gun firmly. The brass nozzle can be adjusted from a fine stream to a wide cone spray by twisting it. Aim the spray gun at the target area and depress the trigger to begin spraying. Release the trigger to stop.

Image: The deluxe trigger spray gun, featuring an adjustable brass nozzle for varied spray patterns.

Image: The NorthStar ATV Sprayer demonstrating efficient spot spraying capabilities with its 10-gallon capacity.

5. Post-Use Procedure

After each use, especially when spraying chemicals, flush the tank and lines with clean water. Run clean water through the pump and spray gun until all chemical residue is removed. This prevents clogging and extends the life of the components.

മെയിൻ്റനൻസ്

1. വൃത്തിയാക്കൽ

Regularly clean the tank, hoses, and spray gun. For chemical applications, flush thoroughly with water after each use. For stubborn residues, use a mild detergent solution followed by a clean water rinse.

2. Filter Inspection

Periodically check the inline filter for debris. A clogged filter can reduce spray performance. To clean, unscrew the filter housing, remove the mesh filter, rinse it with water, and reassemble.

ചിത്രം: ഒരു ക്ലോസ്-അപ്പ് view of the transparent inline filter, showing its position in the sprayer system.

3. ശൈത്യകാലവൽക്കരണം

Before storing for winter, completely drain all liquids from the tank, pump, and hoses. Run RV antifreeze through the system to prevent freezing and damage to internal components. Store in a dry, protected area.

ട്രബിൾഷൂട്ടിംഗ്

സ്പെസിഫിക്കേഷനുകൾ

• ബ്രാൻഡ്: നോർത്ത്സ്റ്റാർ
• മോഡൽ നമ്പർ: NSQ (3562172)
• ടാങ്ക് വോളിയം: 10 ഗാലൻ
• ഊർജ്ജ സ്രോതസ്സ്: 12V ബാറ്ററി പവർഡ്
• പരമാവധി മർദ്ദം: 100 പി.എസ്.ഐ
• ഫ്ലോ റേറ്റ്: 1.1 GPM (ഗാലൺ പെർ മിനിട്ട്)
• ഹോസ് നീളം: 15 അടി
• ഇനത്തിൻ്റെ ഭാരം: 9.6 പൗണ്ട്
• ഇനത്തിൻ്റെ അളവുകൾ (W x H): 25.25" x 12"
• Material (Nozzle): പിച്ചള
• പമ്പ് വാൽവുകൾ: Viton (chemical-resistant)
• Pump Diaphragm: Santoprene (superior reliability and chemical resistance)

വാറൻ്റി

This NorthStar product is covered by the manufacturer's warranty. Please refer to the warranty documentation included with your purchase for specific terms, conditions, and duration. Retain your proof of purchase for warranty claims.

പിന്തുണ

For technical assistance, replacement parts, or further inquiries regarding your NorthStar ATV Sprayer, please contact NorthStar customer support directly. Contact information can typically be found on the product packaging or the official NorthStar webസൈറ്റ്.
