ZL-7918A Multifunction Automatic Temperature Humidity Controller

1. ആമുഖം

The LILYTECH ZL-7918A is an advanced intelligent temperature and humidity controller designed for precise environmental management. It offers stable and reliable performance, making it ideal for applications such as incubators, climate chambers, and warehouses. This manual provides comprehensive instructions for the installation, operation, and maintenance of your ZL-7918A controller.

Figure 1: LILYTECH ZL-7918A controller with connected temperature and humidity sensors, showing the main unit and external probes.

2 പ്രധാന സവിശേഷതകൾ

The ZL-7918A controller is equipped with a range of features to ensure optimal environmental control:

• താപനില നിയന്ത്രണം: Precise management of heating elements.
• ഈർപ്പം നിയന്ത്രണം: Accurate regulation of humidity levels.
• ലൈറ്റിംഗ് നിയന്ത്രണം: Manages illumination cycles.
• സഹായ താപനം: Supports an additional heating output.
• Egg Turning Control: Configurable periods and durations for automatic egg turning (left and right).
• Timing Ventilation Control: Schedules ventilation cycles.
• അലാറം നിയന്ത്രണം: Alerts for deviations from set parameters.
• താപനിലയും ഈർപ്പവും കാലിബ്രേഷൻ: Allows for sensor calibration to maintain accuracy.
• Hatching Day Display: Tracks and displays the number of hatching days (up to 99 days).

3. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

3.1 ഉപകരണ അളവുകളും ഇൻസ്റ്റാളേഷനും

The ZL-7918A controller has a device size of 160x80x95 mm. The recommended installation drilling size for mounting is 151.5x76.5 mm.

3.2 വയറിംഗ് നിർദ്ദേശങ്ങൾ

Proper wiring is crucial for the safe and correct operation of the controller. Refer to the wiring diagram below for connections. Ensure all connections are secure and follow local electrical codes.

ചിത്രം 2: പിൻഭാഗം view of the ZL-7918A controller, displaying the terminal block for electrical connections.

Figure 3: Detailed wiring diagram for the ZL-7918A controller, illustrating connections for power supply, sensors, and output loads.

വൈദ്യുതി വിതരണം: Connect AC100~240V 50/60Hz to terminals L and N (13 and 14).

സെൻസറുകൾ:

• ഈർപ്പം സെൻസർ: Connect the Red, Yellow, Black, and Orange wires to terminals 1, 2, 3, and 4 respectively.
• താപനില സെൻസർ: Connect to terminals 5 and 6.

Figure 4: ZL-SHr05A Humidity Sensor, showing its compact design and connection points. This sensor is designed for accurate humidity measurement within a range of 0-80% RH.

ഔട്ട്പുട്ട് നിയന്ത്രണം: The controller provides 7 output controls. Ensure the load for heaters does not exceed 1500W, illumination does not exceed 100W, and humidity, fan, and egg turning outputs do not exceed 1A/250Vac.

• ഫാൻ: Terminals 15 (COM) and 16.
• Egg Turning Left: Terminals 15 (COM) and 17.
• Egg Turning Right: Terminals 15 (COM) and 18.
• ഈർപ്പം: Terminals 15 (COM) and 19.
• Illumination (Lamp): Terminals 15 (COM) and 20.
• Auxiliary Heater (HEAT2): Terminals 21 and 22.
• Main Heater (HEAT1): Terminals 23 and 24.

4. ഓപ്പറേഷൻ

4.1 പ്രദർശനം പൂർത്തിയായിview

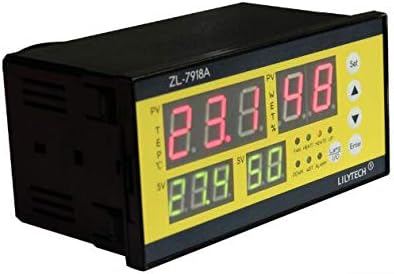

ചിത്രം 5: മുൻഭാഗം view of the ZL-7918A controller, highlighting the digital display and control buttons for setting parameters.

The controller features a clear digital display showing current temperature (PV TEMP), set temperature (SV TEMP), current humidity (PV WET%), and set humidity (SV WET%). Indicator lights show the status of various outputs (FAN, HEAT1, HEAT2, UP, DOWN, WET, ALARM, L/R for egg turning).

4.2 ക്രമീകരണ പാരാമീറ്ററുകൾ

Use the "Set" button to enter the parameter setting mode and the arrow keys (Up/Down) to navigate and adjust values. The "Enter" button confirms selections.

• താപനില ക്രമീകരണ ശ്രേണി: 1~65℃
• ഈർപ്പം ക്രമീകരണ ശ്രേണി: 10~80% RH
• Egg-Turning Control:
  • Period: 1~999 minutes
  • Turning Time: 0~999 seconds
  • Turning Times: 0~999 times
• വെൻ്റിലേഷൻ നിയന്ത്രണം:
  • Period: 1~999 minutes
  • Ventilating Time: 0~999 seconds
• പ്രകാശ നിയന്ത്രണം:
  • Period: 1~999 minutes
  • Illuminating Time: 0~999 seconds

Refer to the detailed programming guide (not included in this general manual) for specific parameter codes and advanced settings.

5. പരിപാലനം

To ensure the longevity and accuracy of your ZL-7918A controller, follow these maintenance guidelines:

• വൃത്തിയാക്കൽ: Regularly wipe the controller's surface with a soft, dry cloth. Do not use abrasive cleaners or solvents.
• സെൻസർ പരിചരണം: Keep the temperature and humidity sensors clean and free from dust or debris. Avoid exposing sensors to extreme physical shock or moisture beyond their operating limits.
• കണക്ഷനുകൾ: എല്ലാ വയറിംഗ് കണക്ഷനുകളും സുരക്ഷിതമാണെന്നും തുരുമ്പെടുക്കലിൽ നിന്ന് മുക്തമാണെന്നും ഉറപ്പാക്കാൻ ഇടയ്ക്കിടെ പരിശോധിക്കുക.
• കാലിബ്രേഷൻ: If accuracy issues are suspected, perform temperature and humidity calibration as per the advanced settings guide.

6. പ്രശ്‌നപരിഹാരം

This section addresses common issues you might encounter with your ZL-7918A controller. For problems not listed here, please contact customer support.

7 സാങ്കേതിക സവിശേഷതകൾ

8. വാറൻ്റി വിവരങ്ങൾ

LILYTECH products are manufactured to high quality standards. For specific warranty terms and conditions, please refer to the warranty card included with your product or contact LILYTECH customer support directly. Keep your purchase receipt as proof of purchase for any warranty claims.

9. ഉപഭോക്തൃ പിന്തുണ

If you require further assistance or have questions regarding your ZL-7918A controller, please contact LILYTECH customer support. Contact details can typically be found on the product packaging or the official LILYTECH webസൈറ്റ്.

For technical inquiries, please have your product model (ZL-7918A) and a detailed description of the issue ready.
