ആമുഖം
Welcome to the user manual for your PAXCESS Portable Power Station. This guide provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your device. Please read this manual thoroughly before using the power station.
ഉൽപ്പന്നം കഴിഞ്ഞുview
The PAXCESS Portable Power Station is a versatile and high-capacity power source designed for various applications, including outdoor activities, emergency backup, and mobile power needs. It features a robust battery and multiple output ports to power a wide range of electronic devices.
പ്രധാന സവിശേഷതകൾ
- വലിയ ശേഷി: Equipped with a 78000mAh/288.6Wh power capacity, capable of extended device operation.
- വയർലെസ് ചാർജിംഗ്: Features a convenient wireless charging pad on top for compatible devices.
- Enhanced LED Light: Includes an integrated LED light with SOS mode for illumination and emergency signaling.
- മോടിയുള്ള ഡിസൈൻ: Protected by a silica gel anti-collision strip for enhanced durability.
- Pure Sine Wave Inverter: Provides stable and safe AC power output, protecting sensitive electronics.
- ഒന്നിലധികം ഔട്ട്പുട്ടുകൾ: Offers diverse connectivity with 110V/330W (Peak 700W) AC, 3x QC3.0 USB, 1x Type-C, and 12V DC ports.
- ഒന്നിലധികം ചാർജിംഗ് രീതികൾ: Can be recharged via solar panel (not included), wall outlet, or car charger.
- നിശബ്ദ പ്രവർത്തനം: Utilizes a pure lithium battery and pure sine wave inverter for quiet performance.
- വിപുലമായ സുരക്ഷ: Integrated Battery Management System (BMS) provides temperature control, voltage control, and comprehensive safety protection.
ഘടകങ്ങളും തുറമുഖങ്ങളും
Familiarize yourself with the various components and ports of your power station:
ചിത്രം: മുൻഭാഗം view of the PAXCESS Portable Power Station with numbered labels indicating its various components and ports.
- 1. SOS Flashlight: Integrated light for illumination and emergency signaling.
- 2. DC 15V/4.0A Input: Port for charging the power station via AC adapter or solar panel.
- 3. Anti-collision Strip: Protective silicone strip around the edges.
- 4. 330W MAX AC Output: Standard 110V AC outlet for household appliances.
- 5. USB QC3.0 (5V/3.1A): Three Quick Charge 3.0 USB ports for fast charging compatible devices.
- 6. Type-C (5V/3A 18W): USB Type-C port for modern devices.
- 7. Cigarette Lighter (12V/10A): Car-style DC output port.
- 8. DC 9-12.6V/5A (MAX): Two DC output ports for 12V devices.
- 9. LCD ഡിസ്പ്ലേ: ബാറ്ററി ലെവൽ, ഇൻപുട്ട്/ഔട്ട്പുട്ട് വാട്ട് എന്നിവ കാണിക്കുന്നുtage, and active ports.
- 10. Power ON/OFF Button: യൂണിറ്റിനുള്ള പ്രധാന പവർ നിയന്ത്രണം.
- 11. Hideable Handle: എളുപ്പത്തിൽ കൊണ്ടുപോകാൻ കഴിയുന്ന തരത്തിൽ സംയോജിത ഹാൻഡിൽ.
- 12. Wireless Charging (5V/1A): Charging pad on top for Qi-compatible devices.
സജ്ജമാക്കുക
Before using your PAXCESS Portable Power Station for the first time, it is recommended to fully charge it.
പ്രാരംഭ ചാർജ്
Connect the power station to a standard wall outlet using the provided AC adapter. The LCD display will show the charging progress. A full charge typically takes 5-6 hours.
പ്ലേസ്മെൻ്റ്
Place the power station on a stable, flat surface. Ensure adequate ventilation around the unit to prevent overheating. Avoid placing it in direct sunlight or near heat sources.
പ്രവർത്തന നിർദ്ദേശങ്ങൾ
പവർ ചെയ്യുന്നത് ഓൺ/ഓഫ്
To turn the unit on or off, press and hold the main power button (labeled 'Power ON/OFF') for approximately 3 seconds. The LCD display will illuminate upon activation.
എസി ഔട്ട്പുട്ടുകൾ ഉപയോഗിക്കുന്നു
Press the 'AC' button to activate the 110V AC output. Plug your device into the AC outlet. Ensure the total power consumption of your connected devices does not exceed 330W (700W peak) to prevent overload.
Using DC Outputs
Press the 'DC' button to activate the 12V DC outputs. Connect your 12V compatible devices to the 12V/5A or 12V/10A ports. The cigarette lighter port is also a 12V DC output.
Using USB Outputs
The USB ports (QC3.0 and Type-C) are typically active when the unit is powered on. Simply plug in your USB-compatible devices for charging.
വയർലെസ് ചാർജിംഗ്
Place your Qi-compatible smartphone or device on the wireless charging pad located on the top surface of the power station. Ensure the device is centered for optimal charging. The LCD display may indicate wireless charging activity.
Image: A smartphone being wirelessly charged on the top surface of the PAXCESS Portable Power Station, highlighting the wireless charging function.
LED ലൈറ്റ് പ്രവർത്തനം
Press the dedicated light button to cycle through the LED light modes: On, SOS (flashing), and Off. This feature is useful for illumination in low-light conditions or for emergency signaling.
Image: The PAXCESS Portable Power Station with its front LED light turned on, providing illumination in a low-light setting, demonstrating its utility as a light source.
പവർ സ്റ്റേഷൻ ചാർജ് ചെയ്യുന്നു
Your PAXCESS Portable Power Station offers flexible recharging options to suit various environments.

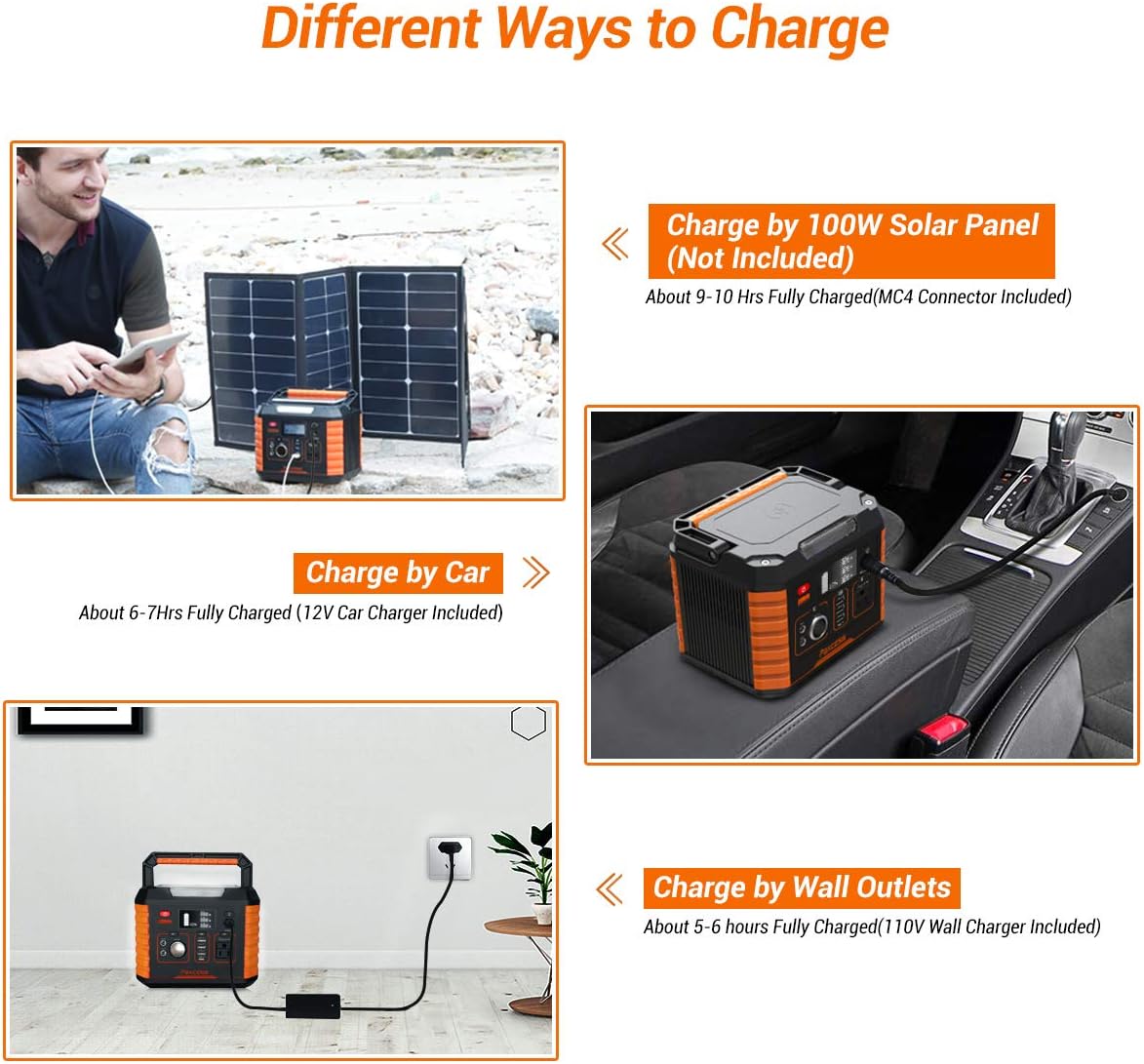

Image: A visual representation of the three primary methods to recharge the PAXCESS Portable Power Station: using a solar panel, a car charger, and a standard wall outlet.
1. Wall Outlet Charging
Connect the provided AC wall charger to the DC input port of the power station and then plug it into a standard 110V AC wall outlet. Charging time is approximately 5-6 hours for a full charge.
2. Car Charger Charging
Use the included car charger cable to connect the power station to your vehicle's 12V cigarette lighter socket. This method is convenient for recharging while traveling. A full charge typically takes 7-8 hours.
3. Solar Panel Charging (Solar Panel Not Included)
For eco-friendly charging, connect a compatible 100W solar panel (with MC4 connector) to the power station's DC input port. The integrated MPPT (Maximum Power Point Tracking) solar charge controller optimizes charging efficiency. Charging time varies depending on sunlight intensity, typically 9-10 hours for a full charge under optimal conditions.
Applications and Usage Exampലെസ്
The PAXCESS Portable Power Station is designed for a wide array of uses, providing reliable power wherever you need it.
Image: An infographic illustrating the number of times various devices like laptops, video cameras, recreation machines, drones, mini-fridges, and TVs can be powered or charged by the power station.
- Camping, ഔട്ട്ഡോർ പ്രവർത്തനങ്ങൾ: Power lights, portable fans, mini-fridges, and other small appliances at your campസൈറ്റ്.
- അടിയന്തര ബാക്കപ്പ്: Keep essential devices like phones, laptops, and medical equipment (e.g., CPAP machines) running during power outages.
- CPAP Machine Power: Provides extended runtime for CPAP devices, offering approximately 18 hours for a CPAP Resmed S9 without a heated humidifier.
- Mobile Office: Charge laptops, tablets, and smartphones on the go, ensuring productivity anywhere.
- Photography/Drone Operations: Recharge camera batteries and drone batteries in remote locations.
Image: A collage depicting various scenarios such as a mountain fire, camping, hurricane aftermath, and an outdoor party, where the PAXCESS Portable Power Supply serves as a reliable power backup.
Image: Two individuals hiking in a scenic outdoor environment, with one carrying the PAXCESS Portable Power Station, emphasizing its compact size and ease of transport.
Official Product Video: Know more about PAXCESS 330W
വീഡിയോ: ഒരു ഉദ്യോഗസ്ഥൻview video providing more information about the PAXCESS 330W Portable Power Station, demonstrating its features and capabilities.
Official Product Video: Portable Camping Generator, 330W/78000mAh Portable Power Station...
വീഡിയോ: ഒരു ഔദ്യോഗിക ഉൽപ്പന്ന വീഡിയോ പ്രദർശനംasing the PAXCESS Portable Camping Generator, highlighting its 330W/78000mAh capacity and its use as a CPAP battery power supply and solar generator.
മെയിൻ്റനൻസ്
Proper maintenance ensures the longevity and optimal performance of your power station.
- സംഭരണം: നേരിട്ടുള്ള സൂര്യപ്രകാശത്തിൽ നിന്നും തീവ്രമായ താപനിലയിൽ നിന്നും അകന്ന്, തണുത്തതും വരണ്ടതുമായ സ്ഥലത്ത് യൂണിറ്റ് സൂക്ഷിക്കുക.
- ദീർഘകാല സംഭരണം: If storing for extended periods (more than 3 months), recharge the power station to at least 50% every 3-6 months to preserve battery health.
- വൃത്തിയാക്കൽ: Use a soft, dry cloth to clean the exterior of the unit. Do not use abrasive cleaners, solvents, or immerse the unit in water.
- താപനില: Operate and store the power station within the recommended temperature ranges specified in the 'Specifications' section.
- ഓവർലോഡ് ഒഴിവാക്കുക: Do not connect devices that exceed the power station's rated output capacity to prevent damage to the unit and connected devices.
ട്രബിൾഷൂട്ടിംഗ്
If you encounter issues with your PAXCESS Portable Power Station, refer to the table below for common problems and their solutions.
| ഇഷ്യൂ | സാധ്യമായ കാരണം / പരിഹാരം |
|---|---|
| യൂണിറ്റ് പവർ ഓണാക്കുന്നില്ല. | Ensure the power button is pressed and held for 3 seconds. Check the battery level on the LCD display; recharge if the battery is low. |
| Device not charging from output port. | Verify that the specific output (AC, DC, or USB) is activated by pressing its respective button. Check if the device's power consumption exceeds the port's maximum limit. Ensure the charging cable is securely connected. |
| വയർലെസ് ചാർജിംഗ് പ്രവർത്തിക്കുന്നില്ല. | Confirm that your device is Qi-compatible. Ensure the device is properly aligned on the wireless charging pad. Remove any thick phone cases that might interfere with charging. |
| യൂണിറ്റ് അമിതമായി ചൂടാകുന്നു. | Ensure the power station is placed in a well-ventilated area and its vents are not obstructed. Reduce the load if operating near maximum capacity for extended periods. If overheating persists, discontinue use and contact customer support. |
| LCD display is blank or not functioning. | Try turning the unit off and on again. If the issue persists, the unit may require service. |
സ്പെസിഫിക്കേഷനുകൾ
Detailed technical specifications for the PAXCESS Portable Power Station.
| ഫീച്ചർ | സ്പെസിഫിക്കേഷൻ |
|---|---|
| ബ്രാൻഡ് | PAXCESS |
| മോഡലിൻ്റെ പേര് | പോർട്ടബിൾ സിamping Generator |
| ഇനം മോഡൽ നമ്പർ | PA-GDO00030-AMUS-new-1 |
| വാട്ട്tage (പ്രവർത്തിക്കുന്നു) | 330 വാട്ട്സ് |
| വാട്ട്tage (Starting/Peak) | 700 വാട്ട്സ് |
| ഇന്ധന തരം | Battery and Solar |
| പവർ ഉറവിടം | Battery-Powered and Solar powered |
| ഇനത്തിൻ്റെ ഭാരം | 7.1 പൗണ്ട് (3.22 കി.ഗ്രാം) |
| വാല്യംtage | 110 Volts (AC Output) |
| ഉൽപ്പന്ന അളവുകൾ | 8.1"L x 6.1"W x 6.3"H (20.6 x 15.5 x 16 സെ.മീ) |
| മെറ്റീരിയൽ | ലിഥിയം ബാറ്ററി |
| പ്രവർത്തനസമയം | 6 hours (general, depends on load) |
| മൊത്തം പവർ ഔട്ട്ലെറ്റുകൾ | 7 |
| ആവൃത്തി | 50 Hz |
| Current Rating (DC) | 5 Ampഎസ്, 10 Amps |
| ബാറ്ററികൾ | 30 ലിഥിയം അയോൺ ബാറ്ററികൾ (ഉൾപ്പെട്ടിരിക്കുന്നു) |
| പ്രത്യേക ഫീച്ചർ | വയർലെസ് ചാർജർ |
| ആദ്യ തീയതി ലഭ്യമാണ് | ഓഗസ്റ്റ് 21, 2019 |
വാറൻ്റിയും പിന്തുണയും
For detailed warranty information, product registration, and technical support, please visit the official PAXCESS webസൈറ്റിൽ ബന്ധപ്പെടുകയോ അവരുടെ ഉപഭോക്തൃ സേവന വിഭാഗവുമായി നേരിട്ട് ബന്ധപ്പെടുകയോ ചെയ്യുക. വാറന്റി ക്ലെയിമുകൾക്കായി നിങ്ങളുടെ വാങ്ങൽ രസീത് സൂക്ഷിക്കുക.
You can also refer to the official PDF user manual for additional details:
For more products and information, visit the PAXCESS Official Store:
