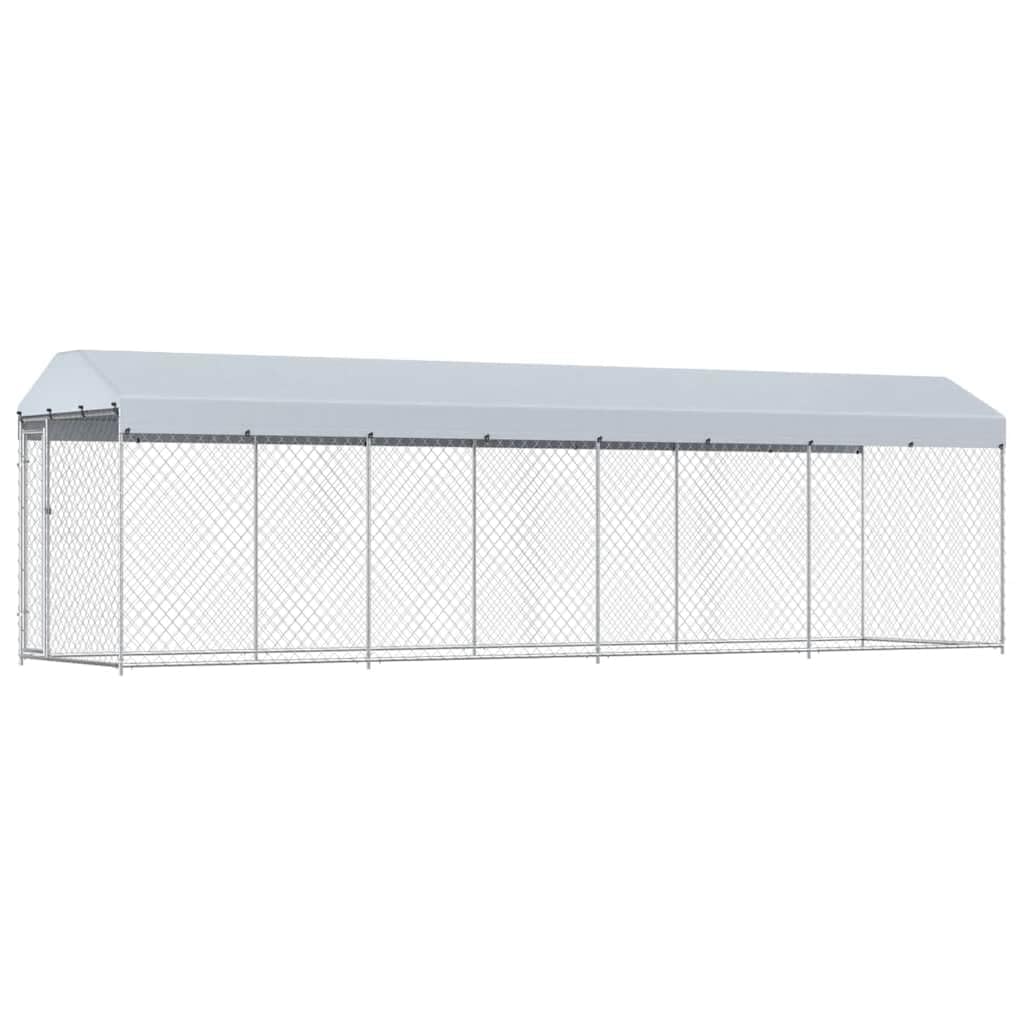

vidaXL Outdoor Dog Kennel with Roof (760x192x225 cm) Instruction Manual

1. ആമുഖം

This manual provides essential instructions for the safe assembly, operation, and maintenance of your vidaXL Outdoor Dog Kennel with Roof. This versatile enclosure is designed to provide a secure space for your dog's play, exercise, training, or protection. Please read all instructions carefully before assembly and retain this manual for future reference.

The kennel features a robust galvanized steel construction and a 100% polyethylene roof that is fire-retardant and UV-protected, offering shelter from various weather conditions. A hinged door with a locking latch ensures additional security for your pet.

2 സുരക്ഷാ വിവരങ്ങൾ

• എല്ലാ നിർദ്ദേശങ്ങളും വായിക്കുക: തുടരുന്നതിന് മുമ്പ് എല്ലാ അസംബ്ലി ഘട്ടങ്ങളും സുരക്ഷാ മുന്നറിയിപ്പുകളും നിങ്ങൾ മനസ്സിലാക്കിയിട്ടുണ്ടെന്ന് ഉറപ്പാക്കുക.
• മുതിർന്നവരുടെ അസംബ്ലി ആവശ്യമാണ്: ഈ ഉൽപ്പന്നം മുതിർന്നവർ കൂട്ടിച്ചേർക്കണം.
• സംരക്ഷണ ഗിയർ ധരിക്കുക: Gloves are recommended during assembly to prevent cuts from metal edges or wire mesh.
• ഘടകങ്ങൾ പരിശോധിക്കുക: Before assembly, verify that all parts are present and undamaged. Do not use if any parts are missing or defective.
• സുരക്ഷിതമായ സ്ഥാനം: Choose a level, stable surface for the kennel. Ensure it is anchored securely to prevent tipping or movement, especially in windy conditions.
• പതിവ് പരിശോധന: Periodically check all connections, bolts, and the integrity of the wire mesh and roof for wear or damage. Tighten any loose fasteners.
• Pet supervision: While the kennel provides a secure enclosure, always supervise your pet, especially during initial use.
• ശരിയായ ഉപയോഗം: This kennel is intended for dogs. Do not use it for other animals or purposes.
• വെൻ്റിലേഷൻ: Ensure adequate ventilation within the kennel.
• കാലാവസ്ഥ സംരക്ഷണം: While the roof offers protection, extreme weather conditions may require additional measures or bringing your pet indoors.

3. പാക്കേജ് ഉള്ളടക്കം

Before beginning assembly, ensure all components listed below are present. If any parts are missing or damaged, contact vidaXL customer support.

• Galvanized Steel Frame Components (Pipes, Connectors)
• Wire Mesh Fencing
• Hinged Door with Latch Mechanism
• Polyethylene Roof Cover
• Assembly Hardware (Bolts, Nuts, Washers, Wire Ties/Clips)

4. അസംബ്ലി നിർദ്ദേശങ്ങൾ

Assembly requires at least two adults. Do not fully tighten bolts until all sections are aligned.

4.1. ഫ്രെയിം അസംബ്ലി

1. ഘടകങ്ങൾ അൺപാക്ക് ചെയ്യുക: Carefully unbox all parts and lay them out on a clean, flat surface. Verify against the package contents list.
2. അടിസ്ഥാന ഫ്രെയിം കൂട്ടിച്ചേർക്കുക: Connect the horizontal and vertical pipes to form the base rectangle of the kennel. Use the appropriate connectors and loosely secure with bolts.
3. ലംബ പിന്തുണകൾ ഇൻസ്റ്റാൾ ചെയ്യുക: Insert the vertical support pipes into the base frame connectors.
4. Attach Top Frame: Connect the remaining horizontal pipes to the top of the vertical supports using the T-connectors. Ensure all connections are aligned.
5. Install Roof Frame: Assemble the angled roof frame components and attach them to the top frame.

4.2. Wire Mesh Installation

1. Unroll Mesh: Carefully unroll the wire mesh. This step may require patience as the mesh can be tangled.
2. Attach Mesh to Frame: Starting from one corner, attach the wire mesh to the assembled frame using the provided wire ties or clips. Ensure the mesh is taut and evenly distributed around the frame.
3. Secure All Edges: Secure the mesh along all horizontal and vertical frame pipes. Pay close attention to corners and edges to prevent gaps.

4.3. വാതിൽ ഇൻസ്റ്റാളേഷൻ

1. Position Door Frame: Identify the designated opening for the door. Insert the door frame into position.
2. Attach Hinges: Secure the door hinges to the main frame, ensuring the door swings freely and closes properly.
3. ലാച്ച് ഇൻസ്റ്റാൾ ചെയ്യുക: Attach the locking latch mechanism to the door and the adjacent frame pipe. Test the latch to ensure it operates smoothly and securely.

4.4. Roof Cover Installation

1. Drape Roof Cover: Carefully drape the polyethylene roof cover over the assembled roof frame.
2. സുരക്ഷിത കവർ: Use the provided fasteners (bungee cords, clips, or ties) to secure the roof cover to the frame. Ensure it is taut to prevent water pooling and flapping in the wind.

4.5. Final Tightening and Inspection

Once all components are in place and aligned, systematically tighten all bolts and fasteners. Perform a thorough inspection of the entire kennel to ensure stability, security, and that there are no sharp edges or loose parts that could harm your pet.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

• വാതിൽ തുറക്കൽ/അടയ്ക്കൽ: To open, disengage the latch mechanism and swing the door outwards. To close, swing the door shut and engage the latch securely. Always ensure the latch is fully engaged when your pet is inside.
• നിങ്ങളുടെ വളർത്തുമൃഗത്തെ പരിചയപ്പെടുത്തുന്നു: Allow your pet to acclimate to the new enclosure gradually. Provide water, shelter, and toys to make the space comfortable.
• നിരീക്ഷണം: Regularly check on your pet while they are in the kennel.

6. പരിപാലനം

• പതിവ് വൃത്തിയാക്കൽ: Clean the kennel regularly to maintain hygiene. Remove any waste and debris. The galvanized steel frame can be wiped down with a damp തുണിയും മൃദുവായ ഡിറ്റർജൻ്റും.
• വയർ മെഷ് പരിശോധന: Periodically inspect the wire mesh for any signs of damage, rust, or sharp points. Repair or replace damaged sections immediately to prevent injury to your pet.
• Frame and Fastener Check: Routinely check all frame connections and fasteners (bolts, nuts, wire ties). Tighten any loose bolts to ensure the structural integrity of the kennel.
• മേൽക്കൂര സംരക്ഷണം: Inspect the polyethylene roof cover for tears, holes, or signs of wear. Clean it with water and a soft brush if necessary. Ensure it remains taut to prevent water accumulation.
• ശീതകാല പരിചരണം: In areas with heavy snowfall, regularly clear snow from the roof to prevent excessive weight accumulation, which could damage the frame.

7. പ്രശ്‌നപരിഹാരം

• കെന്നലിന് അസ്ഥിരത തോന്നുന്നു:

  Ensure all bolts are fully tightened. Verify the kennel is placed on a level surface. Consider anchoring the base to the ground for added stability.

• Wire mesh is loose or sagging:

  Re-tension the wire mesh and add more wire ties or clips where needed to secure it firmly to the frame. Inspect for any broken wires and repair or replace as necessary.

• Door does not close securely:

  Check the alignment of the door frame and hinges. Ensure the latch mechanism is installed correctly and is not obstructed. Adjust if necessary.
• Roof cover collects water:

  Ensure the roof cover is stretched tightly and evenly over the roof frame. Adjust the tension of the securing fasteners. Check for any sagging in the roof frame itself.

• അസംബ്ലി സമയത്ത് ബുദ്ധിമുട്ട്:

  Refer back to the assembly instructions and diagrams. Ensure all parts are correctly oriented before tightening. Do not force components together. Contact customer support if issues persist.

8 സ്പെസിഫിക്കേഷനുകൾ

9. വാറൻ്റിയും പിന്തുണയും

For information regarding product warranty, returns, or technical support, please refer to the documentation included with your purchase or contact vidaXL customer service directly through their official webഉൽപ്പന്നം വാങ്ങിയ സൈറ്റ് അല്ലെങ്കിൽ റീട്ടെയിലർ.

നിർമ്മാതാവ്: vidaXL
