Hinkley Grove 56-inch Ceiling Fan Instruction Manual

ആമുഖം

This manual provides detailed instructions for the safe installation, operation, and maintenance of your Hinkley Grove 56-inch Ceiling Fan. Please read all instructions carefully before beginning installation to ensure proper function and safety. Retain this manual for future reference.

സുരക്ഷാ വിവരങ്ങൾ

തീപിടുത്തം, വൈദ്യുതാഘാതം അല്ലെങ്കിൽ വ്യക്തിപരമായ പരിക്കുകൾ എന്നിവ കുറയ്ക്കുന്നതിന് ഇനിപ്പറയുന്ന സുരക്ഷാ മുൻകരുതലുകൾ പാലിക്കുക:

• Ensure power is disconnected at the circuit breaker or fuse box before installation, cleaning, or servicing the fan.
• All electrical wiring must be performed by a qualified electrician and conform to national and local electrical codes.
• This fan is suitable for use in dry (indoor) locations only, as defined by the National Electrical Code (NEC) and Canadian Electrical Code (CEC).
• The product meets United States UL Underwriters Laboratories & CSA Canadian Standards Association Product Safety Standards.
• The fan must be mounted to an outlet box marked "Acceptable for Fan Support of 35 lbs (15.9 kg) or less" and supported directly by the building structure.
• Maintain a minimum clearance of 7 feet (2.1 meters) from the floor to the trailing edge of the fan blades.
• ഫാൻ പ്രവർത്തിക്കുമ്പോൾ ഫാൻ ബ്ലേഡുകളുടെ പാതയിലേക്ക് വസ്തുക്കൾ തിരുകരുത്.

പാക്കേജ് ഉള്ളടക്കം

Carefully unpack your fan and inspect the contents. Ensure all items listed below are present and undamaged before proceeding with installation.

• സീലിംഗ് ഫാൻ മോട്ടോർ അസംബ്ലി
• ഫാൻ ബ്ലേഡുകൾ (5)
• ബ്ലേഡ് ബ്രാക്കറ്റുകൾ (5)
• ഡ ro ൺ‌റോഡ്
• മേലാപ്പ്
• മൌണ്ടിംഗ് ബ്രാക്കറ്റ്
• ഹാർഡ്‌വെയർ പായ്ക്ക് (സ്ക്രൂകൾ, വാഷറുകൾ, വയർ നട്ടുകൾ)
• ചെയിൻ വലിക്കുക
• ഇൻസ്ട്രക്ഷൻ മാനുവൽ

സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

It is recommended that installation be performed by a qualified electrician. Ensure the mounting structure can safely support the fan's weight of 18.08 pounds.

ഘട്ടം 1: മൗണ്ടിംഗ് ബ്രാക്കറ്റ് ഇൻസ്റ്റാളേഷൻ

Secure the mounting bracket to the ceiling junction box. Ensure the junction box is securely fastened to the building structure and is rated for fan support.

Step 2: Downrod and Fan Assembly

Insert the downrod through the canopy and connect it to the fan motor assembly. Secure the downrod to the motor housing with the provided pin and screws, ensuring all fasteners are tight.

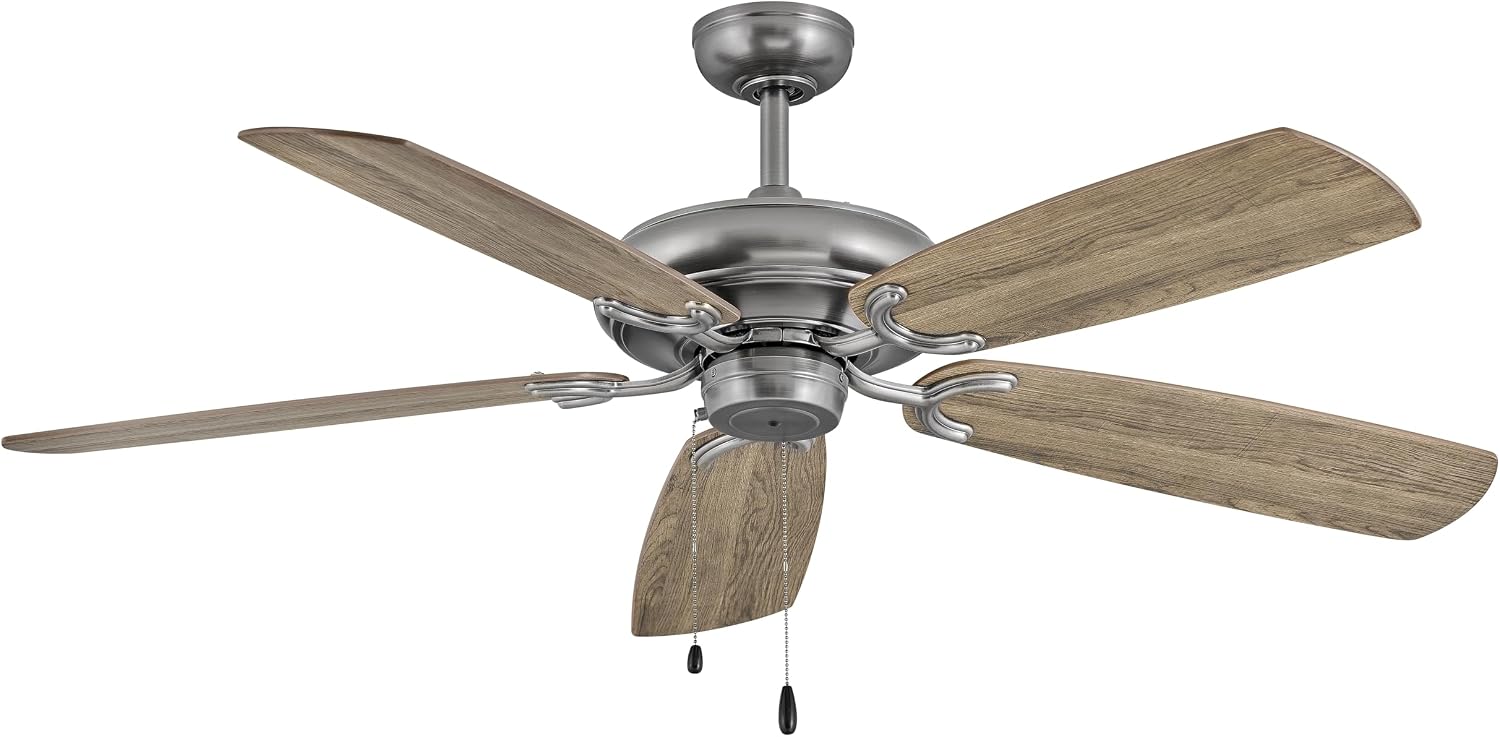

Image: The Hinkley Grove 56-inch ceiling fan in Pewter finish with five wooden-look blades, fully assembled and ready for installation. This image shows the overall design and components.

ഘട്ടം 3: വയറിംഗ്

Carefully connect the fan's electrical wires to the household wiring according to the wiring diagram provided in the complete installation guide. Ensure all connections are secure using wire nuts and are properly insulated.

Step 4: Blade Attachment

Attach each of the five fan blades to its corresponding blade bracket. Then, secure the assembled blade and bracket units to the motor housing using the provided screws. Ensure all screws are tightened evenly.

Image: Close-up of the Hinkley Grove 56-inch ceiling fan blades, showing a light wood grain finish. The blades are attached to the pewter motor housing.

Image: Close-up of the Hinkley Grove 56-inch ceiling fan blades, showing a darker wood grain finish. The blades are attached to the pewter motor housing. The blades are reversible, offering two finish options.

ചിത്രം: View of the Hinkley Grove 56-inch ceiling fan from directly below, showing the five blades and the central motor housing with pull chains.

ഘട്ടം 5: മേലാപ്പ് ഇൻസ്റ്റാളേഷൻ

Slide the canopy up to the ceiling and secure it to the mounting bracket, ensuring it covers all wiring connections neatly.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

പുൾ ചെയിൻ ഓപ്പറേഷൻ

The fan is equipped with a pull chain for manual control of fan speed and power:

• First Pull: ഉയർന്ന വേഗത
• Second Pull: മീഡിയം സ്പീഡ്
• Third Pull: കുറഞ്ഞ വേഗത
• Fourth Pull: ഫാൻ ഓഫ്

വിപരീത പ്രവർത്തനം

The fan includes a separate pull chain for manual reverse function. This allows you to change the direction of airflow, optimizing comfort for different seasons. In warm weather, the fan should rotate counter-clockwise to create a downdraft. In cool weather, it should rotate clockwise to create an updraft, circulating warm air near the ceiling.

Remote Control (Accessory)

This fan is compatible with an optional remote control, which is sold separately. For detailed instructions on pairing and using the remote control, please refer to the remote control's dedicated instruction manual.

Smart Home Compatibility (Accessory)

The Hinkley Grove fan offers WiFi compatibility through an accessory that is sold separately. When this accessory is installed, you can control the fan via the Hinkley Home Automation App. This app allows for adjustments to fan speed, light settings (if an optional light kit is installed), and seasonal modes from any location. Voice activation is also available for hands-free operation, and you can set schedules and preferences for automated fan control.

Image: Graphic illustrating the WiFi compatibility feature, highlighting remote control via smartphone, voice activation, and scheduling capabilities. Note: WiFi accessory is sold separately.

മെയിൻ്റനൻസ്

പതിവ് അറ്റകുറ്റപ്പണികൾ മികച്ച പ്രകടനം ഉറപ്പാക്കുകയും നിങ്ങളുടെ സീലിംഗ് ഫാനിന്റെ ആയുസ്സ് വർദ്ധിപ്പിക്കുകയും ചെയ്യുന്നു.

വൃത്തിയാക്കൽ

ഫാൻ വൃത്തിയാക്കാൻ, മൃദുവായ, ഡി-ടച്ച് ഉപയോഗിച്ച് പ്രതലങ്ങൾ തുടയ്ക്കുക.amp cloth. Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish. Ensure the fan is turned off and power is disconnected before cleaning.

ബ്ലേഡ് കെയർ

Periodically check all blade attachment screws for tightness. Loose blades can cause excessive wobbling and noise. Tighten any loose screws as needed.

മോട്ടോർ

The fan features an energy-efficient DC motor designed for quiet operation and a long lifespan, requiring minimal internal maintenance.

Image: Graphic detailing the benefits of the energy-efficient DC motor, including being eco-friendly (up to 70% less energy consumption compared to AC motors) and running quietly for a longer operational life.

ട്രബിൾഷൂട്ടിംഗ്

നിങ്ങളുടെ ഫാനിൽ പ്രശ്നങ്ങൾ അനുഭവപ്പെടുകയാണെങ്കിൽ, ഇനിപ്പറയുന്ന പൊതുവായ ട്രബിൾഷൂട്ടിംഗ് ഘട്ടങ്ങൾ പരിശോധിക്കുക:

ഫാൻ ആരംഭിക്കുന്നില്ല

• Check that power is supplied to the fan circuit at the breaker.
• Ensure all wire connections are secure and properly made according to the wiring diagram.
• Verify the pull chain is fully engaged and not stuck between settings.

ഫാൻ വോബിൾസ്

• Check that all blade screws are tightened securely.
• Ensure the mounting bracket is securely fastened to the ceiling junction box and building structure.
• Verify the downrod is properly seated in the mounting bracket and secured with its pin and screws.
• Ensure blades are not bent or damaged.

ശബ്ദായമാനമായ പ്രവർത്തനം

• Check for any loose screws on the motor housing, blade attachments, or canopy.
• Ensure the canopy is not vibrating against the ceiling.
• Verify that the fan is properly balanced. A balancing kit (often sold separately) can help resolve minor wobbles and associated noise.

സ്പെസിഫിക്കേഷനുകൾ

അളവുകൾ ഡയഗ്രം

Image: Technical diagram showing the dimensions of the Hinkley Grove 56-inch ceiling fan, including a 56-inch blade span, 13-inch motor housing width, and 14.5-inch total height from ceiling to lowest point.

ഊർജ്ജ വിവരങ്ങൾ

Image: EnergyGuide label indicating an estimated yearly energy cost of $6, based on 12 cents per kWh and 6.4 hours use per day. Airflow is 4,343 Cubic Feet Per Minute, with an airflow efficiency of 199 Cubic Feet Per Minute Per Watt.

വാറൻ്റി

For specific warranty terms and conditions applicable to your Hinkley Grove 56-inch Ceiling Fan, please refer to the warranty documentation included with your original purchase. You may also find detailed warranty information on the official Hinkley website or by contacting Hinkley customer support directly.

പിന്തുണ

Should you require technical assistance, replacement parts, or further information regarding your Hinkley Grove 56-inch Ceiling Fan, please utilize the following resources:

• Hinkley Home Automation App: For details on controlling your fan via the app, refer to the app's documentation or the Hinkley webസൈറ്റ്.
• ഓൺലൈൻ ഉറവിടങ്ങൾ: Visit the official Hinkley website for product information, FAQs, and support contact details.
• ആമസോൺ സ്റ്റോർ: Visit the Hinkley Store on Amazon
