IPEVO VZ-R HDMI/USB Dual Mode Document Camera User Manual

1. ആമുഖം

This user manual provides detailed instructions for the IPEVO VZ-R HDMI/USB Dual Mode Document Camera. It covers product features, setup procedures, operational guidelines, maintenance tips, and troubleshooting information to help you effectively use your device for real-time projection, remote work, distance learning, web conferencing, video recording, and live demonstrations.

2. ഉൽപ്പന്നം കഴിഞ്ഞുview

The IPEVO VZ-R is an 8-megapixel document camera designed for versatile visual communication. It offers both HDMI and USB connectivity, allowing direct connection to displays or computers. Its robust design and advanced imaging capabilities make it suitable for various educational and professional environments.

പ്രധാന സവിശേഷതകൾ:

• ഡ്യുവൽ മോഡ് കണക്റ്റിവിറ്റി: Seamlessly switch between HDMI for direct display output and USB for computer-based applications.
• ഉയർന്ന റെസല്യൂഷൻ ഇമേജിംഗ്: Captures up to 3264 x 2448 pixels in USB mode and 1920 x 1080 pixels in HDMI mode, ensuring clear and detailed visuals.
• Large Capture Area: Maximum capture area of 10.6” x 18.9” (16:9) or 13.5” x 18.1” (4:3).
• മെച്ചപ്പെടുത്തിയ പ്രകടനം: Features a Sony CMOS image sensor and Ambarella SoC for fast focus, noise reduction, and accurate color reproduction.
• സംയോജിത LED ലൈറ്റ്: Provides additional illumination for optimal image quality in low-light conditions.
• Webക്യാമറ പ്രവർത്തനം: Functions as a high-quality webcam, compatible with various third-party video conferencing software.
• ഫ്ലെക്സിബിൾ ഡിസൈൻ: Swiveling head and multi-jointed stand allow for capturing objects at different heights, angles, and orientations.
• മോടിയുള്ളതും പോർട്ടബിൾ: Constructed with a glass fiber reinforced stand (GVX-5H) for increased durability and ease of transport.
• അവബോധജന്യമായ നിയന്ത്രണങ്ങൾ: Tactile built-in buttons on the device body for instant image adjustments.

3. പാക്കേജ് ഉള്ളടക്കം

പാക്കേജിൽ എല്ലാ ഇനങ്ങളും ഉണ്ടെന്ന് ഉറപ്പാക്കുക:

• Camera head and stand
• അടിസ്ഥാനം
• USB Type-C to Type-A cable (4.90ft/150cm)
• സ്ക്രൂഡ്രൈവർ
• സ്ക്രൂകൾ x 4

കുറിപ്പ്: An HDMI cable and a wall power adapter are not included in the package and must be acquired separately if needed.

4. ഉപകരണ ലേഔട്ട്

The IPEVO VZ-R features an intuitive button layout for easy control. Familiarize yourself with the functions of each button:

• വെളിച്ചം: Toggles the LED light on/off.
• ഫിൽട്ടർ: Cycles through various image filters (e.g., grayscale, negative).
• തിരിക്കുക: ചിത്രം 90 ഡിഗ്രി ഘടികാരദിശയിൽ തിരിക്കുന്നു.
• ZOOM + / ZOOM -: Adjusts the digital zoom level.
• EXP + / EXP -: Adjusts the exposure level (brightness).
• FOCUS / AF-LOCK: Initiates auto-focus or locks the current focus.
• പവർ: ഉപകരണം ഓണാക്കുകയോ ഓഫാക്കുകയോ ചെയ്യുന്നു.

5. സജ്ജീകരണം

5.1 ഫിസിക്കൽ അസംബ്ലി

1. Attach the camera head and stand assembly to the base using the provided screws and screwdriver. Ensure it is securely fastened.
2. Position the VZ-R on a stable, flat surface.

5.2 Connecting to a Computer (USB Mode)

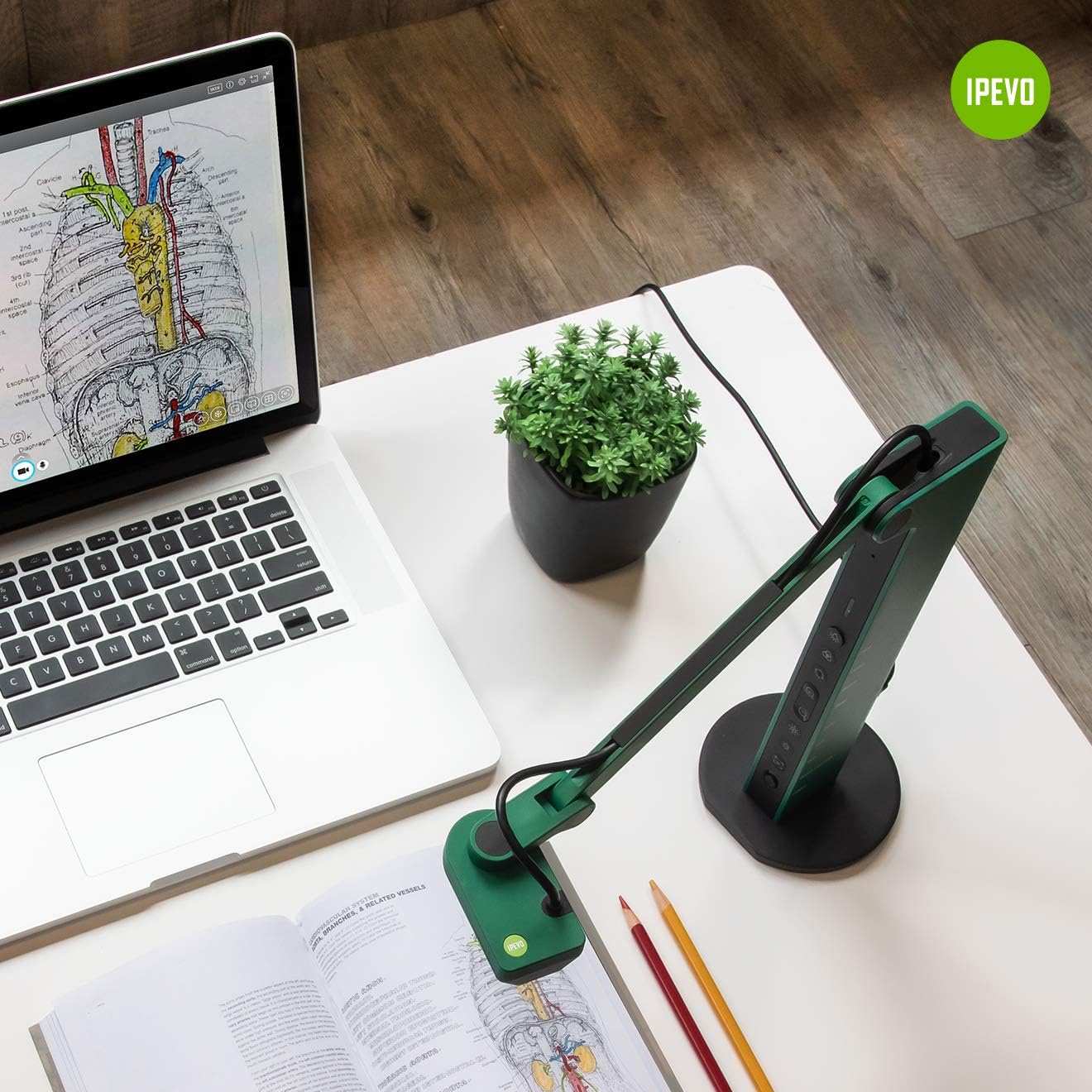

1. Connect the USB Type-C end of the provided cable to the VZ-R.
2. Connect the USB Type-A end of the cable to an available USB port on your computer (Mac, Windows PC, or Chromebook).
3. The VZ-R will be recognized as a standard webcam. You may need to download and install the IPEVO Visualizer software from the official IPEVO website for full functionality and advanced controls.

5.3 Connecting to a Display (HDMI Mode)

1. Connect an HDMI cable (not included) from the VZ-R's HDMI output port to the HDMI input port on your TV, monitor, or projector.
2. Ensure the display device is set to the correct HDMI input source.
3. The VZ-R will automatically project its live feed to the connected display.

5.4 ഉപകരണം പവർ ചെയ്യുന്നു

The VZ-R is powered via its USB connection. When connected to a computer, it draws power from the USB port. For HDMI-only operation, connect the USB cable to a USB wall adapter (not included) for power.

6. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

6.1 Using the IPEVO Visualizer Software

For advanced control and features when connected to a computer, download and install the IPEVO Visualizer software. This software allows you to:

• Adjust image settings (resolution, exposure, white balance).
• Annotate live images.
• Record video and capture snapshots.
• Utilize various presentation tools.

6.2 Using On-Device Buttons

Refer to Section 4, "Device Layout," for the location and function of each button. These buttons allow for quick adjustments without software interaction, especially useful in HDMI mode.

6.3 Adjusting the Camera Arm

The VZ-R's multi-jointed stand allows for flexible positioning. Gently adjust the arm and camera head to capture your desired object or document. The swiveling head provides additional flexibility for different angles and orientations.

6.4 ആയി ഉപയോഗിക്കുന്നത് a Webക്യാമറ

When connected to a computer via USB, the VZ-R can function as a webcam. Select the VZ-R as your camera source in your preferred video conferencing application (e.g., Zoom, Google Meet, Microsoft Teams). Its flexible arm allows you to easily switch between showing your face and displaying physical documents or objects during a call.

7. പരിപാലനം

To ensure the longevity and optimal performance of your IPEVO VZ-R, follow these maintenance guidelines:

• വൃത്തിയാക്കൽ: Use a soft, dry cloth to clean the exterior of the device. For the camera lens, use a lens cleaning cloth and solution specifically designed for optics. Avoid abrasive cleaners or solvents.
• സംഭരണം: When not in use, store the VZ-R in a clean, dry place away from direct sunlight and extreme temperatures. The flexible arm can be folded for compact storage.
• കൈകാര്യം ചെയ്യൽ: ഉപകരണം ശ്രദ്ധയോടെ കൈകാര്യം ചെയ്യുക. അത് താഴെയിടുകയോ ശക്തമായ ആഘാതങ്ങൾക്ക് വിധേയമാക്കുകയോ ചെയ്യരുത്.

8. പ്രശ്‌നപരിഹാരം

If you encounter issues with your IPEVO VZ-R, refer to the following common problems and solutions:

• No Image Displayed (USB Mode):
  • Ensure the USB cable is securely connected to both the VZ-R and your computer.
  • Verify that the VZ-R is selected as the camera source in your software (e.g., IPEVO Visualizer, video conferencing app).
  • നിങ്ങളുടെ കമ്പ്യൂട്ടറിലെ മറ്റൊരു യുഎസ്ബി പോർട്ടിലേക്ക് കണക്റ്റുചെയ്യാൻ ശ്രമിക്കുക.
  • നിങ്ങളുടെ കമ്പ്യൂട്ടർ പുനരാരംഭിക്കുക.
• No Image Displayed (HDMI Mode):
  • Ensure the HDMI cable is securely connected to both the VZ-R and your display device.
  • നിങ്ങളുടെ ഡിസ്പ്ലേ ഉപകരണം ശരിയായ HDMI ഇൻപുട്ട് ഉറവിടത്തിലേക്ക് സജ്ജീകരിച്ചിട്ടുണ്ടെന്ന് സ്ഥിരീകരിക്കുക.
  • Ensure the VZ-R is receiving power via its USB connection to a wall adapter.
  • മറ്റൊരു HDMI കേബിൾ പരീക്ഷിക്കുക.
• ചിത്രം മങ്ങിയതോ ഫോക്കസിന് പുറത്തുള്ളതോ ആണ്:
  • അമർത്തുക FOCUS / AF-LOCK button to initiate auto-focus.
  • Ensure the object is within the camera's optimal focal range.
  • Check for any obstructions on the camera lens.
• Image is Too Dark or Too Bright:
  • Adjust the exposure using the EXP + / EXP - ബട്ടണുകൾ.
  • Ensure the LED light is on if operating in a dimly lit environment.
  • Check ambient lighting conditions.
• മിന്നുന്ന ചിത്രം:
  • Ensure all cables (USB, HDMI) are securely connected and not damaged.
  • മറ്റൊരു കേബിൾ പരീക്ഷിക്കുക.
  • Ensure adequate power supply.

9 സ്പെസിഫിക്കേഷനുകൾ

10. വാറൻ്റിയും പിന്തുണയും

For warranty information and technical support, please refer to the official IPEVO website or contact IPEVO customer service directly. You can typically find support resources, FAQs, and contact details at www.ipevo.com. For direct customer service inquiries, you may also reach out to cs@ipevo.com.

കുറിപ്പ്: No official product videos were available in the provided data for embedding in this manual.
