Bestway Power Steel Frame Oval Pool Kit - Model 56448 Instruction Manual

1. ആമുഖം

This manual provides essential information for the safe assembly, operation, and maintenance of your Bestway Power Steel Frame Oval Pool Kit, Model 56448. This pool is designed for outdoor use. Please retain this manual for future reference.

2 സുരക്ഷാ വിവരങ്ങൾ

WARNING: Failure to follow these warnings can result in serious injury or death.

• To protect children from drowning, it is recommended to secure access to the pool with a protective device.
• കുട്ടികൾ കുളത്തിലോ സമീപത്തോ ആയിരിക്കുമ്പോൾ എല്ലായ്‌പ്പോഴും മുതിർന്നവരുടെ മേൽനോട്ടം ആവശ്യമാണ്.
• Install the pool on a level, stable surface.
• കുളത്തിൽ മുങ്ങുകയോ ചാടുകയോ ചെയ്യരുത്.
• Keep electrical appliances away from the pool.
• Ensure all components are correctly assembled before filling with water.
• കുട്ടികളെ ഒരിക്കലും കുളത്തിലോ പരിസരത്തോ ശ്രദ്ധിക്കാതെ വിടരുത്.

3. പാക്കേജ് ഉള്ളടക്കം

Verify that all components listed below are present in your package. If any parts are missing or damaged, do not proceed with assembly and contact Bestway customer service.

• Pool Liner (Tritech 3-layer material, mosaic interior)
• Steel Frame Components (with corrosion protection)
• ഫ്ലോക്ലിയർ ഫിൽറ്റർ പമ്പ് (#58386, 3.028 l/h)
• Flowclear Filter Cartridge (#58094 Gr. II)
• Flowclear Safety Ladder (#58330, 107 cm)
• Flowclear Pool Cover (#58290)
• ChemConnect Chemical Dispenser (#58501)
• Heavy-duty Repair Patch
• Integrated Drain Valve with Hose Adapter

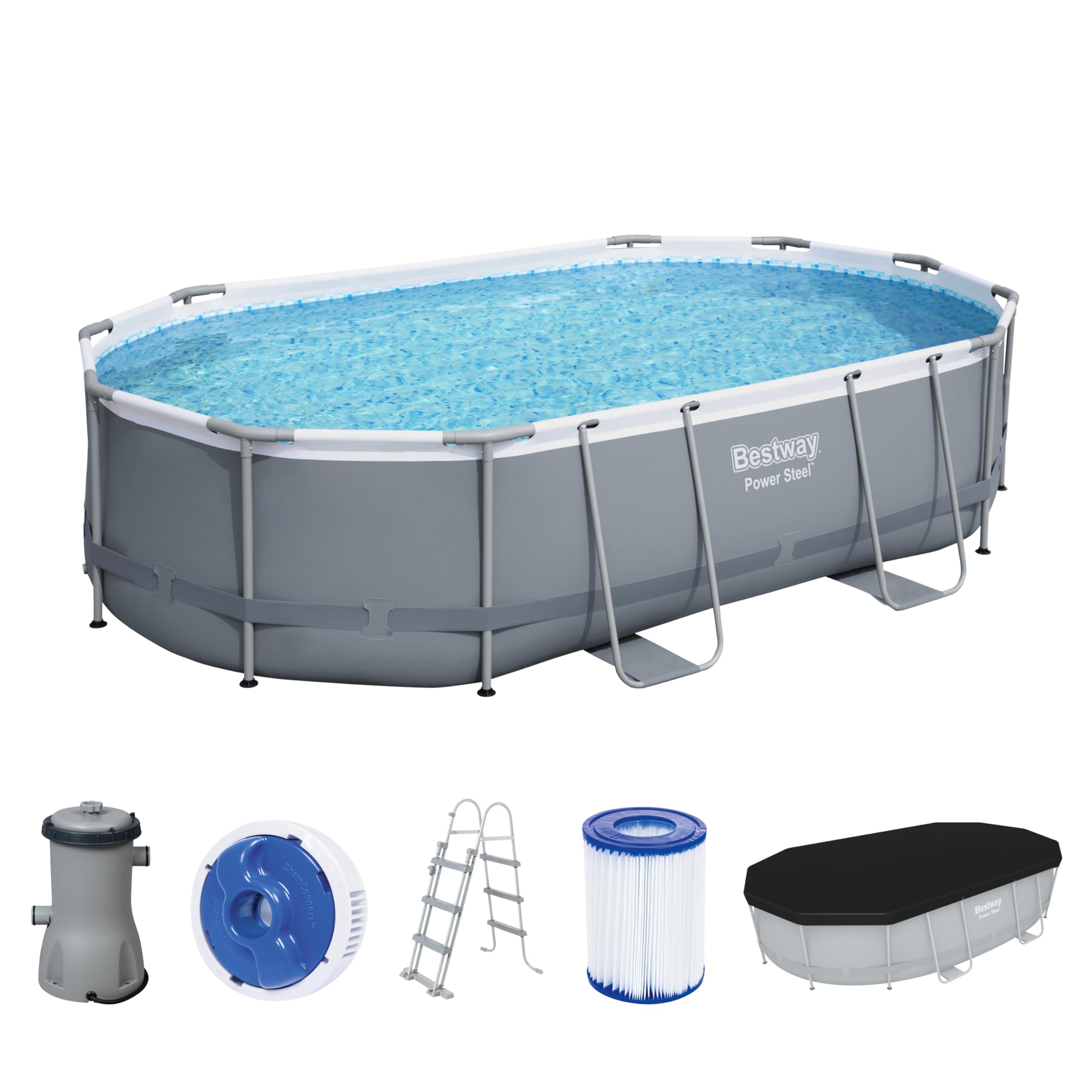

Image: All components of the Bestway Power Steel Frame Oval Pool Kit, including the pool liner, frame, filter pump, ladder, and accessories.

4. സജ്ജീകരണ നിർദ്ദേശങ്ങൾ

4.1 സൈറ്റ് തയ്യാറാക്കൽ

1. Choose a flat, level area free of sharp objects, debris, and overhead power lines.
2. Ensure the ground is firm enough to support the weight of the filled pool (approximately 10,949 liters). A padded underlayment is recommended to protect the pool liner.
3. Clear any vegetation from the area.

4.2 ഫ്രെയിം അസംബ്ലി

1. Unpack all components and lay them out on the prepared site.
2. Connect the steel frame components according to the diagrams provided in the separate assembly guide. The Seal & Lock System ensures secure connections.
3. Ensure all T-connectors and flexible T-bands are correctly positioned for stability.

4.3 ലൈനർ ഇൻസ്റ്റലേഷൻ

1. Carefully spread the pool liner (with its mosaic interior) over the assembled frame.
2. Ensure the drain valve is accessible and positioned correctly.
3. Smooth out any wrinkles in the bottom of the liner before filling.

4.4 കുളം നിറയ്ക്കൽ

1. Begin filling the pool with water. As the water level rises, continue to smooth out wrinkles from the center outwards.
2. Fill to 90% capacity (approximately 10,949 liters).

ചിത്രം: ഒരു ഓവർഹെഡ് view of the Bestway Power Steel Frame Oval Pool during the assembly process, showing the frame structure and the liner being installed.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

5.1 ഫിൽറ്റർ പമ്പ് പ്രവർത്തനം

1. Connect the Flowclear Filter Pump (#58386) to the pool's inlet and outlet connections.
2. Insert the Flowclear Filter Cartridge (#58094 Gr. II) into the pump housing.
3. Plug in the pump to a grounded electrical outlet. Refer to the separate pump manual for detailed operating instructions and safety warnings.
4. Run the pump daily to ensure proper water circulation and filtration.

5.2 Chemical Dispenser (ChemConnect)

1. Fill the ChemConnect Chemical Dispenser (#58501) with appropriate pool chemicals (e.g., chlorine tablets).
2. Place the dispenser in the pool. Adjust the dispenser's output to maintain desired chemical levels.
3. Always follow chemical manufacturer's instructions for safe handling and dosage.

5.3 സുരക്ഷാ ഗോവണി

Use the Flowclear Safety Ladder (#58330) for safe entry and exit from the pool. Ensure the ladder is stable before use. Remove or secure the ladder when the pool is not in use to prevent unsupervised access by children.

Image: The Bestway Power Steel Frame Oval Pool filled with water, showing people enjoying it, and the safety ladder in place.

6. പരിപാലനം

6.1 ജലത്തിന്റെ ഗുണനിലവാരം

• Regularly test pool water pH and chemical levels. Adjust as necessary using appropriate pool chemicals.
• Clean the filter cartridge frequently (daily or every other day depending on usage) and replace it every 2-4 weeks.
• Use the Flowclear Pool Cover (#58290) when the pool is not in use to keep debris out and reduce chemical evaporation.

6.2 Cleaning the Pool

• Skim the surface for leaves and debris.
• Vacuum the pool bottom as needed.
• Wipe down the pool walls to prevent algae buildup.

6.3 ഡ്രെയിനിംഗും സംഭരണവും

1. To drain the pool, connect a garden hose to the integrated drain valve.
2. Open the drain valve to allow water to flow away from the pool area.
3. Once empty, clean and thoroughly dry all pool components to prevent mold and mildew.
4. Disassemble the frame and store all parts in a dry, protected area during the off-season.

7. പ്രശ്‌നപരിഹാരം

8 സ്പെസിഫിക്കേഷനുകൾ

• മോഡൽ: 56448
• അളവുകൾ (L x W x H): 488 x 305 x 107 സെ.മീ (192 x 120 x 42 ഇഞ്ച്)
• Maximum Assembly Dimensions: 488 x 347 സെന്റീമീറ്റർ (192 x 136.6 ഇഞ്ച്)
• ജല ശേഷി (90%): 10,949 ലിറ്റർ (2,893 ഗാലൺ)
• മെറ്റീരിയൽ: Tritech 3-layer PVC, Steel Frame
• നിറം: ചാരനിറം
• ഫിൽറ്റർ പമ്പ്: Flowclear #58386, 3.028 l/h (800 gal/h)
• ഫിൽട്ടർ കാട്രിഡ്ജ്: Flowclear #58094 Gr. II (10.6 x 13.6 cm)
• സുരക്ഷാ ഗോവണി: Flowclear #58330, 107 cm (42 inches)
• ഭാരം (ശൂന്യം): ഏകദേശം 26.42 കി.ഗ്രാം (58.25 പൗണ്ട്)

9. വാറൻ്റിയും പിന്തുണയും

This Bestway product comes with a 2 വർഷത്തെ നിർമ്മാതാവിന്റെ വാറന്റി. For warranty claims, missing parts, or technical support, please contact Bestway customer service. Keep your proof of purchase.

കൂടുതൽ സഹായത്തിന്, ഔദ്യോഗിക ബെസ്റ്റ്‌വേ സന്ദർശിക്കുക. webസൈറ്റ് അല്ലെങ്കിൽ നിങ്ങളുടെ ഉൽപ്പന്ന പാക്കേജിംഗിൽ നൽകിയിരിക്കുന്ന കോൺടാക്റ്റ് വിവരങ്ങൾ റഫർ ചെയ്യുക.
