Axiom ONS-SE-155-1510-AX CWDM SFP Transceiver Module User Manual

1. ആമുഖം

This manual provides essential information for the proper installation, operation, and maintenance of your Axiom ONS-SE-155-1510-AX CWDM SFP Network Transceiver Module. Please read this manual thoroughly before using the product to ensure optimal performance and safety.

2. ഉൽപ്പന്നം കഴിഞ്ഞുview

The Axiom ONS-SE-155-1510-AX is a high-performance CWDM Small Form-Factor Pluggable (SFP) transceiver module designed for optical data communication applications. It provides a fiber optic interface for network devices, enabling reliable and efficient data transmission over optical fiber.

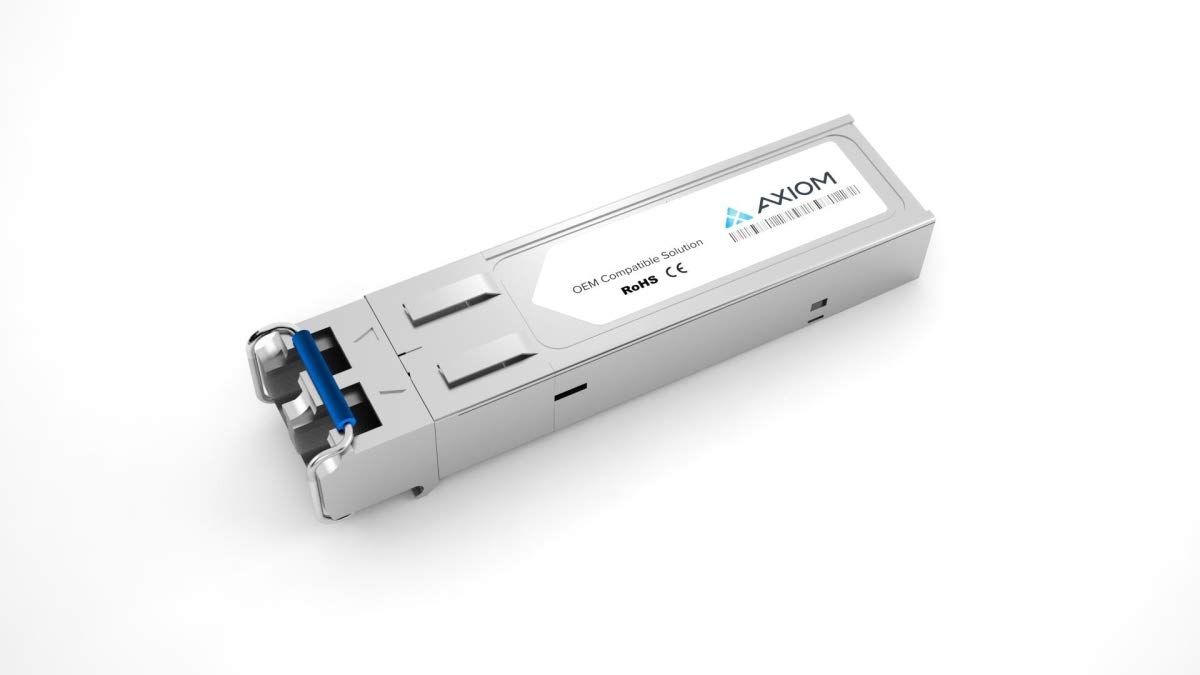

Figure 1: Axiom ONS-SE-155-1510-AX CWDM SFP Network Transceiver Module. This image displays the compact gray fiber optic module with an LC connector, illustrating its physical form factor.

പ്രധാന സവിശേഷതകൾ:

• 100% Guaranteed Compatibility in all OEM applications.
• Fully compliant with the Multi-Source Agreement (MSA) standards, ensuring broad compatibility with MSA-compliant platforms.
• Designed for OC-3/STM-1 applications, operating at a 1510nm CWDM wavelength.
• Fiber optic interface type: SFP with LC connector.
• Compact dimensions: 2.22" (56.5 mm) width, 0.528" (13.4 mm) depth, 0.335" (8.5 mm) height.

3 സുരക്ഷാ വിവരങ്ങൾ

ഉൽപ്പന്നത്തിന് പരിക്കുകളും കേടുപാടുകളും ഉണ്ടാകാതിരിക്കാൻ ഇനിപ്പറയുന്ന സുരക്ഷാ മുൻകരുതലുകൾ പാലിക്കുക:

• ലേസർ സുരക്ഷ: This product contains a laser. Do not stare directly into the optical port when the module is powered on, as this can cause eye damage.
• ഇലക്ട്രോസ്റ്റാറ്റിക് ഡിസ്ചാർജ് (ESD): Always handle the SFP module with proper ESD precautions. Use an anti-static wrist strap and work on an ESD-safe surface.
• കൈകാര്യം ചെയ്യൽ: Avoid touching the electrical contacts or optical interfaces. Hold the module by its metal casing.
• പരിസ്ഥിതി: Operate the module within its specified environmental conditions (temperature, humidity) to prevent malfunction.

4. പാക്കേജ് ഉള്ളടക്കം

നിങ്ങളുടെ പാക്കേജിൽ ഇനിപ്പറയുന്ന ഇനം അടങ്ങിയിട്ടുണ്ടെന്ന് ഉറപ്പാക്കുക:

• 1 x Axiom ONS-SE-155-1510-AX CWDM SFP Transceiver Module

5. സജ്ജീകരണം

Follow these steps to install the SFP transceiver module into a compatible network device:

1. ഉപകരണം തയ്യാറാക്കുക: Ensure the network device (switch, router, etc.) is powered off or the SFP port is disabled, if possible, to prevent accidental damage.
2. സംരക്ഷണ തൊപ്പി നീക്കം ചെയ്യുക: Carefully remove the protective dust cap from the SFP module's optical port. Store the cap for future use.
3. Insert SFP Module: Orient the SFP module correctly with the label facing up (or as indicated by your device's SFP slot). Gently slide the SFP module into the designated SFP slot until it clicks into place. Ensure it is fully seated.
4. ഫൈബർ ഒപ്റ്റിക് കേബിൾ ബന്ധിപ്പിക്കുക: Remove the protective dust caps from your LC fiber optic cable. Connect the LC connector of the fiber optic cable to the SFP module's optical port. Ensure a secure connection.
5. പവർ ഓൺ/പോർട്ട് പ്രാപ്തമാക്കുക: Power on the network device or enable the SFP port.

6. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

Once installed, the SFP module operates automatically. Verify its status using the network device's interface:

• Link Status Indicators: Check the link/activity LEDs on your network device's SFP port. A solid green or amber light typically indicates a successful link, while a blinking light indicates data activity. Refer to your network device's manual for specific LED interpretations.
• Device Management Interface: Access your network device's command-line interface (CLI) or web-based management interface to check the SFP module's status, link speed, and optical power levels.

7. പരിപാലനം

The Axiom SFP module requires minimal maintenance. Follow these guidelines:

• വൃത്തിയായി സൂക്ഷിക്കു: Always keep the optical ports clean. Use only approved fiber optic cleaning tools and methods. Dust and contaminants on the optical interface can significantly degrade performance.
• തുറമുഖങ്ങൾ സംരക്ഷിക്കുക: When the SFP module is not connected to a fiber optic cable, always keep the protective dust cap on the optical port to prevent contamination.
• സംഭരണം: Store the module in a dry, dust-free environment within its specified temperature range when not in use.

8. പ്രശ്‌നപരിഹാരം

If you encounter issues with your SFP module, consider the following:

• ലിങ്ക് ലൈറ്റ് ഇല്ല:
  • Ensure the SFP module is fully seated in the slot.
  • Verify the fiber optic cable is correctly connected at both ends and is not damaged.
  • Check if the fiber optic cable type (e.g., single-mode) matches the SFP module requirements.
  • Clean the optical connectors on both the SFP module and the fiber optic cable.
  • Confirm the remote device is powered on and its corresponding SFP port is active.
• Poor Performance/Intermittent Connection:
  • Inspect fiber optic cables for bends, kinks, or damage.
  • Clean all optical connectors.
  • Check the optical power levels via the network device's management interface. Ensure they are within the SFP module's specified operating range.
• മൊഡ്യൂൾ തിരിച്ചറിഞ്ഞിട്ടില്ല:
  • Re-seat the SFP module.
  • Ensure your network device's firmware is up to date and supports the SFP module.
  • Try the module in a different SFP slot or a different compatible device, if available.

9 സ്പെസിഫിക്കേഷനുകൾ

10. വാറൻ്റിയും പിന്തുണയും

Axiom products are designed for reliability and performance. For specific warranty information pertaining to your ONS-SE-155-1510-AX module, please refer to the warranty documentation included with your purchase or visit the official Axiom webസൈറ്റ്.

For technical support, troubleshooting assistance beyond this manual, or to inquire about product service, please contact Axiom customer support through their official channels. Have your product model number (ONS-SE-155-1510-AX) and purchase details ready when contacting support.
