TecTake XXL Rattan Living Room Set - Model 403724 Instruction Manual

1. ഉൽപ്പന്നം കഴിഞ്ഞുview

The TecTake XXL Rattan Living Room Set is a versatile and comfortable outdoor furniture solution designed for gardens, balconies, and patios. Its modular design allows for flexible arrangement to suit various spaces and preferences. The set includes multiple seating elements, a table, and a practical storage box.

പ്രധാന സവിശേഷതകൾ:

• മോഡുലാർ ഡിസൈൻ: Elements can be freely arranged to create various configurations.
• സുഖപ്രദമായ ഇരിപ്പിടം: Includes detachable seat and back cushions for enhanced comfort.
• Functional Table: Features a removable glass top.
• പ്രായോഗിക സംഭരണം: A storage box with a lifting mechanism provides convenient space.
• നീണ്ടുനിൽക്കുന്ന നിർമ്മാണം: Built with a sturdy powder-coated steel frame and stainless steel screws.
• എളുപ്പമുള്ള പരിപാലനം: Materials are designed for simple cleaning.

Figure 1: The TecTake XXL Rattan Living Room Set configured on an outdoor patio.

2. പാക്കേജ് ഉള്ളടക്കം

Before beginning assembly, please ensure all components listed below are present in your package. Carefully unpack all items and check for any damage.

• 5 x Armchairs with cushions
• 1 x Table with Glass Top
• 1 x സ്റ്റോറേജ് ബോക്സ്
• 6 x Connecting Clips
• Mounting material (screws, tools if provided)

ചിത്രം 2: ഓവർview of all components included in the TecTake XXL Rattan Living Room Set.

3. സജ്ജീകരണവും അസംബ്ലിയും

The TecTake XXL Rattan Living Room Set is supplied as a disassembled kit. Assembly is required. Please follow these general steps for proper setup.

3.1 പായ്ക്ക് ചെയ്യലും തയ്യാറാക്കലും

1. പാക്കേജിംഗിൽ നിന്ന് എല്ലാ ഘടകങ്ങളും ശ്രദ്ധാപൂർവ്വം നീക്കം ചെയ്യുക.
2. Place all parts on a clean, flat, and soft surface to prevent scratches during assembly.
3. Verify that all parts listed in Section 2 are present.

3.2 ഫ്രെയിം അസംബ്ലി

Each seating element, the table, and the storage box require frame assembly. The frames are constructed from powder-coated steel for durability.

1. Identify the frame pieces for each unit (armchair, table, storage box).
2. Connect the frame pieces using the provided stainless steel screws and any included tools. Ensure all connections are secure but do not overtighten initially.
3. Once all frame pieces for a unit are loosely assembled, place the unit on a level surface and gently tighten all screws. This helps ensure the frame is square and stable.

3.3 Cushion Placement

After assembling the frames, place the seat and back cushions onto the respective armchairs and the storage box. The cushions are designed to fit snugly for maximum comfort.

Figure 3: The storage box with its lid open, illustrating the internal space and cushion placement.

3.4 Connecting Clips

Use the provided connecting clips to secure the modular elements together. This prevents individual pieces from shifting and maintains your desired configuration.

1. Arrange the assembled furniture pieces in your desired layout.
2. Locate the connecting points on the sides of adjacent furniture pieces.
3. Slide the connecting clips onto these points to link the pieces securely.

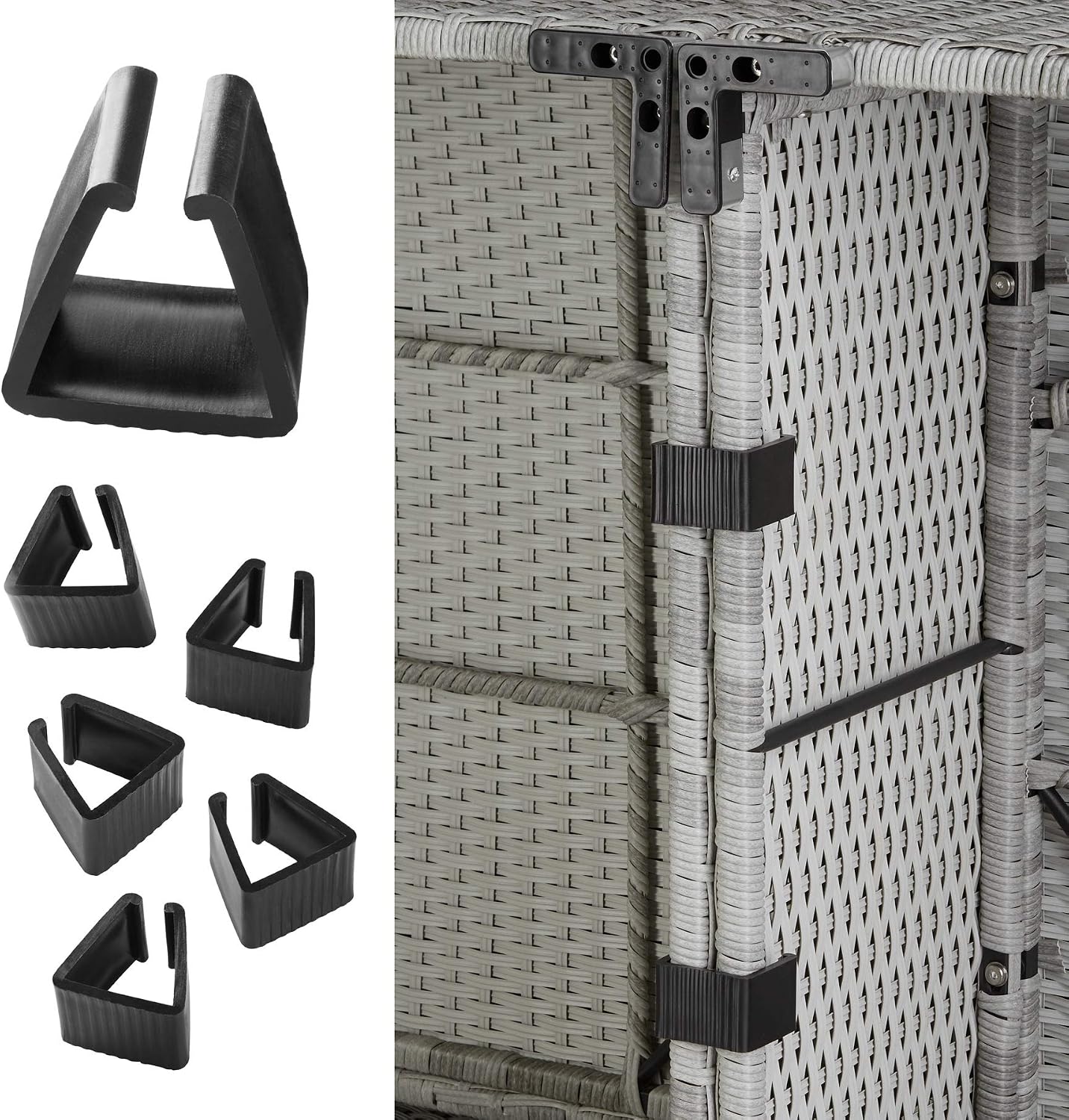

Figure 4: Connecting clips for securing modular furniture elements.

4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

Your TecTake XXL Rattan Living Room Set offers flexibility and functionality for various outdoor living scenarios.

4.1 മോഡുലാർ കോൺഫിഗറേഷൻ

The individual armchairs and storage box can be rearranged to form different seating arrangements, such as a long sofa, an L-shaped lounge, or separate seating areas. Experiment with layouts to find the best fit for your space and needs.

Figure 5: A single armchair element, highlighting the modular design.

4.2 Using the Table

The table features a removable glass top. This glass top provides a stable and easy-to-clean surface for drinks, snacks, or decorative items. Handle the glass top with care to prevent breakage.

Figure 6: The table with its glass top.

4.3 Storage Box Functionality

The storage box is equipped with a lifting mechanism for easy access. It provides a convenient space to store cushions, covers, or other outdoor essentials, keeping them protected from the elements when not in use.

Figure 7: Close-up of the storage box lifting mechanism.

5. പരിപാലനവും പരിചരണവും

Proper maintenance will extend the lifespan and preserve the appearance of your rattan living room set.

5.1 വൃത്തിയാക്കൽ

• Rattan and Frame: പരസ്യം ഉപയോഗിച്ച് തുടയ്ക്കുകamp തുണി. കഠിനമായ അഴുക്കിന്, നേരിയ സോപ്പ് ലായനി ഉപയോഗിച്ച് ശുദ്ധജലം ഉപയോഗിച്ച് നന്നായി കഴുകുക. കഠിനമായ രാസവസ്തുക്കളോ ഉരച്ചിലുകളോ ഉള്ള ക്ലീനറുകളോ ഒഴിവാക്കുക.
• തലയണകൾ: The cushions are detachable. Refer to the care labels on the cushions for specific cleaning instructions. Generally, spot cleaning with a mild detergent is recommended. Allow to air dry completely.
• ഗ്ലാസ് ടോപ്പ്: Clean with a standard glass cleaner and a soft cloth.

5.2 സംരക്ഷണം

• To protect the quality and prevent deterioration and discoloration of materials, especially during adverse weather conditions or prolonged periods of non-use, it is highly recommended to use a protective cover.
• Store cushions in the storage box or indoors when not in use to protect them from moisture and UV exposure.
• Periodically check all screws and connections and tighten if necessary to maintain stability.

6. പ്രശ്‌നപരിഹാരം

This section addresses common issues you might encounter with your TecTake XXL Rattan Living Room Set.

6.1 അസ്ഥിരത അല്ലെങ്കിൽ ചലിക്കൽ

• കാരണം: അയഞ്ഞ സ്ക്രൂകൾ അല്ലെങ്കിൽ അസമമായ സ്ഥാനം.
• പരിഹാരം: Check all assembly screws and tighten them securely. Ensure the furniture is placed on a flat, level surface. If the surface is uneven, consider using shims under the feet.

6.2 Difficulty Connecting Modular Pieces

• കാരണം: Misalignment or incorrect clip usage.
• പരിഹാരം: Ensure the pieces are aligned correctly before attempting to attach the clips. The clips should slide firmly onto the connecting points. Do not force them if they do not fit; re-check alignment.

6.3 Cushions Sliding

• കാരണം: Smooth surface of the rattan.
• പരിഹാരം: Consider placing non-slip mats or strips under the cushions to prevent them from moving.

7 സ്പെസിഫിക്കേഷനുകൾ

Detailed technical specifications for the TecTake XXL Rattan Living Room Set, Model 403724.

8. വാറൻ്റിയും പിന്തുണയും

For any questions regarding your TecTake XXL Rattan Living Room Set, including assembly, missing parts, or operational concerns, please contact TecTake customer support. Refer to your purchase documentation or the official TecTake webബന്ധപ്പെടാനുള്ള വിവരങ്ങൾക്കുള്ള സൈറ്റ്.

ഏതെങ്കിലും വാറന്റി ക്ലെയിമുകൾക്കായി നിങ്ങളുടെ വാങ്ങിയതിന്റെ തെളിവ് സൂക്ഷിക്കുക.
