Neakhmer Portable Dual Cylinder Tire Inflator

1. ആമുഖം

The Neakhmer Portable Dual Cylinder Tire Inflator is a high-performance 12V DC air compressor designed for efficient and reliable tire inflation. Featuring a 120W high-power motor and dual cylinders, it provides rapid inflation for various vehicle tires, including cars, motorcycles, and bicycles, as well as other inflatables like balls and air cushions. Equipped with a digital pressure gauge, LED light, and an auto-off function, this device ensures precise inflation and convenient use in diverse conditions.

This manual provides essential information for the safe and effective operation, setup, maintenance, and troubleshooting of your Neakhmer tire inflator. Please read it thoroughly before use.

2 സുരക്ഷാ വിവരങ്ങൾ

To ensure safe operation and prevent damage to the device or injury, please adhere to the following safety guidelines:

• ഊർജ്ജ സ്രോതസ്സ്: Connect the inflator only to a 12V DC power source, such as a car cigarette lighter socket or directly to a car battery using the provided clamps. Ensure the vehicle engine is running during operation to prevent draining the car battery.
• തുടർച്ചയായ പ്രവർത്തനം: Do not operate the inflator continuously for more than 15 minutes. Allow the unit to cool down for at least 10-15 minutes after each 15-minute cycle to prevent overheating and prolong motor life.
• സമ്മർദ്ദ ക്രമീകരണങ്ങൾ: Always refer to your vehicle's or inflatable item's recommended pressure (PSI, BAR, KPA, KG/CM²) before inflation. Over-inflation can be dangerous and cause damage.
• ഹോസും കണക്ഷനുകളും: Ensure all connections are secure before starting inflation. A loose connection can lead to air leakage or inefficient operation.
• ചൂട്: The air hose and connectors may become hot during prolonged use. Handle with care to avoid burns.
• കുട്ടികളും വളർത്തുമൃഗങ്ങളും: Keep the device out of reach of children and pets. Do not allow them to operate the inflator.
• സംഭരണം: നേരിട്ടുള്ള സൂര്യപ്രകാശത്തിൽ നിന്നും കടുത്ത താപനിലയിൽ നിന്നും അകന്ന് തണുത്തതും വരണ്ടതുമായ സ്ഥലത്ത് ഇൻഫ്ലേറ്റർ സൂക്ഷിക്കുക.
• കേടായ യൂണിറ്റ്: Do not use the inflator if the power cord, hose, or unit itself appears damaged. Contact customer support for assistance.
• പന്ത് പണപ്പെരുപ്പം: When inflating balls, the needle connector may not allow the pressure gauge to work accurately due to high pressure air flow. It is recommended to preset a higher pressure and manually stop the pump when the ball is fully inflated. Do not over-inflate balls, as this can cause them to burst, which is dangerous.

3. പാക്കേജ് ഉള്ളടക്കം

നിങ്ങളുടെ പാക്കേജിൽ എല്ലാ ഇനങ്ങളും ഉണ്ടെന്ന് ഉറപ്പാക്കുക:

• Neakhmer Car Air Compressor Unit
• ബാറ്ററി Clamps with Extension Cable and Cigarette Plug
• Yellow Air Hose
• Replacement Fuse for Air Compressor
• Extra Nozzles for Inflatable Items (e.g., needle for balls, cone adapters)

Image: The Neakhmer Portable Dual Cylinder Tire Inflator shown with its complete set of accessories, including the main unit, power cables, air hose, and various nozzles.

4 സ്പെസിഫിക്കേഷനുകൾ

5. സജ്ജീകരണം

Before operating your Neakhmer tire inflator, follow these steps for proper setup:

1. വാഹനം തയ്യാറാക്കുക: Park your vehicle on a flat, stable surface. Ensure the vehicle's engine is running to provide stable power to the inflator and prevent battery drain.
2. പവർ ബന്ധിപ്പിക്കുക:
   • For Cigarette Lighter Socket: Insert the cigarette lighter plug firmly into your vehicle's 12V DC outlet.
   • For Direct Battery Connection (Recommended for heavy duty use): നൽകിയിരിക്കുന്ന ബാറ്ററി cl ഉപയോഗിക്കുകamps. Connect the red clamp to the positive (+) terminal of your car battery and the black clamp to the negative (-) terminal. Then, connect the cigarette lighter plug from the inflator into the extension cable's socket.
3. എയർ ഹോസ് അറ്റാച്ചുചെയ്യുക: Screw the air hose connector onto the tire valve stem. Ensure it is tightly secured to prevent air leakage.

Image: This diagram illustrates the maximum operation distance of the inflator, showing the 9.8 ft cigarette socket power cord and the 9.8 ft coil hose, allowing for a total reach of up to 26 feet.

6. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

Follow these steps to inflate your tires or other items:

1. Start Vehicle Engine: Ensure your car engine is running.
2. പവർ ബന്ധിപ്പിക്കുക: Plug the inflator into the car's 12V outlet or connect to the battery as described in the Setup section.
3. ടയർ വാൽവുമായി ബന്ധിപ്പിക്കുക: Securely screw the air hose onto the tire valve stem.
4. ആവശ്യമുള്ള മർദ്ദം സജ്ജമാക്കുക: Use the digital display and control buttons to set your desired tire pressure (PSI, BAR, KPA, or KG/CM²). The display will show the current tire pressure.
   Note: It is recommended to set the pressure 1-2 PSI higher than your target, as a small amount of air may escape when disconnecting the hose.
5. Turn On Inflator: Flip the power switch on the inflator to the 'ON' position to begin inflation. The compressor will automatically shut off once the preset pressure is reached.
6. പുരോഗതി നിരീക്ഷിക്കുക: The digital gauge will display the pressure as it increases.
7. വിച്ഛേദിക്കുക: Once inflation is complete and the unit has automatically shut off, turn off the inflator's power switch, then carefully unscrew the air hose from the tire valve.

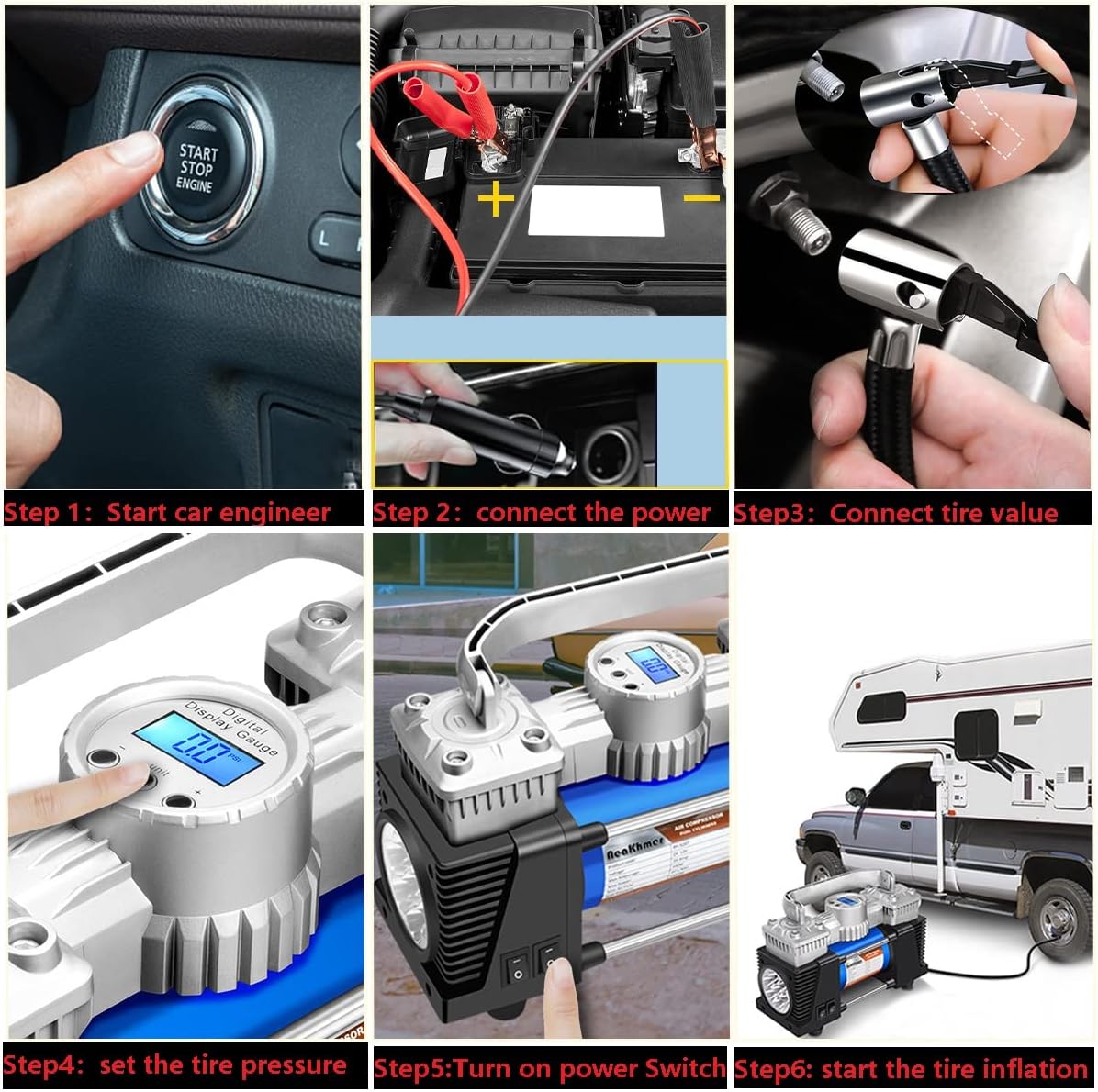

Image: A visual step-by-step guide demonstrating the operation process, from starting the car engine and connecting power to setting pressure and initiating inflation.

LED ലൈറ്റ് ഉപയോഗിച്ച്

The inflator is equipped with a bright LED flashlight for use in low-light conditions or emergencies. It has an individual control switch. Simply flip the dedicated switch to turn the LED light on or off.

Image: The Neakhmer tire inflator with its powerful LED light activated, providing illumination for nighttime use or in dark environments.

Inflating Other Items (Balls, Inflatables)

Use the appropriate nozzle adapter for the item you wish to inflate. Attach the adapter to the air hose, then connect it to the item's valve. For items like balls, where the pressure gauge may not read accurately due to high airflow, preset a higher pressure and manually stop the pump once the item is fully inflated. അമിതമായി വർദ്ധിപ്പിക്കരുത്.

Image: The inflator is shown with various vehicles (pickup, RV, off-road) and accessories for inflating items like basketballs and swimming rings, highlighting its versatility.

7. പരിപാലനം

Proper maintenance ensures the longevity and optimal performance of your tire inflator:

• Cool Down Periods: Always observe the 15-minute continuous operation limit. Allowing the unit to cool down after use is crucial for motor health.
• വൃത്തിയാക്കൽ: ഇൻഫ്ലേറ്ററിന്റെ പുറംഭാഗം മൃദുവായ, ഡി ക്ലീനർ ഉപയോഗിച്ച് തുടയ്ക്കുക.amp cloth. Do not use harsh chemicals or abrasive cleaners. Ensure the unit is completely dry before storage.
• സംഭരണം: Store the inflator and its accessories in the provided bag or a clean, dry place. Keep cables and hoses neatly coiled to prevent kinks or damage.
• ഫ്യൂസ് മാറ്റിസ്ഥാപിക്കൽ: If the inflator stops working, check the fuse located in the cigarette lighter plug. Replace it with the spare fuse provided if necessary.

8. പ്രശ്‌നപരിഹാരം

If you encounter issues with your Neakhmer tire inflator, refer to the following common problems and solutions:

9. വാറൻ്റിയും പിന്തുണയും

Your Neakhmer Portable Dual Cylinder Tire Inflator comes with a warranty for വാങ്ങിയ ദിവസം മുതൽ 60 ദിവസം.

For any inquiries, grievances, or technical support, please contact us directly through your Amazon Order. We are committed to providing quick and responsive assistance to ensure your satisfaction.
