Steelcase Please Ergonomic Office Chair Instruction Manual

പ്രധാനപ്പെട്ട സുരക്ഷാ വിവരങ്ങൾ

Please read and follow all assembly instructions carefully before using the chair. Ensure the chair is used correctly to prevent injuries.

• പരമാവധി ഭാരം ശേഷി: This chair is designed to support a maximum weight of 150 kg (330 lbs). Do not exceed this limit.
• ചലിക്കുന്ന ഭാഗങ്ങൾ: Keep fingers and loose clothing away from moving parts when adjusting the chair.
• സ്ഥിരത: Always ensure the chair is stable before sitting or making adjustments.

ഉൽപ്പന്നം കഴിഞ്ഞുview

The Steelcase Please ergonomic office chair is designed for optimal comfort and support throughout your workday. It features a high backrest, adjustable components, and a patented synchronized tilt mechanism.

Figure 1: Steelcase Please Ergonomic Office Chair (Onyx)

സജ്ജീകരണവും അസംബ്ലിയും

The Steelcase Please chair requires some assembly. Detailed assembly instructions are typically included with the product packaging. Please refer to those specific instructions for step-by-step guidance.

• അൺപാക്ക് ചെയ്യുന്നു: പാക്കേജിംഗിൽ നിന്ന് എല്ലാ ഘടകങ്ങളും ശ്രദ്ധാപൂർവ്വം നീക്കം ചെയ്യുക.
• അടിസ്ഥാന അസംബ്ലി: Attach the chair base and casters according to the provided instructions.
• Seat and Backrest: Secure the seat and backrest to the mechanism and gas lift.
• കൈത്തണ്ടകൾ: Install the armrests as directed.

The chair is equipped with wheels suitable for both hard and soft floor surfaces, ensuring smooth movement in various office environments.

പ്രവർത്തനവും ക്രമീകരണങ്ങളും

The Steelcase Please chair offers a range of adjustments to customize your seating experience for optimal ergonomic support.

1. സീറ്റ് ഉയരം ക്രമീകരിക്കൽ

Figure 2: Seat Height and Depth Adjustment

To adjust the seat height, locate the lever on the right side under the seat. Lift the lever to raise the seat. To lower, lift the lever while seated. Release the lever at the desired height.

2 സീറ്റ് ഡെപ്ത് ക്രമീകരണം

The seat depth can be adjusted to ensure proper leg support. Locate the lever or knob under the seat (often near the height adjustment). Pull or turn it to slide the seat forward or backward until your back is against the backrest and there is a 2-3 finger gap between the edge of the seat and the back of your knees.

3. 4D Armrests

Figure 3: 4D Armrest Adjustments

The 4D armrests offer extensive adjustability:

• ഉയരം: Adjust the armrest height (11 positions) by pressing the button on the side of the armrest and moving it up or down.
• ആംഗിൾ: Pivot the armrest pads inward or outward (4 positions: -20°, -10°, 0°, +10°).
• ആഴം: Slide the armrest pads forward or backward (45mm range in 6 positions).

4. Patented Synchronized Tilt Mechanism (LTC2)

Figure 4: LTC2 Mechanism for Independent Backrest Adjustment

The unique LTC2 mechanism features a dual backrest that adapts independently to your body and spine, providing continuous ergonomic support in any posture. This includes:

• ലംബർ സപ്പോർട്ട്: The lower back section adjusts to support the natural curve of your spine.
• Thoracic Support: The upper back section moves with your upper body, maintaining contact and support.

5. ടിൽറ്റ് ടെൻഷൻ ക്രമീകരണം

Adjust the resistance of the chair's recline to match your body weight and preference. Turn the large knob located under the seat (usually at the front) clockwise to increase tension or counter-clockwise to decrease it.

6. Forward Tilt Lock

The chair features a forward tilt lock, allowing you to lock the seat in a slightly forward-tilted position, which can be beneficial for certain tasks or postures.

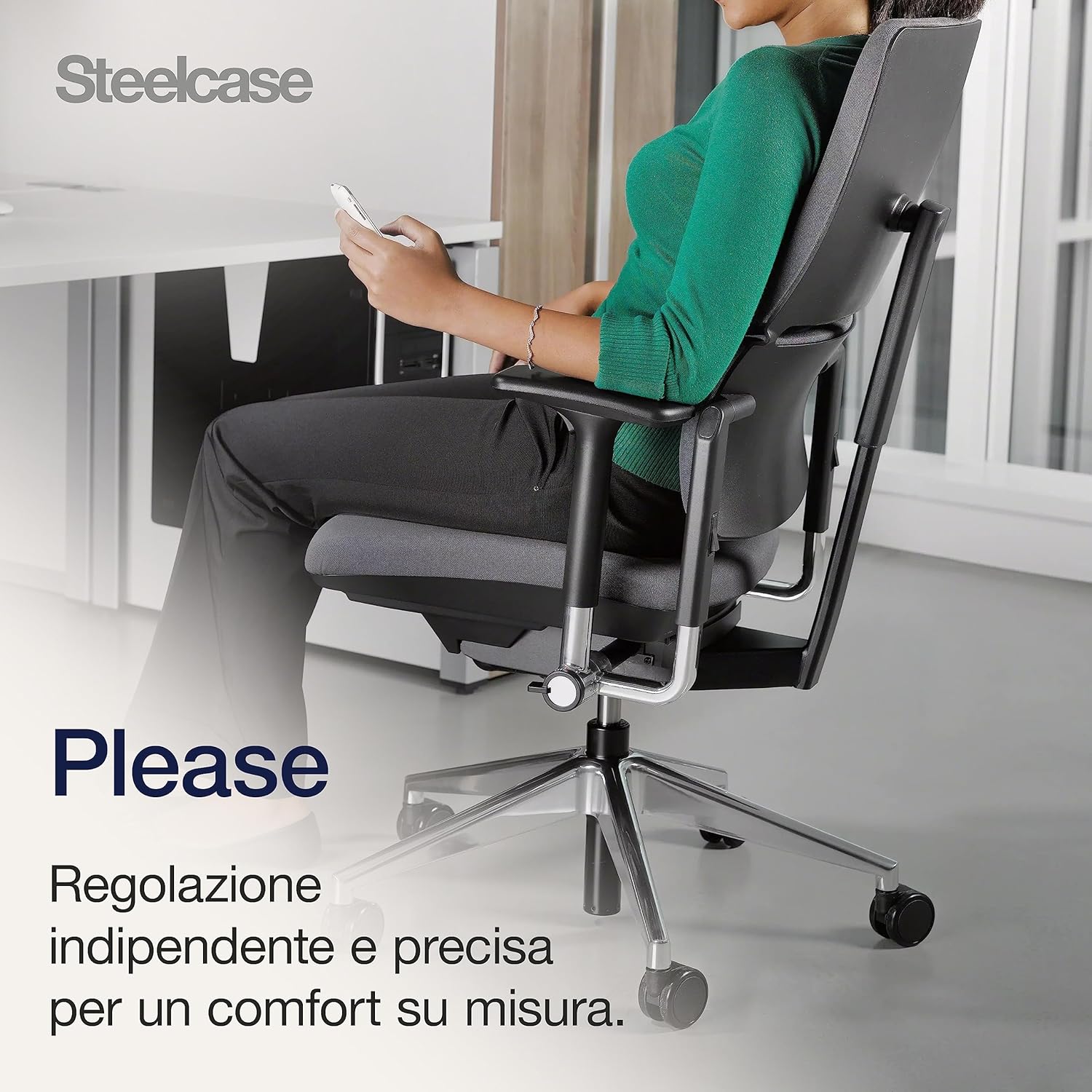

Figure 5: User demonstrating chair flexibility

മെയിൻ്റനൻസ്

Proper maintenance ensures the longevity and optimal performance of your Steelcase Please chair.

• വൃത്തിയാക്കൽ: Wipe the chair surfaces with a damp cloth. For fabric parts, use a mild upholstery cleaner if necessary. Avoid harsh chemicals.
• പരിശോധന: Periodically check all screws and fasteners to ensure they are tight. Tighten if loose.
• ചലിക്കുന്ന ഭാഗങ്ങൾ: Keep the chair's mechanisms free from dust and debris. Do not lubricate unless specifically instructed by Steelcase.

Figure 6: Oeko-Tex Certified Polyester Fabric

The fabric is 100% polyester and Oeko-Tex certified, ensuring it is free from harmful substances.

ട്രബിൾഷൂട്ടിംഗ്

If you encounter any issues with your Steelcase Please chair, please refer to the following general advice:

• ക്രമീകരിക്കാനുള്ള ബുദ്ധിമുട്ട്: Ensure no obstructions are blocking the adjustment mechanisms. Check if any levers or knobs are stuck.
• Squeaking/Noise: Inspect for loose fasteners. If the noise persists, contact customer support.
• Caster Issues: Ensure casters are clean and free of hair or debris. The wheels are designed for both hard and soft floors.

Figure 7: Chair Casters for Hard and Soft Floors

For persistent problems or issues not covered here, please contact Steelcase customer support.

സ്പെസിഫിക്കേഷനുകൾ

Detailed technical specifications for the Steelcase Please Ergonomic Office Chair (Model 468200MPWFH04).

Figure 8: Chair Dimensions (Front and Side View)

വാറൻ്റിയും പിന്തുണയും

Steelcase stands behind the quality of its products.

• വാറൻ്റി: The Steelcase Please office chair comes with a 12 വർഷത്തെ നിർമ്മാതാവിന്റെ വാറന്റി. സാധാരണ ഉപയോഗത്തിലുള്ള മെറ്റീരിയലുകളിലെയും ജോലികളിലെയും വൈകല്യങ്ങൾ ഈ വാറന്റി ഉൾക്കൊള്ളുന്നു.
• പിന്തുണ: For warranty claims, technical assistance, or any questions regarding your product, please contact Steelcase customer service through their official webഉൽപ്പന്നം വാങ്ങിയ സൈറ്റ് അല്ലെങ്കിൽ റീട്ടെയിലർ.
