ആമുഖം

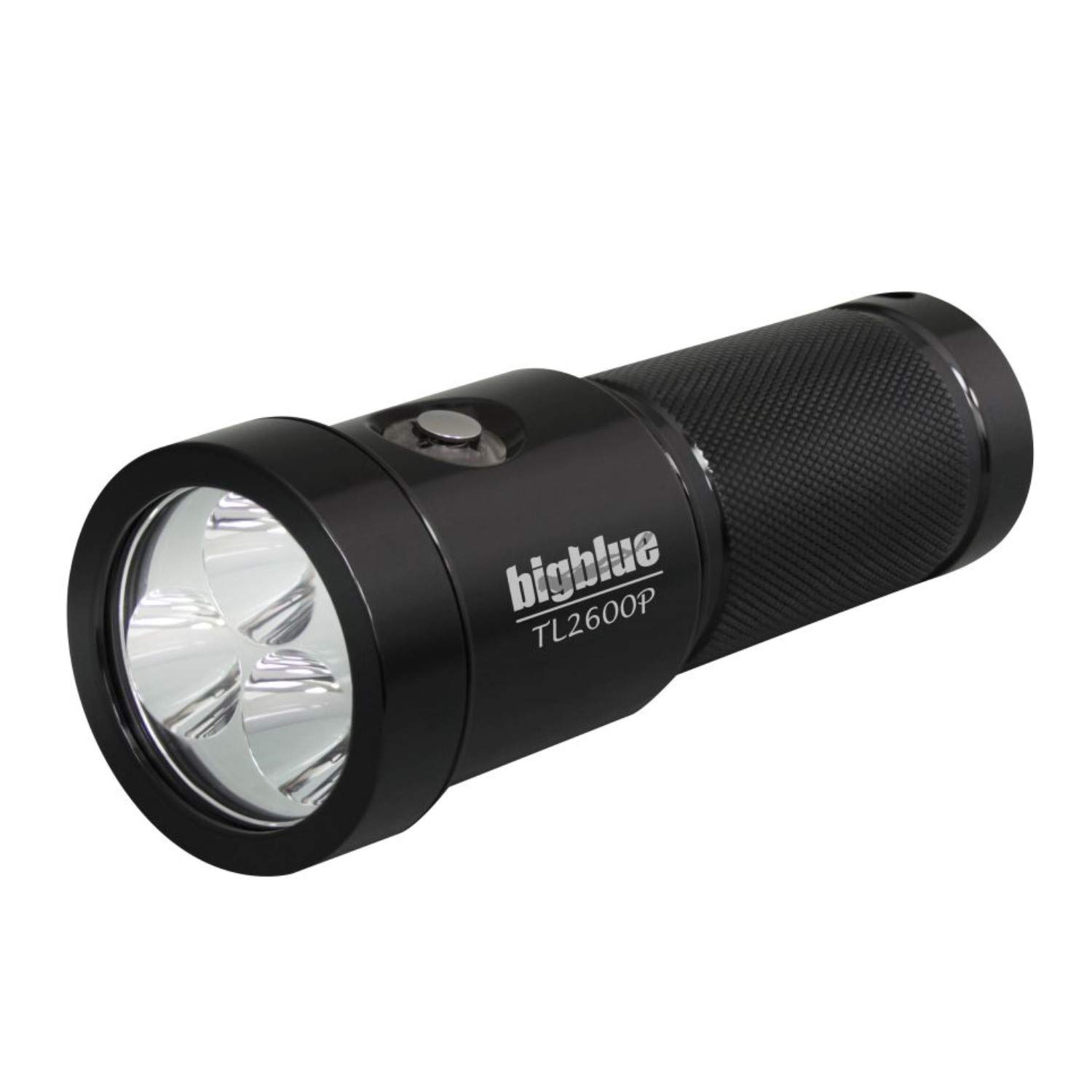

This manual provides detailed instructions for the safe and effective use of your Bigblue TL2600P-GBL 2600 Lumen Narrow Beam Tech Light. Please read this manual thoroughly before operating the device and retain it for future reference. The TL2600P-GBL is a high-performance, self-contained technical diving light designed for underwater illumination.
സുരക്ഷാ വിവരങ്ങൾ
മുന്നറിയിപ്പ്: Failure to follow these safety instructions may result in fire, electric shock, injury, or damage to the product or property.
- Always ensure the light is properly sealed before submerging in water.
- Do not look directly into the light beam when operating at high power settings to avoid eye injury.
- കുട്ടികൾക്ക് ലഭ്യമാകാതെ സൂക്ഷിക്കുക.
- Use only the specified battery type (Lithium-Ion 32650) and charger.
- Do not disassemble, puncture, or expose the battery to extreme temperatures or fire.
- If the light becomes excessively hot during use, turn it off immediately and allow it to cool.
- Rinse the light with fresh water after each dive to prevent salt and debris buildup.
ബോക്സിൽ എന്താണുള്ളത്
അൺപാക്ക് ചെയ്യുമ്പോൾ എല്ലാ ഘടകങ്ങളും ഉണ്ടെന്ന് ഉറപ്പാക്കുക:
- Bigblue TL2600P-GBL Tech Light
- Rechargeable Lithium-Ion 32650 Battery
- Battery Charger (Note: Charger type may vary, refer to charger manual for specific instructions.)
- Lanyard (ഉൾപ്പെടുത്തിയാൽ)
- User Manual (ഈ പ്രമാണം)
സജ്ജമാക്കുക
1. ബാറ്ററി ഇൻസ്റ്റാളേഷൻ
- Unscrew the tail cap of the light by turning it counter-clockwise.
- Insert the rechargeable Lithium-Ion 32650 battery with the positive (+) terminal facing towards the light head.
- Carefully screw the tail cap back on clockwise, ensuring it is fully tightened to maintain a waterproof seal. Do not overtighten.
2. പ്രാരംഭ ചാർജിംഗ്
ആദ്യ ഉപയോഗത്തിന് മുമ്പ്, ബാറ്ററി പൂർണ്ണമായും ചാർജ് ചെയ്യുക.
- Remove the battery from the light.
- Place the battery into the provided charger according to the charger's instructions.
- അനുയോജ്യമായ ഊർജ്ജ സ്രോതസ്സിലേക്ക് ചാർജർ ബന്ധിപ്പിക്കുക.
- The suggested charge time for the BATCELL32650 battery is 7-8 hours for a full charge.
- Once charging is complete, disconnect the charger and remove the battery.
Note: Always ensure the battery is fully charged before a dive for optimal performance and burn time.
പ്രവർത്തന നിർദ്ദേശങ്ങൾ
1. Turning On/Off and Power Levels
The TL2600P-GBL uses a reliable push-button switching mechanism.
- ഓണാക്കാൻ: Press the push-button switch once. The light will typically turn on at its highest power setting.
- To Cycle Power Levels: Press the push-button switch repeatedly to cycle through the four available power settings (e.g., High > Medium > Low > Eco).
- ഓഫാക്കാൻ: Press and hold the push-button switch for approximately 2 seconds.
2. ബാറ്ററി ലെവൽ ഇൻഡിക്കേറ്റർ
The light features a color-coded battery level indicator on the light itself, providing real-time status of the battery charge.
- പച്ച: Full to High charge.
- മഞ്ഞ: ഇടത്തരം ചാർജ്.
- ചുവപ്പ്: Low charge, consider ending the dive or switching to a lower power setting.
- മിന്നുന്ന ചുവപ്പ്: Very low charge, immediate action required to turn off the light or end the dive.
മെയിൻ്റനൻസ്
1. പോസ്റ്റ്-ഡൈവ് കെയർ
- After each dive, thoroughly rinse the light with fresh water to remove salt, sand, and other debris.
- Operate the push-button switch several times while rinsing to flush out any trapped particles.
- Dry the light completely with a soft cloth.
2. O-Ring Care
- Periodically inspect the O-rings for any signs of damage, cracks, or debris.
- Clean the O-rings and their grooves with a clean, lint-free cloth.
- Apply a thin layer of silicone grease to the O-rings to ensure a proper seal and prevent drying.
- Replace damaged O-rings immediately.
3. ബാറ്ററി പരിചരണവും സംഭരണവും
- Always remove the battery from the light when storing for extended periods.
- ബാറ്ററികൾ തണുത്തതും വരണ്ടതുമായ സ്ഥലത്ത് സൂക്ഷിക്കുക, നേരിട്ടുള്ള സൂര്യപ്രകാശവും ഉയർന്ന താപനിലയും ഏൽക്കുന്നതിൽ നിന്ന് അകറ്റി നിർത്തുക.
- ദീർഘകാല സംഭരണത്തിനായി, ബാറ്ററി ഏകദേശം 50% ശേഷി വരെ ചാർജ് ചെയ്യുക.
- Recharge the battery every 3-6 months during long-term storage to maintain its health.
ട്രബിൾഷൂട്ടിംഗ്
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| ലൈറ്റ് ഓണാക്കില്ല. |
|
|
| അപ്രതീക്ഷിതമായി വെളിച്ചം മിന്നിമറയുകയോ മങ്ങുകയോ ചെയ്യുന്നു. |
|
|
| വെള്ളം കയറുന്നു. |
|
|
സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | വിശദാംശങ്ങൾ |
|---|---|
| മോഡൽ നമ്പർ | TL2600P-GBL |
| പ്രകാശ സ്രോതസ്സ് തരം | എൽഇഡി |
| വെളുത്ത തെളിച്ചം | 2600 ല്യൂമെൻസ് |
| ബീം ആംഗിൾ | 10° (Narrow Beam) |
| വർണ്ണ താപനില | 6500K |
| പവർ ഉറവിടം | ബാറ്ററി പവർ |
| ബാറ്ററി തരം | Rechargeable Lithium-Ion 32650 |
| Burn Time (Highest Setting) | ഏകദേശം 1.5 മണിക്കൂർ |
| പവർ ക്രമീകരണങ്ങൾ | Four (4) levels |
| പ്രത്യേക ഫീച്ചർ | Durable, Battery Indicator |
| വർണ്ണ ഓപ്ഷനുകൾ | Black, Blue (Glossy Finish) |
വാറൻ്റിയും പിന്തുണയും
വാറൻ്റി വിവരങ്ങൾ
Specific warranty details for the Bigblue TL2600P-GBL Tech Light may vary by region and retailer. Please refer to the warranty card included with your product or contact your point of purchase for detailed warranty terms and conditions. Retain your proof of purchase for any warranty claims.
ഉപഭോക്തൃ പിന്തുണ
For technical assistance, spare parts, or service inquiries, please contact Bigblue customer support or your authorized Bigblue dealer. You can often find contact information on the official Bigblue webസൈറ്റ് അല്ലെങ്കിൽ നിങ്ങളുടെ റീട്ടെയിലർ വഴി.
ഓൺലൈൻ ഉറവിടങ്ങൾ: Visit the official Bigblue website for product updates, FAQs, and additional support resources.
ബന്ധപ്പെടാനുള്ള വിവരങ്ങൾ: (Please refer to the Bigblue official webഏറ്റവും പുതിയ കോൺടാക്റ്റ് വിശദാംശങ്ങൾക്കായി സൈറ്റ് അല്ലെങ്കിൽ ഉൽപ്പന്ന പാക്കേജിംഗ്.)
ഉൽപ്പന്ന വീഡിയോകൾ
No official product videos from the seller were available for embedding in this manual. For visual demonstrations or additional product information, please check the Bigblue official website or authorized retailer product pages.
