ഉപയോക്തൃ മാനുവൽ

ഉൽപ്പന്നം കഴിഞ്ഞുview

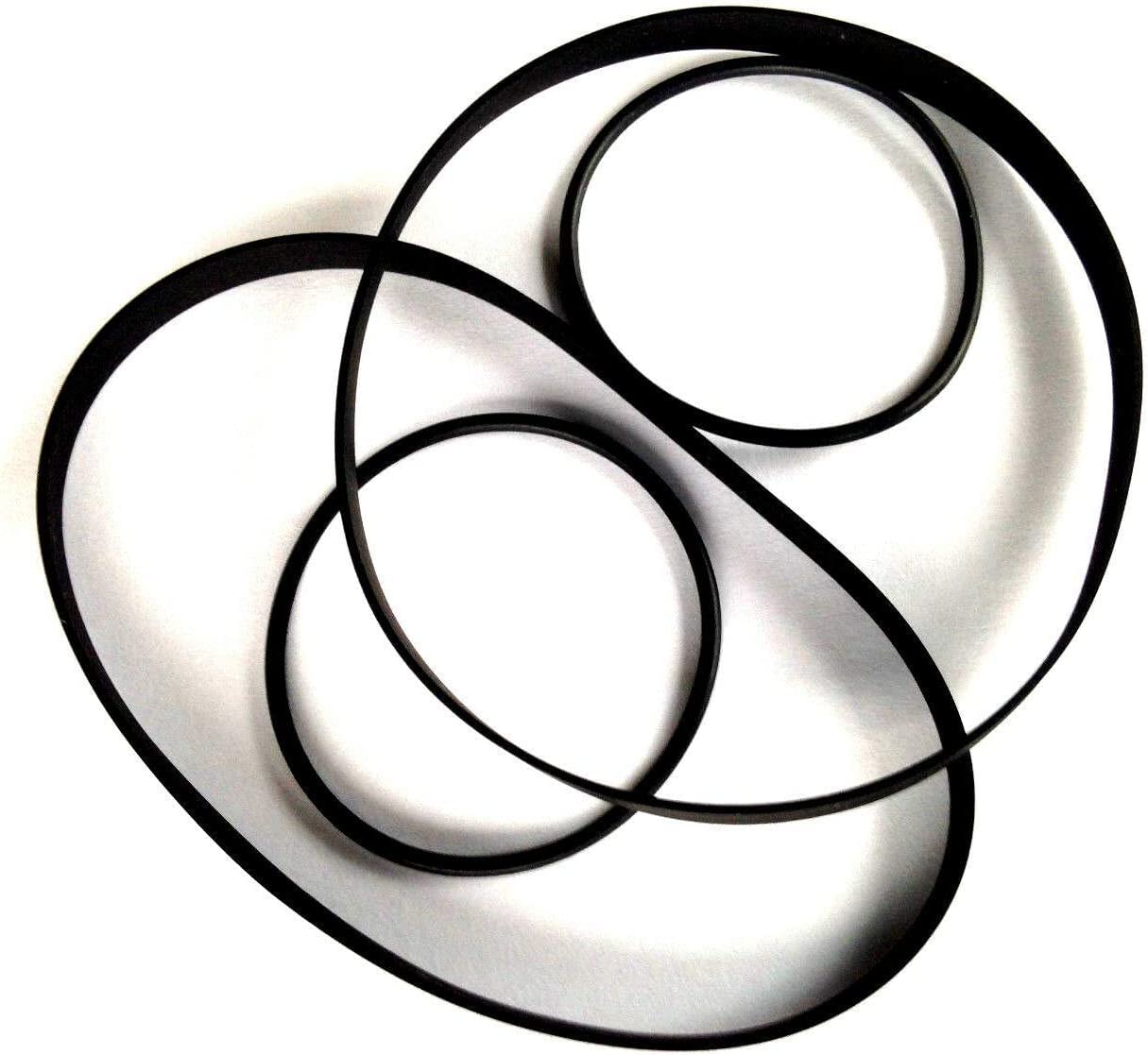

This manual provides instructions for the installation and maintenance of the 4 Belt Set designed for the Technics RS-TR333 Dual Cassette Deck Player. This set includes all necessary belts to restore proper function to your cassette deck's transport mechanism.

സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

Installation of these replacement belts requires careful disassembly of the Technics RS-TR333 cassette deck. It is recommended that this procedure be performed by individuals with experience in electronics repair or similar delicate mechanical work.

ആവശ്യമായ ഉപകരണങ്ങൾ:

• ചെറിയ ഫിലിപ്സ് ഹെഡ് സ്ക്രൂഡ്രൈവർ
• Flathead screwdriver (for prying, if necessary)
• Tweezers or small pliers
• Clean cloth and isopropyl alcohol (for cleaning old belt residue)
• Service manual for Technics RS-TR333 (highly recommended for detailed disassembly instructions)

ഇൻസ്റ്റലേഷൻ ഘട്ടങ്ങൾ:

1. പവർ ഓഫാക്കി വിച്ഛേദിക്കുക: Ensure the cassette deck is unplugged from all power sources and audio connections.
2. Access the Mechanism: പുറത്തെ സി ശ്രദ്ധാപൂർവ്വം നീക്കം ചെയ്യുക.asing of the Technics RS-TR333. Refer to the official service manual for specific screw locations and panel removal techniques.
3. Locate Old Belts: Identify the existing drive belts within the cassette mechanism. These may be stretched, brittle, or broken.
4. പഴയ ബെൽറ്റുകൾ നീക്കം ചെയ്യുക: Gently remove all old belts. Note their routing paths before removal, as this will be crucial for installing the new ones.
5. Clean Pulleys and Flywheels: വൃത്തിയുള്ള തുണി ഉപയോഗിക്കുക ഡിampened with isopropyl alcohol to thoroughly clean any residue from the pulleys, flywheels, and motor shafts where the belts make contact. This ensures optimal grip for the new belts.
6. പുതിയ ബെൽറ്റുകൾ ഇൻസ്റ്റാൾ ചെയ്യുക: Carefully route the new belts onto their respective pulleys and flywheels, following the original paths. Ensure the belts are not twisted or pinched. There are typically belts for the capstan, counter, and sometimes a separate belt for the auto-reverse mechanism or tape counter.
7. Test Mechanism: സി വീണ്ടും കൂട്ടിച്ചേർക്കുന്നതിന് മുമ്പ്asing, manually rotate the flywheels to ensure the new belts move freely and the mechanism operates smoothly without binding.
8. വീണ്ടും കൂട്ടിച്ചേർക്കുക: Carefully reattach the casing, ensuring all screws are tightened appropriately. Do not overtighten.

പ്രവർത്തന പരിഗണനകൾ

Once the new belts are installed, the Technics RS-TR333 cassette deck should operate as intended. Proper operation relies on the correct installation of these belts, which are critical for maintaining accurate tape speed and transport functions.

• ടേപ്പ് വേഗത: The new belts ensure stable tape speed for accurate playback and recording.
• വൗ ആൻഡ് ഫ്ലട്ടർ: Properly tensioned new belts help minimize wow and flutter, leading to better audio fidelity.
• ഗതാഗത പ്രവർത്തനങ്ങൾ: Play, fast forward, rewind, and record functions should respond reliably.

മെയിൻ്റനൻസ്

The replacement belts are designed for long-term durability. However, periodic inspection and proper care of your cassette deck can extend their lifespan and maintain optimal performance.

• പൊടി തടയൽ: Keep the cassette deck covered when not in use to prevent dust accumulation, which can degrade belt material over time.
• Pinch Roller and Capstan Cleaning: Regularly clean the pinch rollers and capstans with a specialized rubber cleaner or isopropyl alcohol to prevent tape residue buildup, which can affect tape path and put strain on the belts.
• തീവ്രമായ താപനില ഒഴിവാക്കുക: Store and operate the cassette deck in a stable environment, avoiding extreme heat or cold, which can affect rubber elasticity.
• സൗമ്യമായ കൈകാര്യം ചെയ്യൽ: Avoid sudden stops or rapid changes in tape direction, which can put undue stress on the drive belts.

ട്രബിൾഷൂട്ടിംഗ്

If you encounter issues after installing the new belt set, consider the following common problems and their solutions:

If problems persist after attempting these solutions, it is advisable to consult a qualified electronics repair technician or refer to the official Technics RS-TR333 service manual for more in-depth diagnostics.

സ്പെസിഫിക്കേഷനുകൾ

• ഉൽപ്പന്ന തരം: Replacement Drive Belt Set
• അനുയോജ്യത: Technics RS-TR333 Dual Cassette Deck Player
• ബെൽറ്റുകളുടെ എണ്ണം: 4
• മെറ്റീരിയൽ: ഉയർന്ന നിലവാരമുള്ള റബ്ബർ
• ഉൾപ്പെടുത്തിയ ഘടകങ്ങൾ: 4 ബെൽറ്റുകൾ
• നിറം: കറുപ്പ്
• മോഡലിൻ്റെ പേര്: RS-TR333 (referring to compatible device)
• Motor Type (compatible device): ഡിസി മോട്ടോർ
• Signal Format (compatible device): അനലോഗ്
• UPC: 311114131048

വാറൻ്റി വിവരങ്ങൾ

This product is a replacement part and typically comes with a limited warranty against manufacturing defects. Please refer to the seller's return policy or contact the seller directly for specific warranty terms and conditions. Standard return policy is 30 days from purchase.

പിന്തുണ

For technical assistance regarding the installation of these belts or general inquiries, please contact the seller directly through the platform where the purchase was made. For issues related to the Technics RS-TR333 cassette deck itself, beyond belt replacement, it is recommended to consult the original Technics service manual or a qualified audio equipment repair specialist.

വിൽപ്പനക്കാരൻ: M&A Srt
