Roller Head Instruction Manual

ആമുഖം

This manual provides essential information for the safe and effective use, setup, operation, and maintenance of your Generic Roller Head, model ROH1. Please read this manual thoroughly before using the product to ensure proper handling and to prevent damage or injury.

The Roller Head is designed to assist in handling pipes of various diameters, specifically from 2 to 10 inches, and is compatible with standard summer jacks. Its robust construction ensures durability and reliability in demanding work environments.

സുരക്ഷാ വിവരങ്ങൾ

Always adhere to the following safety guidelines when using the Roller Head:

• Ensure the Roller Head is securely mounted on a stable jack stand before placing any load on it.
• Verify that the pipe diameter is within the specified range (2-10 inches) for safe operation.
• Do not exceed the weight capacity of the jack stand or the Roller Head. Consult your jack stand's manual for its specific load limits.
• പ്രവർത്തിക്കുമ്പോൾ കൈകളും വസ്ത്രങ്ങളും ചലിക്കുന്ന ഭാഗങ്ങളിൽ നിന്ന് അകറ്റി നിർത്തുക.
• Inspect the Roller Head for any signs of damage or wear before each use. Do not use if damaged.
• Wear appropriate personal protective equipment (PPE), such as safety gloves and eye protection, when handling pipes and operating the equipment.
• Store the Roller Head in a dry, secure location when not in use.

ഘടകങ്ങളും സവിശേഷതകളും

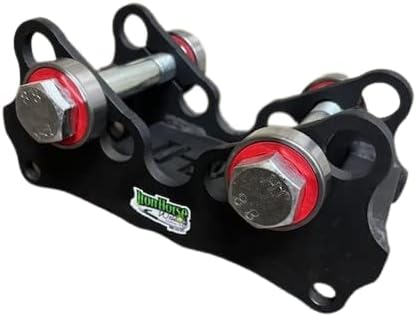

The Generic Roller Head ROH1 consists of the following primary components:

• പ്രധാന ഫ്രെയിം: The robust metal structure that forms the base of the roller head.
• Adjustable Rollers: Two sets of rollers designed to accommodate various pipe diameters. These rollers are equipped with bearings for smooth rotation.
• മൗണ്ടിങ്ങ് പ്ലേറ്റ്: The bottom section designed to securely attach to a compatible jack stand.

സജ്ജമാക്കുക

Follow these steps to set up your Roller Head:

1. Prepare the Jack Stand: Ensure your summer jack stand is fully assembled, stable, and placed on a flat, level surface. Refer to your jack stand's instruction manual for proper setup.
2. Mount the Roller Head: Align the mounting plate of the Roller Head with the top of your jack stand. Secure the Roller Head to the jack stand using the appropriate fasteners or locking mechanisms provided with your jack stand. Ensure it is firmly attached and does not wobble.
3. Adjust Rollers (if necessary): The Roller Head is designed to accommodate pipes from 2 to 10 inches. The rollers are adjustable to ensure proper contact and support for different pipe diameters. Adjust the roller spacing as needed to cradle the pipe securely.
4. സ്ഥിരത പരിശോധിക്കുക: Before placing any pipe on the Roller Head, gently test its stability and ensure all connections are tight.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

To operate the Roller Head safely and efficiently:

1. Position the Pipe: Carefully lift and place the pipe onto the rollers of the Roller Head. Ensure the pipe is centered and rests evenly on both rollers.
2. ബാലൻസ് നിലനിർത്തുക: While working with the pipe, always maintain its balance on the rollers. The rollers are designed to allow smooth rotation and movement of the pipe for various tasks such as cutting, welding, or threading.
3. മോണിറ്റർ ലോഡ്: Do not overload the Roller Head or the jack stand. Excessive weight can lead to instability or damage.
4. ചലനം നിരീക്ഷിക്കുക: Always supervise the pipe's movement on the rollers to prevent it from rolling off or causing injury.

മെയിൻ്റനൻസ്

Regular maintenance will prolong the life and ensure the safe operation of your Roller Head:

• വൃത്തിയാക്കൽ: After each use, wipe down the Roller Head to remove any dirt, dust, or debris. Use a damp cloth if necessary, and dry thoroughly.
• പരിശോധന: Periodically inspect the rollers for smooth operation. Check for any signs of wear, damage, or corrosion on the frame and rollers.
• ലൂബ്രിക്കേഷൻ: The roller bearings are designed for durability, but occasional light lubrication with a general-purpose grease can help maintain smooth rotation, especially in dusty or wet environments.
• സംഭരണം: Store the Roller Head in a clean, dry place away from extreme temperatures and corrosive materials.

ട്രബിൾഷൂട്ടിംഗ്

ചില സാധാരണ പ്രശ്നങ്ങളും അവയുടെ സാധ്യമായ പരിഹാരങ്ങളും ഇതാ:

സ്പെസിഫിക്കേഷനുകൾ

വാറൻ്റി വിവരങ്ങൾ

Specific warranty details for the Generic Roller Head ROH1 are not provided in the product information. Please refer to the manufacturer's official website, Iron Horse Welding, or contact your point of purchase for any available warranty coverage.

പിന്തുണ

For technical assistance, replacement parts, or further inquiries regarding your Roller Head, please contact the manufacturer, Iron Horse Welding. Contact information may be available on their official webസൈറ്റ് അല്ലെങ്കിൽ ഉൽപ്പന്നം വാങ്ങിയ റീട്ടെയിലർ വഴി.

Note: Always provide your product model number (ROH1) when seeking support.
