Outsunny Portable Camping Windbreak User Manual

1. ആമുഖം

Thank you for choosing the Outsunny Portable Camping Windbreak. This windbreak is designed to provide shelter from wind, sand, and light breezes, offering privacy and comfort in various outdoor settings such as beaches, campsites, and gardens. Please read this manual carefully before assembly and use to ensure proper setup and safe operation.

പ്രധാന സവിശേഷതകൾ:

• വിശാലമായ വലുപ്പം: Measures 540 cm (L) x 150 cm (H) to create a substantial sheltered area.
• നീണ്ടുനിൽക്കുന്ന നിർമ്മാണം: Features sturdy steel poles and a robust fabric shell.
• പോർട്ടബിൾ ഡിസൈൻ: Folds compactly and includes a carry bag for easy transport and storage.
• മെച്ചപ്പെടുത്തിയ സ്ഥിരത: Comes with guy ropes and pegs to secure the windbreak firmly in place.

2. സുരക്ഷാ നിർദ്ദേശങ്ങൾ

ഉൽപ്പന്നത്തിന് പരിക്കേൽക്കുകയോ കേടുപാടുകൾ സംഭവിക്കുകയോ ചെയ്യാതിരിക്കാൻ ഇനിപ്പറയുന്ന സുരക്ഷാ മാർഗ്ഗനിർദ്ദേശങ്ങൾ പാലിക്കുക:

• Always assemble the windbreak on level ground.
• Ensure all poles are securely connected and pegs are firmly anchored into the ground.
• Do not use the windbreak in extreme weather conditions, such as strong winds, heavy rain, or thunderstorms.
• Keep children and pets away from the windbreak during assembly and disassembly.
• Regularly check the stability of the windbreak, especially after prolonged use or changes in weather.
• Avoid placing the windbreak near open flames or heat sources.

3. പാക്കേജ് ഉള്ളടക്കം

അസംബ്ലി ആരംഭിക്കുന്നതിന് മുമ്പ് എല്ലാ ഘടകങ്ങളും ഉണ്ടെന്ന് ഉറപ്പാക്കുക:

• Windbreak fabric panel (540 cm x 150 cm)
• Steel poles (multiple sections for assembly)
• ഗയ് കയറുകൾ
• ഗ്രൗണ്ട് കുറ്റി
• ക്യാരി ബാഗ്

Image 3.1: Illustration of the windbreak fabric, steel poles, and included carry bag, highlighting its portability.

4. സജ്ജീകരണവും അസംബ്ലിയും

Follow these steps to set up your Outsunny Portable Camping Windbreak:

1. ഘടകങ്ങൾ അൺപാക്ക് ചെയ്യുക: Remove all items from the carry bag and lay them out on a clear, flat surface.
2. തൂണുകൾ കൂട്ടിച്ചേർക്കുക: Connect the individual steel pole sections to form the full-length support poles. Ensure each section is firmly inserted into the next.
3. Insert Poles into Fabric: Slide the assembled steel poles through the designated sleeves or loops along the edges of the windbreak fabric. The poles should extend slightly beyond the fabric at the top and bottom.
4. Position the Windbreak: Stand the windbreak upright in your desired location. You can arrange it in an 'L' shape, 'I' shape, or 'U' shape depending on your needs.
5. പെഗ്ഗുകൾ ഉപയോഗിച്ച് സുരക്ഷിതമാക്കുക: Drive the ground pegs through the loops at the base of each pole and into the ground. Ensure they are angled away from the windbreak for maximum hold.
6. ഗൈ റോപ്പുകൾ ഘടിപ്പിക്കുക: Connect the guy ropes to the attachment points on the upper part of the poles. Extend the ropes outwards and secure them to the ground using additional pegs. Adjust the tension of the ropes to ensure the windbreak is taut and stable.

Image 4.1: Detail showing the steel poles with ferrules for ground insertion and the use of pegs and guy ropes for enhanced stability.

ചിത്രം 4.2: ഒരു ക്ലോസപ്പ് view of the pole base, illustrating how the strap and ground peg secure the windbreak to the ground.

Image 4.3: A detailed shot of a guy rope connected to a ground peg, demonstrating how to tension the windbreak for stability.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

Once assembled, the windbreak provides a versatile shelter. Consider the following for optimal use:

• കാറ്റിന്റെ ദിശ: Position the windbreak to block the prevailing wind direction for maximum effectiveness.
• സ്വകാര്യത: Utilize the windbreak to create a private area for relaxation or dining.
• രൂപപ്പെടുത്തൽ: The flexible design allows for various configurations (L, I, U shapes) to suit your space and needs.

Image 5.1: Visual guide demonstrating the different possible configurations (L-shape, I-shape, U-shape) for the windbreak to adapt to various outdoor setups.

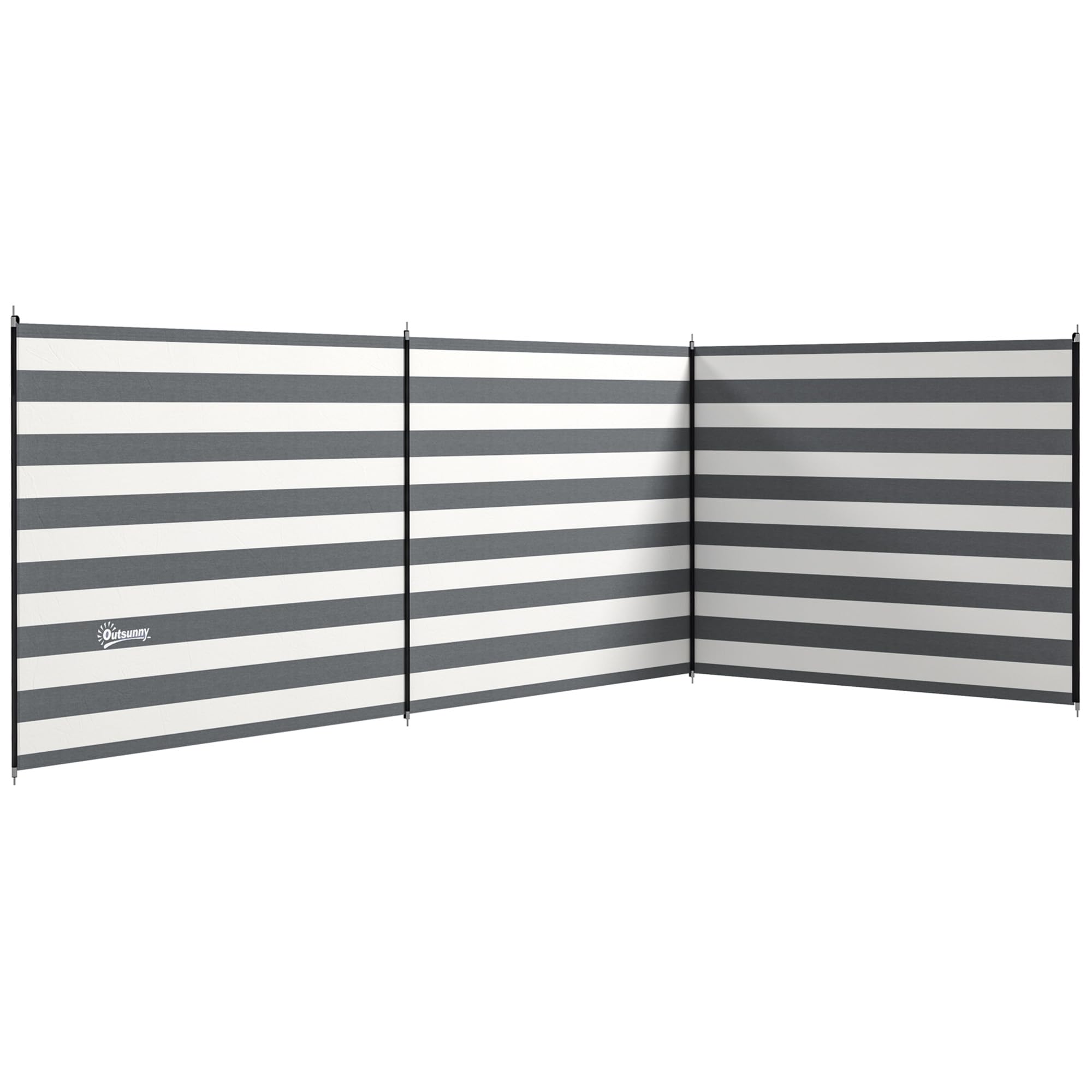

Image 5.2: The windbreak providing shelter and privacy in a garden setting, demonstrating its practical application.

6. പരിപാലനം

Proper care will extend the life of your windbreak:

• വൃത്തിയാക്കൽ: പരസ്യം ഉപയോഗിച്ച് തുണി തുടയ്ക്കുകamp തുണിയും വീര്യം കുറഞ്ഞ സോപ്പും ഉപയോഗിക്കുക. കഠിനമായ രാസവസ്തുക്കളോ ഉരച്ചിലുകളുള്ള ക്ലീനറുകളോ ഉപയോഗിക്കരുത്.
• ഉണക്കൽ: Ensure the fabric is completely dry before folding and storing to prevent mildew.
• സംഭരണം: Store the windbreak in its carry bag in a cool, dry place away from direct sunlight when not in use.
• പരിശോധന: Periodically check poles, ropes, and pegs for any signs of wear or damage. Replace damaged components as needed.

7. പ്രശ്‌നപരിഹാരം

If you encounter issues with your windbreak, refer to these common solutions:

• Windbreak is unstable:
  • Ensure all pole sections are fully connected.
  • Check that pegs are driven deeply and angled correctly into the ground.
  • Tighten guy ropes to provide adequate tension.
  • Consider repositioning the windbreak to a less exposed area or adding extra anchoring points in very soft ground.
• Poles are difficult to assemble/disassemble:
  • Apply a small amount of silicone spray to the pole joints if they are stiff.
  • Ensure no sand or dirt is obstructing the connections.
• Fabric appears loose:
  • Re-tension the guy ropes and adjust the position of the poles.
  • Ensure the fabric is correctly threaded through all pole sleeves.

8 സ്പെസിഫിക്കേഷനുകൾ

Image 8.1: Dimensional drawing of the windbreak, indicating its total length of 540 cm and height of 150 cm.

9. വാറൻ്റിയും പിന്തുണയും

വാറൻ്റി വിവരങ്ങൾ: Information regarding specific warranty terms for this product is not available in the provided data. Please refer to your purchase receipt or contact the retailer for warranty details.

ഉപഭോക്തൃ പിന്തുണ: For further assistance, product inquiries, or to report any issues, please contact Outsunny customer service or visit the official Outsunny brand store:

ഔട്ട്‌സണ്ണി സ്റ്റോർ സന്ദർശിക്കുക
