Phinistec S7 HiFi MP3 Player User Manual

ആമുഖം

The Phinistec S7 HiFi MP3 Player is a portable digital audio player designed for high-resolution audio playback. Featuring a dual DAC ESS9018 chip and Qualcomm CSR Bluetooth, it delivers lossless sound quality and versatile connectivity options. Its elegant design includes a full touchscreen and a durable metal body with a glass back. This manual provides comprehensive instructions for setting up, operating, and maintaining your S7 player.

ബോക്സിൽ എന്താണുള്ളത്

• 1 x Phinistec S7 HiFi Music Player
• 1 x ഉപയോക്തൃ മാനുവൽ
• 1 x 64GB മൈക്രോ എസ്ഡി കാർഡ്
• 1 x Extra Protective Film
• 1 x Type C Data Cable

ഉൽപ്പന്നം കഴിഞ്ഞുview

Familiarize yourself with the physical components and interfaces of your Phinistec S7 player.

ചിത്രം 1: മുന്നിലും പിന്നിലും view of the Phinistec S7 HiFi MP3 Player, showcasing its sleek design and golden volume wheel.

ചിത്രം 2: വിശദമായി view of the player's side buttons, USB-C charging/data port, and Micro SD card slot.

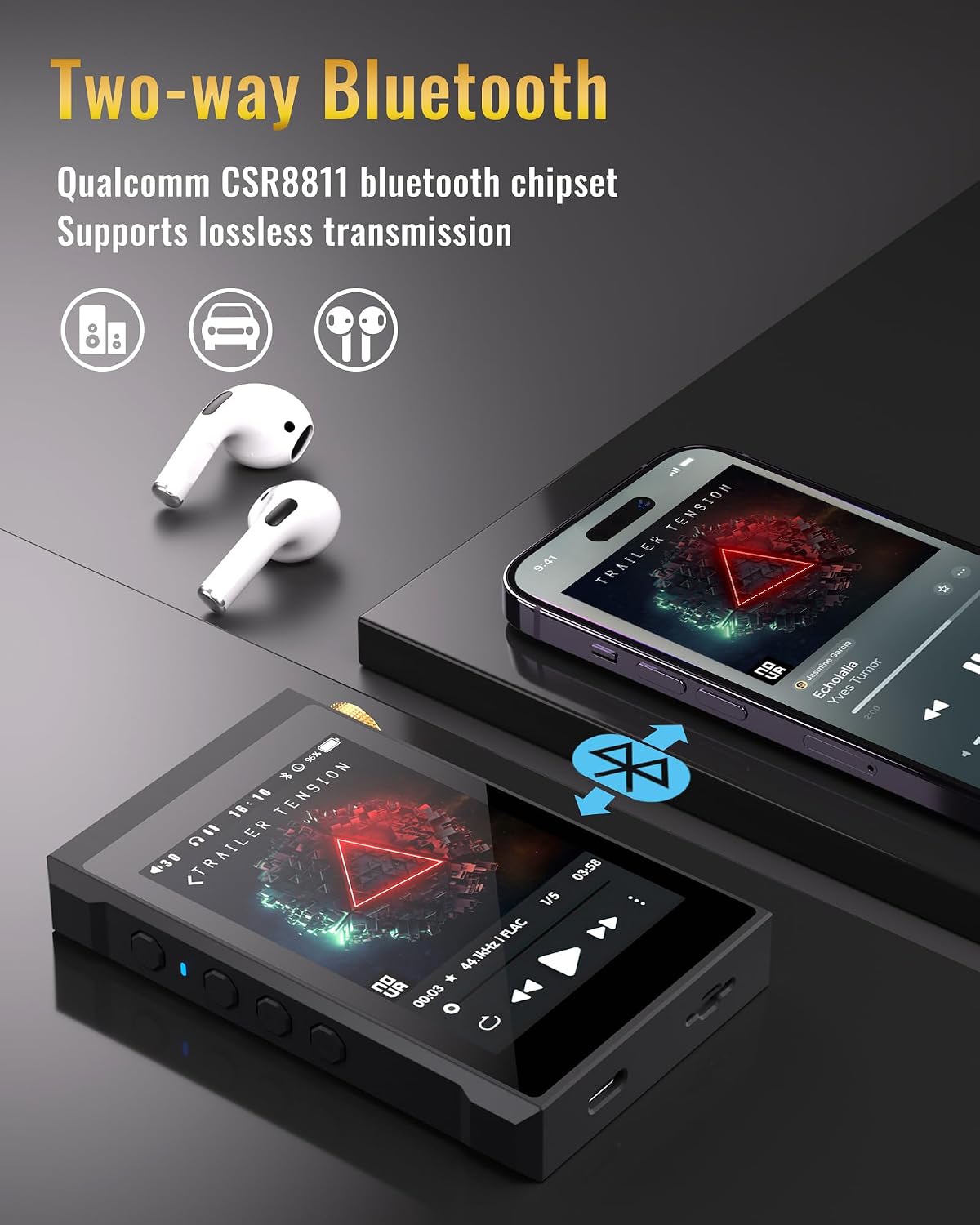

ചിത്രം 3: Illustration of the two-way Bluetooth functionality, allowing connection to headphones or acting as a Bluetooth receiver for a smartphone.

ചിത്രം 4: The player connected to a laptop, highlighting its USB DAC output capability for enhanced audio from a computer or mobile phone.

ചിത്രം 5: Visual representation of the built-in 2200mAh battery, providing up to 12 hours of playback.

ചിത്രം 6: Screen display emphasizing the HiFi Lossless Sound capabilities, including 3.5-inch full touch, DSD64/128/256 hard-decoding, Dual DAC ESS9018 chip, Qualcomm CSR Bluetooth, USB DAC support, and 3.5mm/2.5mm outputs.

ഔദ്യോഗിക ഉൽപ്പന്ന വീഡിയോ

സജ്ജമാക്കുക

1 ഉപകരണം ചാർജ് ചെയ്യുന്നു

Connect the included Type-C data cable to the USB-C port on the bottom of the player and plug the other end into a USB power adapter (not included) or a computer's USB port. The battery indicator on the screen will show charging status. A full charge typically takes approximately 3-4 hours.

2. ഒരു മൈക്രോ എസ്ഡി കാർഡ് ചേർക്കൽ

The Phinistec S7 supports Micro SD cards up to 512GB (a 64GB card is included). Locate the Micro SD card slot on the side of the player. Gently insert the Micro SD card with the gold contacts facing down until it clicks into place. To remove, push the card in slightly until it springs out.

3. സംഗീതം കൈമാറുന്നു Files

Connect the player to your computer using the Type-C data cable. The player will appear as a removable disk. Drag and drop your music files (e.g., DSD, FLAC, WAV, MP3) into the appropriate folders on the Micro SD card. The player supports various audio formats including DSD256, FLAC, WAV, MP3, APE, WMA, AIFF, AAC, and OGG.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

1. പവർ ഓൺ/ഓഫ്

Press and hold the power button on the side of the device to turn it on or off. A short press will turn the screen on/off.

2. നാവിഗേഷൻ

The Phinistec S7 features a 3.5-inch full touchscreen for intuitive navigation. Swipe left/right or tap icons to access different menus such as "My Music," "Folder," "Bluetooth Settings," "Play Settings," and "System Settings."

3. സംഗീതം പ്ലേബാക്ക്

From the main menu, select "My Music" or "Folder" to browse your audio files. Tap on a song to begin playback. Use the on-screen controls for play/pause, skip track, and repeat. The physical volume wheel on the side allows for precise volume adjustments.

4. ബ്ലൂടൂത്ത് കണക്ഷൻ

Go to "Bluetooth Settings" from the main menu. Turn on Bluetooth and search for available devices. Select your Bluetooth headphones or speaker to pair. The S7 supports 2-way Bluetooth, allowing it to transmit audio to Bluetooth devices or receive audio from a smartphone.

പ്രധാന സവിശേഷതകൾ

• Native DSD256 Support: Equipped with dual DAC ESS9018K2M chips, the S7 supports hard decoding of DSD music files up to DSD256, offering a high-fidelity audio experience.
• 2-Way Qualcomm CSR Bluetooth: Features Qualcomm CSR Bluetooth for stable and lossless wireless audio transmission. It can function as both a Bluetooth transmitter (to headphones/speakers) and a receiver (from a smartphone).
• USB DAC Functionality: Connect the player to a PC or mobile phone via USB to use it as an external DAC, enhancing the audio output quality of your connected device.
• ഗംഭീരമായ ഡിസൈൻ: Boasts a 3.5-inch full touchscreen display, a durable metal body, and a stylish glass back. The metal scrolling volume wheel provides smooth and precise control.
• വികസിപ്പിക്കാവുന്ന സംഭരണം: Supports Micro SD cards up to 512GB, providing ample space for a vast music library.
• നീണ്ട ബാറ്ററി ലൈഫ്: The 2200mAh Li-polymer battery offers up to 12 hours of continuous high-resolution audio playback.

മെയിൻ്റനൻസ്

• ഉപകരണം വരണ്ടതായി സൂക്ഷിക്കുക. ഈർപ്പമോ ദ്രാവകങ്ങളോ സമ്പർക്കം പുലർത്തുന്നത് ഒഴിവാക്കുക.
• മൃദുവായതും ഉണങ്ങിയതുമായ തുണി ഉപയോഗിച്ച് സ്‌ക്രീനും ബോഡിയും വൃത്തിയാക്കുക. അബ്രസീവ് ക്ലീനറുകളോ ലായകങ്ങളോ ഉപയോഗിക്കരുത്.
• Avoid extreme temperatures. Store the player in a cool, dry place.
• Protect the screen with the included protective film to prevent scratches.

ട്രബിൾഷൂട്ടിംഗ്

സ്പെസിഫിക്കേഷനുകൾ

വാറൻ്റിയും പിന്തുണയും

For detailed warranty information and customer support, please refer to the official Phinistec website or contact their customer service. A digital version of this user manual is also available for download:

ഉപയോക്തൃ മാനുവൽ (PDF) ഡൗൺലോഡ് ചെയ്യുക

You can also visit the official Phinistec store on Amazon for more product information and support: Phinistec Amazon Store
