BEYSTE A09 LED Rechargeable Flashlight User Manual

ആമുഖം

Thank you for choosing the BEYSTE A09 LED Rechargeable Flashlight. This powerful and versatile flashlight is designed for various applications, from outdoor adventures to emergency situations. It features an ultra-bright 500,000 lumen output, multiple lighting modes, an intelligent LCD display, and a durable, waterproof construction. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your flashlight to ensure optimal performance and longevity.

Image: The BEYSTE A09 LED Rechargeable Flashlight, its mini keychain flashlight, and included accessories neatly organized in a protective carrying case.

പാക്കേജ് ഉള്ളടക്കം

ആരംഭിക്കുന്നതിന് മുമ്പ്, താഴെ പട്ടികപ്പെടുത്തിയിരിക്കുന്ന എല്ലാ ഇനങ്ങളും നിങ്ങളുടെ പാക്കേജിൽ ഉണ്ടെന്ന് ഉറപ്പാക്കുക:

• 1 x BEYSTE A09 XHQ99.2 LED Rechargeable Flashlight
• 1 x BEYSTE Mini Keychain LED Flashlight
• 1 x Rechargeable Lithium-Ion Battery (pre-installed or separate)
• 1 x യുഎസ്ബി-സി ചാർജിംഗ് കേബിൾ
• 3 x AAA Batteries (for AAA battery holder)
• 1 x Flashlight Holster
• 1 x ലാനിയാർഡ്
• 1 x AAA ബാറ്ററി ഹോൾഡർ
• 1 x Plastic Tube (for battery)
• 1 x ഉപയോക്തൃ മാനുവൽ (ഈ പ്രമാണം)
• 1 x ഗിഫ്റ്റ് ബോക്സ്

Image: A visual representation of all components included in the BEYSTE A09 LED Flashlight kit, including the main flashlight, mini flashlight, battery, cables, and accessories.

സജ്ജമാക്കുക

1. ബാറ്ററി ഇൻസ്റ്റാളേഷൻ

The BEYSTE A09 flashlight uses a rechargeable lithium-ion battery. Ensure the battery is correctly inserted before first use.

1. ഫ്ലാഷ്‌ലൈറ്റിന്റെ ടെയിൽ ക്യാപ്പ് എതിർ ഘടികാരദിശയിൽ തിരിച്ച് അഴിക്കുക.
2. Identify the positive (+) and negative (-) poles of the battery. The positive end typically has a raised button.
3. Insert the battery into the flashlight body with the positive (+) end facing towards the flashlight head (LED).
4. സുരക്ഷിതമായി മുറുക്കുന്നത് വരെ ടെയിൽ ക്യാപ്പ് ഘടികാരദിശയിൽ തിരികെ സ്ക്രൂ ചെയ്യുക.

Image: A four-step visual guide demonstrating how to open the flashlight, identify battery polarity, insert the battery correctly, and re-secure the tail cap.

2. പ്രാരംഭ ചാർജിംഗ്

For optimal performance, fully charge the flashlight before its first use. The flashlight features a USB-C input for convenient charging.

• Connect the provided USB-C charging cable to the flashlight's USB-C port.
• Connect the other end of the cable to a USB power source (e.g., computer, car charger, wall adapter, power bank).
• The LCD display will show the charging progress. A full charge typically takes about 4 hours.
• Once fully charged, the LCD display will show "100%". Disconnect the charging cable.

Image: The BEYSTE A09 flashlight connected via a USB-C cable to a power source, illustrating the charging process.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

Main Flashlight Operation

• പവർ ഓൺ/ഓഫ്: Press the power button once to turn the flashlight on. To turn it off, press the button once after 10 seconds of operation in any mode. Alternatively, long-press the button for 3 seconds in any mode to turn it off immediately.

• മോഡ് സ്വിച്ചിംഗ്: With the flashlight on, press the power button repeatedly to cycle through the main lighting modes: High, Medium, Low, Strobe, and SOS. The flashlight retains the most useful functions for ease of use.

• ഫോക്കസ് അഡ്ജസ്റ്റ്മെന്റ്: Extend or retract the flashlight head to adjust the beam from a wide floodlight to a focused spotlight. The zoom function operates smoothly for precise illumination.

• LCD ഡിസ്പ്ലേ: The integrated LCD screen clearly displays the remaining battery power as a percentage, allowing you to monitor the battery level in real-time.

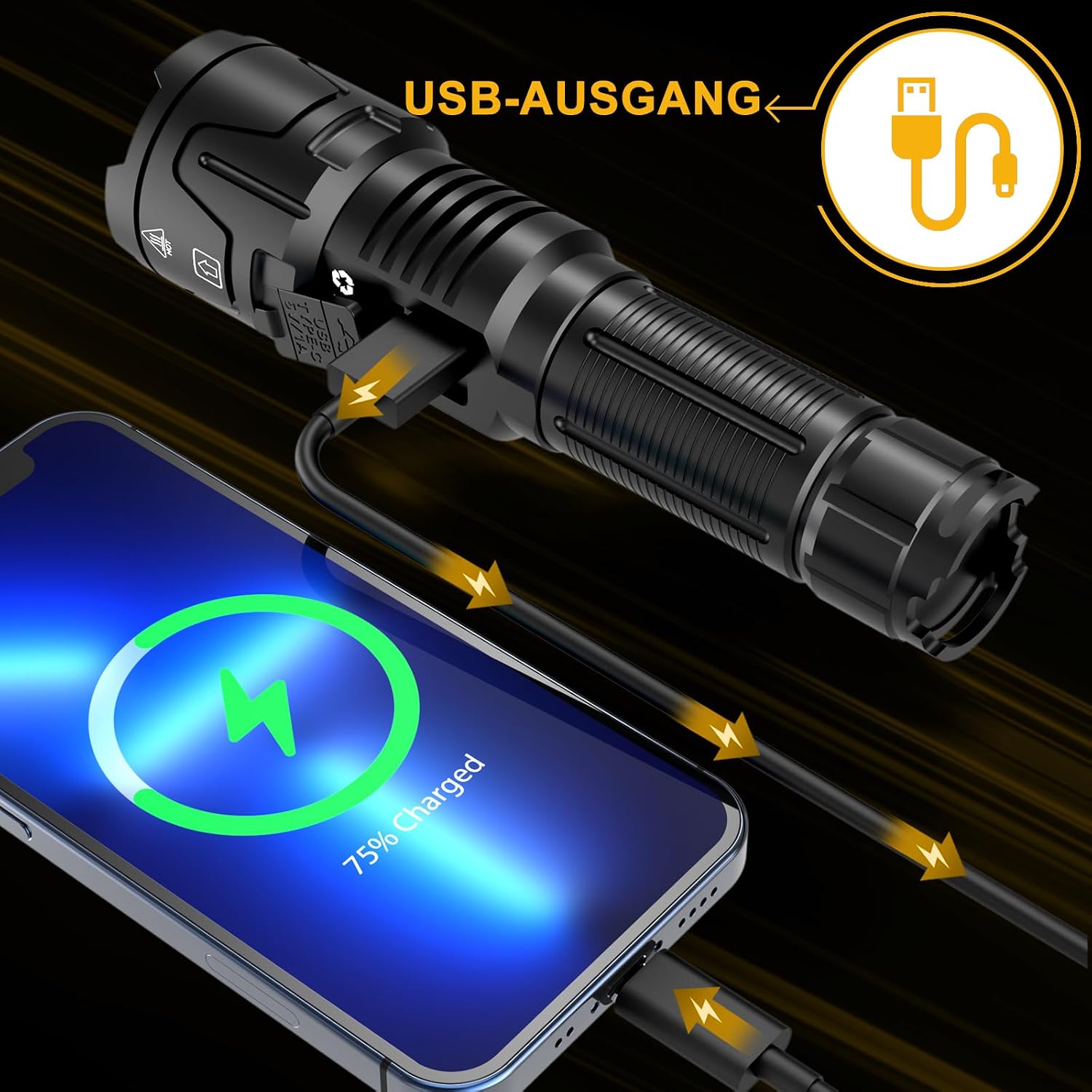

• USB Output (Power Bank Function): The flashlight can act as a power bank. Connect your device (e.g., smartphone) to the flashlight's USB-A output port using a compatible cable. This feature is useful for emergency charging of small electronic devices.

Image: The BEYSTE A09 flashlight showcasing its High, Low, and Strobe modes, along with an explanation of the quick power-off feature.

Image: An illustration demonstrating the BEYSTE A09 flashlight's ability to focus its beam up to 1520 meters and illuminate an area of 268 square meters.

Image: The BEYSTE A09 flashlight connected to a smartphone via its USB-A output, demonstrating its functionality as an emergency power bank.

Mini Keychain Flashlight Operation

The included mini COB flashlight is lightweight and versatile, perfect for quick tasks or as a backup light source.

• Power On/Off & Modes: The mini flashlight has 2 light sources and 6 modes. Press the button to cycle through its modes. Double-press the button quickly to activate the spotlight mode.

• കാന്തിക അടിത്തറ: It features a strong magnetic base, allowing you to attach it to metal surfaces for hands-free operation, making it ideal as a work light.

• ചാർജിംഗ്: The mini flashlight is also rechargeable via USB-C.

ചിത്രം: വിശദമായ ഒരു ചിത്രം view of the BEYSTE mini keychain flashlight, highlighting its 6 modes, foldable stand, built-in strong magnet, and USB-C charging port.

മെയിൻ്റനൻസ്

• വൃത്തിയാക്കൽ: ഫ്ലാഷ്‌ലൈറ്റ് ബോഡി മൃദുവായ, ഡി ഉപയോഗിച്ച് തുടയ്ക്കുക.amp തുണി. അബ്രാസീവ് ക്ലീനറുകളോ ലായകങ്ങളോ ഉപയോഗിക്കരുത്. പരമാവധി പ്രകാശ ഔട്ട്പുട്ടിനായി ലെൻസ് വൃത്തിയായി സൂക്ഷിക്കുക.

• ബാറ്ററി കെയർ: To prolong battery life, avoid fully discharging the battery frequently. Recharge the flashlight regularly, especially if it has not been used for an extended period.

• സംഭരണം: Store the flashlight in a cool, dry place away from direct sunlight and extreme temperatures. If storing for a long time, it is recommended to charge the battery to about 50% and recharge every 3-6 months.

• ജല പ്രതിരോധം: The flashlight is IPX6 waterproof, meaning it is protected against powerful water jets. While it can withstand rain and splashes, it is not designed for submersion. Ensure the USB port cover is securely closed to maintain water resistance.

• താപ വിസർജ്ജനം: The flashlight is designed with efficient heat dissipation to maintain performance and extend its lifespan. It is normal for the flashlight to warm up during prolonged use on high settings.

Image: The BEYSTE A09 flashlight submerged in water, illustrating its IPX6 waterproof rating, alongside images depicting its impact resistance and efficient heat dissipation.

ട്രബിൾഷൂട്ടിംഗ്

If you encounter issues not listed here or if the solutions provided do not resolve the problem, please contact BEYSTE customer service for assistance.

സ്പെസിഫിക്കേഷനുകൾ

Image: A visual representation of the dimensions and weights for both the BEYSTE A09 main flashlight and the mini keychain flashlight.

വാറൻ്റിയും പിന്തുണയും

BEYSTE is committed to providing the best user experience. Our products are made with high-quality materials and modern technology, ensuring excellent brightness, durability, and stability.

If you encounter any problems with your BEYSTE A09 flashlight, please do not hesitate to contact our customer service team. We are dedicated to offering first-class customer support and will provide the best solution in the shortest possible time.

For support, please refer to the contact information provided with your purchase or visit the official BEYSTE store on Amazon: BEYSTE Amazon Store.
