Generic 373 Wearable Breast Pump User Manual

1. ആമുഖം

Thank you for choosing the Generic 373 Wearable Breast Pump. This device is designed to provide a convenient and efficient breast pumping experience, allowing for hands-free operation. Its compact and lightweight design makes it ideal for use at home, work, or while traveling. This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your breast pump.

Image 1.1: The Generic 373 Wearable Breast Pump, showcasing its compact design and clear milk collection cup.

2 സുരക്ഷാ വിവരങ്ങൾ

Please read all instructions carefully before using the breast pump. Keep this manual for future reference.

• This device is intended for personal use by lactating mothers to express breast milk.
• ഈ ഉപകരണം ഉദ്ദേശിച്ച ഉപയോഗത്തിനല്ലാതെ മറ്റൊരു ആവശ്യത്തിനും ഉപയോഗിക്കരുത്.
• Always ensure the breast pump is assembled correctly and sealed before use to prevent leakage and maintain proper suction.
• Inspect all components before each use for any signs of damage or wear. Discontinue use if any part is damaged.
• Clean and sterilize all parts that come into contact with breast milk before first use and after each subsequent use.
• Keep the device away from water and other liquids, except for the parts intended for washing.
• Do not immerse the pump motor unit in water.
• കുട്ടികൾക്ക് ലഭ്യമാകാതെ സൂക്ഷിക്കുക.
• ഡയറ്ററി സപ്ലിമെൻ്റുകളെക്കുറിച്ചുള്ള പ്രസ്താവനകൾ FDA വിലയിരുത്തിയിട്ടില്ല, അവ ഏതെങ്കിലും രോഗമോ ആരോഗ്യസ്ഥിതിയോ നിർണ്ണയിക്കാനോ ചികിത്സിക്കാനോ സുഖപ്പെടുത്താനോ തടയാനോ ഉദ്ദേശിച്ചുള്ളതല്ല.

3. ഉൽപ്പന്ന ഘടകങ്ങൾ

The Generic 373 Wearable Breast Pump consists of the following main components:

ചിത്രം 3.1: എക്സ്പ്ലോഡഡ് view of the breast pump components.

1. Silicone shield (x1)
2. Tee (x1)
3. സിലിക്കൺ ഡയഫ്രം (x1)
4. Breast pump host (x1)
5. USB കേബിൾ (x1)
6. Duckbill valve (x1)
7. Milk collector (x1)

4. സജ്ജീകരണവും അസംബ്ലിയും

Before first use, disassemble all parts that come into contact with breast milk and clean them thoroughly as described in the "Maintenance and Cleaning" section. Ensure all parts are completely dry before assembly.

4.1 അസംബ്ലി ഘട്ടങ്ങൾ:

1. Insert the duckbill valve firmly into the bottom of the Tee.
2. Attach the silicone diaphragm securely onto the top of the Tee.
3. Connect the assembled Tee with the duckbill valve and silicone diaphragm to the milk collector. Ensure a tight seal.
4. Place the silicone shield onto the milk collector, ensuring it fits snugly.
5. Finally, attach the breast pump host (motor unit) onto the top of the assembled milk collector and silicone diaphragm. Make sure it clicks into place securely.

4.2 Charging the Pump:

The breast pump features a built-in 1100mAh high-capacity rechargeable lithium battery. Before initial use, fully charge the pump.

• Connect the provided USB cable to the charging port on the breast pump host.
• USB കേബിളിന്റെ മറ്റേ അറ്റം അനുയോജ്യമായ ഒരു USB പവർ അഡാപ്റ്ററുമായി (ഉൾപ്പെടുത്തിയിട്ടില്ല) അല്ലെങ്കിൽ ഒരു കമ്പ്യൂട്ടർ USB പോർട്ടുമായി ബന്ധിപ്പിക്കുക.
• The LED screen will indicate charging status. A full charge typically takes approximately 3 hours.
• Once fully charged, the pump can be used 6-10 times, depending on the mode and intensity settings.

Image 4.2: Battery life and charging indicators on the LED screen.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

The breast pump features an intelligent high-definition LED screen and sensitive touch panel for easy operation.

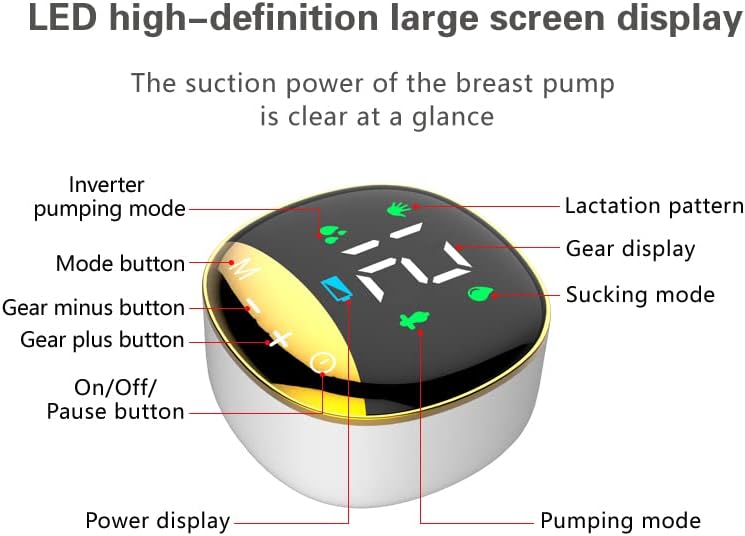

Image 5.1: LED screen and touch controls overview.

5.1 Power On/Off and Pause:

• പവർ ഓണാക്കാൻ, അമർത്തിപ്പിടിക്കുക ഓൺ/ഓഫ്/പോസ് ബട്ടൺ (power icon).
• പവർ ഓഫ് ചെയ്യുന്നതിന്, അമർത്തിപ്പിടിക്കുക ഓൺ/ഓഫ്/പോസ് ബട്ടൺ വീണ്ടും.
• To pause during operation, briefly press the ഓൺ/ഓഫ്/പോസ് ബട്ടൺ. പുനരാരംഭിക്കാൻ വീണ്ടും അമർത്തുക.

5.2 മോഡ് തിരഞ്ഞെടുക്കൽ:

The pump offers four distinct modes, each with 12 adjustable levels:

ചിത്രം 5.2: കഴിഞ്ഞുview of the four pumping modes.

• Lactation Mode: Features a brisk rhythm to stimulate milk secretion. Levels 1-6 are automatic, increasing every 45 seconds. Levels 7-12 are manual.
• Pumping Mode: Characterized by a slow and deep suction to help empty the breast efficiently.
• Sucking Mode: Mimics a baby's natural sucking frequency for comfortable expression.
• Inverter Pumping Mode: Combines massage and suction to facilitate fast milk expression.

മോഡുകൾക്കിടയിൽ മാറാൻ, മോഡ് ബട്ടൺ (labeled 'M'). The active mode will be indicated on the LED screen.

5.3 Adjusting Suction Levels:

• ഉപയോഗിക്കുക Gear plus button ('+') to increase the suction level.
• ഉപയോഗിക്കുക Gear minus button ('-') to decrease the suction level.
• The current level (1-12) will be displayed prominently on the LED screen.

5.4 Anti-Backflow Design:

The pump incorporates an anti-reverse flow closed system design, which prevents breast milk from flowing back into the motor unit or tubing, protecting milk from contamination and keeping it fresh. This design also minimizes leakage.

Image 5.3: Anti-backflow mechanism.

5.5 Quiet Operation:

The pump is designed with ultra-quiet technology, operating at less than 65 decibels. This ensures a discreet pumping experience without disturbing your baby or others nearby.

Image 5.4: Quiet design for undisturbed use.

5.6 ഓട്ടോമാറ്റിക് ഷട്ട്ഡൗൺ:

For safety and battery conservation, the pump will automatically shut down after 30 minutes of continuous operation.

6. പരിപാലനവും ശുചീകരണവും

Proper cleaning and maintenance are crucial for hygiene and the longevity of your breast pump. Always clean parts immediately after use.

6.1 ഡിസ്അസംബ്ലിംഗ്:

Carefully disassemble all parts that come into contact with breast milk: the silicone shield, milk collector, Tee, silicone diaphragm, and duckbill valve.

6.2 വൃത്തിയാക്കൽ:

• Rinse all disassembled parts under cold running water to remove any milk residue.
• Wash parts in warm, soapy water using a mild dish soap. Use a soft brush specifically for cleaning breast pump parts to reach all crevices.
• Rinse thoroughly under clean running water to remove all soap residue.
• Do not wash the breast pump host (motor unit). Wipe it clean with a damp ആവശ്യമെങ്കിൽ തുണി.

6.3 Sterilization:

• Sterilize the cleaned parts (silicone shield, milk collector, Tee, silicone diaphragm, and duckbill valve) by boiling them in water for 3-5 minutes, or by using a steam sterilizer or microwave sterilizer bag according to their instructions.
• Allow parts to air dry completely on a clean paper towel or drying rack before reassembly or storage. Avoid using cloth towels as they may leave lint.

6.4 സംഭരണം:

Store all clean and dry parts in a clean, dry place away from direct sunlight and dust.

7. പ്രശ്‌നപരിഹാരം

If you encounter issues with your breast pump, please refer to the following common problems and solutions:

ഈ പരിഹാരങ്ങൾ പരീക്ഷിച്ചതിനുശേഷവും പ്രശ്നം നിലനിൽക്കുകയാണെങ്കിൽ, കൂടുതൽ സഹായത്തിനായി ഉപഭോക്തൃ പിന്തുണയുമായി ബന്ധപ്പെടുക.

8 സ്പെസിഫിക്കേഷനുകൾ

9. വാറൻ്റി വിവരങ്ങൾ

This product comes with a standard manufacturer's warranty against defects in materials and workmanship. Please retain your proof of purchase for warranty claims. The warranty does not cover damage caused by misuse, accident, unauthorized modification, or normal wear and tear. For specific warranty terms and conditions, please refer to the product packaging or contact customer support.

10. ഉപഭോക്തൃ പിന്തുണ

If you have any questions, concerns, or require assistance with your Generic 373 Wearable Breast Pump, please do not hesitate to contact our customer support team. We are committed to providing the best possible experience for all users.

പിന്തുണയുമായി ബന്ധപ്പെടുമ്പോൾ നിങ്ങളുടെ ഉൽപ്പന്ന മോഡൽ നമ്പറും (373) വാങ്ങൽ വിവരങ്ങളും തയ്യാറായി വയ്ക്കുക.

Contact information (e.g., website, email, phone number) would typically be provided here by the manufacturer.
