ഉപയോക്തൃ മാനുവൽ

1. ആമുഖം

This manual provides essential information for the safe and effective use of your Electrical Car 16A Type 2 Charging Side Plug to Schuko Socket EV Charging Adapter. Please read this manual thoroughly before operation and retain it for future reference.

2 സുരക്ഷാ വിവരങ്ങൾ

• വൈദ്യുത അപകടം: Always ensure the adapter and charging station are dry before connecting. Do not use if the adapter or cable is damaged.
• ശരിയായ ഉപയോഗം: This adapter is designed for connecting an EV with a Type 2 inlet to a Schuko socket for charging. Do not use for purposes other than its intended design.
• വാല്യംtagഇ, കറന്റ്: Ensure the charging station's voltage and current output are compatible with the adapter's specifications (16A, 110-230V AC).
• വിച്ഛേദിക്കൽ: To unplug the adapter from the charging station, you must stop the charging process manually at the station first.
• താപനില: Avoid operating the adapter outside the specified temperature range of -30C to 50C.

3. ഉൽപ്പന്നം കഴിഞ്ഞുview

The EV charging adapter facilitates connection between an electric vehicle with a Type 2 charging inlet and a standard Schuko power outlet for charging. It is designed for durability and safe operation.

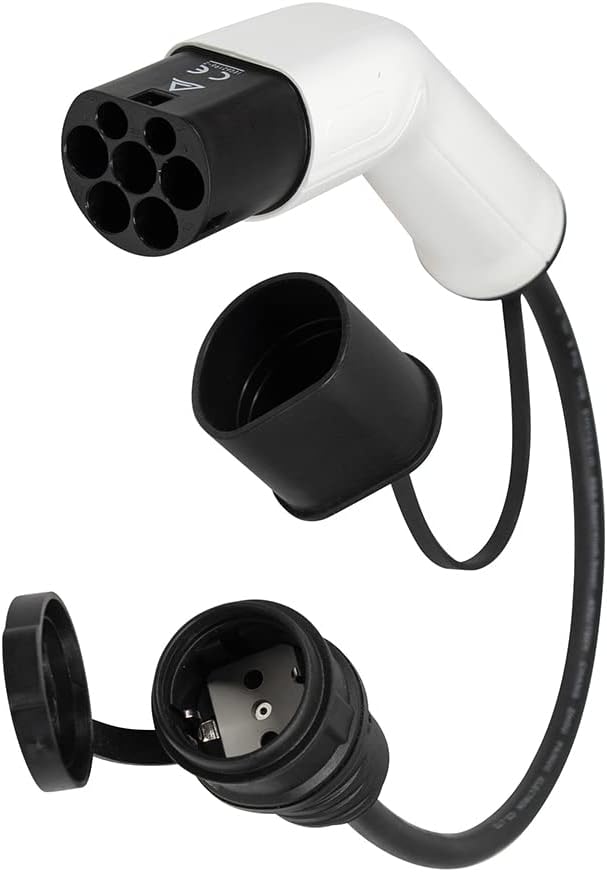

ചിത്രം 3.1: കഴിഞ്ഞുview of the Electrical Car 16A Type 2 to Schuko EV Charging Adapter. This image shows the complete adapter unit, featuring the Type 2 plug on one end and the Schuko socket on the other, connected by a durable cable.

ചിത്രം 3.2: Key components of the Type 2 to Schuko adapter. This image highlights the Type 2 plug, the Schuko socket, and the cable, indicating its 0.5-meter length and 16A, 1-phase rating.

ചിത്രം 3.3: വിശദമായി view of the Type 2 plug and Schuko socket, showing internal components. The image points out the copper alloy, silver-plated contact pins, the rubber lid for protection, and the TUV AC cable specifications (3*2.5mm2 + 2*0.5mm2).

4. സജ്ജീകരണം

Before setting up, ensure your electric vehicle and the charging environment are suitable for this adapter.

1. അഡാപ്റ്റർ പരിശോധിക്കുക: Before each use, visually inspect the adapter for any signs of damage, cracks, or frayed cables. Do not use if damaged.
2. വാഹനം തയ്യാറാക്കുക: Ensure your electric vehicle's charging port is clean and free of debris.
3. Prepare the Power Source: Ensure the Schuko socket you intend to use is properly grounded and rated for 16A, 110-230V AC.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

Follow these steps to safely charge your electric vehicle using the adapter:

1. Connect to Charging Station (EV Inlet): Insert the Type 2 plug of the adapter firmly into your electric vehicle's Type 2 charging inlet. Ensure it clicks into place if your vehicle's system supports locking.
2. പവർ ഔട്ട്ലെറ്റിലേക്ക് ബന്ധിപ്പിക്കുക: Insert the Schuko plug from your EV charger (or the vehicle's charging cable if it has a Schuko plug) into the Schuko socket of the adapter. Then, plug the Schuko end of the adapter into a compatible wall socket.
3. ചാർജിംഗ് ആരംഭിക്കുക: Follow your vehicle's instructions to begin the charging process. Monitor the charging status.
4. ചാർജ് ചെയ്യുന്നത് നിർത്തുക: Before disconnecting, always stop the charging process manually at the charging station or through your vehicle's interface.
5. വിച്ഛേദിക്കുക: Once charging is stopped, first disconnect the Schuko plug from the wall socket, then disconnect the Schuko plug from the adapter, and finally, remove the Type 2 plug from your vehicle's inlet.

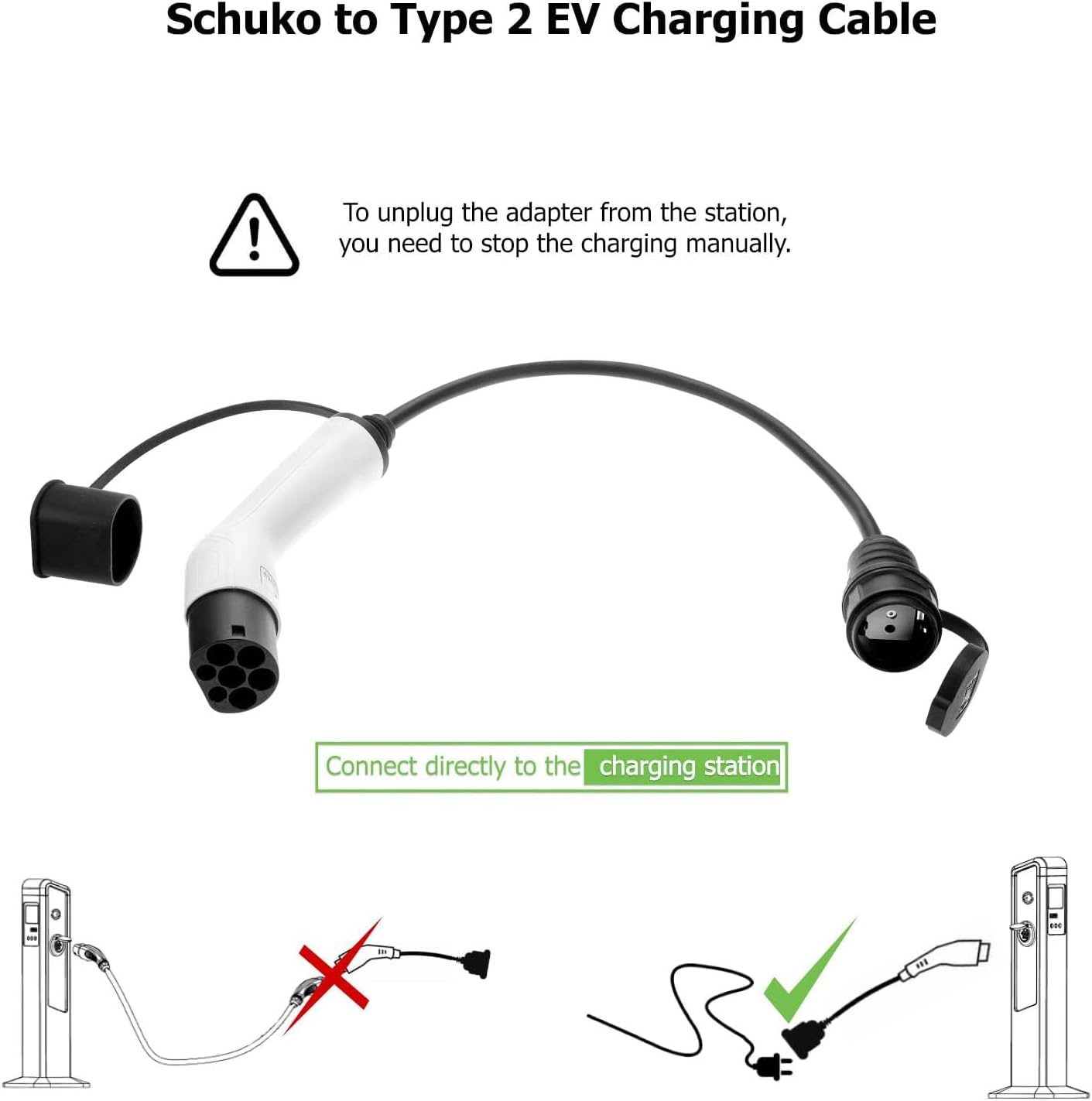

ചിത്രം 5.1: Diagram illustrating the correct connection method for the Schuko to Type 2 EV charging cable. It emphasizes the need to stop charging manually before unplugging and shows the adapter connecting directly to the charging station (vehicle's Type 2 inlet).

ചിത്രം 5.2: Visual guide on connecting the Type 2 plug to the EV charging station's inlet and the Schuko socket to a Schuko plug. This image clarifies the physical connection points for the adapter.

ചിത്രം 5.3: Examples of the adapter in use for EV charging. The image shows both correct and incorrect connection methods, emphasizing the proper way to connect the adapter for charging.

6. പരിപാലനം

Proper maintenance ensures the longevity and safe operation of your adapter.

• വൃത്തിയാക്കൽ: Clean the adapter with a dry, soft cloth. Do not use abrasive cleaners or solvents. Ensure all contacts are free of dust and debris.
• സംഭരണം: Store the adapter in a dry, cool place, away from direct sunlight and extreme temperatures. Keep the protective caps on the connectors when not in use.
• പരിശോധന: Regularly inspect the cable and connectors for any signs of wear, cuts, or damage. If any damage is found, discontinue use immediately and replace the adapter.

7. പ്രശ്‌നപരിഹാരം

If you encounter issues with your adapter, refer to the following common problems and solutions:

8 സ്പെസിഫിക്കേഷനുകൾ

9. വാറൻ്റിയും പിന്തുണയും

For warranty information and technical support, please refer to the documentation provided with your purchase or contact the manufacturer directly. Keep your proof of purchase for warranty claims.
