കോട്സോകോ MA317B

cotsoco Hand Massager with Heat and Compression

Model: MA317B

ആമുഖം

The cotsoco Hand Massager is designed to provide effective relief for hand fatigue, muscle soreness, arthritis, and carpal tunnel discomfort through a combination of air compression, heat, and vibration. This cordless device offers multiple massage levels and modes to cater to individual preferences, promoting improved blood circulation and overall hand wellness. It is suitable for various users, including those who experience hand strain from work, hobbies, or medical conditions.

cotsoco Hand Massager with Heat and Compression, white and rose gold, with packaging and accessories.

The cotsoco Hand Massager, shown with its retail packaging and included accessories such as a finger massager, USB charging cable, and travel bag.

ഉൽപ്പന്ന സവിശേഷതകൾ

  • Effective Air Compression Massage: Features five precise pressure points and airbags that apply pressure to stimulate acupoints, relieving hand fatigue and muscle soreness.
  • Optional Heat Soothing: Provides a heat function that helps keep hands warm and moist, improving blood circulation and reducing discomfort. The heating temperature can reach up to 104°F (40°C) within 8 minutes.
  • വൈബ്രേഷൻ മോഡുകൾ: Includes pulsed vibration modes for enhanced massage therapy.
  • ഇഷ്ടാനുസൃതമാക്കാവുന്ന ക്രമീകരണങ്ങൾ: Offers 6 massage levels and 6 distinct massage modes to personalize the experience.
  • ഇൻ്റലിജൻ്റ് എൽസിഡി ഡിസ്പ്ലേ: A clear display allows for convenient selection of massage functions, intensity, heat, and vibration settings.
  • കോർഡ്‌ലെസ്സ്, പോർട്ടബിൾ: Weighs approximately 2.3 lbs (1.04 kg) and features a built-in rechargeable 2500mAh battery, providing 2-3 hours of use on a full charge.
  • യാന്ത്രിക ഷട്ട്-ഓഫ്: Designed with a 15-minute timer for safe and convenient massage sessions.
Diagram showing air compression massage points on a hand, illustrating finger, palm, and wrist massage.

Illustration of the air compression massage, highlighting how airbags target fingers, palm, and wrist to improve circulation.

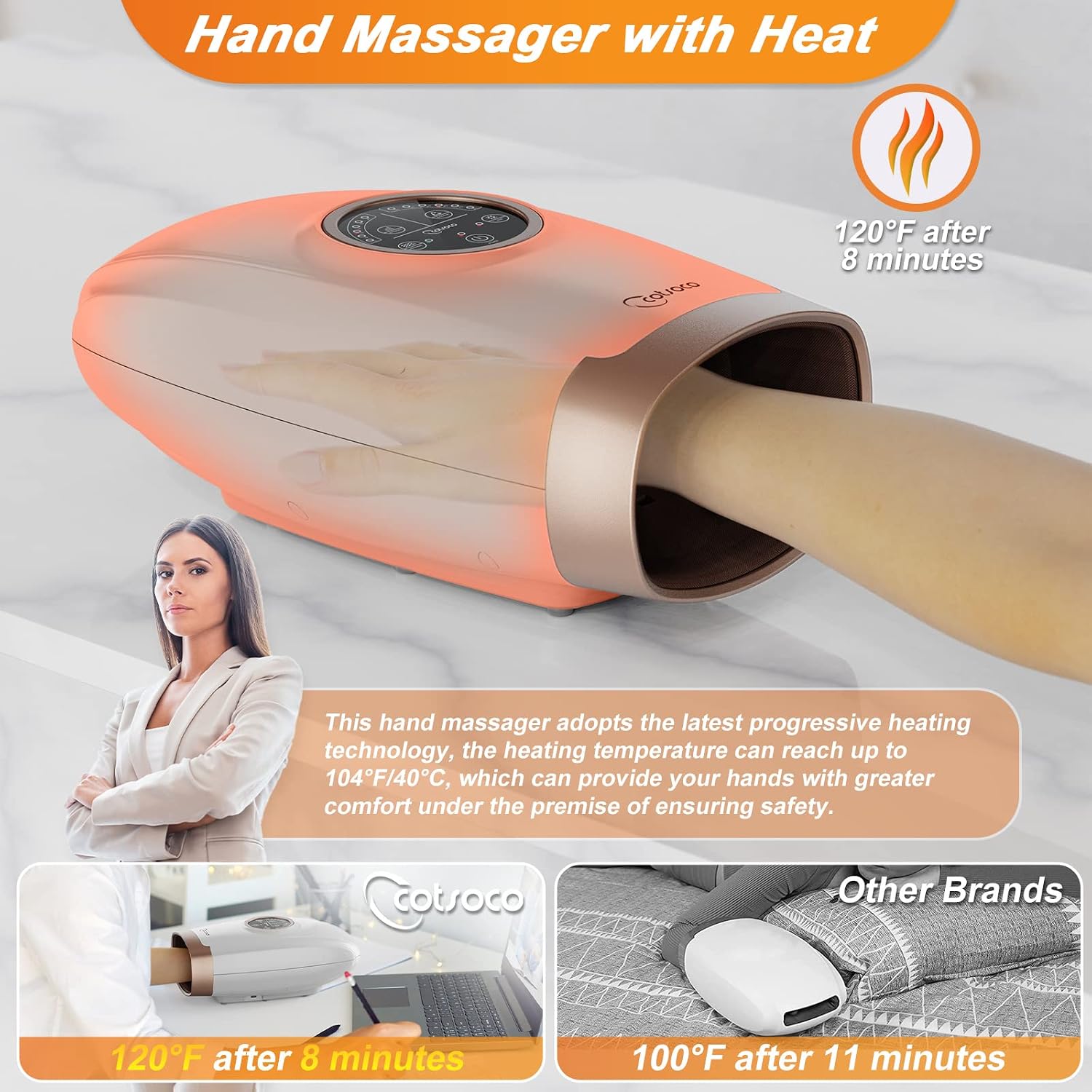

Hand massager with heat function, showing a hand inserted and the device glowing orange to indicate warmth.

The hand massager's heat function, which can reach 120°F (49°C) after 8 minutes, providing soothing warmth.

Infographic showing various hand conditions like mouse hand, cold hand, rough hand, tired hand, and the massager's features: 6 modes, 6 intensity levels, heat, 15 mins timer, 2 vibration modes, 104F/40C temperature.

The massager is suitable for various hand conditions and highlights its key features including multiple modes, intensity levels, heat, and vibration.

പാക്കേജ് ഉള്ളടക്കം

Image showing the cotsoco Hand Massager, its packaging box, a finger massager, user manual, USB charging cable, and travel bag.

All items included in the cotsoco Hand Massager package.

പാക്കേജ് തുറക്കുമ്പോൾ, താഴെ പറയുന്ന എല്ലാ ഇനങ്ങളും ഉണ്ടെന്ന് ഉറപ്പാക്കുക:

  • 1 x പാക്കേജിംഗ് ബോക്സ്
  • 1 x cotsoco Hand Massager
  • 1 x Finger Massager
  • 1 x ഉപയോക്തൃ മാനുവൽ
  • 1 x USB ചാർജിംഗ് കേബിൾ
  • 1 x ട്രാവൽ ബാഗ്

സുരക്ഷാ വിവരങ്ങൾ

Please read and understand all safety precautions before using the cotsoco Hand Massager. Improper use may result in injury or damage to the device.

  • ജാഗ്രതയോടെ ഉപയോഗിക്കുക.
  • Do not use on injured or swollen areas of the hand or wrist.
  • Consult your doctor before use if you have any pre-existing medical conditions, especially those affecting circulation, nerve function, or bone density.
  • Discontinue use immediately if discomfort, pain, or any adverse reaction occurs.
  • ഗർഭാവസ്ഥയിൽ ഉപയോഗിക്കാൻ ശുപാർശ ചെയ്യുന്നില്ല.
  • കുട്ടികൾക്ക് ലഭ്യമാകാതെ സൂക്ഷിക്കുക.
  • ഉപകരണം വെള്ളത്തിലോ മറ്റേതെങ്കിലും ദ്രാവകത്തിലോ മുക്കരുത്.
  • ചാർജ് ചെയ്യാൻ നൽകിയിരിക്കുന്ന യുഎസ്ബി കേബിൾ മാത്രം ഉപയോഗിക്കുക.

സജ്ജമാക്കുക

ആദ്യ ഉപയോഗത്തിന് മുമ്പ്, ഉപകരണം പൂർണ്ണമായും ചാർജ്ജ് ചെയ്തിട്ടുണ്ടെന്ന് ഉറപ്പാക്കുക.

  1. Connect the included USB charging cable to the massager's charging port.
  2. Plug the other end of the USB cable into a compatible USB power adapter (e.g., phone charger, computer USB port).
  3. Allow the device to charge completely. The charging indicator light will change to indicate a full charge (refer to the user manual for specific light behavior). A full charge typically supports 2-3 hours of operation.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

Follow these steps to operate your cotsoco Hand Massager:

  1. Positioning Your Hand: Place your hand comfortably inside the massager, ensuring your palm and fingers are properly aligned within the internal contours.
  2. പവർ ഓൺ: Press the power button (usually indicated by a power symbol) on the control panel to turn on the device. The intelligent LCD display will illuminate.
  3. മസാജ് മോഡ് തിരഞ്ഞെടുക്കുക: Use the mode selection button to cycle through the 6 available massage modes. Each mode offers a different pattern of air compression and vibration.
  4. തീവ്രത ലെവൽ ക്രമീകരിക്കുക: Use the intensity adjustment buttons (often indicated by '+' and '-' or level symbols) to select from 6 massage levels. Start with a lower intensity and gradually increase to find your most comfortable setting.
  5. Activate Heat Function (Optional): Press the heat button (often indicated by a flame or temperature symbol) to activate the soothing heat function. You may be able to select from 2 heat levels.
  6. Activate Vibration (Optional): Press the vibration button to turn on or off the vibration function. The device typically offers 2 vibration modes.
  7. മസാജ് ആസ്വദിക്കൂ: The device will operate for a preset duration, typically 15 minutes, before automatically shutting off. You can manually turn off the device at any time by pressing the power button.
Close-up of the cotsoco Hand Massager's intelligent LCD display and control buttons.

The intelligent LCD display provides clear indicators for intensity, power, heat levels, vibration, and program selection.

A person using the cotsoco Hand Massager while working at a desk, demonstrating its portability and ease of use in various settings.

The cordless design allows for convenient use in various environments, such as while working at a desk.

മെയിൻ്റനൻസ്

Proper maintenance ensures the longevity and optimal performance of your hand massager.

  • വൃത്തിയാക്കൽ: മസാജറിന്റെ പുറംഭാഗം മൃദുവായ, ഡി-ടച്ച് ഉപയോഗിച്ച് തുടയ്ക്കുക.amp തുണി. അബ്രാസീവ് ക്ലീനറുകൾ ഉപയോഗിക്കരുത് അല്ലെങ്കിൽ ഉപകരണം വെള്ളത്തിൽ മുക്കരുത്.
  • സംഭരണം: Store the massager in a cool, dry place away from direct sunlight and extreme temperatures. Use the provided travel bag for protection when not in use or during transport.
  • ബാറ്ററി കെയർ: To maintain battery health, avoid fully discharging the battery frequently. Recharge the device when the battery indicator is low. If storing for an extended period, charge the battery every 3-6 months.

ട്രബിൾഷൂട്ടിംഗ്

If you encounter any issues with your cotsoco Hand Massager, refer to the following common problems and solutions:

  • ഉപകരണം ഓണാക്കുന്നില്ല:
    • Ensure the battery is charged. Connect the massager to a power source using the USB cable and allow it to charge.
    • രജിസ്റ്റർ ചെയ്യുന്നുണ്ടെന്ന് ഉറപ്പാക്കാൻ പവർ ബട്ടൺ കുറച്ച് സെക്കൻഡ് അമർത്തിപ്പിടിക്കുക.
  • കംപ്രഷൻ ഇല്ല അല്ലെങ്കിൽ ദുർബലമായ കംപ്രഷൻ:
    • Check the selected intensity level on the LCD display. Increase the intensity if it is set too low.
    • Ensure your hand is properly positioned inside the massager, allowing the airbags to make full contact.
  • ഹീറ്റ് ഫംഗ്ഷൻ പ്രവർത്തിക്കുന്നില്ല:
    • Verify that the heat function is activated on the control panel.
    • Allow a few minutes for the device to warm up, as it may take some time to reach the desired temperature.
  • പ്രവർത്തന സമയത്ത് അസാധാരണമായ ശബ്ദം:
    • A slight humming sound is normal during air compression. If the noise is excessive or unusual, turn off the device and contact customer support.

If the problem persists after attempting these solutions, please contact cotsoco customer support for further assistance.

സ്പെസിഫിക്കേഷനുകൾ

Diagram showing the dimensions of the cotsoco Hand Massager: 11.8 inches length, 6.3 inches height, and hand opening dimensions of 5.4 inches width and 3.8 inches height.

Physical dimensions of the cotsoco Hand Massager, highlighting its compact and portable design.

സ്പെസിഫിക്കേഷൻവിശദാംശങ്ങൾ
ഉൽപ്പന്ന അളവുകൾ1.42 x 1.06 x 3.94 ഇഞ്ച് (L x W x H)
ഇനം മോഡൽ നമ്പർMA317B
ഇനത്തിൻ്റെ ഭാരം3 പൗണ്ട് (ഏകദേശം 1.36 കിലോഗ്രാം)
ബാറ്ററികൾ1 ലിഥിയം പോളിമർ ബാറ്ററി ആവശ്യമാണ് (ബിൽറ്റ്-ഇൻ)
മെറ്റീരിയൽഅക്രിലോണിട്രൈൽ ബ്യൂട്ടാഡീൻ സ്റ്റൈറൈൻ (എബിഎസ്)
നിറംവെള്ള
നിർമ്മാതാവ്cotsoco

വാറൻ്റിയും പിന്തുണയും

cotsoco is committed to providing quality products and customer satisfaction.

  • വാറൻ്റി: This product comes with a 2-year warranty from the date of purchase. Please retain your proof of purchase for warranty claims.
  • കസ്റ്റമർ സർവീസ്: For any inquiries, technical support, or warranty claims, please contact cotsoco customer service. Dedicated support is available to assist you.
  • റിട്ടേണുകൾ: Refer to your retailer's return policy for details on product returns.

നിയമപരമായ നിരാകരണം

Statements regarding this product have not been evaluated by the Food and Drug Administration (FDA). This product is not intended to diagnose, treat, cure, or prevent any disease or health condition. Always consult with a healthcare professional for medical advice.

© 2023 cotsoco. All rights reserved.
