HI CURRENT E-BIKE BATTERY User Manual

1. ആമുഖം

Thank you for choosing the Generic HI CURRENT E-BIKE BATTERY. This high-quality KIZO battery is designed to provide reliable power for your e-bike, offering great service and a long life. This manual provides essential information on the setup, operation, maintenance, and troubleshooting of your new battery to ensure optimal performance and safety.

2. ഉൽപ്പന്നം കഴിഞ്ഞുview

The HI CURRENT E-BIKE BATTERY is a robust 28 AH 12 V lead-acid battery, specifically engineered for electric scooters and e-bikes. Its design focuses on durability and consistent power delivery.

• വാല്യംtage: 12 വോൾട്ട്
• ശേഷി: 28 Ampere-hours (AH)
• തരം: Rechargeable Lead-Acid Battery
• മോഡൽ: 6-DZF-23L
• അപേക്ഷ: Best suitable for all types of electric scooty.

Figure 2.1: Generic HI CURRENT E-BIKE BATTERY, showing the battery itself surrounded by its packaging.

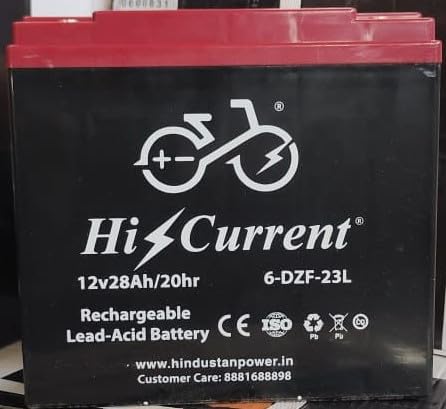

ചിത്രം 2.2: വിശദമായി view of the HI CURRENT E-BIKE BATTERY label, displaying specifications like 12V28Ah/20hr, 6-DZF-23L, and customer care information.

3 സാങ്കേതിക സവിശേഷതകൾ

4. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

Proper installation is crucial for the safe and efficient operation of your e-bike battery. If you are unsure about any step, it is recommended to seek professional assistance.

4.1 പ്രീ-ഇൻസ്റ്റലേഷൻ ചെക്ക്‌ലിസ്റ്റ്

• Ensure the e-bike is turned off and the ignition key is removed.
• കയ്യുറകളും കണ്ണ് സംരക്ഷണവും ഉൾപ്പെടെ ഉചിതമായ സുരക്ഷാ ഗിയർ ധരിക്കുക.
• Verify that the battery specifications (voltage, amperage) match your e-bike's requirements.
• Inspect the battery for any physical damage or leaks before installation.

4.2 ഇൻസ്റ്റലേഷൻ ഘട്ടങ്ങൾ

1. Locate the battery compartment on your e-bike. This is typically under the seat or within the frame.
2. If replacing an old battery, carefully disconnect the negative (-) terminal first, followed by the positive (+) terminal. Remove the old battery.
3. Clean the battery tray and terminals to ensure good contact.
4. Place the new HI CURRENT battery securely in the compartment. Ensure it is stable and does not move.
5. Connect the positive (+) terminal first, then the negative (-) terminal. Ensure connections are tight and secure.
6. Close the battery compartment and secure any covers.
7. Perform a quick test by turning on the e-bike to confirm power.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

To maximize the lifespan and performance of your HI CURRENT E-BIKE BATTERY, follow these operating guidelines:

5.1 പ്രാരംഭ ചാർജ്

Before first use, fully charge the battery using a compatible 12V lead-acid battery charger. Refer to your charger's manual for specific instructions. An initial full charge helps condition the battery for optimal performance.

5.2 Regular Charging

• Always use a charger specifically designed for 12V lead-acid batteries.
• Avoid overcharging or undercharging the battery, as both can reduce its lifespan.
• കത്തുന്ന വസ്തുക്കളിൽ നിന്ന് അകന്ന്, നല്ല വായുസഞ്ചാരമുള്ള സ്ഥലത്ത് ബാറ്ററി ചാർജ് ചെയ്യുക.
• ബാറ്ററി പൂർണ്ണമായി ചാർജ് ചെയ്തുകഴിഞ്ഞാൽ ചാർജർ വിച്ഛേദിക്കുക.

5.3 ഉപയോഗ നുറുങ്ങുകൾ

• Avoid deep discharges. Recharge the battery when its charge level drops significantly, rather than waiting for it to be completely depleted.
• Do not expose the battery to extreme temperatures (very hot or very cold) for extended periods.
• Ensure all connections are clean and tight to prevent power loss and overheating.

6. പരിപാലനം

Regular maintenance will help extend the life of your HI CURRENT E-BIKE BATTERY and ensure its reliable operation.

• ടെർമിനൽ ക്ലീനിംഗ്: Periodically inspect battery terminals for corrosion. Clean them with a wire brush and a mixture of baking soda and water if corrosion is present. Rinse with clean water and dry thoroughly.
• കേസ് പരിശോധന: Check the battery case for any cracks, bulges, or leaks. If any damage is observed, discontinue use and replace the battery.
• സംഭരണം: If storing the e-bike or battery for an extended period, ensure the battery is fully charged before storage. Store it in a cool, dry place. Recharge every 1-2 months to prevent self-discharge and sulfation.
• വെൻ്റിലേഷൻ: Ensure the battery compartment has adequate ventilation, especially during charging, to dissipate any gases.

7. പ്രശ്‌നപരിഹാരം

This section addresses common issues you might encounter with your e-bike battery. If the problem persists, contact customer support.

8 സുരക്ഷാ വിവരങ്ങൾ

Please read and adhere to all safety warnings to prevent injury or damage.

• സ്ഫോടന അപകടം: Batteries can produce explosive gases. Keep sparks, flames, and cigarettes away from the battery. Ensure good ventilation when charging.
• Corrosive Acid: This battery contains sulfuric acid, which is corrosive. Avoid contact with skin, eyes, or clothing. In case of contact, flush immediately with water and seek medical attention.
• വൈദ്യുത ആഘാതം: Do not short-circuit battery terminals. Use insulated tools when working with the battery.
• കൈകാര്യം ചെയ്യൽ: Always lift the battery with appropriate support. Do not drop the battery.
• നീക്കം ചെയ്യൽ: Dispose of old batteries responsibly according to local regulations. Do not dispose of batteries in household waste.
• കുട്ടികൾ: ബാറ്ററികൾ കുട്ടികൾക്ക് ലഭ്യമാകാതെ സൂക്ഷിക്കുക.

9. വാറൻ്റിയും പിന്തുണയും

Specific warranty details for the Generic HI CURRENT E-BIKE BATTERY are not provided in this manual. For warranty claims or technical support, please contact the manufacturer or your point of purchase.

For customer care, you may refer to the number provided on the product label:

കസ്റ്റമർ കെയർ: +91 8881688898

You can also visit the manufacturer's webകൂടുതൽ വിവരങ്ങൾക്ക് സൈറ്റ്: www.hindustanpower.in
