ANENG M469A Network Cable Tester User Manual

1. ഉൽപ്പന്നം കഴിഞ്ഞുview

The ANENG M469A Network Cable Tester is a new type of digital signal finder designed for efficient and accurate network cable testing. It features strong anti-interference capabilities against electrical or magnetic fields and other external environmental factors. This instrument provides fast and precise line checking, capable of accurately locating break points in network lines whether under load or not. It is an essential tool for installation, maintenance, and technical personnel working with communication lines, weak current systems, computer networks, and metal wire lines.

പ്രധാന സവിശേഷതകൾ:

• Multi-Functional Testing: Includes open circuit and short circuit testing, wire finding, cable tracing, DC level testing (DC 3~10V), network line finding, and network cable proofreading functions.
• കുറഞ്ഞ വോളിയംtagഇ പ്രോംപ്റ്റ്: Alerts the user when the battery voltage drops below 6V by flashing the "SCAN" and "line sequence" LEDs on the transmitter, indicating battery replacement is needed.
• ഇയർഫോൺ പ്രവർത്തനം: Allows for clear signal detection in noisy environments, minimizing external interference.
• സ്പോട്ട്‌ലൈറ്റ് പ്രവർത്തനം: Integrated light for convenient operation in dark conditions.
• ക്രമീകരിക്കാവുന്ന വോളിയം: The receiver features a volume adjustment knob to control sensitivity and sound output for optimal user experience.

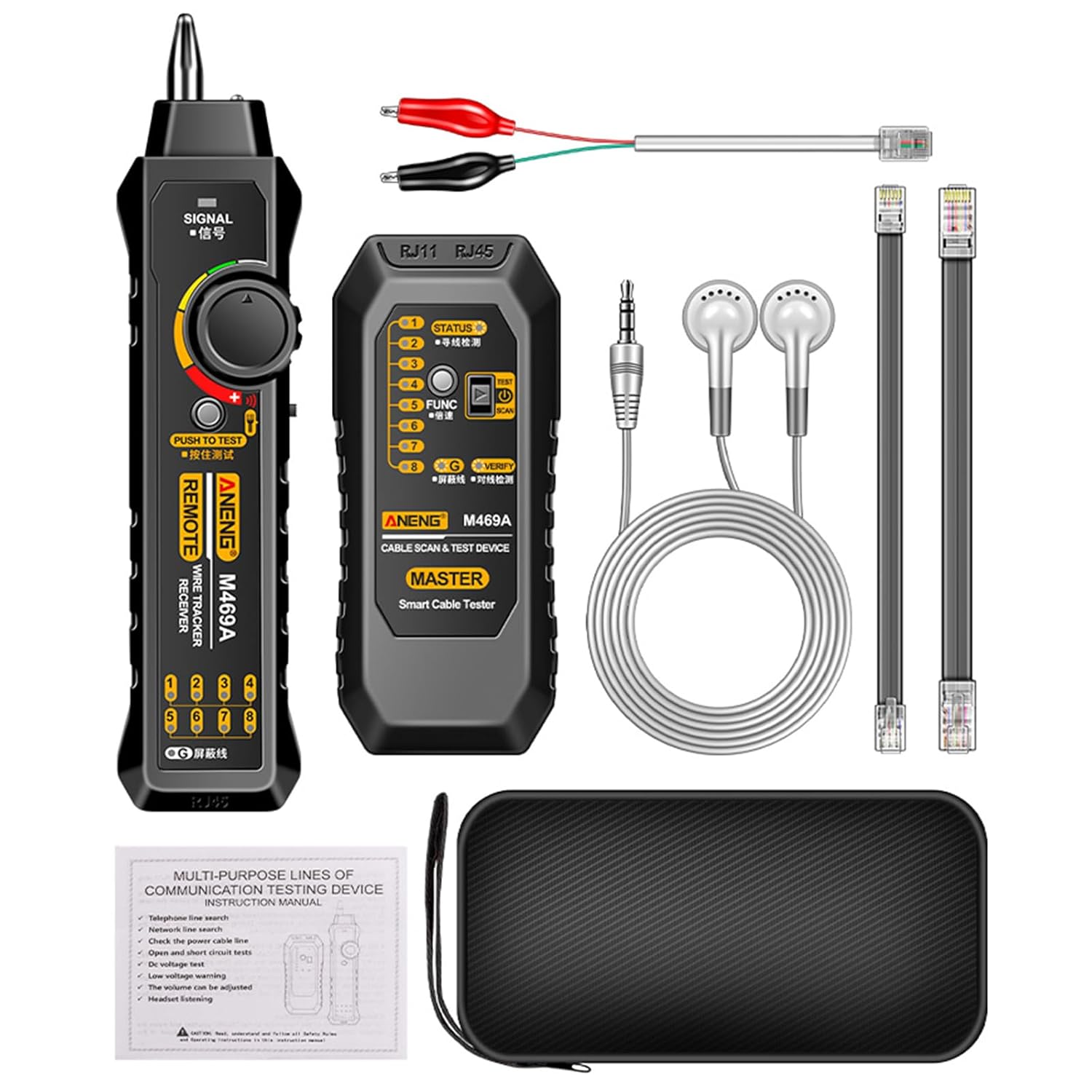

Figure 1: Complete ANENG M469A Network Cable Tester Kit.

2. പാക്കേജ് ഉള്ളടക്കം

പാക്കേജ് തുറക്കുമ്പോൾ, ഇനിപ്പറയുന്ന എല്ലാ ഇനങ്ങളും ഉൾപ്പെടുത്തിയിട്ടുണ്ടെന്ന് ദയവായി ഉറപ്പാക്കുക:

• 1 x ട്രാൻസ്മിറ്റർ യൂണിറ്റ്
• 1 x റിസീവർ യൂണിറ്റ്
• 1 x RJ11 Alligator Clip Cable
• 1 x RJ11 Test Cable
• 1 x RJ45 Test Cable
• 1 x സ്റ്റോറേജ് ബാഗ്
• 1 x ഹെഡ്‌സെറ്റ്
• 1 x യൂസർ മാനുവൽ (ഇംഗ്ലീഷ്)

3 സ്പെസിഫിക്കേഷനുകൾ

4. സജ്ജീകരണം

4.1 ബാറ്ററി ഇൻസ്റ്റാളേഷൻ

The ANENG M469A requires a 6F22 9V battery (not included) for operation. Follow these steps to install the battery:

1. Locate the battery compartment on the back of both the Transmitter and Receiver units.
2. Open the battery compartment cover by sliding or unscrewing it.
3. Insert a new 6F22 9V battery, ensuring the polarity (+/-) matches the indicators inside the compartment.
4. ബാറ്ററി കമ്പാർട്ട്മെൻ്റ് കവർ സുരക്ഷിതമായി അടയ്ക്കുക.
5. Repeat for both units.

കുറിപ്പ്: Always use a fresh 9V battery for optimal performance. If the low voltage prompt activates, replace the battery promptly.

4.2 ബന്ധിപ്പിക്കുന്ന കേബിളുകൾ

Depending on the test you wish to perform, connect the appropriate cable to the Transmitter unit:

• For RJ45 Network Cables: Insert one end of the RJ45 test cable into the RJ45 port on the Transmitter. Connect the other end to the network cable or device you wish to test.
• For RJ11 Telephone Cables: Insert one end of the RJ11 test cable into the RJ11 port on the Transmitter. Connect the other end to the telephone cable or device.
• For Alligator Clip Connections: Use the RJ11 Alligator Clip cable for direct connection to bare wires or terminals for tracing and continuity tests.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

5.1 Cable Tracing and Wire Finding

This function allows you to locate a specific cable within a bundle or trace its path.

1. Connect the cable to be traced to the appropriate port (RJ45, RJ11, or alligator clips) on the Transmitter unit.
2. Turn the function selection switch on the Transmitter to the "SCAN" or line finding position.
3. റിസീവർ യൂണിറ്റ് ഓണാക്കുക.
4. Adjust the volume knob on the Receiver to a comfortable level.
5. Move the Receiver's probe along the suspected cable path. The Receiver will emit an audible tone when it detects the signal from the Transmitter, indicating the location of the cable. The tone will be strongest when directly over the cable.
6. For noisy environments, plug the provided headset into the Receiver's audio jack.

5.2 Network Cable Proofreading (Line Sequence Test)

This function checks the wiring sequence of RJ45 network cables for open circuits, short circuits, and cross-overs.

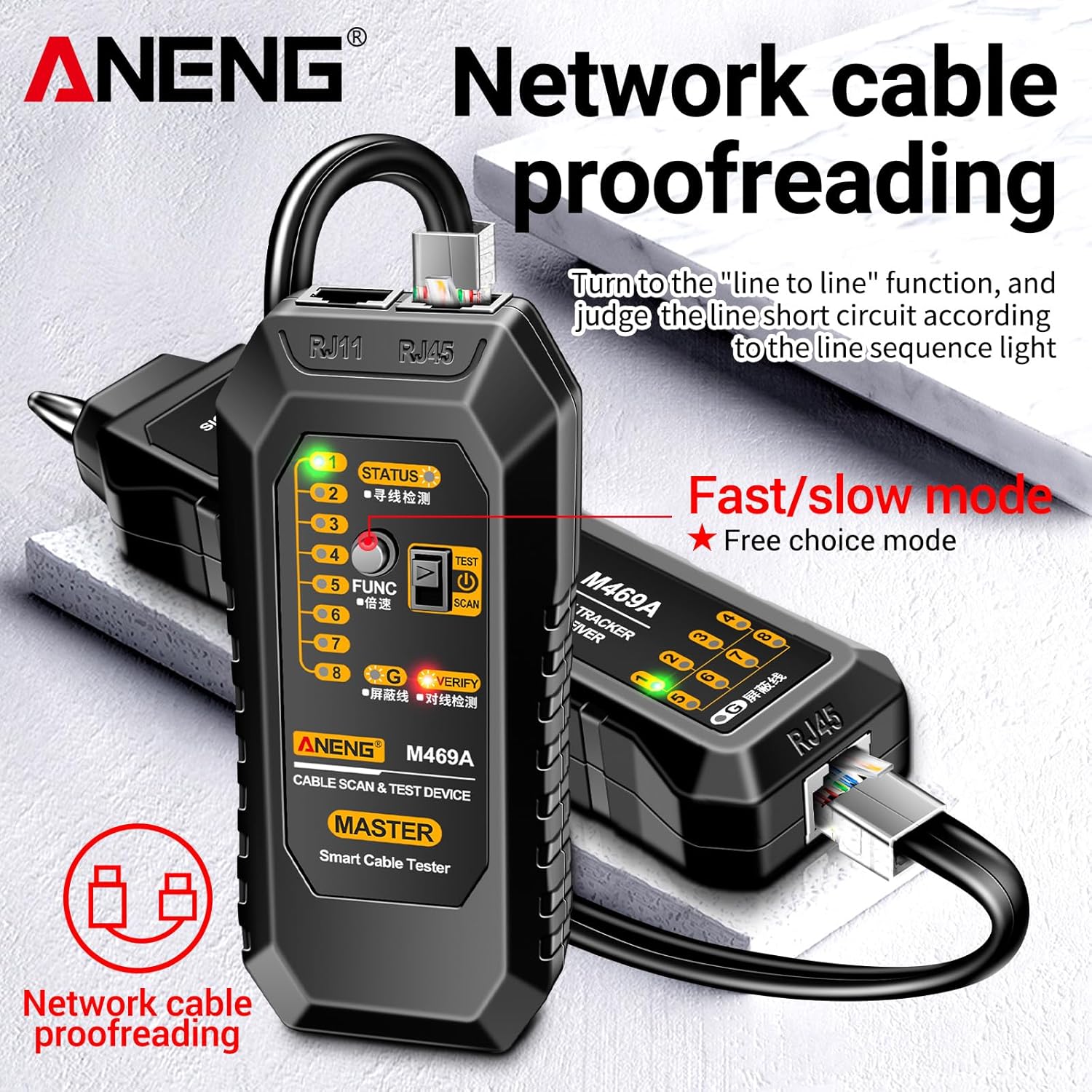

Figure 2: Network Cable Proofreading in progress.

1. Connect one end of the RJ45 network cable to the RJ45 port on the Transmitter unit.
2. Connect the other end of the same RJ45 network cable to the RJ45 port on the Receiver unit.
3. Turn the function selection switch on the Transmitter to the "line sequence" or "VERIFY" position.
4. Observe the LED indicators on both the Transmitter and Receiver. The LEDs (1-8 and G for shield) will light up in sequence, indicating the continuity and correct wiring of each wire pair.
5. Any deviation in the sequence or unlit LEDs indicates a wiring fault (e.g., open circuit, short circuit, or cross-over).
6. The "Fast/slow mode" allows you to adjust the speed of the LED sequence for easier observation.

5.3 DC Level Testing (DC 3~10V)

This function allows for basic voltage detection on DC lines within the specified range.

1. Connect the alligator clips to the DC line you wish to test.
2. Observe the indicator on the Transmitter unit. If a DC voltage between 3V and 10V is detected, the corresponding indicator will light up.

5.4 Spotlight Function

The Receiver unit is equipped with a spotlight for use in dimly lit environments.

• Locate the light switch on the Receiver unit.
• Toggle the switch to turn the spotlight on or off as needed.

5.5 ലോ വോളിയംtagഇ പ്രോംപ്റ്റ്

To ensure accurate readings, the device provides a low voltagഇ മുന്നറിയിപ്പ്.

• When the function selection switch of the Transmitter is set to the "SCAN" (line finding) position, if the battery voltage drops below 6V, both the "SCAN" LED and the "line sequence" LEDs on the Transmitter will flash simultaneously.
• This indicates that the battery needs to be replaced to maintain optimal performance and accuracy.

6. പരിപാലനം

Proper maintenance will extend the lifespan of your ANENG M469A Network Cable Tester.

• വൃത്തിയാക്കൽ: മൃദുവായതും ഉണങ്ങിയതുമായ തുണി ഉപയോഗിച്ച് യൂണിറ്റുകൾ തുടയ്ക്കുക. അബ്രാസീവ് ക്ലീനറുകളോ ലായകങ്ങളോ ഉപയോഗിക്കരുത്.
• സംഭരണം: Store the device in the provided storage bag in a cool, dry place away from direct sunlight and extreme temperatures.
• ബാറ്ററി മാറ്റിസ്ഥാപിക്കൽ: ഉപകരണം ദീർഘനേരം ഉപയോഗിക്കുന്നില്ലെങ്കിൽ, ചോർച്ചയും കേടുപാടുകളും തടയാൻ ബാറ്ററികൾ നീക്കം ചെയ്യുക.
• കൈകാര്യം ചെയ്യൽ: യൂണിറ്റുകൾ താഴെയിടുകയോ ശക്തമായ ആഘാതങ്ങൾക്ക് വിധേയമാക്കുകയോ ചെയ്യുന്നത് ഒഴിവാക്കുക.

7. പ്രശ്‌നപരിഹാരം

If you encounter issues with your ANENG M469A, refer to the following table for common problems and solutions:

8. വാറൻ്റിയും പിന്തുണയും

This product is covered by a standard manufacturer's warranty against defects in materials and workmanship. Please refer to your purchase documentation for specific warranty terms and duration. For technical support, troubleshooting assistance, or warranty claims, please contact your retailer or the manufacturer's customer service department.

വാറന്റി ആവശ്യങ്ങൾക്കായി വാങ്ങിയതിന്റെ തെളിവായി നിങ്ങളുടെ വാങ്ങൽ രസീത് സൂക്ഷിക്കുക.
