1. ഉൽപ്പന്നം കഴിഞ്ഞുview
This manual provides instructions for the Modway Dixie 36-inch Solid Wood Bathroom Vanity Cabinet, model EEI-6725-BLK-WHI. This vanity cabinet features a contemporary design with a solid mahogany wood construction, an open weave rattan door, three drawers, and satin brass handles. It includes a ceramic basin with 8-inch centerset faucet holes.
The cabinet is designed to offer functional storage with a height-adjustable shelf and soft-close hinges for quiet operation. Non-marking feet are included to protect flooring.

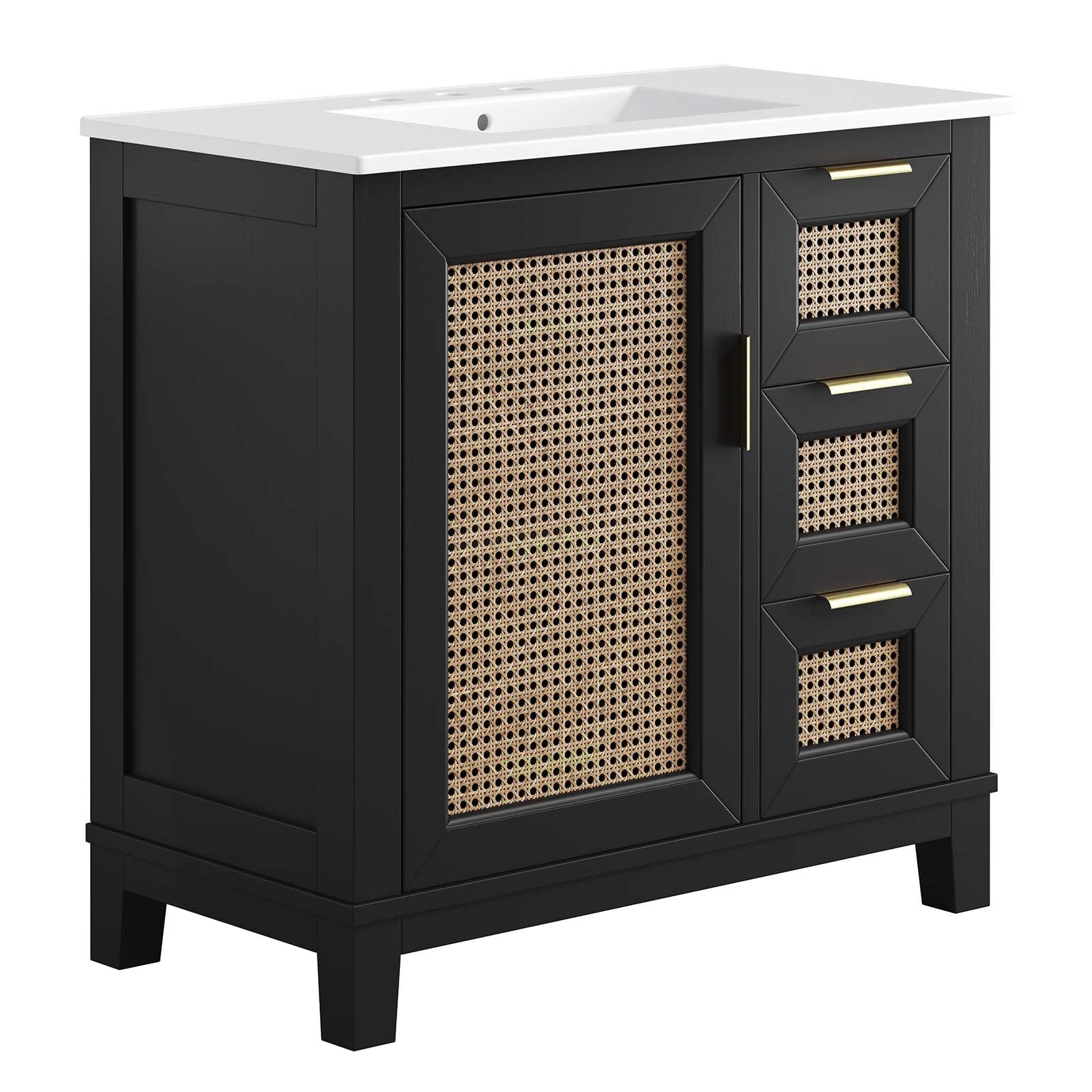

ചിത്രം 1: മുൻഭാഗം view of the Modway Dixie 36-inch Bathroom Vanity Cabinet.
2 സുരക്ഷാ വിവരങ്ങൾ
അസംബ്ലി ചെയ്യുന്നതിനും ഉപയോഗിക്കുന്നതിനും മുമ്പ് ദയവായി എല്ലാ നിർദ്ദേശങ്ങളും ശ്രദ്ധാപൂർവ്വം വായിക്കുക. ഈ നിർദ്ദേശങ്ങൾ പാലിക്കുന്നതിൽ പരാജയപ്പെടുന്നത് ഉൽപ്പന്നത്തിന് പരിക്കോ കേടുപാടുകളോ ഉണ്ടാക്കാം.
- എല്ലാ പാക്കേജിംഗ് സാമഗ്രികളും കുട്ടികളിൽ നിന്ന് അകറ്റി നിർത്തുക.
- അസംബ്ലി ആരംഭിക്കുന്നതിന് മുമ്പ് എല്ലാ ഭാഗങ്ങളും ഉണ്ടെന്നും കേടുപാടുകൾ സംഭവിച്ചിട്ടില്ലെന്നും ഉറപ്പാക്കുക. ഏതെങ്കിലും ഭാഗങ്ങൾ നഷ്ടപ്പെട്ടാലോ കേടുപാടുകൾ സംഭവിച്ചാലോ അസംബ്ലിയുമായി മുന്നോട്ട് പോകരുത്.
- നിർദ്ദേശങ്ങളിൽ വ്യക്തമാക്കിയിരിക്കുന്നതുപോലെ അസംബ്ലിക്ക് ഉചിതമായ ഉപകരണങ്ങൾ ഉപയോഗിക്കുക.
- പോറലുകൾ ഉണ്ടാകാതിരിക്കാൻ എല്ലായ്പ്പോഴും മൃദുവും വൃത്തിയുള്ളതുമായ ഒരു പ്രതലത്തിൽ ഉൽപ്പന്നം കൂട്ടിച്ചേർക്കുക.
- Do not overtighten screws or fasteners, as this may damage the wood.
- This vanity is intended for bathroom use. Do not use it for purposes other than its intended design.
- Ensure the vanity is stable and level after assembly to prevent tipping.
- Professional installation is recommended for plumbing connections.
3. പാക്കേജ് ഉള്ളടക്കം
താഴെ ലിസ്റ്റ് ചെയ്തിരിക്കുന്ന എല്ലാ ഘടകങ്ങളും നിങ്ങളുടെ പാക്കേജിൽ ഉൾപ്പെടുത്തിയിട്ടുണ്ടെന്ന് ഉറപ്പാക്കുക. ഏതെങ്കിലും ഭാഗങ്ങൾ നഷ്ടപ്പെട്ടിട്ടുണ്ടെങ്കിലോ കേടുപാടുകൾ സംഭവിച്ചിട്ടുണ്ടെങ്കിലോ, ദയവായി ഉപഭോക്തൃ പിന്തുണയുമായി ബന്ധപ്പെടുക.
- Vanity Cabinet (1 unit)
- സെറാമിക് ബിasin with Integrated Countertop (1 unit)
- Hardware Pack (screws, hinges, handles, etc.)
- Adjustable Shelf (1 unit)
കുറിപ്പ്: Faucet and plumbing fixtures are not included and must be purchased separately.
4. സജ്ജീകരണവും അസംബ്ലി നിർദ്ദേശങ്ങളും
Assembly of the Modway Dixie Vanity Cabinet is required. Follow these steps carefully. It is recommended to have two people for assembly.
- ഘടകങ്ങൾ അൺപാക്ക് ചെയ്യുക: Carefully remove all parts from the packaging. Place them on a soft, clean, and flat surface to prevent damage.
- ഹാർഡ്വെയർ തിരിച്ചറിയുക: Separate and identify all hardware components using the provided hardware list.
- കാബിനറ്റ് ഫ്രെയിം കൂട്ടിച്ചേർക്കുക: Follow the detailed diagrams in the separate assembly guide (if provided) to connect the cabinet panels. Ensure all connections are secure but do not overtighten.
- ഡ്രോയറുകൾ ഇൻസ്റ്റാൾ ചെയ്യുക: Assemble the three drawers and install them into their respective slides. Test for smooth operation.
- വാതിൽ ഘടിപ്പിക്കുക: Secure the door with the soft-close hinges. Adjust hinges as needed for proper alignment.
- ഹാൻഡിലുകൾ ഇൻസ്റ്റാൾ ചെയ്യുക: Attach the satin brass handles to the door and drawers.
- Place Adjustable Shelf: Position the height-adjustable shelf inside the cabinet. The shelf features a cut-out design to accommodate plumbing.
- Position Ceramic Basin: Carefully place the ceramic basin with the integrated countertop onto the top of the vanity cabinet. Ensure it is properly aligned with the cabinet and secured according to the specific instructions for the basin (adhesives or clips may be required, not included).
- പ്ലംബിംഗ് കണക്ഷനുകൾ: Connect the faucet and drain according to the manufacturer's instructions for those components. Ensure all plumbing connections are watertight. Professional plumbing installation is highly recommended.
- ലെവലിംഗ്: Once assembled and positioned, ensure the vanity is level using the non-marking feet.
ചിത്രം 2: പിൻഭാഗം view illustrating internal structure and plumbing access.
ചിത്രം 3: ഇൻ്റീരിയർ view of the vanity cabinet with the door open, showing the adjustable shelf.
ചിത്രം 4: മുൻഭാഗം view of the vanity cabinet with drawers partially open.
വീഡിയോ 1: കഴിഞ്ഞുview of the Modway Dixie Bathroom Vanity features. This video demonstrates the design and functionality of the vanity, including the solid mahogany wood, ceramic basin, and storage options.
5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
The Modway Dixie Vanity Cabinet is designed for straightforward use in a bathroom environment.
- വാതിൽ പ്രവർത്തനം: The cabinet door is equipped with soft-close hinges. Open and close the door gently to engage the soft-close mechanism, preventing slamming.
- ഡ്രോയർ പ്രവർത്തനം: The three drawers are designed for smooth operation. Pull them out to access contents and push them back in until they close completely.
- സംഭരണം: Utilize the interior adjustable shelf and drawers for organizing bathroom essentials. Ensure items are placed securely to prevent shifting.
- Basin ഉപയോഗിക്കുക: The ceramic basin is suitable for standard bathroom sink functions. Ensure the faucet is properly installed and sealed to prevent leaks.
6. പരിപാലനം
Proper care will extend the life and appearance of your vanity cabinet.
- കാബിനറ്റ് വൃത്തിയാക്കൽ: Wipe the wood surfaces with a dry, soft cloth. For stubborn marks, use a slightly damp cloth with a mild wood cleaner, then immediately dry with a clean cloth. Avoid abrasive cleaners or harsh chemicals.
- Cleaning the Ceramic Basin: Clean the ceramic basin with a non-abrasive bathroom cleaner and a soft sponge or cloth. Rinse thoroughly with water.
- റാട്ടൻ പരിചരണം: The open weave rattan can be gently dusted with a soft brush or vacuum cleaner with a brush attachment. Avoid excessive moisture.
- ഹാർഡ്വെയർ: Periodically check that all screws and fasteners are tight. Clean satin brass handles with a soft, dry cloth. Avoid chemical cleaners that may tarnish the finish.
- ചോർച്ച: Immediately wipe up any water spills or moisture from the wood surfaces to prevent damage.
7. പ്രശ്നപരിഹാരം
താഴെ പറയുന്ന പൊതുവായ പ്രശ്നങ്ങളും പരിഹാരങ്ങളും കാണുക.
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| Door or drawer does not close properly. | തെറ്റായി ക്രമീകരിച്ച ഹിഞ്ചുകൾ അല്ലെങ്കിൽ ഡ്രോയർ സ്ലൈഡുകൾ; തടസ്സം. | Adjust hinges or drawer slides. Check for any items blocking closure. |
| Vanity feels unstable or wobbly. | അസമമായ തറ; അയഞ്ഞ കണക്ഷനുകൾ. | Adjust the non-marking feet to level the vanity. Tighten all assembly screws. |
| Water leaks from plumbing connections. | Improperly sealed connections; loose fittings. | Check all plumbing connections for tightness and proper sealing. Consult a professional plumber if necessary. |
| Scratches or marks on wood surface. | ആഘാതം അല്ലെങ്കിൽ അബ്രസീവ് ക്ലീനിംഗ്. | Use wood repair kits for minor scratches. Avoid abrasive materials for cleaning. |
8 സ്പെസിഫിക്കേഷനുകൾ
| മോഡൽ നമ്പർ | EEI-6725-BLK-WHI |
| ബ്രാൻഡ് | മോഡ്വേ |
| അളവുകൾ (D x W x H) | 18"D x 36"W x 41"H |
| ഇനത്തിൻ്റെ ഭാരം | 106 പൗണ്ട് |
| മെറ്റീരിയൽ | Solid Mahogany Wood, Ceramic |
| നിറം | Black Cabinet, White Basin |
| ഡ്രോയറുകളുടെ എണ്ണം | 3 |
| ഇൻസ്റ്റലേഷൻ തരം | ഫ്രീസ്റ്റാൻഡിംഗ് |
| അസംബ്ലി ആവശ്യമാണ് | അതെ |
| യുപിസി / ജിടിഐഎൻ | 889654287384 |
Figure 5: Dimensional diagram of the Modway Dixie 36-inch Bathroom Vanity Cabinet.
9. വാറൻ്റി വിവരങ്ങൾ
For detailed warranty information, please refer to the product description on the original purchase platform or the official Modway website. The manufacturer's warranty description states: "Please refer to product description or store page."
10. ഉപഭോക്തൃ പിന്തുണ
If you have any questions, require assistance with assembly, or need to report missing/damaged parts, please contact Modway customer service.
- ബ്രാൻഡ്: മോഡ്വേ
- മോഡൽ നമ്പർ: EEI-6725-BLK-WHI
- Please visit the official Modway webബന്ധപ്പെടാനുള്ള വിവരങ്ങൾക്ക് സൈറ്റ് കാണുക അല്ലെങ്കിൽ നിങ്ങളുടെ വാങ്ങൽ ഡോക്യുമെന്റേഷൻ പരിശോധിക്കുക.
