ആമുഖം
This manual provides comprehensive instructions for the installation, operation, and maintenance of your new Exercise Bike Resistance Bar. This component is specifically designed as a replacement part for indoor cycling bikes, functioning as a crucial resistance knob and brake assembly.
ഭാഗങ്ങൾ ഉൾപ്പെടുത്തിയിട്ടുണ്ട്

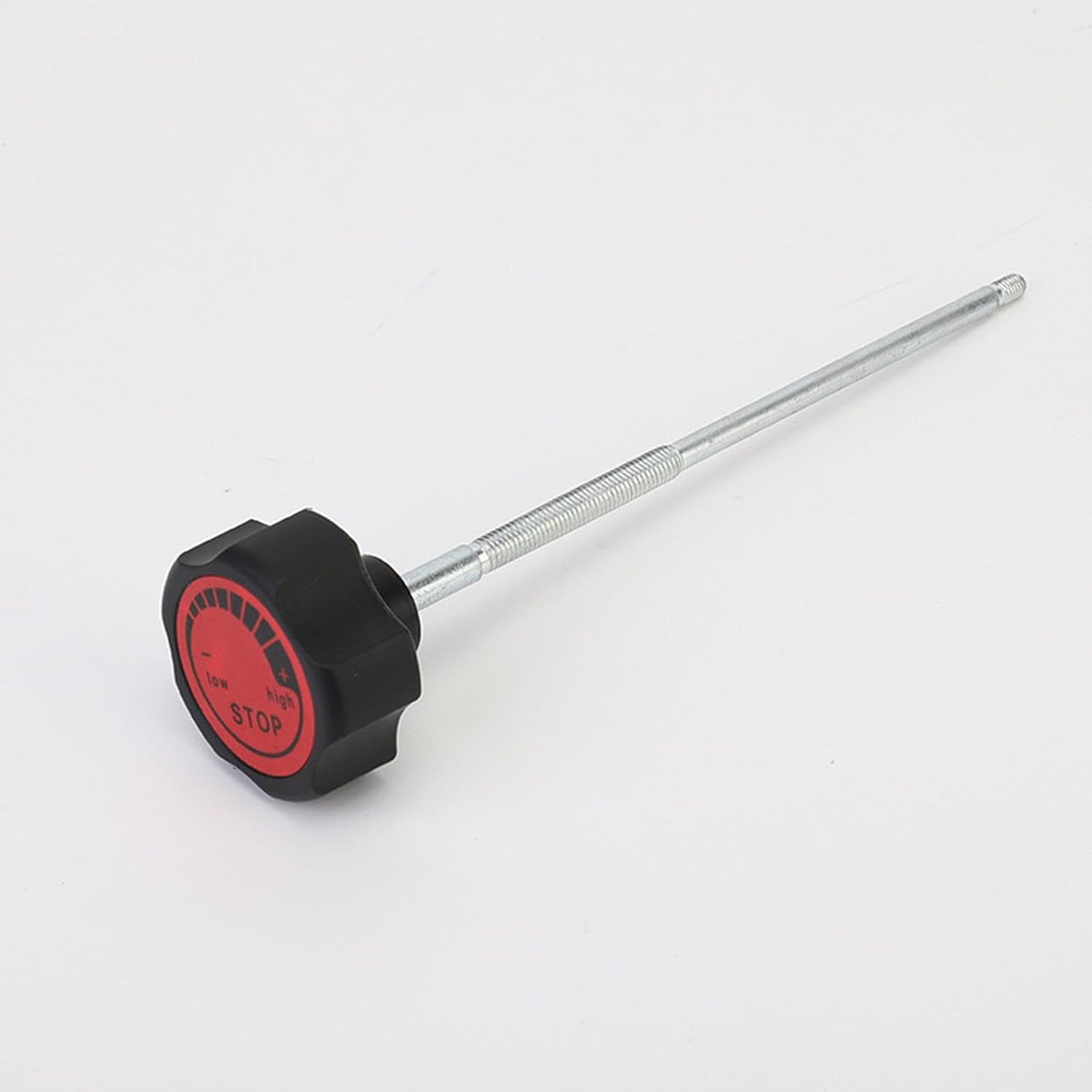

- 1 x Exercise Bike Resistance Bar (Resistance Knob and Shaft Assembly)
സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | വിശദാംശങ്ങൾ |
|---|---|
| ഉൽപ്പന്ന തരം | Exercise Bike Resistance Bar / Brake Assembly |
| മെറ്റീരിയൽ | ലോഹം |
| നിറം | Black (Knob), Silver (Shaft) |
| ആകെ നീളം | 23.5 സെ.മീ (9.25 ഇഞ്ച്) |
| ഉൾപ്പെടുത്തിയ ഘടകങ്ങൾ | Knob, Shaft |
| പ്രത്യേക സവിശേഷതകൾ | Sturdy, Durable, Easy to Install |
ഇൻസ്റ്റലേഷൻ നിർദ്ദേശങ്ങൾ
This resistance bar is designed for easy replacement. Ensure your exercise bike is stable and powered off (if applicable) before beginning.
- Identify the Existing Component: Locate the current resistance knob and shaft assembly on your indoor cycling bike. This is typically found near the flywheel or frame, controlling the resistance mechanism.
- Remove the Old Component: Carefully unscrew and remove the existing resistance knob and shaft. Note the direction of rotation for removal. Some models may require a wrench or specific tool; however, this replacement part is designed for hand-tightening.
- Insert the New Resistance Bar: Align the threaded end of the new resistance bar with the corresponding opening on your exercise bike.
- സ്ഥലത്തേക്ക് സ്ക്രൂ ചെയ്യുക: Gently screw the new resistance bar into position. Turn clockwise until it is securely fastened. Do not overtighten, as this may damage the threads or the bike's frame.
- ടെസ്റ്റ് പ്രവർത്തനം: Once installed, rotate the knob to ensure it smoothly adjusts the bike's resistance. Turn it fully clockwise to increase resistance and counter-clockwise to decrease it. Verify that the "STOP" function (if applicable to your bike's design) engages the brake effectively.
ഓപ്പറേഷൻ
The resistance bar allows you to adjust the intensity of your workout and safely stop the flywheel.
- പ്രതിരോധം ക്രമീകരിക്കൽ: Turn the black knob clockwise to increase the resistance, making your pedaling more challenging. Turn it counter-clockwise to decrease the resistance, making pedaling easier. The red markings on the knob indicate 'low' and 'high' resistance levels.
- Emergency Stop/Brake: To quickly stop the flywheel, firmly press down on the black knob. This engages the brake mechanism, bringing the flywheel to a halt. This function is labeled "STOP" on the knob.
പരിചരണവും പരിപാലനവും
To ensure the longevity and optimal performance of your resistance bar, follow these simple maintenance guidelines:
- പതിവ് വൃത്തിയാക്കൽ: Wipe the knob and exposed shaft with a clean, damp പൊടിയും വിയർപ്പും നീക്കം ചെയ്യാൻ തുണി ഉപയോഗിക്കുക. ഉരച്ചിലുകൾ ഉള്ള ക്ലീനറുകൾ ഒഴിവാക്കുക.
- ലൂബ്രിക്കേഷൻ (ആവശ്യമെങ്കിൽ): If the knob becomes difficult to turn or squeaks, a small amount of silicone-based lubricant can be applied to the threaded shaft. Consult your exercise bike's manual for specific lubrication recommendations for its resistance mechanism.
- ദൃഢത പരിശോധിക്കുക: Periodically check that the resistance bar is securely screwed into place. Retighten by hand if it feels loose.
- വസ്ത്രങ്ങൾക്കായി പരിശോധിക്കുക: Regularly inspect the shaft and knob for any signs of wear, damage, or corrosion. Replace the part if significant wear is observed to maintain safe operation.
ട്രബിൾഷൂട്ടിംഗ്
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| Resistance knob is stiff or hard to turn. | Lack of lubrication on the shaft or internal mechanism. | Apply a small amount of silicone lubricant to the threaded shaft. Ensure no debris is obstructing the mechanism. |
| നോബ് തിരിക്കുമ്പോൾ പ്രതിരോധം മാറുന്നില്ല. | Resistance bar not fully engaged with the bike's internal mechanism. | Ensure the resistance bar is screwed in completely and securely. Check for any dislodged parts within the bike's resistance system. |
| നോബ് അയഞ്ഞതോ ഇളകുന്നതോ ആയി തോന്നുന്നു. | Resistance bar is not tightened sufficiently. | Hand-tighten the resistance bar until it is secure. Do not overtighten. |
| Brake function (STOP) is not working. | Misalignment or damage to the internal brake pad/mechanism. | Ensure the knob is fully depressed. If the issue persists, inspect the bike's internal brake mechanism or consult a professional. |
വാറൻ്റിയും പിന്തുണയും
As a replacement part, this product typically does not come with an extended manufacturer's warranty. Please refer to the return policy of your retailer for information regarding returns or exchanges for defective items.
For further assistance with installation or troubleshooting, please contact the seller or refer to the original exercise bike's instruction manual.
