TESSAN Wall Outlet Extender with USB Charging Ports

ആമുഖം

The TESSAN Wall Outlet Extender (Model TS-WM102-2C) is designed to expand a single wall outlet into multiple power sources, providing convenience for charging various electronic devices. This unit features 4 AC outlets, 2 USB-C ports, and 1 USB-A port, along with built-in surge protection.

Please read this manual thoroughly before using the product to ensure safe and optimal operation.

Image: The TESSAN Wall Outlet Extender shown in different environments, such as a bedroom and bathroom, highlighting its versatile application.

ഉൽപ്പന്ന സവിശേഷതകൾ

• 7-in-1 Power Expansion: Converts one wall socket into 4 standard AC outlets, 2 USB-C ports, and 1 USB-A port.
• വിശാലമായ ഔട്ട്ലെറ്റുകൾ: Designed to accommodate larger power adapters without blocking adjacent outlets.
• USB ചാർജിംഗ്:
  • Dual USB-A ports: 2.4A maximum output.
  • USB-C port: 3A maximum output.
  • Automatically detects connected devices for optimal charging speed.
  • Note: The USB-C port does not support devices requiring 14V to 22V charging voltage.
• സർജ് സംരക്ഷണം: Protects connected electronics from power surges and spikes.
• കോംപാക്റ്റ് ഡിസൈൻ: Measures approximately 3.9 x 3.9 inches, suitable for various indoor environments.

Image: The TESSAN Wall Outlet Extender, illustrating its 7-in-1 functionality with widely spaced AC outlets and USB ports in use.

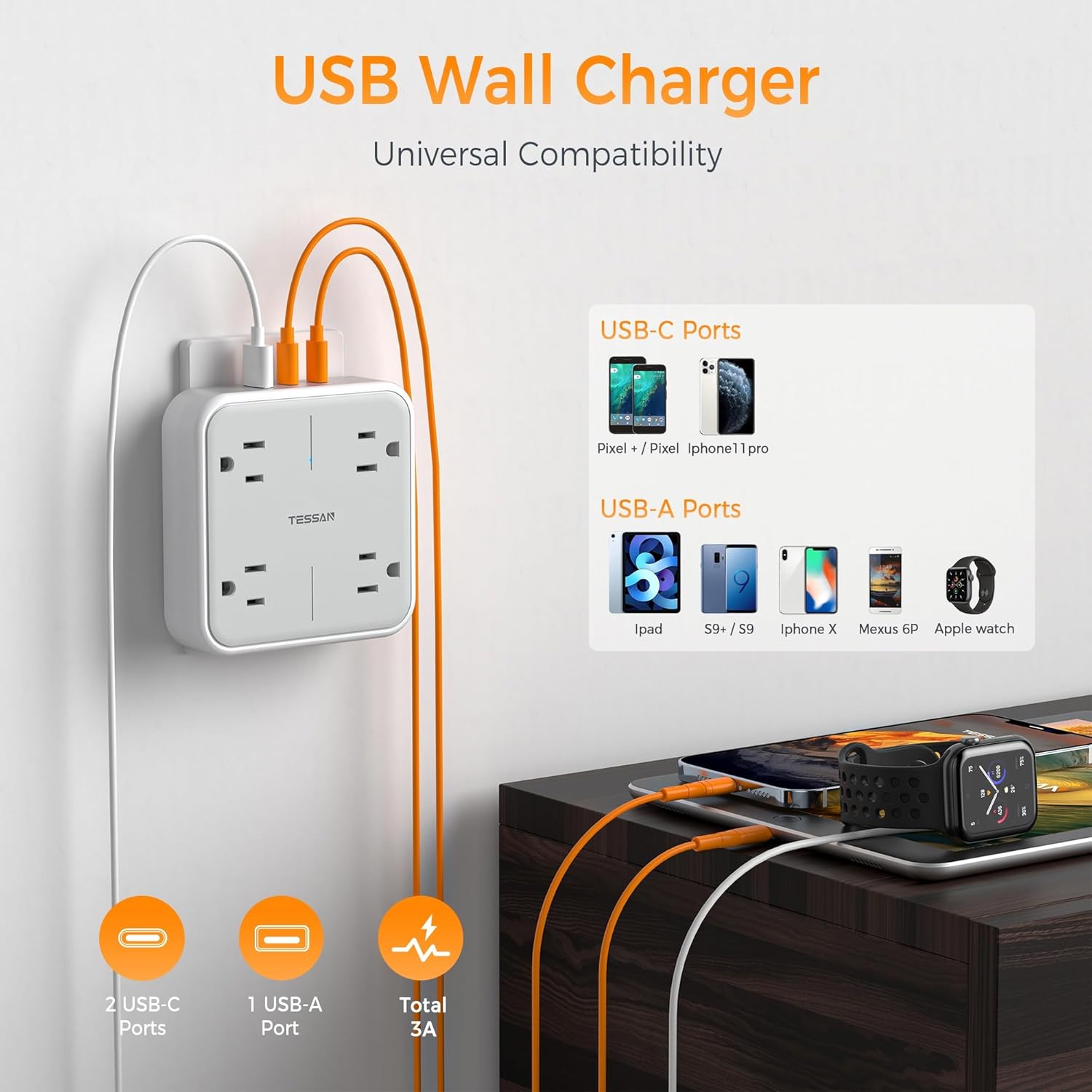

Image: USB Wall Charger functionality, highlighting compatibility with various devices for both USB-C and USB-A ports.

സജ്ജീകരണ നിർദ്ദേശങ്ങൾ

1. Unpack the Extender: Carefully remove the TESSAN Wall Outlet Extender from its packaging.
2. Identify a Suitable Outlet: Locate a standard North American 3-prong (Type B) wall outlet. Ensure the outlet is in good condition and not damaged.
3. Plug In the Extender: Insert the extender's plug firmly into the wall outlet. The stabilizing rod on the back of the extender helps secure it.


   Image: Installation guide for the TESSAN Wall Outlet Extender, showing compatibility with standard and decor outlets, and the stabilizing rod.

   • The stabilizing rod can be cut off if necessary for specific outlet types (e.g., decor outlets), but it is recommended to keep it for added stability.
   • This extender is compatible with standard and decor outlets. It is അല്ല compatible with USB receptacles or GFCI outlets.
4. പവർ പരിശോധിക്കുക: Once plugged in, the power indicator light (if present) on the extender should illuminate, indicating it is receiving power.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

1. എസി ഉപകരണങ്ങൾ ബന്ധിപ്പിക്കുന്നു: Plug your devices directly into any of the 4 AC outlets. The widely spaced design allows for multiple bulky adapters.
2. USB ഉപകരണങ്ങൾ ബന്ധിപ്പിക്കുന്നു:
   • For devices compatible with USB-C, use the 2 USB-C ports.
   • For devices compatible with USB-A, use the 1 USB-A port.
   • Ensure your device's charging cable is properly connected to both the device and the extender's USB port.
3. ഒന്നിലധികം ഉപകരണങ്ങൾ ചാർജ് ചെയ്യുന്നു: The extender can charge up to 7 devices simultaneously (4 AC, 2 USB-C, 1 USB-A).
4. വൈദ്യുതി ഉപഭോഗം: Do not exceed the maximum electrical rating of the extender (13 Amps, 125 Volts, 1875 Watts). Overloading can cause the surge protector to trip or damage the unit.

സുരക്ഷാ വിവരങ്ങളും മുൻകരുതലുകളും

To ensure safe operation and prevent damage to the product or connected devices, please observe the following:

• സർജ് സംരക്ഷണം: The unit includes built-in surge protection to safeguard against voltagഇ സ്പൈക്കുകൾ.
• ഓവർലോഡ് സംരക്ഷണം: Do not exceed the specified electrical ratings (13A, 125V, 1875W).
• ഇൻഡോർ ഉപയോഗത്തിന് മാത്രം: This product is designed for indoor use in dry locations. Do not use it outdoors or in wet environments.
• വെള്ളം ഒഴിവാക്കുക: Keep the extender away from water or other liquids.
• വെൻ്റിലേഷൻ: Ensure adequate ventilation around the extender. Do not cover it with cloths or other materials that could impede airflow.
• കുട്ടികളും വളർത്തുമൃഗങ്ങളും: കുട്ടികൾക്കും വളർത്തുമൃഗങ്ങൾക്കും ലഭ്യമാകാതെ സൂക്ഷിക്കുക.
• വേർപെടുത്തുക: Do not attempt to disassemble, repair, or modify the unit. Contact customer support if service is required.

ചിത്രം: ആന്തരികം view highlighting multiple safety protections, including surge protection and fireproof materials.

സ്പെസിഫിക്കേഷനുകൾ

ട്രബിൾഷൂട്ടിംഗ്

• ഉപകരണങ്ങൾക്ക് പവർ ഇല്ല:
  • Ensure the extender is firmly plugged into a working wall outlet.
  • Check if the wall outlet itself is functional by plugging in another device directly.
  • Verify that the total power consumption of connected devices does not exceed 1875W (13A). The surge protector may have tripped. Unplug devices, reset the wall outlet (if applicable), and plug in fewer devices.
• USB പോർട്ടുകൾ ചാർജ്ജുചെയ്യുന്നില്ല:
  • Confirm that the USB cable is securely connected to both the device and the extender.
  • Try a different USB cable or device to rule out cable or device issues.
  • Remember that the USB-C port does not support devices requiring 14V to 22V charging voltage.
• Unit Feels Hot or Causes Shocks:
  • It is normal for the unit to feel slightly warm during operation. However, if it becomes excessively hot, or if you experience any electrical shocks, immediately unplug all devices and the extender from the wall outlet.
  • This indicates a serious issue, potentially an overload or internal defect. Discontinue use immediately and contact customer support.

മെയിൻ്റനൻസ്

• വൃത്തിയാക്കൽ: Disconnect the extender from the wall outlet before cleaning. Use a dry, soft cloth to wipe the surface. Do not use liquid cleaners or abrasive materials.
• സംഭരണം: ഉപയോഗത്തിലില്ലാത്തപ്പോൾ, എക്സ്റ്റെൻഡർ നേരിട്ട് സൂര്യപ്രകാശവും ഈർപ്പവും ഏൽക്കാത്ത ഒരു തണുത്തതും വരണ്ടതുമായ സ്ഥലത്ത് സൂക്ഷിക്കുക.
• പരിശോധന: Periodically inspect the extender for any signs of damage, such as cracks in the casing or bent prongs. If damage is found, discontinue use and replace the unit.

വാറൻ്റിയും പിന്തുണയും

For warranty information or technical support, please contact TESSAN customer service. Refer to your purchase documentation for specific warranty terms.

നിർമ്മാതാവിനെ ബന്ധപ്പെടാനുള്ള വിവരങ്ങൾ:
Zhuhai Tessan Power Technology Co., Ltd.
Floor 13, Taiying Global Profit Center No. 663 Renmin West Road Xiangzhou District Zhuhai City

For further assistance, please visit the official TESSAN webസൈറ്റ് അല്ലെങ്കിൽ അവരുടെ പിന്തുണാ ചാനലുകളുമായി ബന്ധപ്പെടുക.
