1. ഉൽപ്പന്നം കഴിഞ്ഞുview
This document provides essential information for the installation, operation, and maintenance of the Brake Master Cylinder designed for Yale Forklift Truck model ERC050RF. This component is crucial for the proper functioning of your forklift's hydraulic braking system.
The master cylinder converts the mechanical force from the brake pedal into hydraulic pressure, which is then transmitted through the brake lines to the wheel cylinders or calipers, engaging the brakes.

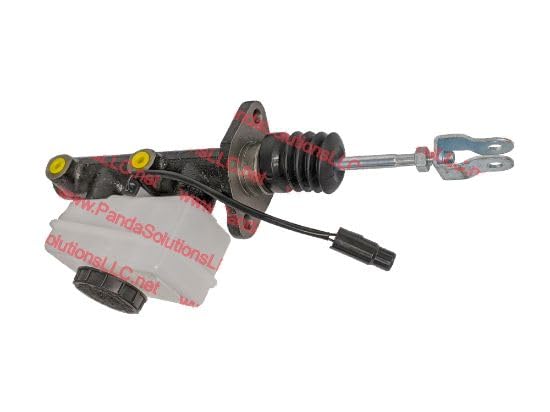

ചിത്രം 1: കഴിഞ്ഞുview of the Brake Master Cylinder. This image displays the complete assembly of the brake master cylinder, including the main housing, the transparent fluid reservoir with a black cap, and the pushrod assembly with its clevis end. The component is black with yellow caps on the ports and a black electrical connector.
2. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും
Installation of a brake master cylinder requires specialized knowledge and tools. It is highly recommended that installation be performed by a qualified technician to ensure proper function and safety.
2.1 സുരക്ഷാ മുൻകരുതലുകൾ
- സുരക്ഷാ ഗ്ലാസുകളും കയ്യുറകളും ഉൾപ്പെടെ ഉചിതമായ വ്യക്തിഗത സംരക്ഷണ ഉപകരണങ്ങൾ (പിപിഇ) എപ്പോഴും ധരിക്കുക.
- Ensure the forklift is turned off, keys removed, and wheels chocked before beginning any work.
- Brake fluid is corrosive; avoid contact with skin, eyes, and painted surfaces.
- Dispose of old brake fluid and components responsibly according to local regulations.
2.2 ഇൻസ്റ്റലേഷൻ ഘട്ടങ്ങൾ (പൊതു മാർഗ്ഗനിർദ്ദേശങ്ങൾ)
- Locate and identify the existing brake master cylinder on your Yale ERC050RF forklift.
- Carefully disconnect the brake lines and any electrical connectors from the old master cylinder. Be prepared for brake fluid leakage.
- Remove the mounting bolts securing the old master cylinder to the brake booster or firewall.
- Install the new master cylinder, ensuring proper alignment with the pushrod and mounting points.
- Reconnect the brake lines and electrical connectors. Ensure all connections are secure and leak-free.
- Fill the new master cylinder reservoir with the manufacturer-recommended brake fluid.
- Bleed the entire brake system to remove any air. This is a critical step for proper brake function. Refer to your forklift's service manual for specific bleeding procedures.
- Test the brake pedal for firm feel and proper operation before returning the forklift to service.
കുറിപ്പ്: It is essential to provide the forklift serial number when ordering parts to ensure compatibility. This manual provides general guidance; always consult the specific service manual for your Yale ERC050RF forklift for detailed, model-specific instructions.
3. പ്രവർത്തന തത്വങ്ങൾ
The brake master cylinder is a hydraulic device that serves as the heart of your forklift's braking system. When the operator presses the brake pedal, the pushrod connected to the pedal applies force to the pistons within the master cylinder.
This force pressurizes the brake fluid, which is then distributed through separate hydraulic circuits to the front and rear brakes (or primary and secondary circuits, depending on the system design). This dual-circuit design provides a safety redundancy, allowing partial braking even if one circuit fails.
The pressurized fluid travels through the brake lines to the wheel cylinders or calipers, forcing the brake shoes or pads against the drums or rotors, thereby slowing or stopping the forklift.
4. പരിപാലനം
Regular maintenance of your forklift's braking system, including the master cylinder, is vital for safe operation and longevity.
4.1 Brake Fluid Level Check
- Periodically check the brake fluid level in the master cylinder reservoir. It should be between the "MIN" and "MAX" marks.
- A consistently low fluid level may indicate a leak in the system, which requires immediate attention.
4.2 Brake Fluid Condition
- Brake fluid absorbs moisture over time, which can lead to corrosion and reduced braking performance.
- Consult your forklift's maintenance schedule for recommended brake fluid flush intervals. Typically, this is every 1-2 years.
4.3 Leak Inspection
- Visually inspect the master cylinder, brake lines, and connections for any signs of fluid leaks.
- Check for fluid stains on the ground beneath the forklift.
4.4 Pedal Feel
- Pay attention to the feel of the brake pedal. It should be firm and consistent.
- A spongy, soft, or slowly sinking pedal can indicate air in the system or an internal master cylinder issue.
5. പ്രശ്നപരിഹാരം
If you experience issues with your forklift's braking system, the master cylinder could be a contributing factor. Here are some common symptoms and potential causes:
| ലക്ഷണം | സാധ്യമായ കാരണം | ആക്ഷൻ |
|---|---|---|
| Spongy or Soft Brake Pedal | Air in the brake lines; low brake fluid; faulty master cylinder seals. | Bleed the brake system; check fluid level and add if necessary; inspect master cylinder for leaks or internal failure. |
| Brake Pedal Sinks Slowly to Floor | Internal leak within the master cylinder (fluid bypassing seals). | Replace the master cylinder. |
| Brake Fluid Leaks Around Master Cylinder | Loose connections; damaged seals; cracked reservoir. | Tighten connections; inspect and replace seals or the entire master cylinder if damaged. |
| Poor Braking Performance | Low fluid level; contaminated fluid; faulty master cylinder; issues with other brake components (calipers, wheel cylinders, pads/shoes). | Check fluid, flush system; inspect master cylinder; have entire brake system professionally inspected. |
മുന്നറിയിപ്പ്: Brake system issues can severely compromise safety. If you experience any of these symptoms, cease operation of the forklift immediately and have the braking system inspected and repaired by a qualified technician.
6 സ്പെസിഫിക്കേഷനുകൾ
- ഉൽപ്പന്ന തരം: ബ്രേക്ക് മാസ്റ്റർ സിലിണ്ടർ
- അനുയോജ്യത: Yale Forklift Truck ERC050RF
- വ്യവസ്ഥ: ബ്രാൻഡ് ന്യൂ
- ASIN: B0CYVFJDGM
- നിർമ്മാതാവ്: ആഫ്റ്റർ മാർക്കറ്റ്
- ആദ്യം ലഭ്യമായ തീയതി: 22 മാർച്ച് 2024
7. വാറൻ്റിയും പിന്തുണയും
Specific warranty information for this aftermarket brake master cylinder is not provided in the product details. Please refer to the seller's return policy or contact the seller directly for any warranty-related inquiries or technical support.
For assistance with installation or troubleshooting beyond the scope of this manual, it is recommended to consult a certified forklift technician or the official Yale service manual for your ERC050RF model.
വിൽപ്പനക്കാരൻ: Panda Solutions LLC
