Ygpmoiki LCD Display Screen Replacement User Manual for Motorola Moto Edge 30 Ultra XT2201

1. ആമുഖം

This manual provides detailed instructions for the installation, operation, and maintenance of the Ygpmoiki LCD Display Screen Touch Digitizer Assembly Replacement for the Motorola Moto Edge 30 Ultra XT2201. This product is designed to replace a damaged or malfunctioning screen, restoring full display and touch functionality to your device.

Please read this manual thoroughly before attempting any installation to ensure proper handling and to prevent damage to the product or your device.

2. ഉൽപ്പന്നം കഴിഞ്ഞുview

The Ygpmoiki LCD Display Screen is a complete assembly including the LCD display and touch digitizer. It is specifically manufactured for the Motorola Moto Edge 30 Ultra XT2201 model.

ചിത്രം: മുന്നിലും പിന്നിലും view of the Ygpmoiki LCD Display Screen replacement. The front shows the black display surface, and the back reveals the internal components and flexible connectors.

3. എന്താണ് ഉൾപ്പെടുത്തിയിരിക്കുന്നത്

പാക്കേജിൽ സാധാരണയായി ഇനിപ്പറയുന്ന ഇനങ്ങൾ ഉൾപ്പെടുന്നു:

• 1x Ygpmoiki LCD Display Touch Screen Digitizer Assembly Replacement for Motorola Moto Edge 30 Ultra XT2201 (6.67")
• A set of basic installation tools (may vary)

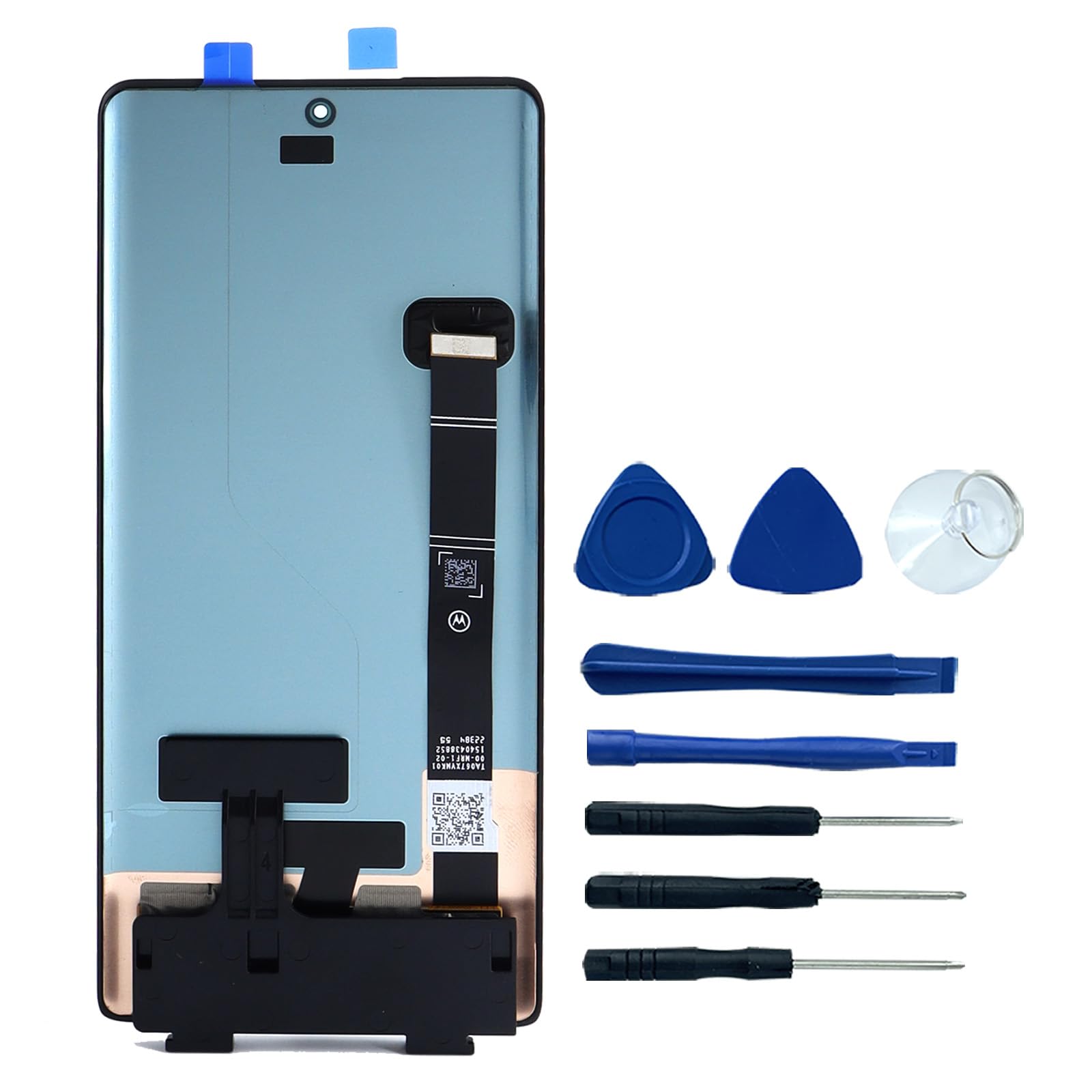

Image: The Ygpmoiki LCD Display Screen replacement laid out with a set of small tools, including screwdrivers, prying tools, and a suction cup, typically provided for installation.

4 അനുയോജ്യത

This LCD Display Screen Touch Digitizer Assembly is compatible exclusively with the following model:

• Motorola Moto Edge 30 Ultra XT2201 (6.67-inch display)

Please verify your phone's model number before purchasing and attempting installation to ensure compatibility.

5 പ്രധാന സവിശേഷതകൾ

• 100% Tested: Each unit is tested to ensure full functionality and quality before dispatch.
• Accurate Machine Hole Position: Designed for a precise fit, ensuring all sensors and cameras align correctly.
• പ്രശ്ന പരിഹാരം: Effectively addresses issues such as poor touch response, screen not displaying, or abnormal display.

ചിത്രം: ഒരു ക്ലോസ്-അപ്പ് view of the display's top section, highlighting the precise cutouts for the camera and sensors, with text indicating "100% Tested" and "Accurate machine hole position."

6. ഇൻസ്റ്റലേഷൻ മാർഗ്ഗനിർദ്ദേശങ്ങൾ

Professional installation is highly recommended. If you are not confident in your ability to perform the replacement, seek assistance from a qualified technician. Incorrect installation can cause damage to the screen or your device.

6.1. പ്രധാന മുൻകരുതലുകൾ

• പവർ ഓഫ്: Always power off your device completely before starting the replacement process.
• സ്റ്റാറ്റിക് ഇലക്ട്രിസിറ്റി: Take anti-static precautions (e.g., wear an anti-static wrist strap) to prevent damage to electronic components.
• ശ്രദ്ധയോടെ കൈകാര്യം ചെയ്യുക: The screen and its flexible cables are fragile. Avoid excessive force or bending.

6.2. Handling the Flexible Cable

The flexible cable (flex cable) connecting the display to the phone's motherboard is delicate. Improper handling can easily damage it, leading to display or touch issues.

ചിത്രം: വിശദമായ ഒരു ചിത്രം view of the back of the LCD display, showing the delicate flexible cable connector. Text warns, "Flexible cable. Please do not pull hard, it is easy to damage."

6.3. പ്രീ-ഇൻസ്റ്റലേഷൻ ടെസ്റ്റ്

Before fully installing the screen, it is crucial to perform a pre-installation test:

1. Connect the new display's flexible cable to the motherboard connector without fully adhering the screen.
2. ഫോൺ ഓൺ ചെയ്യുക.
3. Test the display for any abnormalities (dead pixels, lines, discoloration) and verify touch functionality across the entire screen.
4. If any issues are found, disconnect the screen and contact customer support. Do not proceed with full installation.

Only proceed with full installation if the screen functions perfectly during the test.

7. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

Once the new LCD display screen is successfully installed, your Motorola Moto Edge 30 Ultra XT2201 should operate as intended with full display and touch capabilities. No special operating procedures are required beyond normal phone usage.

7.1. Visual Guide to Product Features

8. പരിപാലനം

To ensure the longevity and optimal performance of your new display screen:

• സ്‌ക്രീൻ പരിരക്ഷണം: പോറലുകളിൽ നിന്നും ആഘാതങ്ങളിൽ നിന്നും സംരക്ഷിക്കാൻ ഒരു സ്‌ക്രീൻ പ്രൊട്ടക്ടറും ഒരു പ്രൊട്ടക്റ്റീവ് കേസും ഉപയോഗിക്കുന്നത് പരിഗണിക്കുക.
• വൃത്തിയാക്കൽ: Clean the screen with a soft, lint-free cloth. Avoid harsh chemicals or abrasive materials.
• സമ്മർദ്ദം ഒഴിവാക്കുക: Do not apply excessive pressure to the screen, as this can damage the LCD or digitizer.

9. പ്രശ്‌നപരിഹാരം

ഇൻസ്റ്റാളേഷന് ശേഷം നിങ്ങൾക്ക് പ്രശ്നങ്ങൾ നേരിടുകയാണെങ്കിൽ, ഇനിപ്പറയുന്ന പൊതുവായ പ്രശ്നങ്ങളും പരിഹാരങ്ങളും പരിഗണിക്കുക:

• Screen Not Displaying / Abnormal Display:
  • Check if the flexible cable is securely connected to the motherboard. Re-seat the connector carefully.
  • Ensure no pins on the connector are bent or damaged.
  • Verify that the phone's battery is charged.
• Touch Insensitivity / Unresponsive Touch:
  • Ensure the flexible cable for the digitizer is properly connected.
  • Clean the screen surface to remove any debris or moisture.
  • ഉപകരണം പുനരാരംഭിക്കുക.
• സ്‌ക്രീൻ മിന്നൽ:
  • എല്ലാ കേബിൾ കണക്ഷനുകളിലും അയവ് ഉണ്ടോ എന്ന് പരിശോധിക്കുക.
  • Ensure no foreign objects are interfering with the connections.

If troubleshooting steps do not resolve the issue, it may indicate a faulty part or an installation error. Contact customer support for further assistance.

10 സ്പെസിഫിക്കേഷനുകൾ

Image: A visual representation of the display's dimensions, showing a length of 6.3 inches, a width of 2.8 inches, and a diagonal measurement of 6.7 inches.

11. വാറൻ്റി വിവരങ്ങൾ

Specific warranty details for this product are not provided in the available information. Please refer to the seller's return policy or contact the seller directly for warranty inquiries. Typically, products are covered by a standard return window for manufacturing defects.

12. ഉപഭോക്തൃ പിന്തുണ

For any questions, technical assistance, or issues regarding your Ygpmoiki LCD Display Screen Replacement, please contact the seller directly through the platform where the purchase was made. Provide your order number and a detailed description of the issue for prompt support.
