CREWORKS 1.5-30mm Electric Wire Stripping Machine

1. ആമുഖം

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your CREWORKS 1.5-30mm Electric Wire Stripping Machine. This automatic wire stripper is designed to remove plastic and rubber insulation from old electrical wires, facilitating copper recovery. It features a 180W motor, capable of stripping wires at speeds up to 30 meters per minute, with a low noise level of 25 dB. The machine is equipped with 5 distinct feed channels, accommodating wire widths from 1.5 mm to 30 mm, making it suitable for a wide range of common wire sizes. Its durable construction, featuring a reinforced aluminum alloy frame and steel blades, ensures long-term reliability. A built-in cooling fan prevents overheating during extended use. Please read this manual thoroughly before operating the machine.

Figure 1: CREWORKS 1.5-30mm Electric Wire Stripping Machine.

2. സുരക്ഷാ നിർദ്ദേശങ്ങൾ

മെഷീനിന് പരിക്കുകളും കേടുപാടുകളും ഉണ്ടാകാതിരിക്കാൻ ഇനിപ്പറയുന്ന സുരക്ഷാ മാർഗ്ഗനിർദ്ദേശങ്ങൾ എല്ലായ്പ്പോഴും പാലിക്കുക:

• മാനുവൽ വായിക്കുക: പ്രവർത്തനത്തിന് മുമ്പ് എല്ലാ നിർദ്ദേശങ്ങളും മുന്നറിയിപ്പുകളും മനസ്സിലാക്കുക.
• വ്യക്തിഗത സംരക്ഷണ ഉപകരണങ്ങൾ (PPE): Always wear safety glasses, gloves, and appropriate work attire. Avoid loose clothing or jewelry that could get caught in moving parts.
• ജോലി ഏരിയ: Ensure your work area is clean, well-lit, and free from obstructions. Keep children and bystanders away from the machine during operation.
• ഇലക്ട്രിക്കൽ സുരക്ഷ: Connect the machine to a properly grounded power outlet. Do not operate in wet conditions or with wet hands. Inspect the power cord for damage before each use.
• ബ്ലേഡ് സുരക്ഷ: The blades are extremely sharp. Exercise extreme caution when adjusting or cleaning them. Always disconnect power before performing maintenance.
• അടിയന്തരമായി നിർത്തുക: അടിയന്തര സ്റ്റോപ്പ് ബട്ടണിന്റെ സ്ഥാനവും പ്രവർത്തനവും സ്വയം പരിചയപ്പെടുത്തുക.
• വയർ അനുയോജ്യത: Only strip wires within the specified diameter range (1.5 mm to 30 mm).
• വെൻ്റിലേഷൻ: Ensure adequate ventilation to prevent motor overheating. The integrated cooling fan assists in this.
• സുരക്ഷിത സ്ഥാനം: Anchor the machine to a stable workbench or surface before use to prevent movement during operation.

3. പാക്കേജ് ഉള്ളടക്കം

പാക്കേജിൽ എല്ലാ ഇനങ്ങളും ഉണ്ടെന്ന് ഉറപ്പാക്കുക:

• 1 x CREWORKS Electric Wire Stripping Machine
• 1 x ഉപയോക്തൃ മാനുവൽ
• 2 x Hex Wrenches (for adjustments)
• 1 x Ventilation Plug
• 2 x സംരക്ഷണ കയ്യുറകൾ

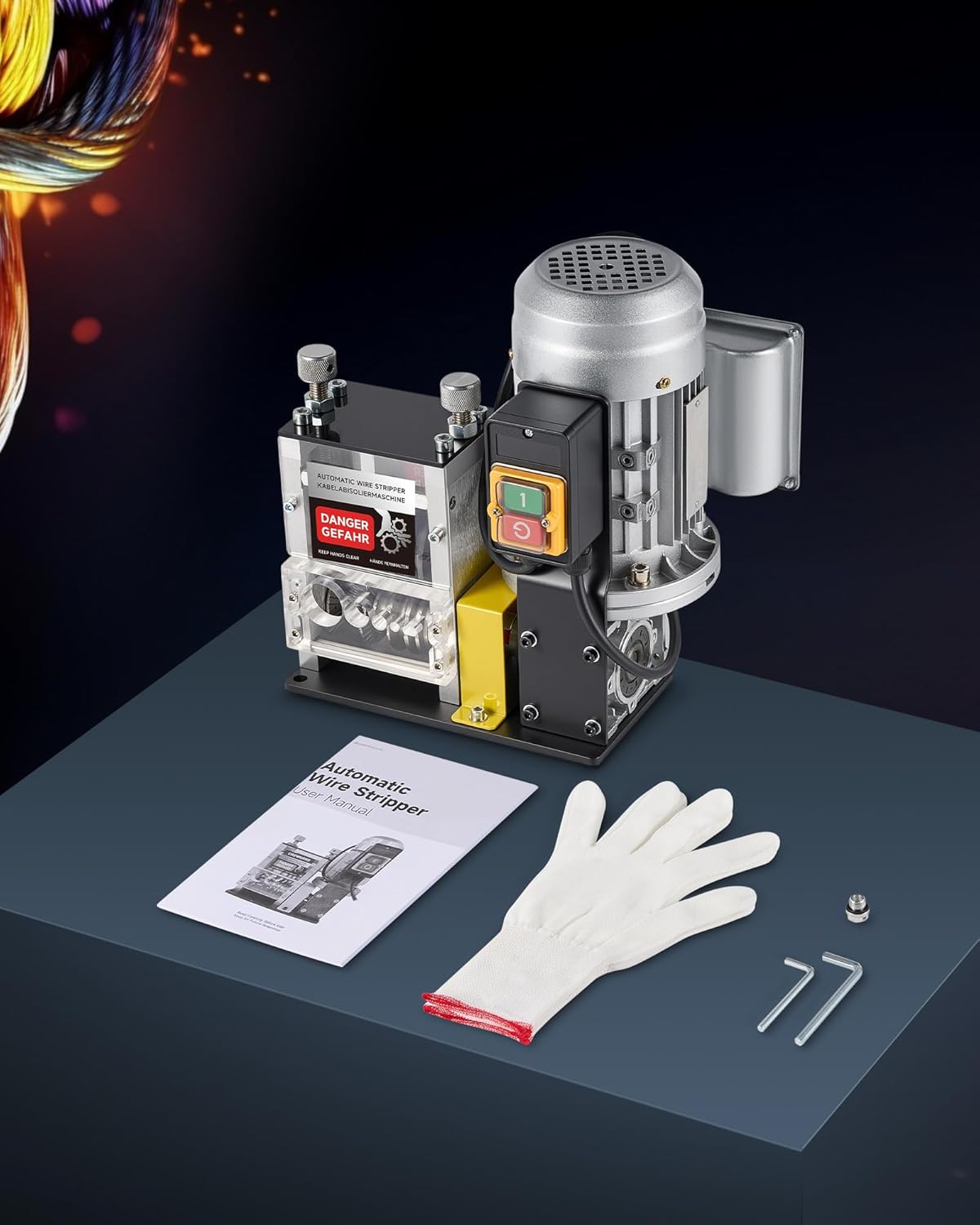

Figure 2: Package contents of the wire stripping machine.

4. ഉൽപ്പന്നം കഴിഞ്ഞുview

Familiarize yourself with the components of the wire stripping machine:

Figure 3: Product Diagram with labeled parts.

• മോട്ടോർ: Provides power for the stripping mechanism.
• Blade Adjustment Knobs: Used to precisely set the blade height for different wire diameters.
• Observation Window: Allows visual inspection of the stripping process.
• Blade Support: Holds the stripping blades in place.
• ബ്ലേഡ്: The cutting component that removes wire insulation.
• റോളർ: Guides the wire through the stripping mechanism.
• Feed Hole Plate: Features multiple channels for various wire sizes.
• നിർത്തുക ബട്ടൺ (ചുവപ്പ്): Immediately halts machine operation.
• Start Button (Green): Initiates machine operation.
• പവർ കോർഡ്: Connects the machine to the electrical supply.

Figure 4: Five distinct feed channels for various wire sizes.

5. സജ്ജീകരണം

1. അൺപാക്ക് ചെയ്യുന്നു: Carefully remove the machine and all accessories from the packaging. Retain packaging for future storage or transport.
2. പ്ലേസ്മെൻ്റ്: Place the wire stripping machine on a stable, level, and secure workbench. Use the mounting holes on the base to anchor the machine if prolonged or heavy-duty use is anticipated.
3. പവർ കണക്ഷൻ: Ensure the machine's power switch is in the 'OFF' position. Connect the power cord to a suitable grounded electrical outlet (refer to specifications for voltagഇ ആവശ്യകതകൾ).
4. ബ്ലേഡ് ഉയരം ക്രമീകരണം: Before stripping, adjust the blade height using the adjustment knobs. Select the appropriate feed channel for your wire diameter. Turn the adjustment knob until the blade just touches the insulation of the wire without cutting into the copper conductor. Test with a small piece of wire first.

Figure 5: Close-up of the ultra-sharp blades and V-shaped rollers.

6. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

Follow these steps for safe and effective wire stripping:

1. വയർ തയ്യാറാക്കുക: Ensure the wire is straight and free of kinks or bends.
2. ചാനൽ തിരഞ്ഞെടുക്കുക: Choose the feed channel that best matches the diameter of the wire you intend to strip.
3. Adjust Blade: Fine-tune the blade height using the adjustment knob for the selected channel. The blade should score the insulation without damaging the conductor.
4. മെഷീൻ ആരംഭിക്കുക: Press the green 'Start' button to power on the machine.
5. ഫീഡ് വയർ: Carefully insert the end of the insulated wire into the chosen feed hole. The rollers will automatically pull the wire through the machine.
6. Collect Stripped Wire: The stripped insulation will separate from the copper conductor, which will exit from the rear of the machine. Collect the stripped copper.
7. അടിയന്തരമായി നിർത്തുക: In case of any malfunction or emergency, immediately press the red 'Stop' button.
8. പവർ ഓഫ്: After use, press the red 'Stop' button and disconnect the machine from the power supply.

Figure 6: Easy-to-follow steps for operating the wire stripping machine.

Figure 7: The machine handles various wire types and sizes.

7. പരിപാലനം

Regular maintenance ensures optimal performance and extends the lifespan of your machine:

• വൃത്തിയാക്കൽ: After each use, disconnect the power and clean the machine. Remove any accumulated insulation debris from the blades, rollers, and feed channels using a brush or compressed air.
• ബ്ലേഡ് പരിശോധന: Periodically inspect the blades for wear, dullness, or damage. Sharp blades are crucial for efficient stripping. Replace dull or damaged blades promptly.
• ലൂബ്രിക്കേഷൻ: Apply a small amount of light machine oil to moving parts, such as the blade adjustment mechanism and rollers, as needed to ensure smooth operation.
• കൂളിംഗ് ഫാൻ: Ensure the cooling fan is free from dust and debris to maintain effective heat dissipation.
• സംഭരണം: ഉപയോഗത്തിലില്ലാത്തപ്പോൾ, വരണ്ടതും വൃത്തിയുള്ളതുമായ അന്തരീക്ഷത്തിൽ മെഷീൻ സൂക്ഷിക്കുക.

Figure 8: The powerful cooling fan helps prevent overheating.

8. പ്രശ്‌നപരിഹാരം

പൊതുവായ പ്രശ്നങ്ങളും അവയുടെ പരിഹാരങ്ങളും അറിയാൻ ഈ വിഭാഗം കാണുക:

9 സ്പെസിഫിക്കേഷനുകൾ

10. വാറൻ്റിയും പിന്തുണയും

For warranty information, please refer to the documentation included with your purchase or contact the retailer. For technical support, spare parts, or service inquiries, please contact CREWORKS customer service through their official website or the contact information provided in your purchase documentation. Please have your model number (WSM-NM30-DE) and purchase date available when contacting support.
