Yuecoom Ultrasonic Thickness Gauge Probe

1. ആമുഖവും അവസാനവുംview

This manual provides essential information for the proper use and maintenance of your Yuecoom 5 MHz Dia 8 Ultrasonic Thickness Gauge Probe. This probe is a lightweight, portable, and intelligent sensor designed for accurate, non-contact thickness measurement across a wide range of materials.

The probe is specifically engineered for compatibility with ultrasonic thickness gauges such as the GM130 and GM100 models. Its advanced features include high-precision measurement capabilities at micron levels and an automatic calibration function, ensuring reliable and consistent results for various industrial and manufacturing applications.

The ultrasonic probe is designed for non-contact measurement, ensuring the integrity of the object's surface. It connects to compatible thickness gauges via its dual cables.

2. സജ്ജീകരണം

To set up your ultrasonic thickness gauge probe, follow these steps:

1. Inspect the Probe: Before each use, visually inspect the probe and its cables for any signs of damage, wear, or loose connections. Ensure the sensor head is clean and free from debris.
2. ഗേജിലേക്ക് കണക്റ്റുചെയ്യുക: Connect the probe's dual connectors securely to the corresponding ports on your compatible ultrasonic thickness gauge (e.g., GM130 or GM100). Ensure a firm connection to prevent signal loss.
3. പവർ ഓൺ: Turn on your ultrasonic thickness gauge according to its specific operating instructions.
4. പ്രാരംഭ കാലിബ്രേഷൻ: Perform an initial calibration as instructed by your thickness gauge's manual. The probe features an automatic calibration function, which simplifies this process.

No complex setup procedures are required, making the probe ready for use quickly and efficiently.

3. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

The Yuecoom ultrasonic probe is designed for straightforward operation, providing accurate thickness measurements.

• നോൺ-കോൺടാക്റ്റ് മെഷർമെന്റ്: The probe utilizes non-contact measurement technology. Simply place the sensor head firmly and flat against the surface of the object to be measured. Ensure there is good coupling between the probe and the material.
• Wide Material Range: This probe can measure the thickness of various materials, including metals, non-metals, plastics, and glass. Its versatility makes it suitable for diverse applications without needing to switch probes.
• ഉയർന്ന കൃത്യത: The probe delivers high-precision measurements, often at micron levels, crucial for industrial and manufacturing demands. The connected gauge will display the measurement results rapidly.
• യാന്ത്രിക കാലിബ്രേഷൻ: The integrated automatic calibration function ensures quick and accurate calibration, reducing the influence of external environmental factors and enhancing measurement reliability.

The probe provides high-precision measurements, often at micron levels, and features an automatic calibration function for reliable and consistent results.

This probe is capable of accurately measuring the thickness of a wide variety of materials, such as metals, non-metals, plastics, and glass, making it suitable for diverse industrial applications.

4. പരിപാലനം

Proper maintenance ensures the longevity and accuracy of your ultrasonic probe:

• വൃത്തിയാക്കൽ: After each use, gently wipe the sensor head and cables with a soft, dry cloth to remove any couplant residue, dust, or dirt. Do not use abrasive cleaners or solvents.
• സംഭരണം: Store the probe in a clean, dry environment, away from extreme temperatures, humidity, and direct sunlight. Avoid bending or kinking the cables excessively.
• പരിശോധന: Periodically inspect the probe's cable connections and the sensor head for any signs of damage, such as cracks, fraying, or corrosion. Replace the probe if significant damage is observed.

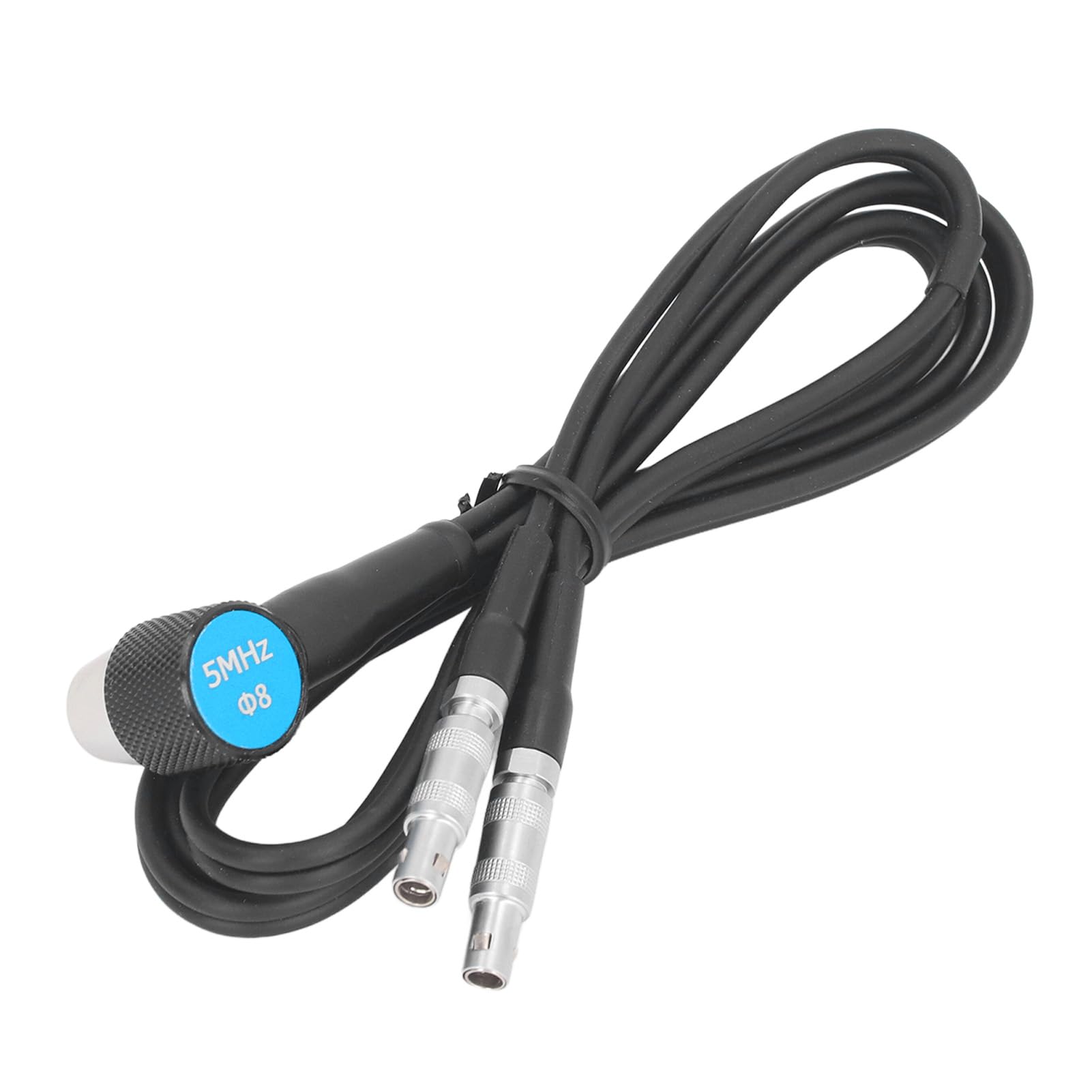

എ വിശദമായി view of the probe's sensor head, highlighting its robust construction and clear labeling for frequency and diameter.

5. പ്രശ്‌നപരിഹാരം

If you encounter issues with your probe, consider the following common troubleshooting steps:

• No Reading or Erratic Readings:
  • Ensure the probe is securely connected to the thickness gauge.
  • Verify that the sensor head is clean and making good contact with the material surface.
  • Check if sufficient couplant is applied between the probe and the material (if required by your gauge).
  • Recalibrate the probe and gauge according to the gauge's instructions.
• കൃത്യമല്ലാത്ത വായനകൾ:
  • Perform a calibration on a known thickness standard.
  • Ensure the material's surface is clean and smooth. Rough surfaces can affect accuracy.
  • Check the material velocity setting on your thickness gauge, if applicable.
• Probe Not Recognized:
  • Ensure the probe is fully compatible with your specific thickness gauge model (e.g., GM130, GM100).
  • Check for any damage to the probe cables or connectors.

If problems persist after attempting these steps, refer to your thickness gauge's manual or contact customer support.

6 സ്പെസിഫിക്കേഷനുകൾ

7. വാറൻ്റിയും പിന്തുണയും

Your Yuecoom Ultrasonic Thickness Gauge Probe is designed for durability and performance. For support and warranty information, please refer to the following:

• തിരികെ നൽകൽ നയം: This product typically includes a 30-day return policy. Please check your purchase details for specific terms.
• വിപുലീകരിച്ച വാറൻ്റി: Extended warranty options, such as those offered by Assurant (e.g., 3 or 4-year home improvement extended warranty), may be available for purchase. Review these options at the time of purchase or through your retailer.
• നിർമ്മാതാവിൻ്റെ പിന്തുണ: For technical assistance or inquiries regarding the product, please contact Yuecoom customer service.
• വിൽപ്പനക്കാരുടെ പിന്തുണ: If purchased from a third-party seller like Duyonzz, you may also contact them for order-specific support.

Always retain your proof of purchase for warranty claims or support requests.
