1. ആമുഖം
വാങ്ങിയതിന് നന്ദി.asing the VILCORN Replacement Joypad L/R Pro Controller. This versatile gamepad is designed to enhance your gaming experience on Nintendo Switch, Switch Lite, and Switch OLED consoles. It offers a range of features including motion sensing, adjustable vibration, customizable RGB lighting, and flexible connection options. Please read this manual carefully to ensure proper use and optimal performance of your controller.
2. ഉൽപ്പന്ന സവിശേഷതകൾ

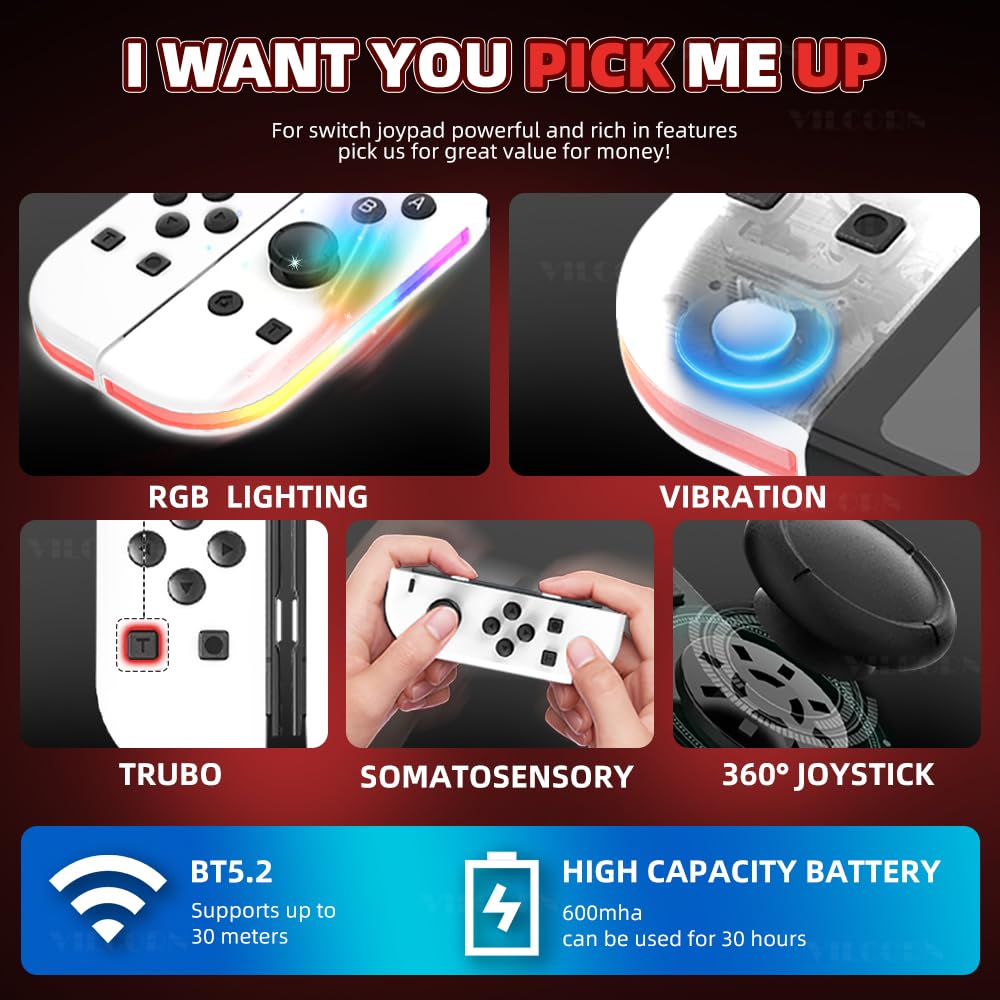

- വിശാലമായ അനുയോജ്യത: Fully compatible with Nintendo Switch, Switch Lite, and Switch OLED consoles.
- ഡൈനാമിക് RGB ലൈറ്റിംഗ്: Unique RGB light changes add visual flair to your gaming.
- വിപുലീകരിച്ച ബാറ്ററി ലൈഫ്: Each handle features a built-in 500mAh lithium battery, providing up to 18 hours of continuous play after approximately 3 hours of charging.
- Enhanced Gaming Functions: Supports wireless connectivity, motion sensing (6-axis gyro), and 3-level vibration for immersive gameplay.
- ഫ്ലെക്സിബിൾ കണക്ഷൻ ഓപ്ഷനുകൾ: Can be used wirelessly or via wired connection. The individual L/R joypads can also be combined into a single gamepad using the included grip.
- മോടിയുള്ള ഡിസൈൻ: Compact, lightweight, and drop-resistant for portability and longevity.
- ബുദ്ധിപരമായ സംരക്ഷണം: Features an intelligent chip with overcharge protection to safeguard the battery during charging.
3. പാക്കേജ് ഉള്ളടക്കം
എല്ലാ ഇനങ്ങളും ഉണ്ടെന്ന് ഉറപ്പാക്കാൻ പാക്കേജ് പരിശോധിക്കുക:
- VILCORN Replacement Joypad (L/R) x 1 set
- ടൈപ്പ്-സി ചാർജിംഗ് കേബിൾ x 1
- ഇൻസ്ട്രക്ഷൻ മാനുവൽ x 1
Image: The VILCORN Joypad set and its accompanying Type-C charging cable, as included in the package.
4. ഉൽപ്പന്നം കഴിഞ്ഞുview
Familiarize yourself with the components of your VILCORN Joypad:
Image: Diagram illustrating the key parts of the VILCORN Joypad grip. 1. Charging Port: Used to connect the power adapter and Type-C charging cable. 2. Indicator Light: Displays the serial number assigned to the joypad handle. 3. Charging Indicator: Red light means charging, Green light means charging is complete. 4. Slide: Area for installing the joypad gamepad.
Image: The VILCORN Joypad L/R controllers attached to the central grip, forming a complete gamepad.
5. സജ്ജീകരണവും കണക്ഷനും
5.1 Attaching to Nintendo Switch Console
- Align the rail on the side of the Joypad with the rail on the Nintendo Switch console.
- Slide the Joypad downwards until you hear a click, indicating it is securely attached.
- Repeat for the other Joypad. The console should automatically recognize the controllers.
5.2 Using with Charging Grip (Combined Gamepad)
- Slide the Left Joypad onto the left rail of the charging grip until it clicks.
- Slide the Right Joypad onto the right rail of the charging grip until it clicks.
- The combined gamepad can now be used wirelessly or connected via the Type-C cable for wired play and charging.
Image: The VILCORN Joypad L/R controllers attached to the central grip, forming a complete gamepad.
ചിത്രം: ക്ലോസ്-അപ്പ് view of the VILCORN Joypad grip showing the Type-C interface for charging and wired connection, along with molded slots for secure attachment.
5.3 Wireless Connection (Bluetooth)
- നിൻടെൻഡോ സ്വിച്ച് ഹോം മെനുവിൽ നിന്ന്, "കൺട്രോളറുകൾ" > "ഗ്രിപ്പ്/ഓർഡർ മാറ്റുക" തിരഞ്ഞെടുക്കുക.
- Press and hold the SYNC Button on the Joypad(s) you wish to pair for a few seconds. The player indicator lights will flash.
- Once paired, the player indicator light(s) will remain solid.
The controller supports Bluetooth 5.2 for stable wireless connection up to 30 meters.
5.4 പിസി കണക്ഷൻ
The VILCORN Joypad can be connected to a PC. For optimal performance, a wired connection via the Type-C cable is recommended. Ensure your PC's operating system and games support external controllers.
6. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
6.1 Motion Sensing and Vibration
The controllers feature 6-axis gyro motion sensing and 3-level adjustable vibration feedback. These functions are automatically enabled when supported by the game.
6.2 RGB ലൈറ്റിംഗ്
The Joypads are equipped with RGB lighting. The lighting effects are pre-programmed and activate during gameplay, adding to the visual experience.
Image: The VILCORN Joypad L/R controllers displaying their dynamic RGB lighting during use.
6.3 ടർബോ ഫംഗ്ഷൻ
The controller includes a Turbo function for rapid-fire inputs. Refer to the specific button layout on your controller for the Turbo button and its activation method. Typically, you press the Turbo button along with the desired action button to enable or disable rapid fire.
Image: A close-up of the VILCORN Joypad highlighting the Turbo button and its location.
7. ചാർജിംഗ് നിർദ്ദേശങ്ങൾ
The VILCORN Joypads can be charged while attached to the Switch console, or when combined with the charging grip using the provided Type-C cable.
- Connect the Type-C charging cable to the charging port on the grip (or directly to the console if charging attached).
- Connect the other end of the cable to a USB power source (e.g., Switch dock, USB wall adapter, PC USB port).
- The charging indicator lights on the grip will show a red light during charging.
- Once fully charged (approximately 3 hours), the charging indicator light will turn green.
The intelligent chip provides overcharge protection, allowing you to play games while the controllers are charging without risk of damage.

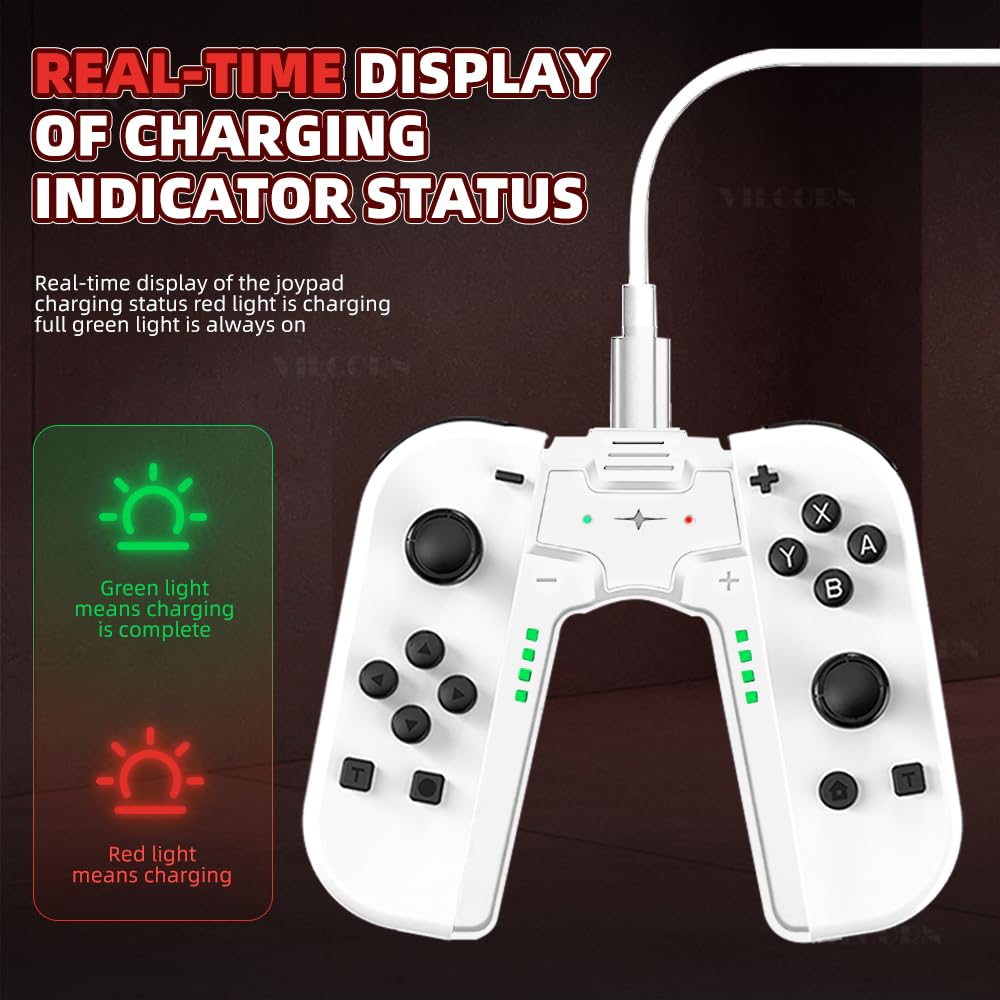

Image: The VILCORN Joypad grip connected to a charging cable, showing the charging indicator lights. Red indicates charging, green indicates fully charged.
Image: A user playing a game with the VILCORN Joypad connected to a charging cable, demonstrating the play-while-charging feature with overcharge protection.
8. പരിപാലനം
- മൃദുവായതും ഉണങ്ങിയതുമായ തുണി ഉപയോഗിച്ച് തുടച്ച് കൺട്രോളർ വൃത്തിയായി സൂക്ഷിക്കുക.
- കൺട്രോളറെ തീവ്രമായ താപനില, ഈർപ്പം അല്ലെങ്കിൽ നേരിട്ടുള്ള സൂര്യപ്രകാശം എന്നിവയിൽ തുറന്നുകാട്ടുന്നത് ഒഴിവാക്കുക.
- Do not disassemble the controller, as this may void the warranty and cause damage.
- Store the controller in a safe place when not in use to prevent accidental drops or damage.
9. പ്രശ്നപരിഹാരം
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| Controller does not connect wirelessly. | Low battery, out of range, pairing issue. | Charge the controller. Ensure it is within 30 meters of the console. Re-attempt pairing via "Change Grip/Order" menu. |
| Controller not recognized by PC. | Driver issue, incompatible game, loose connection. | Ensure a secure wired connection. Check PC device manager for driver issues. Verify game supports external controllers. |
| ബട്ടണുകളോ ജോയ്സ്റ്റിക്കുകളോ പ്രതികരിക്കുന്നില്ല. | ബാറ്ററി കുറവ്, സോഫ്റ്റ്വെയർ തകരാർ, ശാരീരിക ക്ഷതം. | Charge the controller. Restart the Nintendo Switch console. If issue persists, contact support. |
| ചാർജിംഗ് ഇൻഡിക്കേറ്റർ പ്രവർത്തിക്കുന്നില്ല. | Cable issue, power source issue, controller fault. | Try a different Type-C cable and power source. Ensure the cable is fully inserted. |
10 സ്പെസിഫിക്കേഷനുകൾ
- മോഡൽ: B0D421J4ZP
- അനുയോജ്യമായ ഉപകരണങ്ങൾ: Nintendo Switch, Nintendo Switch Lite, Nintendo Switch OLED, PC
- കൺട്രോളർ തരം: L/R Controller (Detachable)
- കണക്റ്റിവിറ്റി ടെക്നോളജി: Wireless (Bluetooth 5.2), Wired (Type-C)
- ബാറ്ററി ശേഷി: 500mAh per Joypad
- ചാർജിംഗ് സമയം: ഏകദേശം 3 മണിക്കൂർ
- പ്രവർത്തന സമയം: 18 മണിക്കൂർ വരെ (ഏകദേശം)
- അധിക സവിശേഷതകൾ: Motion Sensing (6-Axis Gyro), 3-Level Vibration, RGB Lighting, Turbo Function, Overcharge Protection
- നിർമ്മാതാവ്: SHENZHEN JIAJUE TECHNOLOGY CO. LTD
11. ഔദ്യോഗിക ഉൽപ്പന്ന വീഡിയോ
Video: An official product video from VILCORN Global Store demonstrating the features and usage of the Wireless Gamepad for Switch controllers. It shows the controllers being attached to the grip, real-time power display, and play-while-charging functionality.
12. വാറൻ്റിയും പിന്തുണയും
VILCORN products are designed for quality and reliability. For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official VILCORN webസൈറ്റ്. വാറന്റി ക്ലെയിമുകൾക്കായി നിങ്ങളുടെ വാങ്ങലിന്റെ തെളിവ് സൂക്ഷിക്കുക.
നിർമ്മാതാവ്: SHENZHEN JIAJUE TECHNOLOGY CO. LTD
For further assistance, please contact your retailer or the VILCORN Global Store directly.
