InAndOn Chinese Karaoke System KV-V5 MAX User Manual

1. ആമുഖം

The InAndOn KV-V5 MAX is a sophisticated karaoke system designed for home entertainment. It features an 18.5-inch capacitive touch screen, access to a vast 650,000-song cloud library, and integrated YouTube online play. This manual provides comprehensive instructions for setup, operation, and maintenance to ensure optimal performance.

2. ബോക്സിൽ എന്താണുള്ളത്?

Please check the contents of your package. The InAndOn KV-V5 MAX system includes:

• 1 x InAndOn KV-V5 MAX Karaoke Machine with 4TB hard drive
• 2 x വയർലെസ് മൈക്രോഫോണുകൾ
• 1 x Power Adapter for Karaoke Machine
• 1 x Power Adapter for Touch Screen
• Necessary connection cables (HDMI, RCA, VGA, Network)

3. സജ്ജീകരണം

Proper connection of your InAndOn KV-V5 MAX system is crucial for optimal performance. The karaoke machine requires connection to an amplifier, microphone, and speakers to function.

3.1. സിസ്റ്റം ഓവർview കണക്ഷനുകളും

The rear panel of the karaoke machine features various ports for connectivity. Familiarize yourself with these ports before proceeding with connections.

3.2. Connecting the Touch Screen

The touch screen is an integral part of the system, allowing for easy song selection and control. It connects to the main karaoke unit via dedicated cables.

1. Connect the touch screen VGA cable to the VGA output port on the karaoke host.
2. Connect the touch screen network cable to the TOUCH SCREEN interface on the karaoke host.
3. Connect the touchscreen power adapter to the touchscreen's power input.

3.3. Audio and Video Connections

Connect the karaoke machine to your display (TV/projector) and audio system (amplifier/speakers) using the appropriate cables.

• വീഡിയോ ഔട്ട്പുട്ട്: Connect an HDMI cable from the 'HD OUT' port on the karaoke machine to an HDMI input on your TV or projector. Alternatively, use a VGA cable from the VGA output to a compatible display.
• ഓഡിയോ ഔട്ട്പുട്ട്: Connect RCA red and white cables from the 'AUDIO OUT' ports on the karaoke machine to the audio input of your amplifier or sound system. For digital audio, use an optical cable from the 'OPTICAL' output to a compatible receiver or soundbar.
• മൈക്രോഫോൺ കണക്ഷൻ: Connect the RCA red and white cables from the audio output of the microphone host to the AUX IN of the microphone host. The microphone host then connects to the karaoke machine.
• ശക്തി: Connect the karaoke machine's power adapter to the DC 12V input on the machine, and then plug it into a power outlet.

4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

The InAndOn KV-V5 MAX offers a user-friendly interface and multiple ways to select and enjoy your favorite songs.

4.1. പവർ ഓണും പ്രാരംഭ സജ്ജീകരണവും

1. എല്ലാ കണക്ഷനുകളും സുരക്ഷിതമാണെന്ന് ഉറപ്പാക്കുക.
2. Press the power button on the karaoke machine to turn it on.
3. The system will boot up and display the main interface on the touch screen and connected TV.
4. Select your preferred system language from the available options, including Chinese, English, Japanese, Korean, and others.

4.2. Song Selection and Playback

The KV-V5 MAX provides various methods for song selection:

• ടച്ച് സ്ക്രീൻ: Use the 18.5-inch capacitive touch screen to navigate through artists, song titles, genres, and charts.
• Cloud Song Library: Access over 650,000 songs from the cloud library. New songs are updated weekly and can be downloaded for free.
• യുഎസ്ബി ഇൻപുട്ട്: Add songs in batch via a USB drive.
• സ്മാർട്ട്‌ഫോൺ/ടാബ്‌ലെറ്റ് നിയന്ത്രണം: Use a dedicated app on your smartphone or tablet as a remote control to select songs and manage the queue.
• AI വോയ്‌സ് റെക്കഗ്നിഷൻ: Utilize AI voice recognition for song control (primarily supports Mandarin voice commands).
• YouTube Online Play: Stream songs directly from YouTube via the integrated Android system.

4.3. വിപുലമായ സവിശേഷതകൾ

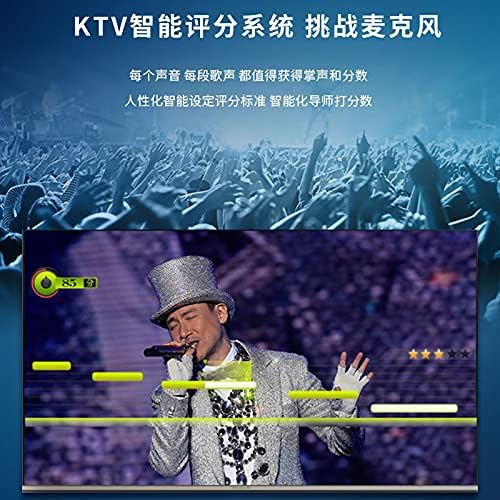

• Song Scoring: Engage with the KTV intelligent scoring system to evaluate your singing performance.
• റെക്കോർഡിംഗ്: Utilize the recording feature to capture and review your vocal performances.
• ഓഡിയോ നിയന്ത്രണം: Adjust music volume, treble, mid, bass, microphone volume, and apply effects like echo directly from the touch screen or remote.
• Smart Song Deletion: The system can intelligently delete less frequently played songs based on hard drive capacity.

5. പരിപാലനം

To ensure the longevity and optimal performance of your InAndOn KV-V5 MAX karaoke system, follow these maintenance guidelines:

• വൃത്തിയാക്കൽ: Use a soft, dry cloth to clean the touch screen and exterior surfaces. Avoid abrasive cleaners or solvents.
• വെൻ്റിലേഷൻ: Ensure adequate ventilation around the karaoke machine to prevent overheating. Do not block any ventilation openings.
• സംഭരണം: ദീർഘനേരം ഉപയോഗിക്കാത്തപ്പോൾ, നേരിട്ടുള്ള സൂര്യപ്രകാശത്തിൽ നിന്നും കടുത്ത താപനിലയിൽ നിന്നും അകന്ന് തണുത്തതും വരണ്ടതുമായ സ്ഥലത്ത് സിസ്റ്റം സൂക്ഷിക്കുക.
• സോഫ്റ്റ്‌വെയർ അപ്‌ഡേറ്റുകൾ: Regularly check for and install system software updates to enhance features and improve stability.

6. പ്രശ്‌നപരിഹാരം

If you encounter any issues with your InAndOn KV-V5 MAX, refer to the following common troubleshooting steps:

• ശക്തിയില്ല: Check if the power adapter is securely connected to both the machine and a working power outlet. Ensure the power switch on the rear panel is in the 'ON' position.
• വീഡിയോ ഔട്ട്പുട്ട് ഇല്ല: Verify that the HDMI or VGA cable is correctly connected to both the karaoke machine and your display. Ensure the correct input source is selected on your TV/projector.
• ഓഡിയോ ഔട്ട്പുട്ട് ഇല്ല: Confirm that the RCA or optical audio cables are properly connected to your amplifier/sound system. Check the volume levels on both the karaoke machine and your audio system. Ensure the amplifier/sound system is set to the correct input source.
• മൈക്രോഫോൺ പ്രവർത്തിക്കുന്നില്ല: Check if the wireless microphones are powered on and paired correctly with the microphone host. Ensure the microphone host is connected to the karaoke machine's audio input. Adjust microphone volume and effects.
• ടച്ച് സ്‌ക്രീൻ പ്രതികരിക്കുന്നില്ല: Restart the karaoke machine. Ensure the touch screen's network and power cables are securely connected.
• Cannot Access Cloud Songs: Verify that the karaoke machine is connected to the internet via Wi-Fi or LAN. Check your internet connection status.

7 സ്പെസിഫിക്കേഷനുകൾ

8. വാറൻ്റി

The InAndOn KV-V5 MAX Karaoke System comes with a 1-year warranty from the date of purchase. This warranty covers manufacturing defects and malfunctions under normal use. Please retain your proof of purchase for warranty claims. For detailed terms and conditions, refer to the warranty card included in your package or contact customer support.

9. ഉപഭോക്തൃ പിന്തുണ

For any questions, technical assistance, or support regarding your InAndOn KV-V5 MAX Karaoke System, please contact our customer support team:

• ഇമെയിൽ: support@inandonservice.com
• Webസൈറ്റ്: www.inandonservice.com
• ഫോൺ: നിങ്ങളുടെ ഉൽപ്പന്ന പാക്കേജിംഗിൽ നൽകിയിരിക്കുന്ന ബന്ധപ്പെടാനുള്ള വിവരങ്ങൾ പരിശോധിക്കുക.

Please have your model number (KV-V5 MAX) and purchase date ready when contacting support.
